Haier HWM80-0528 Manuel utilisateur

Fully Automatic Washing Machine

with Pump

User's manual

Fully Automatic Washing Machine

With Pump

ser's m nual

This manual is for

Please read this manual

carefully before using.

Retain it for future reference.

HWM80-0528

User's manual

0030805169K

CONTENTS

Names of the parts……………………………………1

Safety precautions… … … … … … … … … … … … … … 2

Installation and adjustment…………………………4

Install the water inlet hose……………………………6

Preparation before washing…………………………8

Put in the laundries…………………………………9

Usage of the detergent ………………

… … … … … … … … … … … … … … …

Use the operation buttons……………………………10

Finish washing………………………………………12

Disposal after washing………………………………13

Trouble-shooting Answer to question……………14

Packing list……………………………………………15

Specification………………………………………………16

………… …… 9

Close the top lid 9

Control panel

Inner tub

Detergent box

Top lid component

Balance ring

Lint filter

Pulsator

Front control

board

Cabinet

Adjustable leg

Fixed leg

(3 pieces)

Adjustable

leg film

Handle

Water absorption

cushion

Water valve

Back cover

Names of the parts

Contents marked with that symbol are related to the

safety of the product and the personal safety of the

users. Please operate in strict conformity to the

contents, otherwise it may cause damage of the

machine or injure the personal safety of the user.

Contents marked with that symbol are actions forbidden

to perform. Performing of those actions may result in

damage of the machine or injure the personal safety of

the user.

Meaning and description of the symbols

Warning sign

Forbidden sign

Drain protective lid

Drain ho se

(installed by user)

Screw cover

Hook

Safety precautions

Do not let the machine share one receptacle with

other electric appliances. If the plugging into the

receptacles loose, do not use the plug any more.

If washing machine is supplied from a cord

extension set or electrical portable outlet device,

no cord extension set or electric portable outlet

device should be positioned so it is not subject to

splashing or ingress of moisture.

Do not wash water-proof

laundries like the raincoat, bike

covers etc. to avoid abnormal

vibrations in spinning.

Do not put the machine at damp place

like the bathroom. Never wash it with

water. Do not put wet laundries on the

control panel.

Do not use water hotter than 50℃.

In case the washing machine is installed

on ground with carpet, do not block the

ventilation hole with carpet.

Ensure carpet does not

obstruct the

opening in

the bases.

Please plug the power plug on special

receptacle. Be sure to use three-pins

power receptacle. Ensure that the earthing

prong of the power receptacle is earthed

reliably. Use leakage protector if possible.

Do not bend ,extend, twist, bind by force. Do not press or nip it with weight.

Keep the pin of the power plug clean, if the power plug is polluted with dust,

please wipe with dry cloth carefully.

If the supply cord is damaged, it must be replaced by

the manufacturer or its service agent or a similarly

qualified person in order to avoid a hazard.

The washing machine must be positioned

so that the plug is accessible. Be sure to pull

the plug off and close the water faucet in

following cases: power failure, delivering

the machine, setting the machine idle or

cleaning the machine.

Do not plug or pull the

power plug with wet

hand.

50 C

The ventilation holes

at the bottom

Carpet

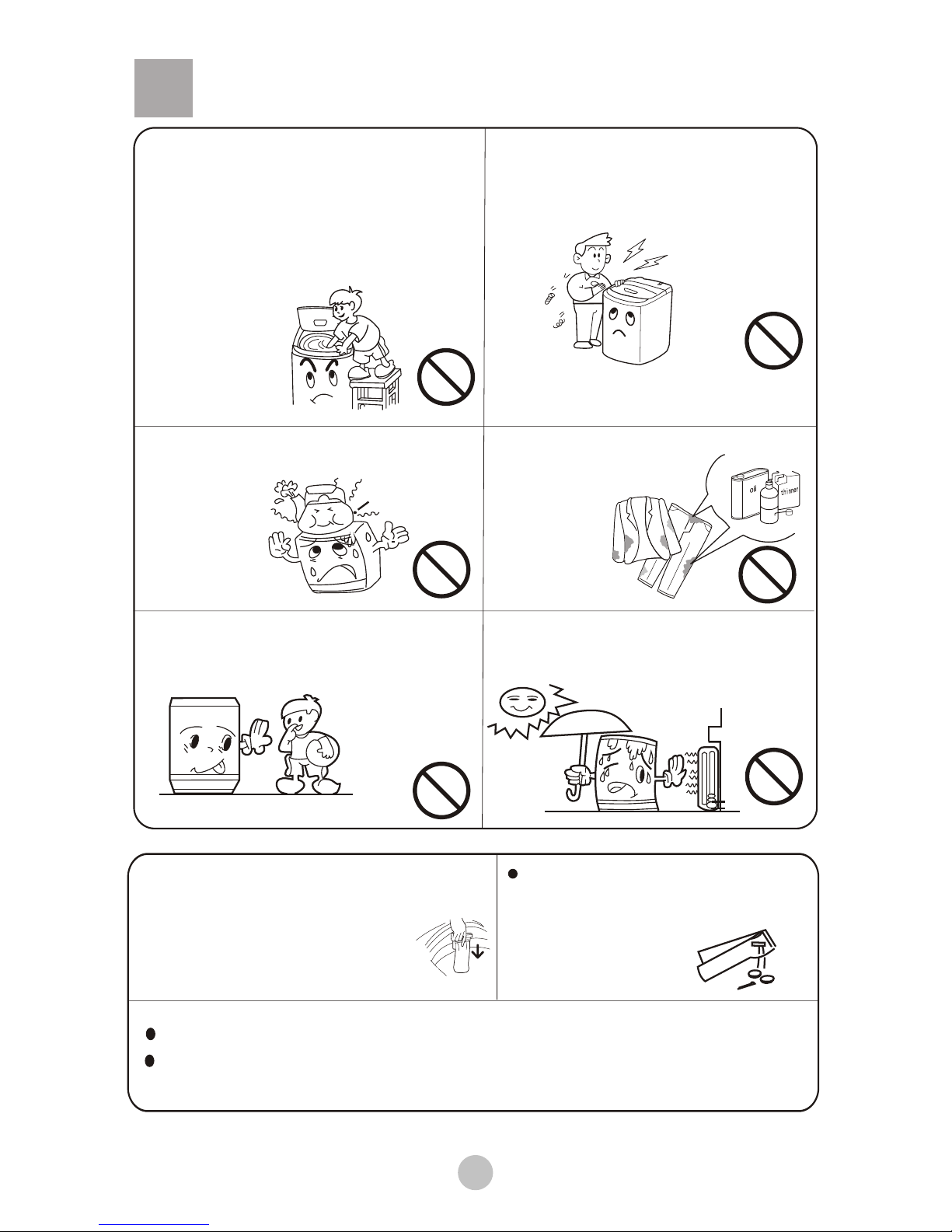

Do not put hand into the rotating tub.

It is dangerous even if the rotation

speed is slow. Take special care of the

children. Keep children awa y from the

washing machine to avoid them climbing

on it.

The appliance is not instruct for use of

young children of infirm persons wi thout

supervision.

Young children

should be

supervised to

ensure that they

do not play with

the appliance.

Do not decompose, repair or alter

the machine by yourself.

Do not put any hot or heavy items

(such as the kettle with hot water) on

the washing

machine.

Do not wash laundries with volatile

materials (such as

thinner,

petrol etc.).

Keep the machine away from

direct sunlight and heat source

like the heater.

The handicapped or children shall

not use the machine without care.

Benzene

Safety precautions

To prevent the lint in the tub from blocking the

cascade outlet and influencing the cascade

effect, please keep the lint filter in good

condition, and install it to proper position

during washing. If the lint filter is lost or

damaged, please contact the local

after-sales service department of our company.

To protect your laundries and washing

machine, please take out all of the coins,

buttons, sand, hairpin and other foreign

materials before washing.

Please check if the water faucet is open, and if the connection of the water inlet pipe is proper.

It is suggested to use foamless washing powder.

Install the bottom plate

After you open the package, please lean

the washing machine gently down on Soft

object ( like the towel cloth,blanket, etc. ).

Install the bottom plate to the bottom of the

machine with the eight screws by a cross

screwdriver, then lift the machine up gently.

See to the figure:

Please install and adjust the machine according to the requirement of

the manual. It is very important to your security and correct

operating the machine.

Installation and adjustment

The largest allowable slope of the shank base of the machine is 2°.The

slanting or rough ground will result in unstable running or stoppage of the

machine. Please adjust it with following methods:

Confirm it's horizontal:

Hang the lead line to check if it is

horizontal.

Adjust the adjustable leg:

≤2゜

Adjust the Installation position

1 .To twist the adjustable leg, please first

lift up the side of the leg slightly, loosen

the adjustable nut, and twist the leg.

2 . After adj ust ment , fast en the nut .

After opening the package, please take out the lint

filter from the document bag, install it to the inner

tub. See to the figure.

Install the lint filter

Inner tub

Lint filter

Fasten

Loosen

High Low

the adjustable nut

the adjustable

feet

Soft object

Bottom plate

Back

Screw

Front

How to change the direction of the drain hose

1.Dismantle the back cover of the washing

machine.

3.Dismantle the protecting cover of the

drain outlet at the other side (method

the same as the bushing). Install the

bushing as per indicated in Figure 4.

4.Extend the drain hose from the other

side. Fix the drain hose onto the base

frame with the drain hose frame. (As

indicated in Figure 5)

5.Install the protecting cover of the drain

outlet at the other side as per indicated

in Figure 6.

Drain outlet

protecting cover

Drain hose bushing Drain hose bushing

Figure 1

Figure 4

Figure 5

Figure 6

Drain hose

bushing

Take off

Drain hose

bushing claw

Cabinet

Figure 2

Figure 3

Inner

Press

Outer

2.Put down the drain hose. Take off the

drain hose frame. As indicated in Figure

1, put the drain hose into the cabinet.

Then stretch one hand into the cabinet

to nip the claw of the drain hose bush-

ing to remove the claw from original

position. Take off the drain hose bush-

ing with the other hand. (As indicated in

Figure 2 and 3).

Drain hose frame

Outer

drain

hose

Usage of the drain hose

1.Put the drain hose up to suitable position.Do not

put it on ground.

2.Do not tramp or press the drain hose.

0.8<H<1.2m

Water tap,suitable Water tap,not suitable

It is required that the front end shall be longer than 10mm.

The outlet end surface of the tap shall be flat and smooth. If not please file it to

avoid leakage.

2.Loosen the screw till the water tap can be accessed. Put the jointer of the water

inlet hose on the tap. See to Figure 2. (If the tap diameter is too large and the jointer

can not be set on the water tap, please loosen the four screws and take out the

bushing in the jointer. See to the figure3.)

1.Press the lower end of the lock lever and push down the slider. Take off the water

inlet hose jointer from the water inlet hose component. See to Figure 1.

Remarks: Before twisting the fastening nut, the thread is 4mm above the

upper surface of the nut. After twisting the fastening nut, the thread is 2mm

above the upper surface of the nut. See to Figure 6.

4.Take off the nameplate. Twist the fastening nut as per the indication of the figure.

See to Figure 5.

3.Fasten the four screws evenly. See to Figure 4.

>10mm

Outlet end surface

Nut

About 4mm before twisting

About below 2mm after twisting

Screw

Screwdriver Mark label bushing

Figure 2

Figure 5

Figure 1

Figure 4

Figure 3

Figure 6

Slider

Water inlet pipe jointer

Water inlet pipe

Locking lever

Install the water inlet hose

Confirm the water tap

Connection between the water inlet hose jointer and

the water tap

1.Do not take off the water absorption

cushion. Please check if the cushion

is dropped or damaged before each

usage. If it happens please contact

our after-sale department immediately.

2.Put the nut of the water inlet hose on

the valve jointer.

3.Fasten the nut. Swaying it gently to

confirm if it's suitable.

1.Close the water tap.

2.Press the locking lever. Push down the slider. Then

pull off the water inlet hose. If the machine is used

more than once every week, the jointer of the water

inlet hose can be kept on the tap to prevent

damaging the fixing screw.

1.Push down the slider. Insert the

water inlet hose into the jointer.

2.Hang the lock lever to the jointer.

Release the slider till a click

sound is heard.

Locking lever

Slider

Water absorption cushion

Nut of the wa ter inlet hose

Jointer of the water inlet valve

Slider

Jointer of the water

inlet hose

Locking lever

Connection between the water inlet hose and the

washing machine

Connection between the jointer of the water inlet

hose and the water inlet hose

Check the connection between the jointer of the

water inlet hose and the water tap

Take down the water inlet hose

1.Swaying the hose gently to confirm if it is fastened stable.

2.After installation, open the tap to check if it leaks.

3.Do not bend the hose with overstrain.

4.Before each usage please check if

the connection between the jointer

of the water inlet hose and the water

tap, and the installation of the

water inlet hose are firm, so as to

prevent dropping from improper

Installation position.

1.Preparation before washing

Preparation before washing

1.Connect the water inlet hose

2.Confirm that the washing machine is earthed reliably.Then

insert the power plug into the receptacle.Do not connect

the earth terminal to the gas pipe and tap water pipe.

3.Hang up the drain hose.

4.Slanting or uneven

ground may result

in unstable working

or abnormal noise.

Please make the

machine stand horizontally.

Pay attention to followings before washing the laundries

Confirm if

there's

special

requirement

for the

laundries.

Clear the

pocket.

Take out the

coins ,

sand, hairpins

etc.

Fasten the

buttons and

zippers.

When the pulsator

is running ,the

buttons of the

laundries may

cause noise. For

the sake of discretion,

please put the

laundries with

buttons into other

laundries.

The quantity of

the laundries

shall not exceed

the rated value.

The big laundries

like the jeans

shall be put in

loosely.

a. Check if the laundries are applicable for washing with machine.

b. Divide the laundries with unfast color from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like mud or dust.

For the parts with heavy soil, please apply detergent in advance, which can make it

easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur, turn it over before

putting in.

f. Do not put those laundries polluted by chemicals directly into the washing machine.

For those small laundries and those may get twisting or worn, and woolen/fur

laundries, please put them into mesh bag for washing.

0.8m H 1.2m≤ ≤

Autres manuels pour HWM80-0528

Autres manuels Haier Rondelle

Haier

Haier HAS1000TVE Manuel utilisateur

Haier

Haier HW50-1010W Manuel utilisateur

Haier

Haier GWT950AW Instructions de montage

Haier

Haier XPB70-111S Manuel utilisateur

Haier

Haier HW60-1479-DF Manuel utilisateur

Haier

Haier HWT07AN1 Manuel utilisateur

Haier

Haier JW-K33F Manuel utilisateur

Haier

Haier HWM65-728 Manuel utilisateur

Haier

Haier XQG60-HA800TX(M), XQG60-HA1000 Guide de l'utilisateur

Haier

Haier HT1200TXVE Manuel utilisateur

Haier

Haier HW55-1010 Manuel utilisateur

Haier

Haier HWM100-678NZP Manuel utilisateur

Haier

Haier HW90 Manuel utilisateur

Haier

Haier JW-MD1080A Manuel utilisateur

Haier

Haier HW80-1482 Manuel utilisateur

Haier

Haier HWM20-0701 Manuel utilisateur

Haier

Haier HW120-B14876 Manuel utilisateur

Haier

Haier HWM26-10A Manuel utilisateur

Haier

Haier HWM75-7288 Manuel utilisateur

Haier

Haier HW-D1070TVE Manuel utilisateur

Haier

Haier HWD 1500 Manuel utilisateur

Haier

Haier HW70-1202D Manuel utilisateur

Haier

Haier 50FREE-2 Manuel utilisateur

Haier

Haier HNS1460TVE-FD Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
