Haier HWM65-728 Manuel utilisateur

User's manual

This manual is for

HWM65-728

Please read this manual

carefully before using.

Retain it for future reference.

Fully automatic washing machine

0030808138

Packing list Specification

Specifications

Installation and adjustment

Usage of the drain hose

Preparation before washing

Put in the laundries

Usage of the detergent

Close the top lid

Installation the water inlet hose

Disposal after washing

Finish washing

Use the operation buttons

Trouble-shooting

Answer to question

Contents

Names of the parts

Safety precautions

Meaning and description of the symbols

Please check if the power receptacle has good earthing

condition before using to guarantee your safety.

Warning sign

Forbidding sign

Contents marked with that symbol are related

to the safety of the product and the personal

safety of the users. Please operate in strict

conformity to the contents, otherwise it may

cause damage of the machine or injure the

personal safety of the user.

Contents marked with that symbol are actions

forbidden to perform. Performing of those

actions may result in damage of the machine

or injure the personal safety of the user.

Control panel seat

Top lid component

Notes: All illustrations in this Manual are given for reference only. Your products

and accessories may show differences from these illustrations due to our

continuous improvement.

Names of the parts

Meaning and description of the symbols

Back cover

Power line

Drain hose

Cabinet handle

Water inlet valve

Jacket of

drain hose

Water absorption

cushion

Drain entrance

cover

Hanging

hole

Filter cover(2 pieces)

Control panel film

Cabinet

Adjustable foot

Adjustable foot film

Screw cover(right)

Back control board

Screw cover(left)

Outer tub cover

Lint filter(2 pieces)

Balance ring

Inner tub

Liquid whitener inlet

Fixed foot (3 pieces)

Detergent box

Pulsator

Safety precautions

Please insert the power cord into

special receptacle with rated vol-

tage.Be sure to use single-phase

three pins receptacle.The earthing

terminal of the receptacle must be

earthed reliably.If possible,please

adopt electric leakage protector.

When the machine is normally

using, please put the power plug

at the location easily to be insert-

ed and extracted by hand. Be sure

to pull the plug off when there's

power failure, or the machine is

being moved, cleaned or when it

is idle.

If the power cord is bad, to avoid risk it is required to replace it by the

technicians of our special shop or the after-sale service department.

Keep the pin of the power plug clean.

Do not put the machine at damp

place like the bathroom . Never

wash it with water. Do not place

wet laundries on the control panel.

Do not use water hotter than 50 C .

In case the washing machine is in-

stalled on ground with carpet, do not

block the ventilation hole with carpet.

Do not wash water-proof laundries like

the raincoat, bike covers etc. to avoid

abnormal vibrations in spinning.

Do not let the machine share one receptacle

with other electric appliances. If the power

plug is damaged, or the plugging into the

receptacle is loose, do not use the plug any

more.

The ventilation holes

at the bottom

Do not decompose, repair or alter the

machine by yourself.

Do not put any hot or heavy items (such

as the kettle with hot water ) on the

washing machine.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.)

The handicapped or children without

care shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the heater.

Safety precautions

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

Petrol

Thinner

Please check if the water faucet is open, and if the connection of the water inlet pipe is proper.

It is suggested to use foamless washing powder.

Please don t use the washer in the environment below 0 C; if the washer has been stored

below 0 C, please be sure to ensure the washer is placed under the room temperature for 24 hours

and then use otherwise the washing effects may be lowered or the washer may be damaged.

To change the direction of drain pipe, please contact the customer care agent of our company.

Installation and adjustment

Please install and adjust the machine according to the requirement of the manual.

It is very important to your security and correct operating the machine.

Carpet

Back

Front

Bottom plate

Screw

Install the bottom plate

After opening the package, please lean the washing machine gently down

on soft items (like towel cloth,blanket, etc.). Install the bottom plate to the

bottom of the machine with seven screws by a cross screwdriver, then lift the

machine up gently. See to the figure:

Adjust the Installation position

The washing machine away from wall should be overrun 20mm. The largest

allowable slope of the shank base of the machine is 2 .The slanting or rough

ground will result in unstable running or stoppage of the machine.

Please adjust it with following methods:

Confirm it's horizontal:

Hang the lead line to check if it is horizontal.

Adjust the adjustable leg:

1 .To twist the adjustable leg, please first lift up the side of the

leg slightly, loosen the adjustable nut, and twist the leg.

2 . After adjustment, fasten the nut.

Fasten

Loosen

High Low

the adjustable nut

the adjustable feet

1.The height of the drain hose shall be less than

10cm, or the drainage will not be smooth, and

cost such long time that the machine may stop

at mid way.

2.Do not trample or press the drain hose.

3.If the drain hose is too long, cut it at mid

point. To make smooth drainage, cut the

front end of the hose slantingly.

4.If extra drain hose is needed, please

make separate purchase. The inner

diameter of the extra hose shall not less

than 30mm, and the length shall not

exceed 1.5m.

If the extra hose is too long, cut it either

at A or at B point.

Usage of the drain hose

The drain hose shall drain smoothly

Remarks: in order to make sure of the correct of installation, it is suggested to change the

direction of the drain hose with our company serviceman .

1.Dismantle the back cover of the washing

machine.

3.Dismantle the protecting cover of the drain

outlet at the other side Install the bushing as

per indicated in Figure 2.

Drain outlet

protecting cover

Drain hose

bushing

Figure 1

Figure 3

2.Take off the drain hose frame. Put down

the drain hose , put the drain hose into the

cabinet. take off the drain hose bushing

(As indicated in Figure 1).

Drain hose

frame Drain hose

bushing

Figure 2

Drain hose

frame

Drain outlet

protecting cover

Drain hose

Figure 4

How to change the direction of the drain hose

5.Install the protecting cover of the drain

outlet at the other side as per indicated in

Figure 4.

4.Extend the drain hose from the other side.

Fix the drain hose onto the base frame with

the drain hose frame.

(As indicated in Figure 3)

The exit end face of the faucet

Confirm the water faucet

Connection between the water inlet hose jointer and the water faucet

water faucet, suitable water faucet, not suitable

It is required that the front end shall be longer than 10mm.

The exit end face of the faucet shall be flat and smooth. If not please file it to avoid leakage.

2 Loosen the screw till the water faucet can be accessed. Put the jointer of the water inlet hose on the faucet.

See to Figure 2. (If the faucet is too large and the jointer can not be set on the water faucet, please loosen

the four screws and take out the bushing in the jointer. The front end of the faucet must be smooth,

otherwise it may leak water. See to Figure 3.)

1.Press the lower end of the lock lever and push down the slider. Take off the water inlet hose jointer from the

water inlet hose component. See to Figure 1.

3.Fasten the four screws evenly. See to Figure 4.

remark: Before installation, the threading is 4mm above the upper surface of the nut.

After installation, the threading is 2mm above the upper surface of the nut..

water inlet hose jointer

Screw knife

water inlet hose

Figure 1

Figure 4 Figure 5

Slider

Lock lever

Installation the water inlet hose

4 Take off the nameplate. Twist the fastening nut as per the indication of the figure

to seal up the exit end face of the faucet. See to Figure 5.

About 4mm before twisting

About less than 2mm after twisting

Screw

Bushing

Sign plate

Screw nut

Figure 2 Figure 3

Figure 6

Connection between the water inlet hose and the washer

Dismantle the water inlet hose

Connection between the jointer of the water inlet hose and the water

inlet hose

Check the connection between the jointer of the water inlet hose and

the water faucet

1.Do not take off the water absorption cushion. Please check if the

cushion is dropped or damaged before each usage. If it happens

please contact our after-sale department immediately.

1.Swing the hose gently to confirm if it is fastened stable.

2.After installation, open the faucet to check if it leaks.

3.Do not bend the hose with overstrain.

1.Push down the slider. Insert the water inlet hose into the jointer.

2 Hang the lock lever to the jointer. Release the slider till a click

sound is heard.

Locking lever

Slider

water absorption

cushion.

nut of the water

inlet hose

the jointer of the

water inlet hose

Slider

Locking lever

jointer of the

water inlet valve

1. Close the water faucet.

2. Press the locking lever. Push down the slider. Then pull of the water inlet

hose.

If the machine is used frequently, the jointer of the water inlet hose can be

kept on the faucet to prevent damaging the fixing screw.

2 Put the nut of the water inlet hose on the valve jointer.

3 Fasten the nut. Swing it gently to confirm if it's suitable.

4.Before each usage please check if the connection

between the jointer of the water inlet hose and the

water faucet, and the installation of the water inlet

hose are firm, so as to prevent dropping from

improper installation position.

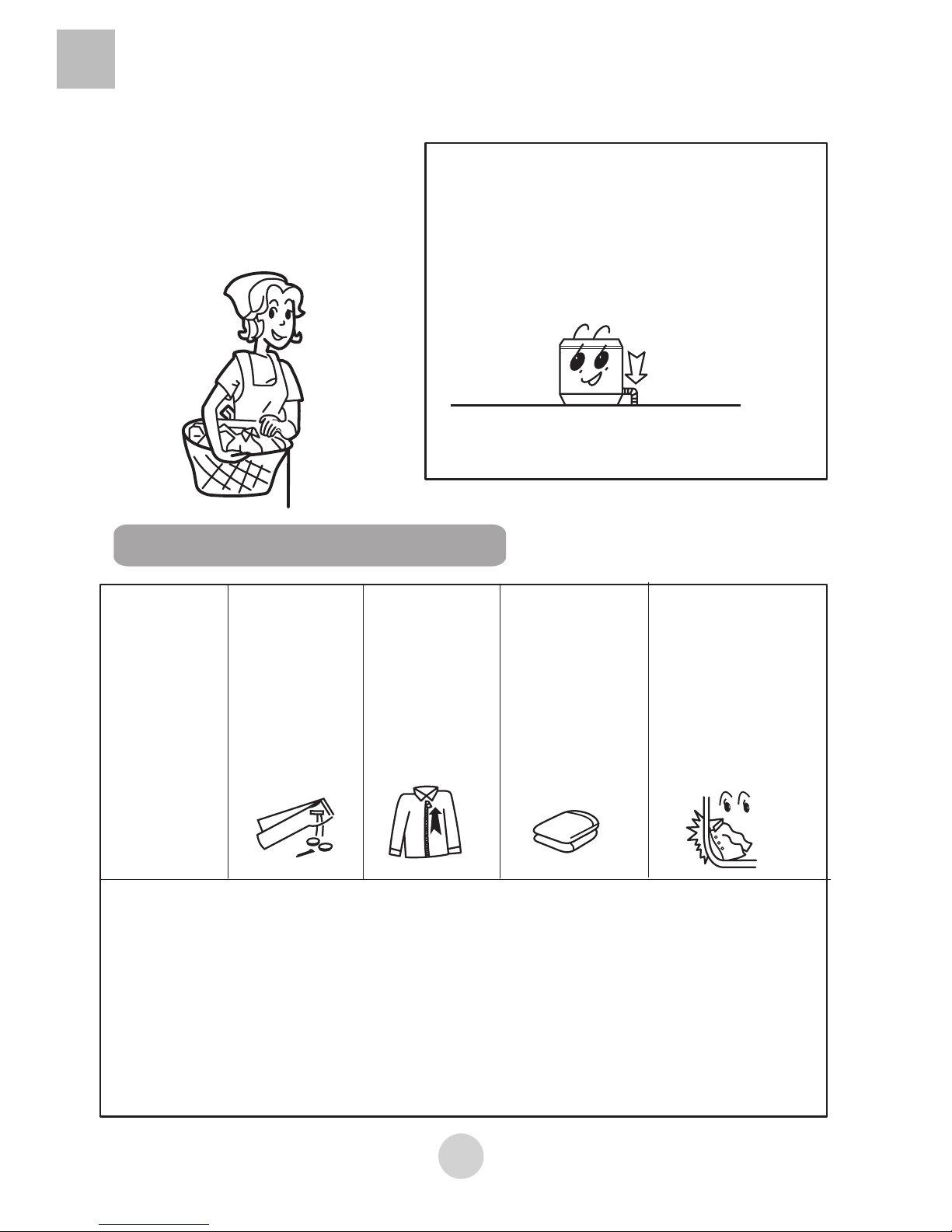

1 Preparation before washing

Preparation before washing

1.Connect the water inlet hose. Open the

water faucet.

2.Confirm that the washing machine is earthed

reliably. Then insert the power plug into the

receptacle. The earth terminal shall not link

to gas pipeline and faucet water pipeline.

3.Put down the drain hose.

Pay attention to followings before washing the laundries

Check if

the laundries

has special

requirement

on washing

Clear the

pocket. Take

out the coins,

sand, hairpins

etc.

Tie the long

strips; fasten

the buttons;

close zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

The quantity of

the laundries

shall not be too

large. Stretch

and loosen the

laundries before

putting them in

the tub.

a. Check if the laundries are applicable for washing with machine.

b. Divide the laundries that are not colorfast from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like

mud or dust. For the parts with heavy soil, please apply detergent on

them in advance, which can make it easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur, turn

it over before putting in.

f. Do not put those laundries polluted by chemicals into the washing

machine directly.

4.slanting or uneven ground may result in

unstable working or abnormal noise. Please

make the machine stand horizontally

Autres manuels pour HWM65-728

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Haier Rondelle

Haier

Haier HLP23E - Electronic Touch Pulsator Ing Portable Washing... Manuel utilisateur

Haier

Haier XQG65-8SU Manuel utilisateur

Haier

Haier HK1210TVE Manuel utilisateur

Haier

Haier HWM75TL Manuel utilisateur

Haier

Haier HWM70-928NZP Manuel utilisateur

Haier

Haier Thermocool HMS1000TVE Manuel utilisateur

Haier

Haier XQB55-10 Manuel utilisateur

Haier

Haier AWT-60LI Manuel utilisateur

Haier

Haier HW100-BD14979U1 Manuel utilisateur

Haier

Haier HWM110-0626S Manuel utilisateur

Haier

Haier hW80-1401B-u Manuel utilisateur

Haier

Haier BW1500W Manuel utilisateur

Haier

Haier RWT360BW Manuel utilisateur

Haier

Haier HW60-1202D Manuel utilisateur

Haier

Haier HDS1055TVE Manuel utilisateur

Haier

Haier HWM80-35 Manuel utilisateur

Haier

Haier HWM60-111S Manuel utilisateur

Haier

Haier HWM100-FD756DD Manuel utilisateur

Haier

Haier HW100-BDV14979S8U1 Manuel utilisateur

Haier

Haier LMA2120WBAB0 Manuel utilisateur

Haier

Haier HW80-B1439N Manuel utilisateur

Haier

Haier HWF5300A Series Manuel utilisateur

Haier

Haier HW100-B14636N Manuel utilisateur

Haier

Haier XQJ100-96 Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
