User's manual

This manual is for

HWM60-728

Please read this manual

carefully before using.

Retain it for future reference.

Fully automatic washing machine

0030808120

Packing list Specification

Installation and adjustment

Preparation before washing

Put in the laundries

Usage of the detergent

Close the top lid

Disposal after washing

Finish washing

Contents

Names of the parts

Safety precautions

Meaning and description of the symbols

Use the operation buttons

Trouble shooting Answer to question

Please check if the power receptacle has good earthing condition before

using to guarantee your safety.

Warning sign

Forbidden sign

Contents marked with that symbol are related

to the safety of the product and the personal

safety of the users. Please operate in strict

conformity to the contents, otherwise it may

cause damage of the machine or injure the

personal safety of the user.

Contents marked with that symbol are actions

forbidden to perform. Performing of those

actions may result in damage of the machine

or injure the personal safety of the user.

Control panel seat

Lint filter

Inner tub

Cabinet

Fixed foot

(3 pieces)

Adjustable foot

Top lid component

Pulsator

Water inlet valve

Control panel film

Back cover

Power line

Adjustable foot film

Drain hose

Hanging hole

of drain hose

Handle

Liquid whitener inlet

Notes: All illustrations in this Manual are given for reference only. Your products

and accessories may show differences from these illustrations due to our

continuous improvement.

Names of the parts

Meaning and description of the symbols

Filter cover

Drain outlet

protecting cover

Water absorption cushion

Prain hose bushing

Safety precautions

Please plug the power plug on special

220V/10A receptacle. Be sure to use

single-phase three pins receptacle.

Ensure the earthing prong of the

power receptacle is earthed reliably.

Use leakage protector if possible.

The power cord plug should be conve-

nient to be pluged in or pluged out with

hand while the washing machine runs

normally.Be sure to pull the plug out

and close the water tap when the mac-

hine is idle,when moving the machine,

or when cleaning the machine.Do not

use wet hand to insert or pull out the

power plug.

Do not damage the power cord,bend,extend,twist,bind or alter it by force.Do not press

or nip it with weight.If the power cord or the power plug is bad,or the power plug

becomes flexible,to avoid risk it is required to

have it replaced by the technicians of

our special shop or the after-sale service

department.Keep the pin of the power plug

clean,if the power plug is polluted with dust,

please wipe with dry cloth carefully.

Do not put the machine at damp

place like the bathroom . Never

wash it with water. Do not place

wet laundries on the control panel.

Do not use water hotter than 50 C .

In case the washing machine is in-

stalled on ground with carpet, do not

block the ventilation hole with carpet.

Do not wash water-proof laundries like

the raincoat, bike covers etc. to avoid

abnormal vibrations in spinning.

Do not let the machine share one receptacle

with other electric appliances. If the power

plug is damaged, or the plugging into the

receptacle is loose, do not use the plug any

more.

Earth

Do not decompose, repair or alter the

machine by yourself.

Do not put any hot or heavy items (such

as the kettle with hot water ) on the

washing machine.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.)

The handicapped or children without

care shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the heater.

Safety precautions

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.Dot not let the children climb

the washing mechine.

Petrol

Thinner

Please check if the water faucet is open, and if the connection of the water inlet

pipe is proper.

It is suggested to use low-foaming washing powder.

Please don t use the washer in the environment below 0 ; if the washer has

been stored below 0 , please be sure to ensure the washer is placed under the

room temperature for 2 4 hours and then use otherwise the washing effects may

be lowered or the washer may be damaged.

To change the direction of drain pipe, please contact the customer care agent of

our company.

Installation and adjustment

Please install and adjust the machine according to the requirement of the manual.

It is very important to your security and correct operating the machine.

Soft items

Back

Front

Bottom plate

Screw

Install the bottom plate

After opening the package, please lean the washing machine gently down

on soft items (like towel cloth,blanket, etc.). Install the bottom plate to the

bottom of the machine with screws by a cross screwdriver, then lift the

machine up gently. See to the figure:

Adjust the Installation position

The washing machine away from wall should be overrun 20mm. The largest

allowable slope of the shank base of the machine is 2 .The slanting or rough

ground will result in unstable running or stoppage of the machine.

Please adjust it with following methods:

Confirm it's horizontal:

Hang the lead line to check if it is horizontal.

Fasten

Loosen

High Low

the adjustable nut

the adjustable foot

Adjust the adjustable foot:

1 .To twist the adjustable foot, please first lift up the side of the foot slightly, loosen

the adjustable nut, and twist the foot.

2 . After adjustment, fasten the nut.

1.The height of the drain hose shall be

less than 10cm, or the drainage will not

be smooth, and cost such long time that

the machine may stop at mid way.

2.Do not trample or press the drain hose.

3.If the drain hose is too long, cut it at mid

point. To make smooth drainage, cut the

front end of the hose slantingly.

4.If extra drain hose is needed,

please make separate purchase.

The inner diameter of the extra

hose shall not less than 30mm, and

the length shall not exceed 1.5m.

5.If the extra hose istoo long,

cut it eitherat Aor at Bpoint.

Usage of the drain hose

The drain hose shall drain smoothly

Remarks: In order to make sure of the correct of installation, it is suggested to

change the direction of the drain hose with our company serviceman .

3.Dismantle the protecting cover of the

drain outlet at the other side Install the

drain hose bushing

(As Indicated in Figure 2).

Drain outlet

protecting cover

Drain hose

bushing

Figure 1

Figure 3

2.Take off the drain hose frame. Put

down the drain hose , put the drain

hose into the cabinet, take off the

drain hose bushing

(As indicated in Figure 1).

Drain hose

frame Drain hose

bushing

Figure 2

Drain hose

frame

Drain outlet

protecting cover

Drain hose

Figure 4

How to change the direction of the drain hose

5.Install the protecting cover of the drain

outlet at the other side (As indicated in

Figure 4).

4.Extend the drain hose from the other

side. Fix the drain hose with the drain

hose frame(As indicated in Figure 3).

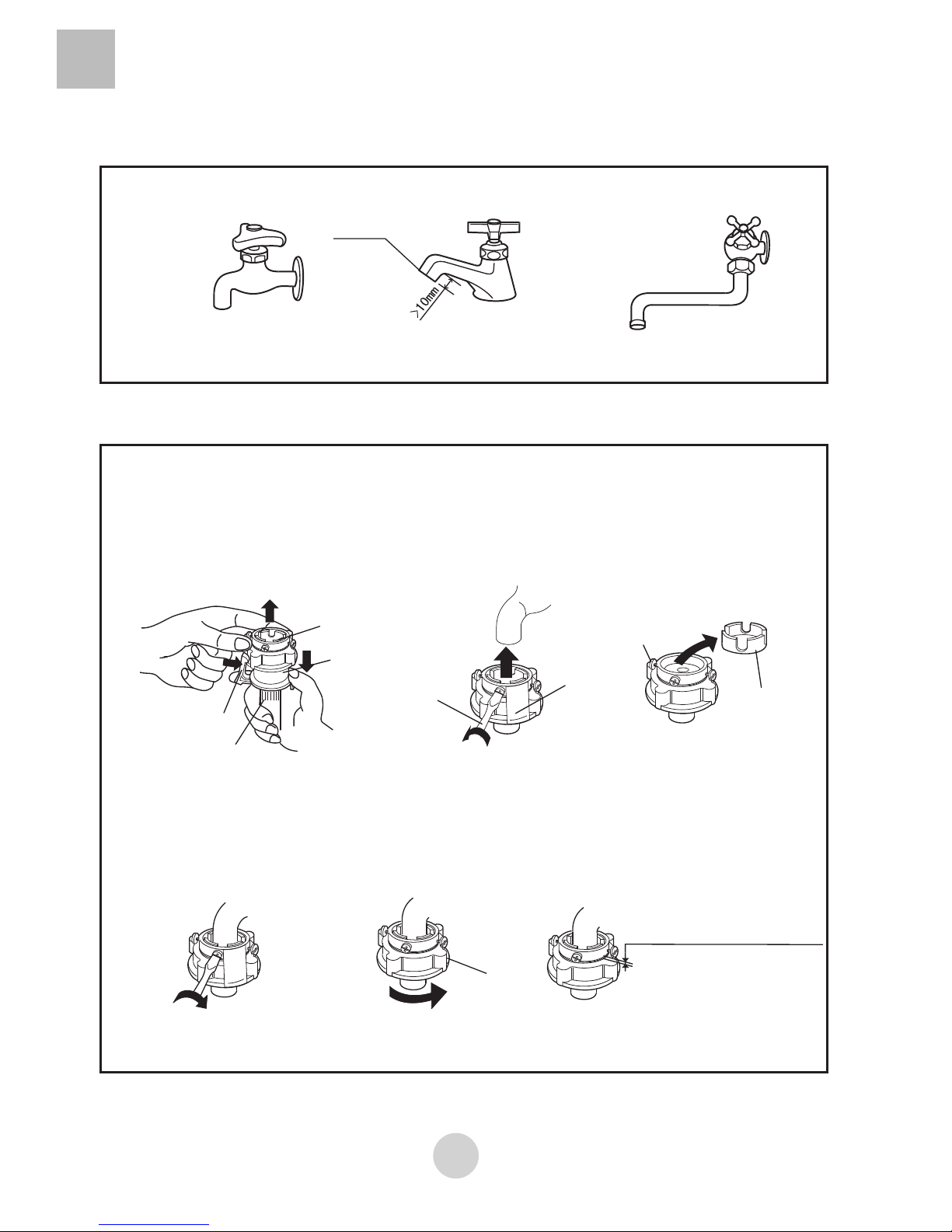

The exit end face of the faucet

Confirm the water faucet

Connection between the water inlet hose jointer and the water faucet

water faucet, suitable water faucet, not suitable

It is required that the front end shall be longer than 10mm.

The exit end face of the faucet shall be flat and smooth. If not please file it to avoid

leakage.

2 Loosen the screw till the water faucet can be accessed. Put the jointer of the water

inlet hose on the faucet. See to Figure 2. (If the faucet is too large and the jointer can

not be set on the water faucet, please loosen the four screws and take out the bushing

in the jointer. The front end of the faucet must be smooth, otherwise it may leak water.

See to Figure 3.)

1.Press the lower end of the lock lever and push down the slider. Take off the water

inlet hose jointer from the water inlet hose component. See to Figure 1.

3.Fasten the four screws evenly. See to Figure 4.

Remark: Before installation, the threading is 4mm above the upper surface of the nut.

After installation, the threading is 2mm above the upper surface of the nut.

See to figure 6.

water inlet hose jointer

Screw knife

water inlet hose Figure 1

Figure 4 Figure 5

Slider

Lock lever

4 Take off the nameplate. Twist the fastening nut as per the indication of the figure

to seal up the exit end face of the faucet. See to Figure 5.

About 4mm before twisting

About less than 2mm after twisting

Screw

Bushing

Sign plate

Screw nut

Figure 2 Figure 3

Figure 6

Install the water inlet hose

Connection between the water inlet hose and the washer

Dismantle the water inlet hose

Connection between the jointer of the water inlet hose and the

water inlet hose

Check the connection between the jointer of the water inlet hose

and the water faucet

1.Do not take off the water absorption cushion. Please

check if the cushion is dropped or damaged before

each usage. If it happens please contact our

after-sale department immediately.

1.Swaying the hose gently to confirm if it is fastened

stable.

2.After installation, open the faucet to check if it leaks.

3.Do not bend the hose with overstrain.

1.Push down the slider. Insert the water inlet hose into the jointer.

2 Hang the lock lever to the jointer. Release the slider till a click

sound is heard.

Locking lever

Slider

water absorption

cushion

nut of the water

inlet hose

The jointer of the

water inlet hose

Slider

Locking lever

jointer of the

water inlet valve

1. Close the water faucet.

2. Press the locking lever. Push down the slider. Then pull of

the water inlet hose.

If the machine is used frequently, the jointer of the water inlet

hose can be kept on the faucet to prevent damaging the fixing

screw.

2 Put the nut of the water inlet hose on the valve

jointer.

3 Fasten the nut. Swaying it gently to confirm

if it's suitable.

4.Before each usage please check if the

connection between the jointer of the water inlet

hose and the water faucet, and the installation of

the water inlet hose are firm, so as to prevent

dropping from improper installation position.

Preparation before washing

1.Connect the water inlet hose. Open the

water faucet.

2.Confirm that the washing machine is earthed

reliably. Then insert the power plug into the

receptacle. The earth terminal shall not link

to gas pipeline and faucet water pipeline.

3.Put down the drain hose.

Pay attention to followings before washing the laundries

Confirm if

there is spe-

cial require-

ment for the

laundries.

Clear the

pocket. Take

out the coins,

sand, hairpins

etc.

Tie the long

strips; fasten

the buttons;

close zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

The quantity of

the laundries

shall not be too

large. Stretch

and loosen the

laundries before

putting them in

the tub.

a. Check if the laundries are applicable for washing with machine.

b. Divide the laundries that are not colorfast from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like

mud or dust. For the parts with heavy soil, please apply detergent on

them in advance, which can make it easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur, turn

it over before putting in.

f. Do not put those laundries polluted by chemicals into the washing

machine directly.

4.Slanting or uneven ground may result in

unstable working or abnormal noise. Please

make the machine stand horizontally.

Preparation before washing

Table des matières

Autres manuels Haier Rondelle

Haier

Haier HWM110-401S Manuel utilisateur

Haier

Haier HWM95-987S Manuel utilisateur

Haier

Haier HWM33-200F Manuel utilisateur

Haier

Haier HWM-14.0 Guide de configuration

Haier

Haier HWM110-0713P Manuel utilisateur

Haier

Haier HW-B1270 Manuel utilisateur

Haier

Haier ProSport1260 Manuel utilisateur

Haier

Haier WD-8888-71 Manuel utilisateur

Haier

Haier JW-PK90A Manuel utilisateur

Haier

Haier HLP21E - Pulsator Wash With Tub Manuel utilisateur

Haier

Haier HWM120-AS Manuel utilisateur

Haier

Haier HW80-BP12929 Manuel utilisateur

Haier

Haier RWT360BW Manuel utilisateur

Haier

Haier XPB90-99VGS Manuel utilisateur

Haier

Haier 50FREE-1 Manuel utilisateur

Haier

Haier HWM65TLF Manuel utilisateur

Haier

Haier HW70-B1239N Manuel utilisateur

Haier

Haier XQG80-HB1286A Manuel utilisateur

Haier

Haier HNS1260TVE Manuel d'exploitation et d'entretien

Haier

Haier HW60-1211N Manuel utilisateur

Haier

Haier HWM96-0623S Manuel

Haier

Haier HDWM800TX Manuel utilisateur

Haier

Haier HWM85-0713S Manuel utilisateur

Haier

Haier HWX8040DW1 Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
