IMPORTANT SAFETY INSTRUCTIONS

Warning - To reduce the risk of fire, electric shock, or injury

when using your appliance, follow basic precautions,

including the following:

1. Read all instructions before using the appliance.

2. Use this appliance only for its intended purpose as described in this use

and care guide.

3. Use only detergents or softeners recommended for use in this appliance

and keep them out of the reach of children.

4. This appliance must be properly installed in accordance with the installa-

tion instructions before it is used.

5. Never unplug your appliance by pulling on the power cord. Always

grasp the plug firmly and pull straight out from the outlet.

6. Replace worn power cords, loose plugs/power outlets immediately.

7. Unplug your appliance before cleaning or before making any repaiers.

8. Do not operate your appliance in the presence of explosive fumes.

9. Do not use hot water that exceeds 60 C in temperature.

10. Do not use this appliance to wash clothes soaked, spotted or washed in

gasoline, dry cleaning solvents or any other explosive or flammable sub-

stances that could ignite and explode.

11. Clothes or rags used to clean flammable or explosive materials should

not be washed in this appliance till all traces of this material has been

removed, to avoid an accident.

12. Do not add or mix any flammable or explosive substances to the wash.

13. Do not try to remove clothes while the tub is moving. Let it come to a

complete stop.

14. The lid must be closed when bowl is spinning.

15. Do not operate your appliance when parts are missing or parts

are broken.

16. Do not use this appliance for commercial clothes washing.

17. Do not operate this appliance unless all enclosure panels are properly

in place.

18. Do not tamper with controls.

19. To reduce risk of injury do not allow children to play with the appliance.

Close supervision of children is necessary when the appliance is used

near children.

20. This appliance must be connected to a proper electrical outlet with the

correct electrical supply.

21. Do not repair or replace any part of the appliance or attempt any ser-

vicing unless specifically recommended in the user-repair instructions

that you understand and have skills to carry out.

22. To reduce the risk of electric shock or fire, do not use extension cords or

adapters to connect the unit to electrical power source.

Table Of Contents

PAGE

Back cover

IMPORTANT SAFETY INSTRUCTIONS..................

OPERATING INSTRUCTIONS.................................

Parts and Features................................................

Operations.............................................................

Normal Operating Sounds.......................................

Lint Filter...............................................................

Safety Lid Switch...................................................

Care and Cleaning Guide......................................

Cleaning and Maintenance.....................................

Moving..................................................................

Storage of Your Washer..........................................

Troubleshooting..................................................

INSTALLATION INSTRUCTIONS...........................

Tools and Materials Required.................................

Unpacking Your Washer.........................................

Levelling Your Washer...........................................

Steps for Installation.............................................

Electrical Requirements.....................................

Power Interruptions..............................................

Specifications..........................................

OPERATING INSTRUCTIONS

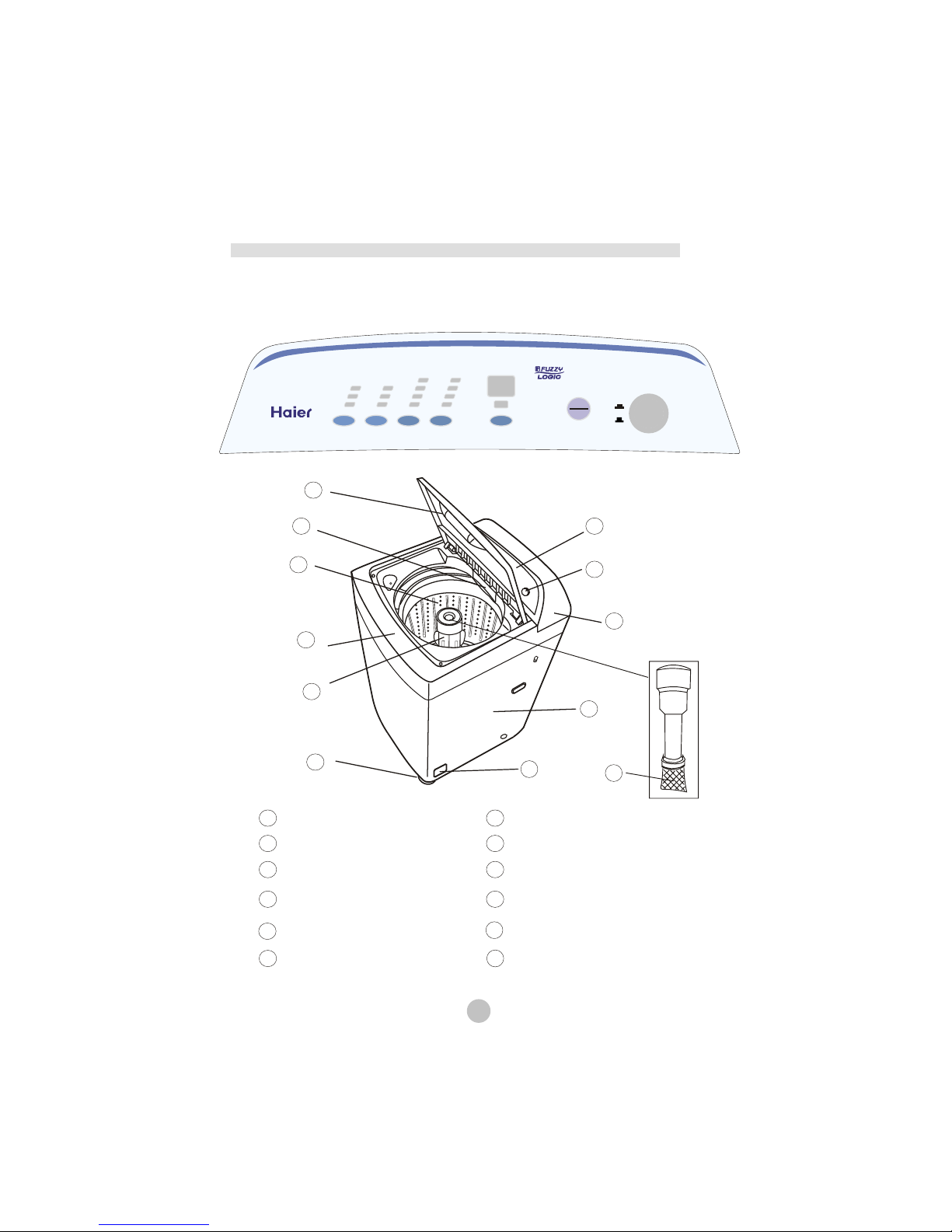

Parts and Features

1111

Adjustable foot seam

Lint Filter

Top lid

Detergent box

Inner tub

Hight Pulsator

Control panel seat

Adjustable foot

Back faceplate

Control panel film

Power switch

Cabinet

HEAVY

NORMAL

GENTLE

QUICK

SOAK

WASH

RINSE

SPIN

LARGE

MEDIUM

SMALL

WARM

COLD

START

PAUSE

DELAY START

PROCESS

WATER

LEVEL

TEMP

SELECT

WASH CYCLE

POWER

OFF

TIME

REMAINING

TIME ON

HWM50TLF

HOT

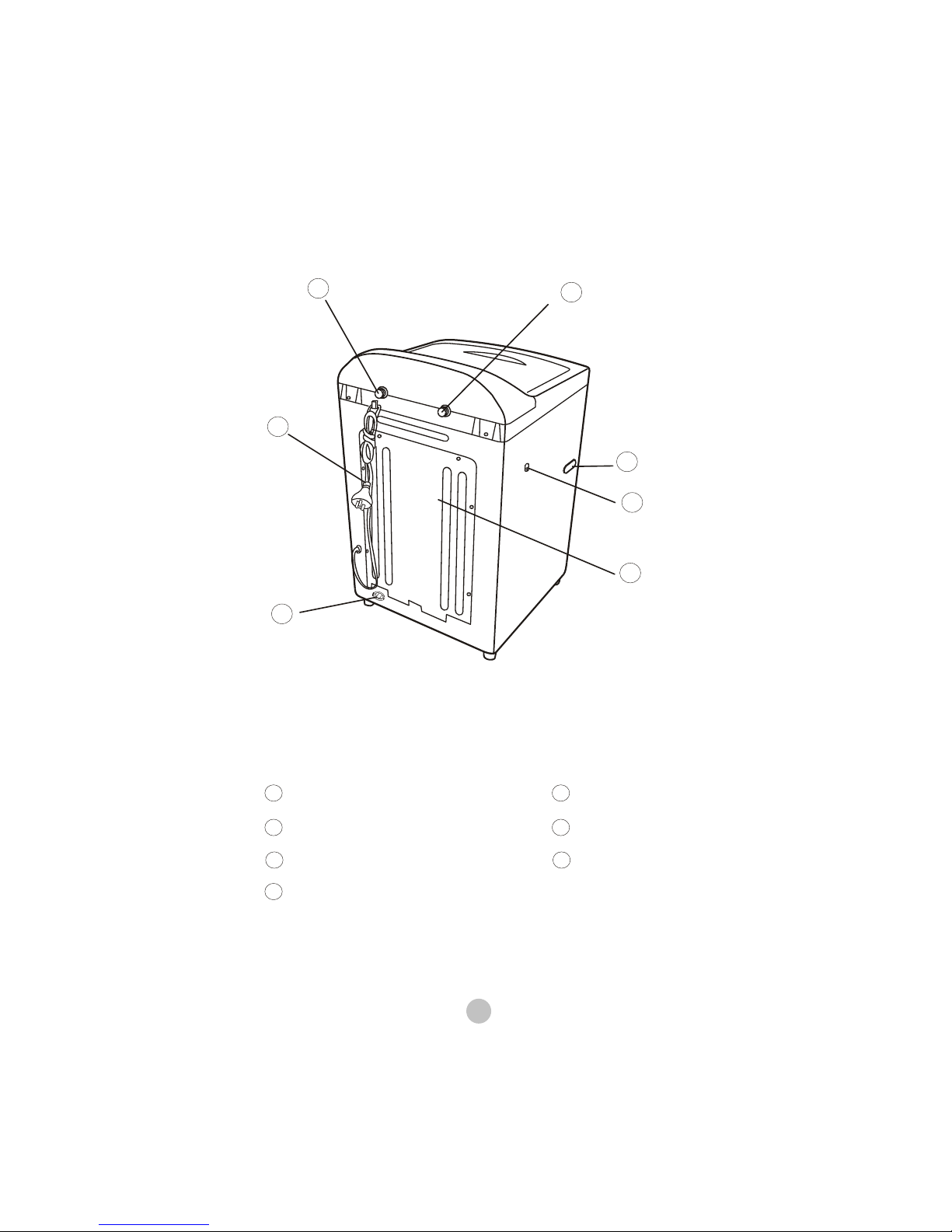

Cold Water inlet valve

Power cord

Hook

Handle

Back cover

Hot Water inlet valve

Drain hose bushing

Power Button:(1)

Press the button in to turn the power ON and press the button

out to turn the power OFF.

Button in=Power On

Button out=power Off

Start/Pause Button:(2)

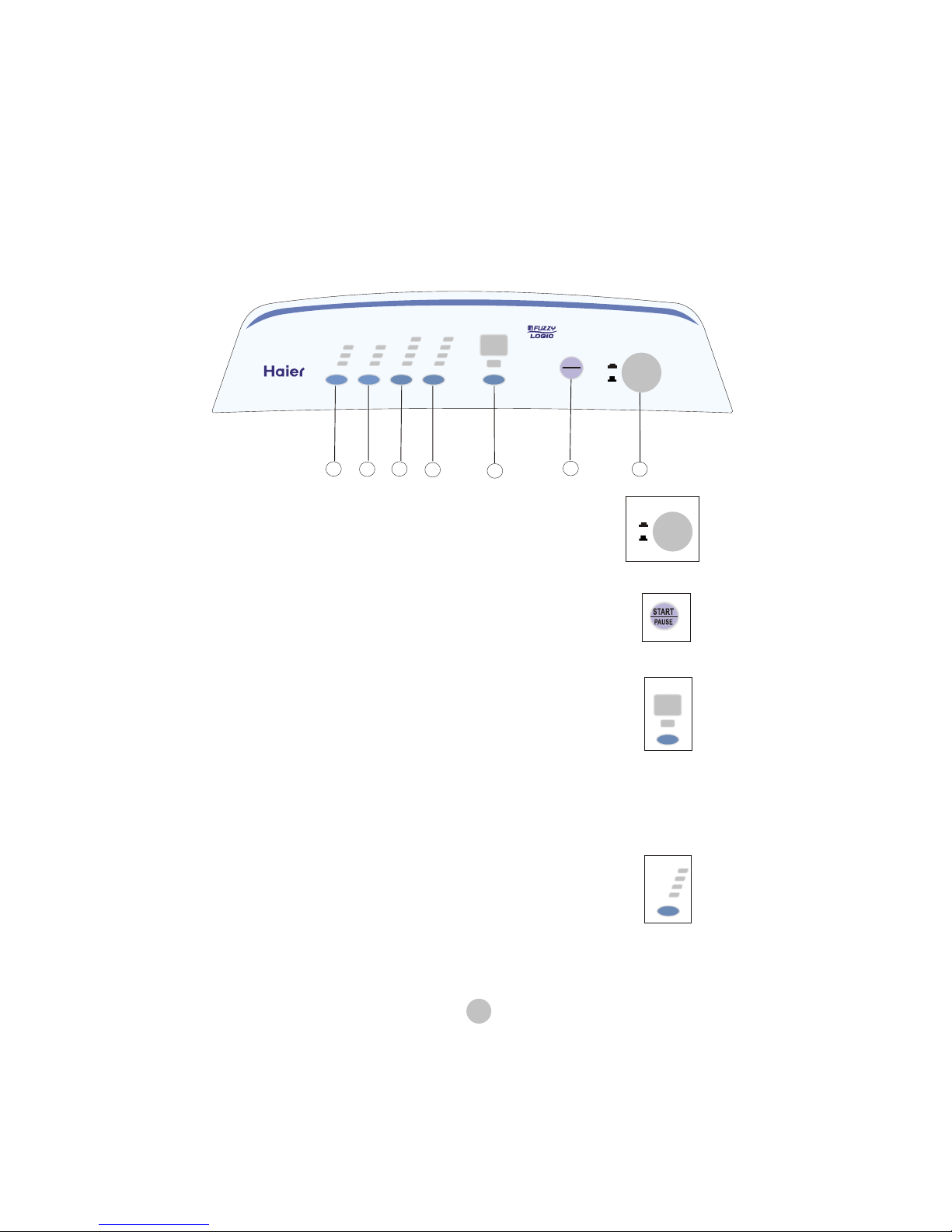

Understanding the Control Panel

OPERATIONS

Delay Start Button:(3)

This convenient feature lets you delay the start of the wash cycle

between 2 to 24 hours.

Confirming a reserved program

When reserve starts, program selected indicator turns off, while

the reserve Indicator and remaining time turn on. During

reservation period, pressing Delay/Start button could get re-

servation conditions displayed.

Altering the running program or cancelling reserve needs to

cut off power and choose again.

Press this button when you want the machine to start running.

During machine running, press this button to pause and press

once again to resume operation.

Wash cycle button:(4)

After switching on, the Normal cycle will be the default. If other

cycle is desired, you can press this button to get the corresponding

indicator on.

Heavy Cycle

Washing the bigger, thicker or heavier dirty laundries.

Normal Cycle

Common washing, about 60 minutes.

HEAVY

NORMAL

GENTLE

QUICK

SOAK

WASH

RINSE

SPIN

LARGE

MEDIUM

SMALL

WARM

COLD

START

PAUSE

DELAY START

PROCESS

WATER

LEVEL

TEMP

SELECT

WASH CYCLE

POWER

OFF

TIME

REMAINING

TIME ON

HWM50TLF

HOT

POWER

OFF

DELAY START

TIME

REMAINING

TIME ON

HEAVY

NORMAL

GENTLE

QUICK

WASH CYCLE

Quick Cycle

Quick washing of the light dirt laundries only 25 minutes

Gentle Cycle

Washing the woollen textile or underwear

PROCESS Button:(5)

This is to selectwashing process.

Soak will not work in Quick cycles.

W ater level indicatorwill shut off if only Spin is selected.

WATER LEVEL Button:(6)

W ater levels maybe set at the beginningof the wash or at pause.

During Soak, W ash or Rinse press this buttonto manually

replenish water. Release to stop.

Functionautomaticallyis inactivewhen water reachesthe overflow

Protec

tion level.

TEMP SELECT Button:(7)

Initial settingis W ar m/Cold when washer is poweredon.

Press buttonto changeselectionbasedon clothesput

in the washer.

To selectinlet water temperaturefor wash and rinse.

Operating Procedure

1. Press power on button.

The washer will now be in the working statusin the Nor mal cycle.

If the Start/Pause buttonis not pressedwithin 5 minutesafter powering on the unit

it will automaticallyswitch off and return to the stand by mode.

The washer will also return to the standby modeimmediatelyafter completionof

the wash process.

Regardlessof the settingsby pressing the power on/of f buttonall programswill

stop and return to the stand by mode.

2. Selectionof Cycles

When the washer is poweredon the Nor mal cycleis the defaultcycle.If other

cycleis required press the cyclebuttonfor desired program.

3. ProcessSelect

Oncethe power is switchedon the washing machinewill automaticallyset the

Nor mal cyclewhich will W ash, Rinse and Spin. If other selectioncombinations

SOAK

WASH

RINSE

SPIN

PROCESS

LARGE

MEDIUM

SMALL

WATER

LEVEL

WARM

COLD

TEMP

SELECT

HOT

are desired,press the ProcessSelectbuttonto choose.

Note: Spin shall begin after sometimeevenif thereis no water in the tub. Do not

use soak processfor woolen clothes.Clothesprone to fading should be

washedseparately.

4. Water Level Selection

After W ash Cycleselectionpress the Water Levelbuttonto selectthe proper water

level for wash.

Note: See chart below for Load Size selection.

The Capacityof W ater W ater

Washing (kg.) Level Quantity

4.5~6.5 Large About 55L

2.0~4.5 Medium About 44L

Below 2.0 Small About 35L

5.Temp of Wash and Rinse Water Selection

Initial settingis W ar m/Cold when washer is poweredon. Press buttonto change

selectionbasedon clothesput in the washer.

6. Delay Start

To start the washer at a later lime press the Delay Star t buttonand set the time.

When activatedthe indicator displays 2. Push buttononcefor every 1 hour delay

for up to 24 hours

Press Start buttonto activateDelay Start.

When the delay timer starts the programselectindicator turns off. The indicator

will display the remainingtimeto turn on the unit. In the lower right corner of the

display, a blinking light will indicatethat Delay Start has beenactivated.

By pressing the Delay/Star t buttonthe selectedProcessprogramswill be

displayed.

By altering the running program,the washer will haveto be reset.

7. Start/Pause

Press this buttonwhen you want the machineto start.

During operationpress this buttonto pauseand press it again to resumeopera-

tion.

Note: By openingthe top lid will stop the machineexceptfor water filling or

draining.

Loading the W asher:

Loadeachitemloosely.

Separatethe white and coloredclothes.Separateheavyclothesfrom light clothes.

Carefully checkall pocketsand cuffs for small items.

They caneasily slide in to the tub and may damage the tub.

Pre-treat all stains and heavily soiled areas for bestresults.

Do not overloadyour washer.

When loading wet items,keepwater level high enoughso items

canfloat easily in the water.

Avoid wrapping large itemssuchas bedsheetsaround the agitator.

Closethe door properly after loading the clothes.If you keepthe lid

up, the agitationwill not start.

Pr oper Use of Deter gent:

It is goodwashing practiceto addthe detergentto the water

beforeyou addthe clothesso that the detergentcanwork

effectivelyon your clothes.

Note: You canuse less or moredetergentdependingon the size of the load, water

type in your living area, whether it is soft or hard and whether the clothes

are heavily soiled or lightly soiled.

Fabric Softener Dispenser:

The fabric softenerdispenseris locatedon the top of the agitator.

Dispenser will automaticallyreleaseliquid fabric softenerat proper timeduring

rinse cycle.

Steps to use the dispenser:

1. Pour in liquid fabric softenerinto dispenseras recommended

by the manufacturer.

2. Add water up to its fill level, but do not exceedthe level.

W arning: Never pour fabric softenerdirectly ontoclothesbecauseit will stain

your clothesor you may getspots on your clothes.

Do not stop washer during its first spin or dispenserwill automatically

releasethe softenerin to the wash load.

Do not use powder form of softenerinto dispenserotherwise it will

clogup the dispenser. This dispenseris only designedfor liquid form.

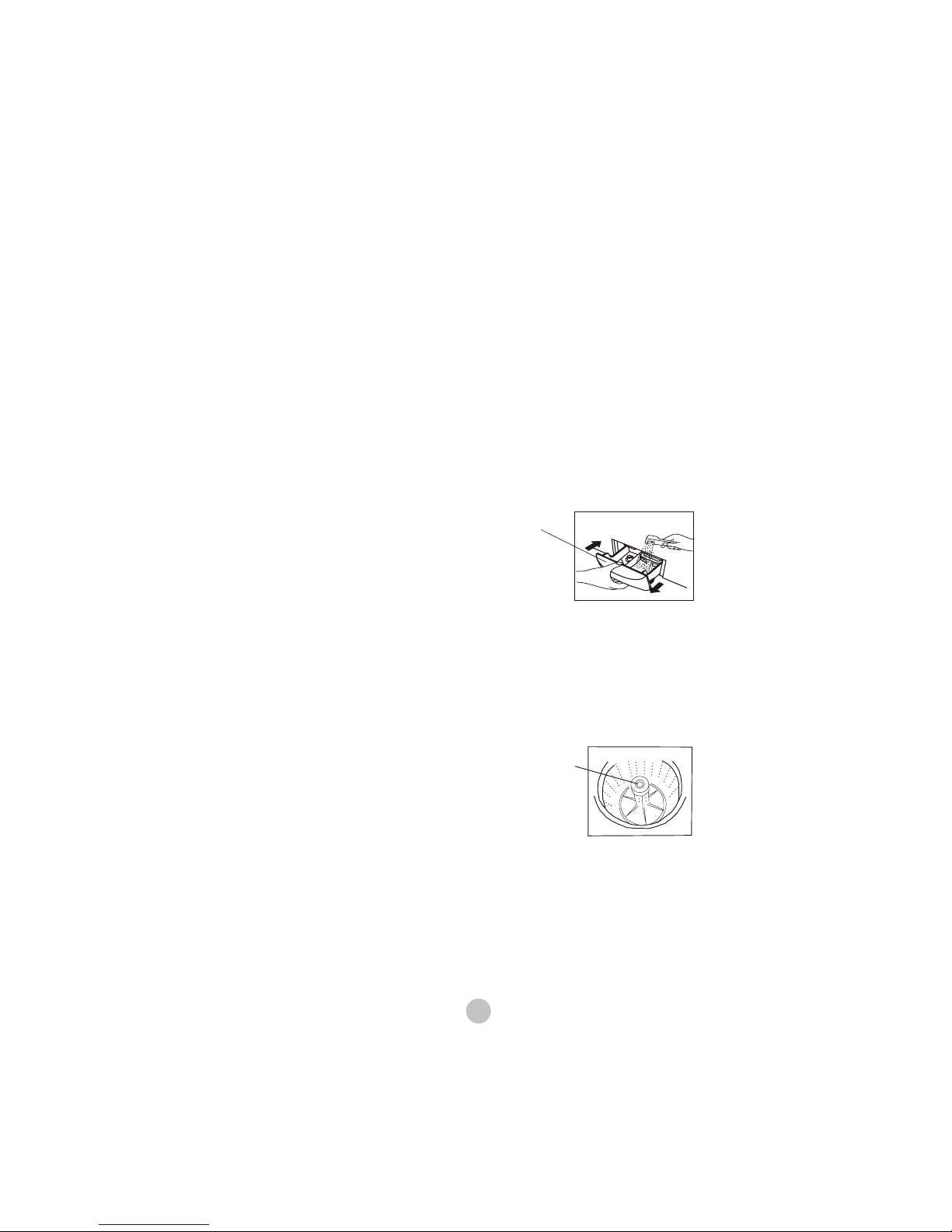

detergent dispenser

fabric softener dispenser

Table des matières

Autres manuels Haier Rondelle

Haier

Haier HW60-12266AS Manuel utilisateur

Haier

Haier HWM85-9288 Manuel utilisateur

Haier

Haier Thermocool HMS1000TVE Manuel utilisateur

Haier

Haier HW-B1470 Manuel utilisateur

Haier

Haier HWM160-B1678S Manuel utilisateur

Haier

Haier JW-K60B Manuel utilisateur

Haier

Haier ONX-1010 Manuel utilisateur

Haier

Haier HW-C860TVE Manuel utilisateur

Haier

Haier JW-K60A Manuel utilisateur

Haier

Haier HNS1250TVE Guide de démarrage rapide

Haier

Haier HA600T Manuel utilisateur

Haier

Haier RWT350AW Manuel utilisateur

Haier

Haier GWT700AW - Genesis Series 27 Washer Manuel utilisateur

Haier

Haier HT1206TXVE Manuel utilisateur

Haier

Haier HWM70-FD10829 Manuel utilisateur

Haier

Haier HWM96-0613S Manuel utilisateur

Haier

Haier HW80-B14266 Manuel utilisateur

Haier

Haier RWT300AW Manuel utilisateur

Haier

Haier HWM 80-AS Manuel utilisateur

Haier

Haier HLPW028AXWP Manuel utilisateur

Haier

Haier HWM150-0523S Manuel utilisateur

Haier

Haier XQJ70-31 Manuel utilisateur

Haier

Haier HW-E1450TVE Manuel utilisateur

Haier

Haier HWM60-0566A Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
