TOP LOAD FULLY AUTOMATIC

WASHING MACHINE

USER MANUAL

HWM120-B1678S8

HWM140-B1678S8

0030512583

CONTENTS

Installation & adjustment

Before washing

Operation

Cleaning and Maintenance

Balance washing machine

Change the direction of the drain hose

Install the bottom plate

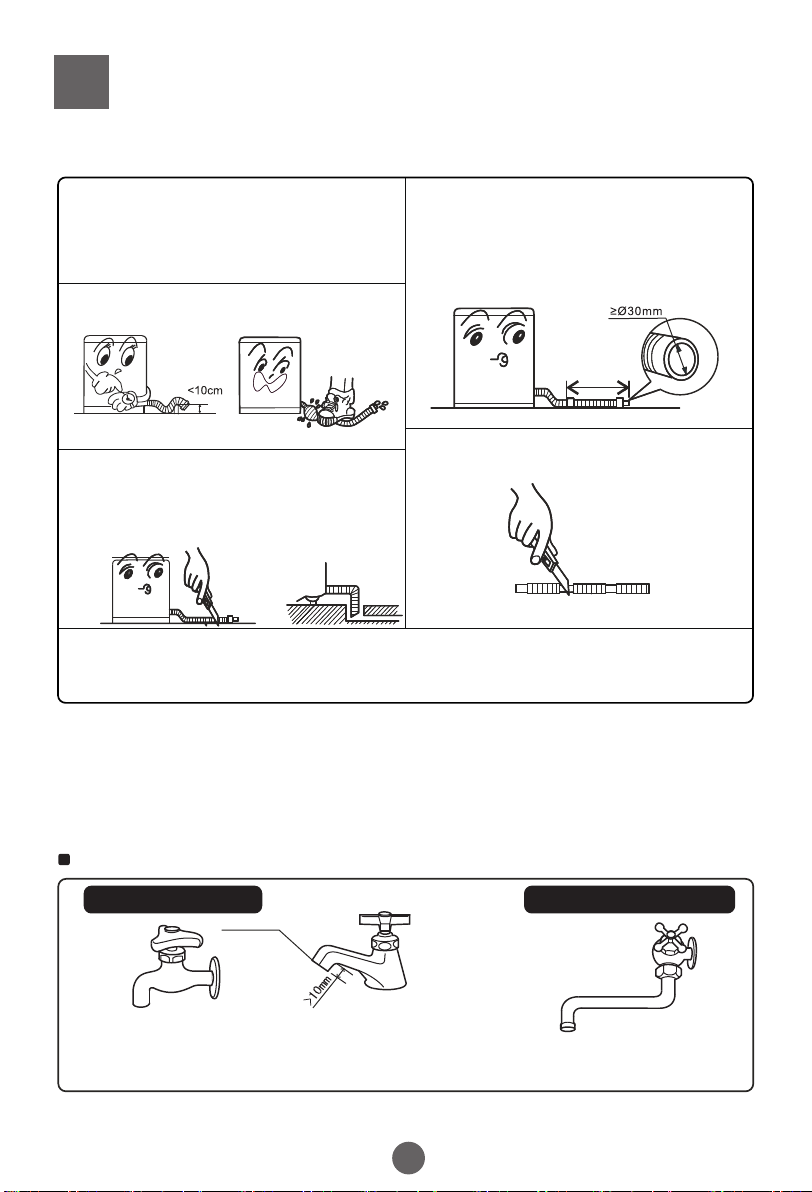

Position the drain hose

Inlet pipe connection

Product overview

Safety precautions

Description of symbols

Warning

Forbidden

Safety warning

Packing list

Specification

Troubleshooting

Common occurrence

Adding Detergent

Loading the appliance

Laundry Guidelines

Control Panel

Explanation of buttons

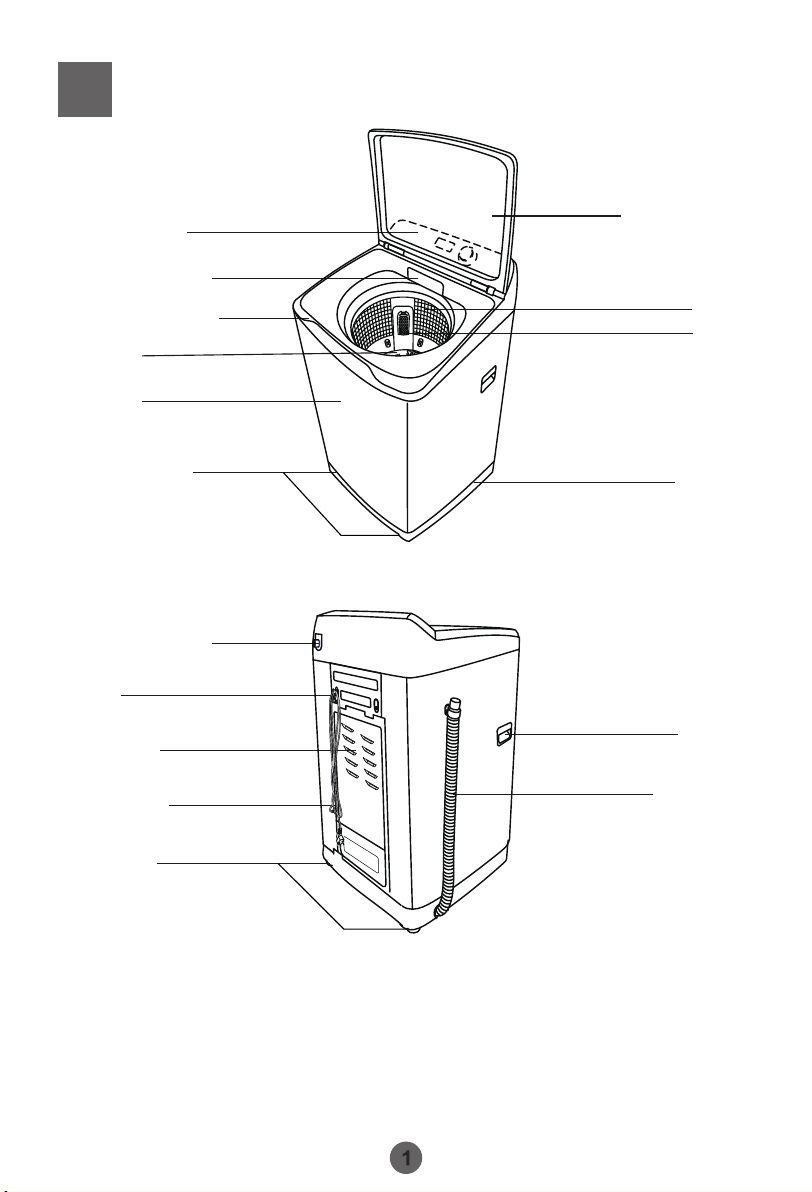

Product overview

Detergent Drawer

Appearance and accessories may change without notice for product improvement.

Top lid component

Pulsator

Cabinet

Base frame

Control panel

Control panel seat Inner tub

Adjustable foot

(2 pieces)

Lint filter

Handle

(2 pieces)

Back cover

Power cord

Water inlet valve

Fixed foot

(2 pieces)

Hook

Drain hose

(2 pieces)

Safety precautions

Description of symbols

Warning sign

Forbidden sign

Safety warning

Contents marked with this symbol are related to the safety

information of the products.

Please operate in accordance to the contents of this manual,

to prevent personal injury or property damage.

Contents marked with this symbol indicates operations or actions

that should not be undertaken by the user.

Performing of such actions may result personal injury and/or

property damage,and void warranty.

Please check power socket condition to ensure it has been earthed correctly prior to

installation to ensure your safety

Warning

A separate, earthed power socket is

required for the power supply.

Hold the plug, not the electric cable when

unplugging the washing machine.

Do not touch or remove the power plug with

wet hands.

The power plug should be accessible after

the machine installation.

Ensure the plug is removed and the tap

turned off in the following cases.Power

failure, cleaning, moving,installation

and when not in use.

If the power cord is damaged,it must be replaced by the manufacturer,its service

agent or similar qualified persons in order to avoid a hazard.

Safety precautions

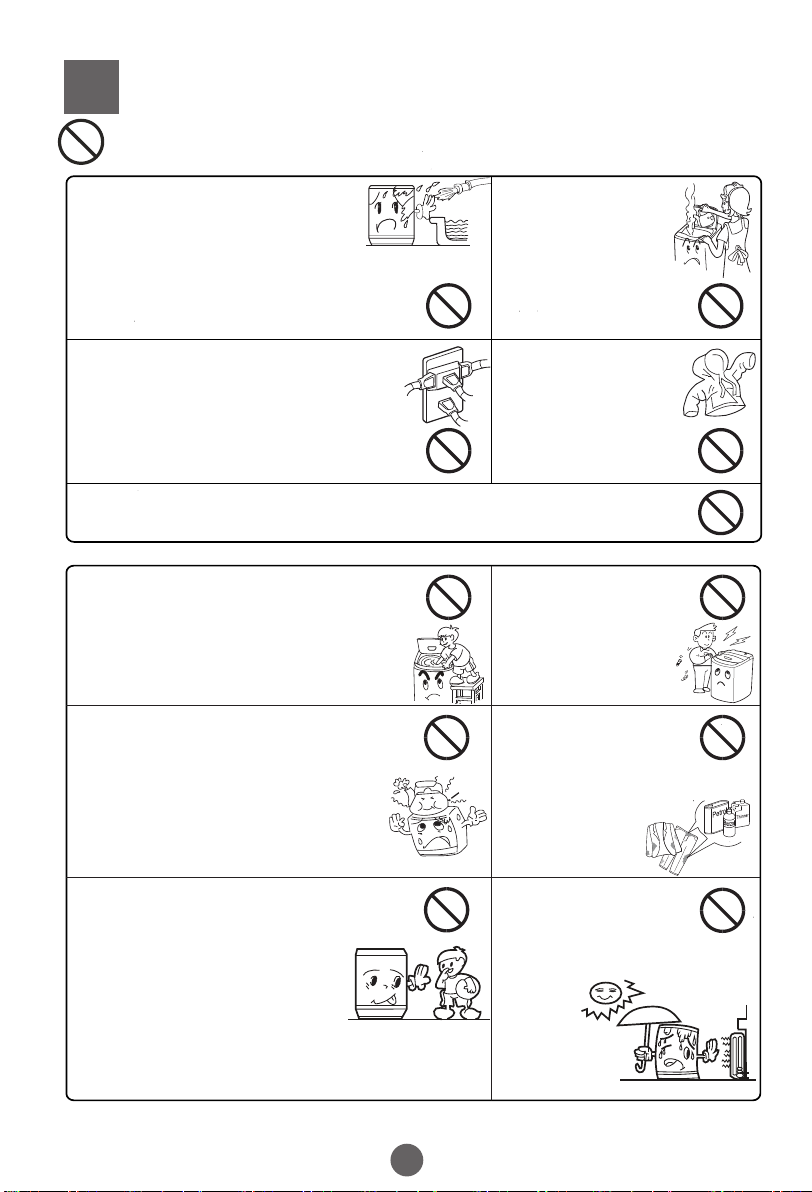

Forbidden

Do not use multi-plug adapters and

extension cables. Do not touch the

power cord with wet hands.

The washing machine has ventilation opening in the base, the opening

must not be obstructed by a carpet.

Do not install this appliance in a

damp or wet environment. Do not

leave wet laundry on the Control

Panel or spray water directly on to

this appliance as this may cause the

washer to malfunction or cause an

electrical fault.

Do not wash

water-proof clothing

as this may affect

load balance during

spin cycle(s).

Do not contact to

water exceed 50°C

in temperature.

This appliance is not intended for use by

persons (including children) with reduced

physical,sensory or mental

capabilities, or lack of experience

and knowledge, unless they have

been given supervision or

instruction by a person responsible

for their safety.Children should be supervised to

ensure that they do not play with the appliance.

Do not attempt to repair,

disassemble or modify

the appliance yourself.

Do not attempt to put your hand into the

washing machine while the operation is

in progress. Children should be supervised

to ensure they do not play with the

appliance.

Do not leave hot or heavy items on lid

or control panel as this may cause

damage to the washer or make the

washer unsafe to operate.

Do not wash laundry

with chemicals or other

volatile materials(such as

petrol,solvents or thinners)

as this may cause

damage to the

machine.

Keep washer away

from heat sources

such as heater,

stoves or direct sunlight.

Safety precautions

Safety warning

If the power cord or others parts of this appliance become damaged or faulty, please

contact technician to repair or replace it. Do not attempt to fix it by yourself as this may

cause personal injury or void warranty.

You may not open the lid when the water is filling in the tub.The new water inlet hose

supplied with the appliance is to be used and the old water inlet hose should not be

reused.

Please remove item such as coins,

button, sand and other solid materials

from clothing before washing.

Check that water tap is open after

connection to machine, prior

to operation and that pipes are

connected correctly.

Please install and adjust the machine according to the directions contained in this

manual.It is very important to follow these directions to ensure the machine operates

correctly and safely.

Installation & Adjustment

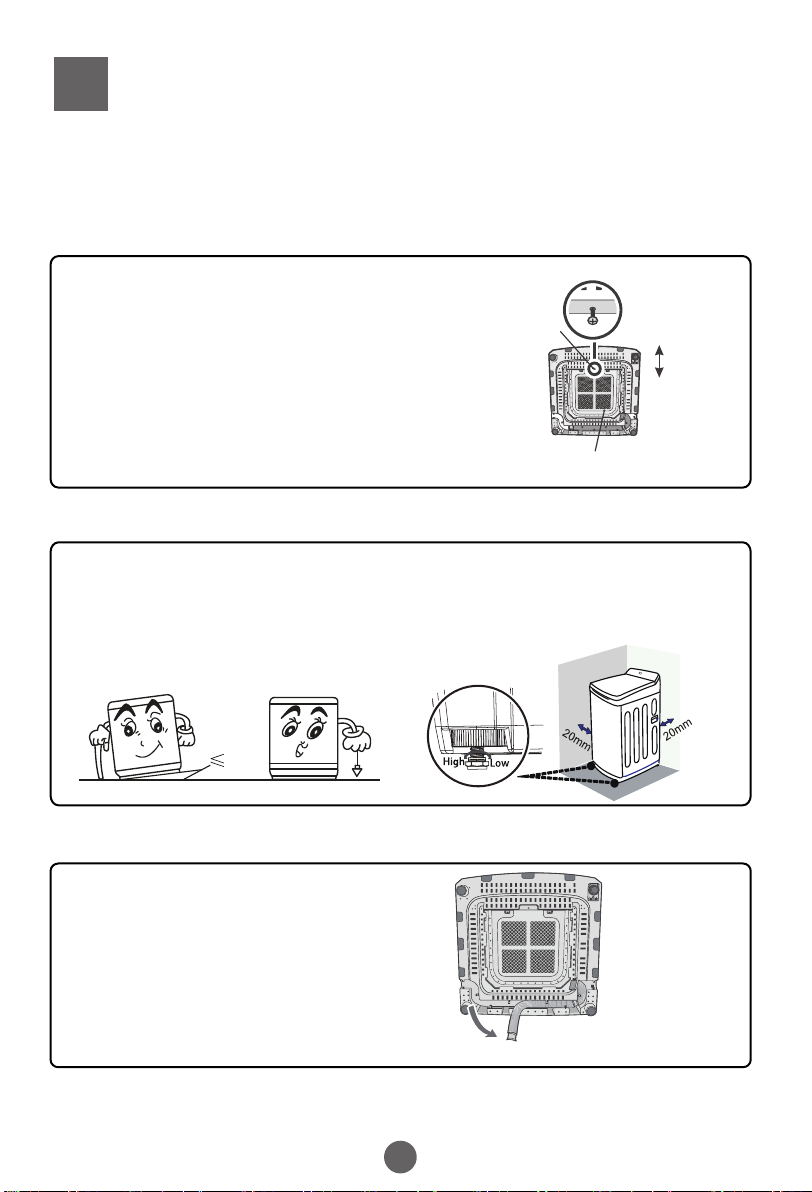

Balance washing machine

Install the bottom plate

Change the direction of the drain hose

Back

Front

Screw

Bottom plate

The purpose of the bottom plate is to reduce noise level from

the washing machine while operation in progress.

Steps:

1. Lay the machine on a flat and clean floor.

2. Place the plate onto the bottom of the machine.

3. Use a screwdriver to tighten the screw (in accessory bag)

securing the panel to bottom of the washer.

4. Once the screw is tight and the panel is secure, put the

appliance back in an upright position.

Do not install the machine on a tilted floor. Pleas install the machine on a level floor.

If the floor is not level, use the adjustable feet to adjust it. Keep the machine at 20mm

from each adjacent wall.

2°

Lay the machine on a flat and clean floor.

Relocate the drain pipe in a diagonal

direction if required.

Applicable model: HWM120-B1678S8

Installation & Adjustment

Position the drain hose

Inlet pipe connection

1.Do not let the drain hose run over

doorsills that protrude 10cm from the

floor.

2.Do not trample on the drain hose.

3.Cut the excessive part if needed.

4.If extra drain hose is needed, please

make separate purchase.The inner

diameter of the extra hose shall not

less than 30mm,and the length shall

not exceed 1.5m.

5.If the extra hose is too long, cut it either

at A or at B point.

Note: The new water inlet hose supplied with the appliance is to be used and the old

water inlet hose should not be reused.

The new hose-sets supplied with the appliance are to be used and that old hose-sets

should not be reused.

Connect the water tap

It is required that the front end shall be longer than 10mm.

The spout of the water tap shall be flat and smooth. If not please polish it to avoid

leakage.

The spout of the water tap

water tap,suitable water tap, not suitable

≤1.5m

Installation & Adjustment

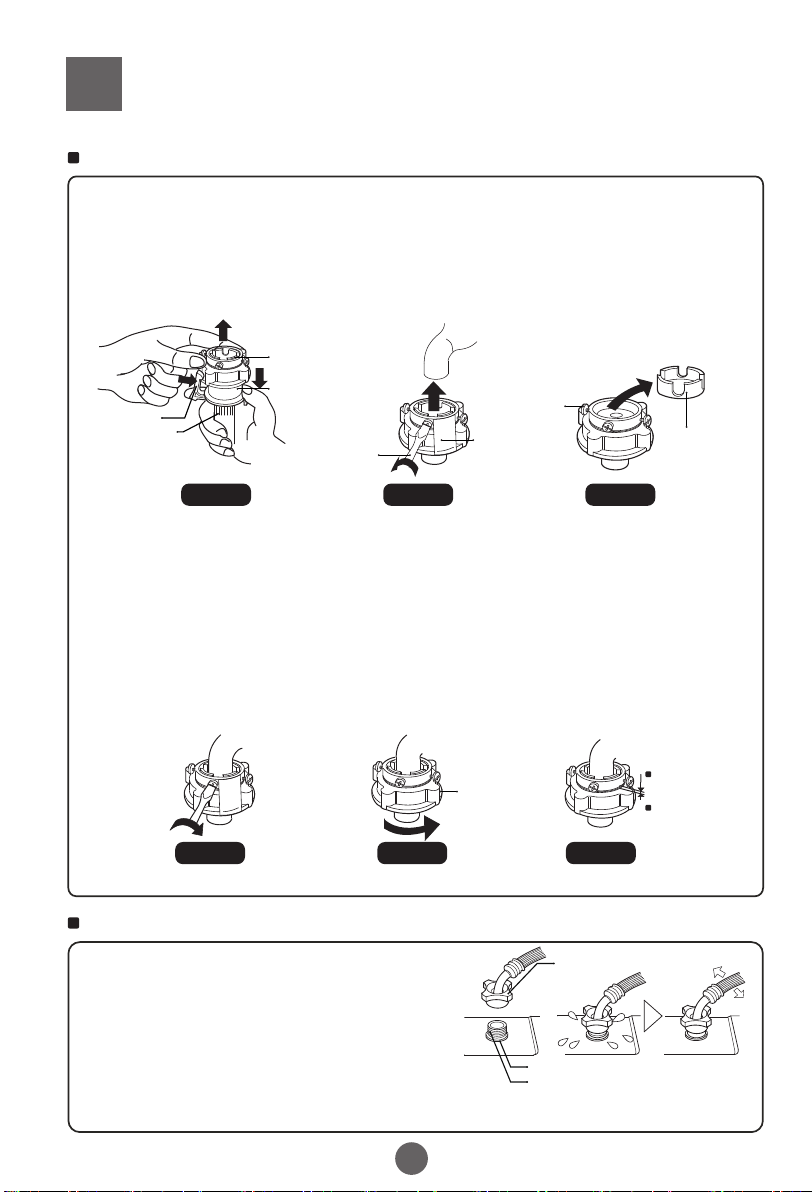

Connection between the water inlet hose jointer and the water tap

1.Press the lower end of the locking lever and push down the slider. Remove the

water inlet hose jointer from the water inlet hose component. See Figure 1.

2.Remove the nameplate. Make sure the * is 4mm above the screw nut. See

Figure 6. If the * is less than 4mm above the screw nut. Loosen the screws.

3.Insert the jointer of the water inlet hose on the tap. See Figure 2.If the tap

is too large and the jointer cannot be inserted on the water tap, please loosen the

four screws and remove the bushing in the jointer. The front end of the tap must

be smooth, otherwise it may leak water. See Figure 3.

4.Tighten the four screws evenly. See Figure 4.

5.Turn the screw nut in the arrow direction, see Figure 5. After installation, the * is

less than 2mm above the screw nut. See Figure 6.

About 4mm

before twisting

About less than

2mm after

twisting

Locking Lever

Water inlet hose

Slider

Water inlet hose jointer

Philips screw driver

Nameplate

Screw

Bushing

Screw nut

Figure 1 Figure 2 Figure 3

Figure 4 Figure 5 Figure 6

Connection between the water inlet hose and the washer

1.Do not remove the water absorption cushion.

Please check if the cushion is dropped or

damaged before use. If it happens please

contact our after-sale department immediately.

2.Put the nut of the water inlet hose on the

valve jointer.

3.Tighten the nut. Swing the hose gently to ensure its

firmly connected.

nut of the water inlet hose

jointer of the water inlet valve

water absorption cushion

Installation & Adjustment

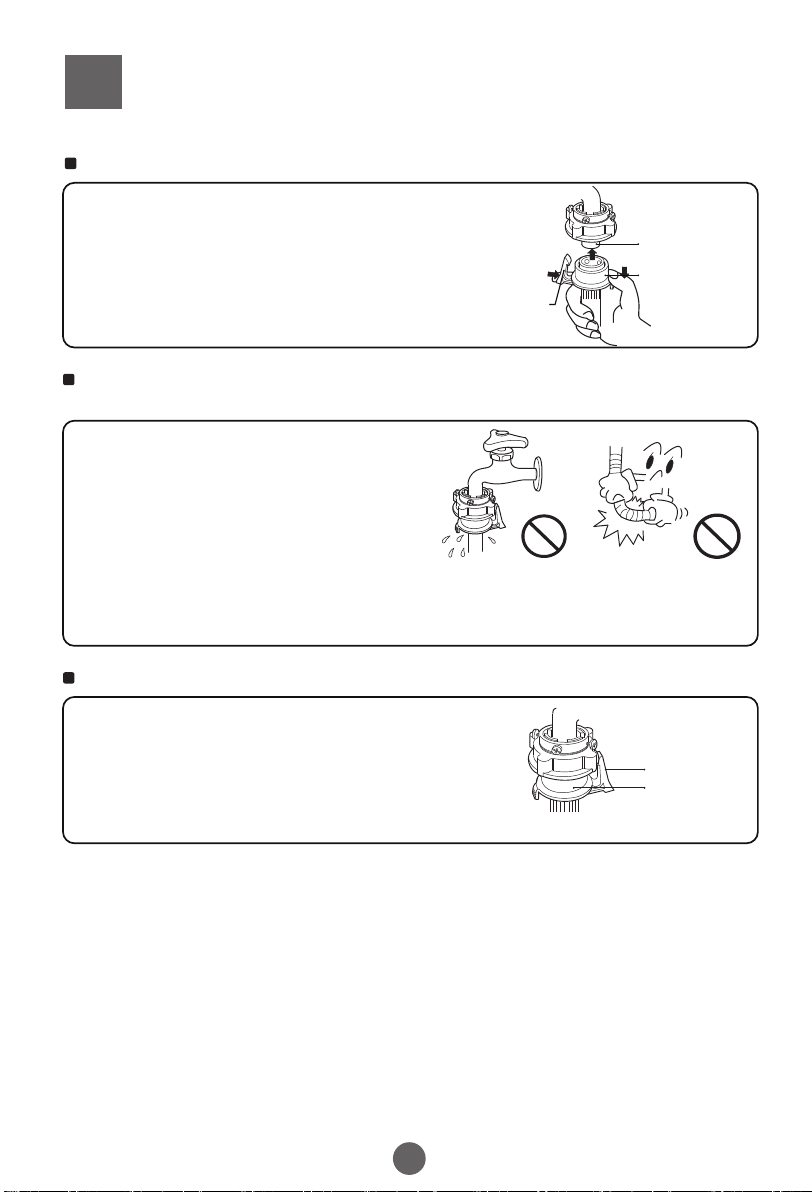

Connection between the jointer of the water inlet hose and the water inlet hose

1.Push down the slider. Insert the water inlet hose

into the jointer.

2.Connect the locking lever to the jointer. Release

the slider with a clicking sound.

Check the connection between the jointer of the water inlet hose and the

water tap

1.Swing the hose gently to ensure its firmly

connected.

2.Turn on the water tap and check if there

are any leaks around the connection areas.

3.Do not stretch the water hose by force.

4.After connecting the jointer to the water

tap, check if it is connected properly by pulling the water inlet hose

downwards.

Disassemble the water inlet hose

1.Close the water tap.

2.Press the locking lever. Push down the slider,

remove the water inlet hose.

Locking Lever

Slider

Locking Lever

Slider

the jointer of the

water inlet hose
