HWM8000

Fuzzy Computerized Automatic

Washing Machine User's manual

This manual is for

Please read this manual

carefully before using.

Retain it for future reference. 0030805704B

Contents

Names of the parts

Safety precautions

Trouble shooting * Answer to question

Packing list Specification

Installation and adjustment

Usage of the drain hose

Preparation before washing

Put in the laundries

Add the detergent and softener

Use the operation knobs and buttons

Installation the water inlet hose

Disposal after washing

Finish washing

Close the top lid

Adjustable foot

Front control

board

Front fixed

foot

Rear fixed foot

back cover

Cabinet

Drain hose

Back faceplate

Control panel

film

Control panel

Lint filter(Installed by user)

Filter cover

Level meter

Power line

Pulsator

Inner tub

Detergent box

Drier outlet

cover

Top lid B

Cabinet handle

Warm water valve

Cool water valve

Top lid A

Adjustable foot

seam

hanging hole

for the drain

hose

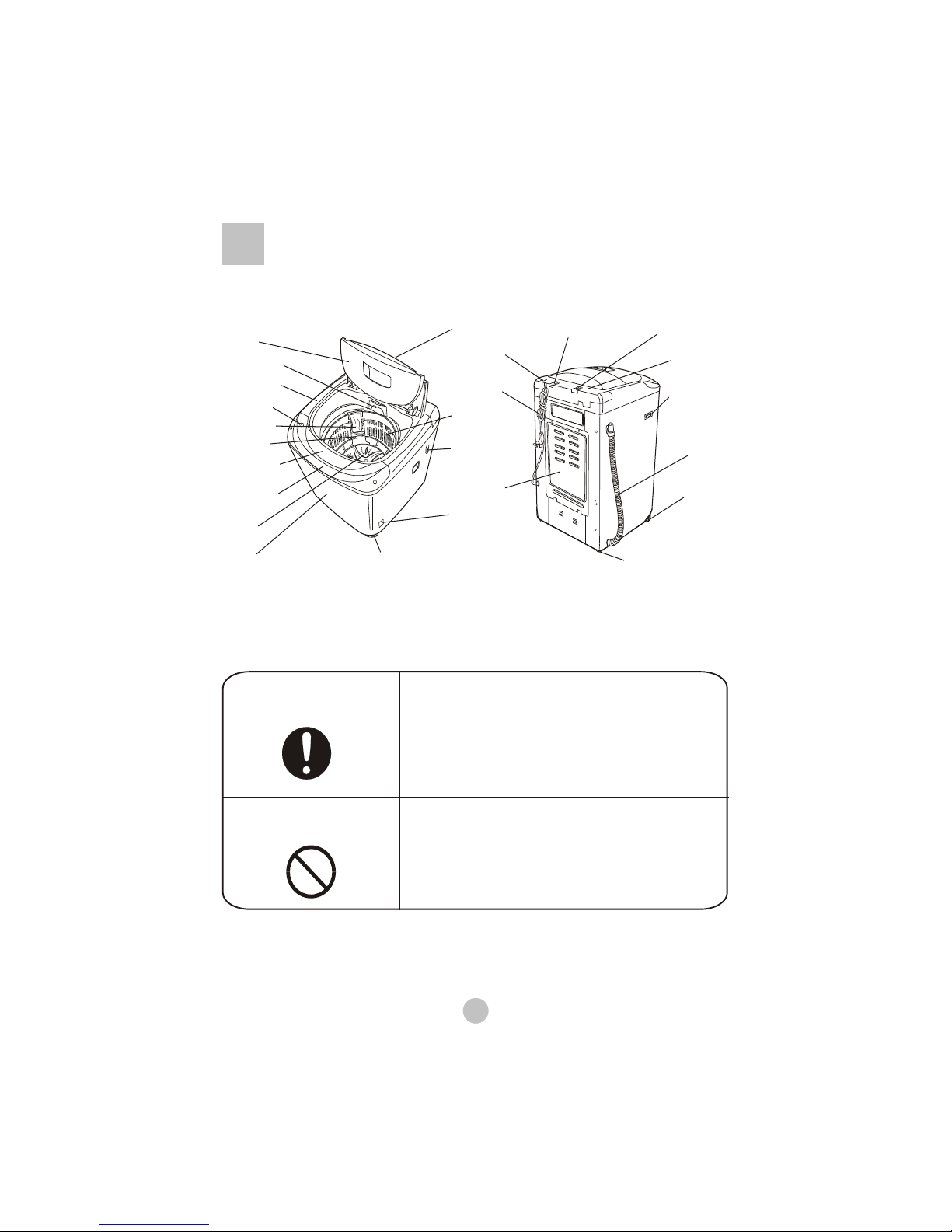

Names of the parts

Please check if the power receptacle has good earthing condition

before using to guarantee your safety.

Warning sign

Meaning and description of the symbols

Forbidding sign

Contents marked with that symbol are related

to the safety of the product and the personal

safety of the users. Please operate in strict

conformity to the contents, otherwise it may

cause damageof the machine or injure the

personal safety of the user.

Contents marked with that symbol are actions

forbidden to perform. Performing of those

actions may result in damage of the machine

or injure the personal safety of the user.

Safety precautions

In normal usage of thewashing machine,

the power plug shall be ready to be pulled

or plugged with hand. Be sure to pull the

plug off and close the water faucet in

following cases: power failure, delivering

the machine, setting the machine idle or

cleaning the machine. Do not plug

or pull the power plug with wet hand.

In case the washing machineis installed on

ground with carpet,be careful notto block the

ventilation hole withcarpet.

Do not letthe machine shareone receptacle withother

electric appliances. Ifthe power plugis damaged, orthe

plugging into thereceptacle is loose,do not useit any

more.

Do not set the machine at dampplace

like the bathroom.Never wash itwith water.

Do not put wet laundries on the control

panel coating.

Do not usewater with temperature

higher than 50 inside the tub.

Do notwash water-proof laundries like

the raincoat, bike covers,down textiles etc.

to avoid abnormalvibrations in spinning and

damaging the laundries.

Do not bend, stretch, twist, bind the power cord by force,

or reform it. Do not press or clamp it with heavy items. If the

power cord and power plug are bad, or the receptacle is loose,

be sure tohave it replaced by the techniciansof our special shop

or our agent, or the after-sale service department for the sake

of avoiding any risk. Keep the prong of the power plug clean.

If dust isfound on thepower plug, pleasewipe it offwith dry cloth.

The ventilation

holes at the

bottom

Please insert the power cord into special

receptacle with rated voltage.Be sure to

use single-phase three pins receptacle.

The earthing terminal must be earthed

reliably.If possible,please adopt electric

leakage protector.

Do not put hand intothe rotating tub. It is

dangerous even ifthe rotation speedis slow.

Take special care of thechildren. Keep

children away from the washing machine

to avoid themclimbing on it.

Do notdecompose, repair or alter

the machine byyourself.

Do not put any hot orheavy items

(such as thekettle with hotwater) on the

washing machine.

Do notwash laundries with volatile

materials (such asthinner, petroletc.).

Keep themachine away from direct

sunlight and heatsource like theheater.

The handicappedor children shall not

use the machinewithout care.

Safety precautions

Please check if the water faucet is open, and if

the connection of the water inlet pipe is proper.

It is suggested to use foamless washing powder.

Toprevent the lintin the tubfrom blocking

the cascade outlet and influencing the

cascade effect, please keep the lint filter

in good condition, and install it to proper

position during washing. If the lintfilter is

lost or damaged, please contact the local

after-sale service department of our

company.

To protect your laundries and washing

machine, please take out all of the coins,

buttons, sand, hairpin and other foreign

materials before washing.

Install the bottom plate

Adjust the installation position

Please install andadjust the machine according to the requirement of themanual, which is very

important for youto operate the machine safely and properly.

After openingthe package, please lean the

washing machine gently down on soft items

(like towel cloth, blanket, etc.). Install the

bottom plate to the bottom of the machine

with eight screws by a cross screwdriver,

then lift the machine up gently. See to the

figure:

Front

Back

Soft item

Screw

Bottom plate

Loosen Fasten

High Low

Adjustable nut

Adjustable leg

The largest allowableslope of theshank base

of the machineis 2 . The slanting or rough

ground will result in unstable running or

stoppage of themachine. Please adjustit with

following methods:

Confirm it's horizontal:

Adjust theadjustable leg:

If the bulb of the level meter at the balance display

position is inside the standard circle, it indicates that

the machine is horizontal. Otherwise you need to

adjust the adjustable leg of the machine.

1.Totwist the adjustable leg, please firstlift up the

leg side slightly, loosen theadjustable nut, and

then twist theleg.

2.After adjustment, fastenthe nut.

Air bubble

Standard circle

Suitable Not suitable

Installation and adjustment

Inner tub Lint filter

After openingthe package, please takeout the lint

filter from the document bag,install it to the filter cover

of inner tub.See to thefigure.

Install the lint filter

How to change the direction of the drain hose

1.The height of the drain hose shall be

less than 10cm, or the drainage will not

be smooth, and cost such long time that

the machine may stop at mid way.

2.Do not ramp or press the drain hose.

3.If the drain hose is too long, cut it at mid

point. To make smooth drainage, cut the

front end of the hose slantingly.

4.If extra drain hose is needed, please

make separate purchase. The inner

diameter of the extra hose shall not

less than 30mm, and the length shall

not exceed 1.5m.

Usage of the drain hose

The drain hose shall drain smoothly

1.Dismount the back cover of the washing machine.

2.Lay down the washing machine gently with the front

side facing the ground. Use cross screwdriver to

loosen the eight screws. Take off the bottom plate.

4.Dismount the protecting cover of the drain outlet at the

other side as indicated in Figure 3.

5.Extend the drain hose out of the other side. Fix the drain

hose onto the cabinet with the drain hose rack. Set the

drain hose nut on, and fasten the nut to the direction

indicated in the figure, as per Figure 4.

6.Install the protecting cover of the drain outlet to the other

side, as indicated in Figure 5.

7.Install the bottom plate (method the same as stated

above). Lift up the washing

machine gently.

3.Put down the outer drain hose. Twistthe drain hose nut

counterclockwise to take it off as indicated in Figure 1.

Take off the drain hose rack. Put the drain hose into

the cabinet as indicated in Figure 2.

back

front

bottom plate

Page 4

drain outlet

protecting

cover

fasten

drain hose nut

Drain hose nut Drain hose rack

Outer

drain hose

Loosen

soft item

Figure 1

Figure 3 Figure 4

Figure 5

Figure 2

f the extra hose is too long, cut it either

at point A or B.

Install the water inlet pipe

Connection between the water inlet hose jointer and the water faucet

Water faucet, suitable water faucet, not suitable

It is required that the front end shall be longer than 10mm.

The outlet end surface of the faucet shall be flat and smooth. If not, please file it smooth to avoid leakage.

2 Loosen the four screws of the water inlet hose jointer till the water faucet can be accessed. Then set the water inlet hose

jointer on the faucet. See to Figure 2. If the faucet is too large and the jointer cannot be set on, please loosen the four

screws and take out the bush inside the jointer. See to Figure 3.

1.Press the lower end of the lock lever and push down the slider. Take off the water inlet hose jointer from the

water inlet hose component. See to Figure 1.

3 Fasten thefour screws ofthe water inlet hose jointer evenly. See toFigure 4.

About 4mm after twisting

Remark: .Before installation, the threading is 4mm above the upper surface of the nut.

After installation, the threading is 2mm above the upper surface of the nut..

About above 2mm after twisting

Water inlet hose jointer

Screw knife

Screw

Bushing

Nameplate

Screw nut

Water inlet hose Figure 1

Figure 4

Figure 2

Figure 5

Figure 3

Figure 6

Slider

Lock level

Install the water inlet hose

4 Take off the nameplate.Twist the fastening nut as per the indication of the figure

to seal up the exit end face of the faucet. See to Figure 5.

Connection between the water inlet hose and the washing machine

1 Do not takeoff the waterabsorption cushion. Pleasecheck

if the cushion isdropped or damaged eachtime before using.

If it happens so,please duly contact ourafter-sale service

department.

2 Set the nutof the water inlethose on the waterinlet valve jointer.

3 Fasten the nut.Swing it gently toconfirm if it's fastenedwell.

Water absorption cushion.

Water inlet

hose nut

Water inlet valvejointer

Dismount the water inlet hose

Connection between the water inlet hose jointer and the water inlet hose

Check the connection between the water inlet hose jointer and the

water faucet

1.Swing the hosegently to checkif it is fastened stably.

2.After installation, openthe faucet tocheck if itleaks water.

3.Do not bendthe hose byforce.

4.Each time beforeusing, please checkif the connection

between the waterinlet hose jointerand the waterfaucet,

and the installation of the waterinlet hoseis firm,so as

to avoid droppingowing to improperinstallation.

1 Push downthe slider.Plug the waterinlet hose intothe jointer.

2 Hang thelock lever ontothe jointer.Release

the slider tilla click soundis heard.

Lock level

Slider

The water inlet

hose jointer

Slider

Locking level

1 Close thewater faucet.

2 Press thelock lever andpush down theslider. Thenpull off the

water inlet hose.If the machineis used more than once every

week, the waterinlet hose jointercan remain onthe faucet to

avoid damaging thefastening screws.

1 Preparation before washing

Pay attention to the followings before washing

Preparation before washing

1 Connect thewater inlet hose.Open the waterfaucet.

2 Confirm thatthe washing machineis earthed reliably.

Then plug thepower plug intothe receptacle. The

earthing terminal shallnot link togas pipeline and

faucet water pipeline.

3 Put downthe drain hose.

Check if

the laundries

have special

requirement

on washing

Clear the

pocket. Take

out the coins,

sand, hairpins

etc.

Tie the long

strips; fasten

the buttons;

close zippers.

When the pulsator

is running ,the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

The quantity of

the laundries

shall not be too

large. Stretch

and loosen the

laundries before

putting them in

the tub.

a. Check if the laundries are applicable for washing with machine.

b. Divide the laundries that are not colorfast from other laundries.

c. Put the laundries difficult to absorb water into water with hand.

d. For thelaundries with heavy soil, please first remove the dirt like mud or dust.

For the parts with heavy soil, please apply detergent on them in advance, which

can make it easier to remove the soil.

e. For thelaundries that may get lint ball and those with long fur, turn it over before

putting in.

f. Do notput the laundries polluted by chemicals into the washing machine directly.

4.Slanting or uneven ground may result in unstable

working or abnormal noise. Please make the machine

stand horizontally.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Haier Rondelle

Haier

Haier WM6002A Manuel utilisateur

Haier

Haier HA1000TE Manuel utilisateur

Haier

Haier HT1206TXVE Manuel utilisateur

Haier

Haier HWM70-10A Manuel utilisateur

Haier

Haier HLP23E - Electronic Touch Pulsator Ing Portable Washing... Manuel utilisateur

Haier

Haier HWM35-AS Manuel utilisateur

Haier

Haier XQB55-10 Manuel utilisateur

Haier

Haier HW70-1001 Manuel utilisateur

Haier

Haier HW-B1070 Manuel utilisateur

Haier

Haier HLT364XXQ - Genesis Washer Manuel utilisateur

Haier

Haier HW-B1470TVE-F Manuel utilisateur

Haier

Haier HWM108VA Manuel utilisateur

Haier

Haier HWM65-0523K Manuel utilisateur

Haier

Haier XPB50-AS Manuel utilisateur

Haier

Haier I-Pro 7 Series Manuel utilisateur

Haier

Haier WNA600TX Guide de l'utilisateur

Haier

Haier HWM90-L287S Manuel utilisateur

Haier

Haier HM1000T Manuel utilisateur

Haier

Haier HLP021 - PULSATOR Portable Washer Manuel utilisateur

Haier

Haier HLP22P Guide de configuration

Haier

Haier HW60-1279 Manuel utilisateur

Haier

Haier HW90-BP14959 Manuel utilisateur

Haier

Haier XQB50-18 Manuel utilisateur

$Haier JW-K50B\JW-K50C Manuel utilisateur$

Haier

Haier JW-K50B\JW-K50C Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
