Haier HWM110-9188 Manuel utilisateur

Order NO. TL1101S001V1

Model Number HWM110-9188

C2011 Haier Washing Machine

Order No.TL1101S001V1

-2-

Chapter 1 : General Information

Chapter 2.Product Feature .............................................................. 4

Chapter 3. Safety Precautions .......................................................... 6

Chapter 4. Installation and accessory parts ............................................. 8

Chapter 5. Parts and functions .........................................................13

Chapter 7. Maintenance service and trouble shooting .................................... 16

Chapter 8. Wiring diagram...............................................................20

Chapter 6. Operating Instruction ....................................................... 14

1-1. Table of Contents

Chapter 1. General Information ....................................................................................2

1-1. Table of Contents 2

1-2. General Guidelines 3

1-3. Caution and Warning symbols 3

1-4. Function indication symbols 3

2-1. Features 4

2-2. Specification 5

3-3.Net dimension 8

3-1. Safety 6

3-2. Warning and cautions 7

4-1. Key points in installation 8

7-1.Trouble-shooting charts

7- - . 61 1 No action(The indicator is off) 1

7- - 71 2.No draining 1

7- - 71 3.Keep filling water 1

7- - 81 4.No spinning 1

7- -1 5.Too much noise in spinning

7- - 81 6.Too much noise in washing 1

7-2. Trouble alarm and solve method 19

7-3.Common phenomena

4-2. Install the bottom plate 8

4 3.Adjust the installation position 9-

4. -4 How to change the direction of the drain hose 9

4. the drain hoses 10-5 Usage

4. the water faucet 10-6 Confirm

4. -7 Connection between the water inlet hose jointer and the water faucet 11

4. -8 Connection between the water inlet hose and the water 11

4. -9 Connection between the jointer of the water inlet hose and the water inlet hose 12

4.-10 Check the connection between the water inlet hose jointer and the water faucet

4. -11 Dismantle the water inlet hose 12

Model No.: HWM110-9188/HWM110-9188DD

Issue

Rev.

1-2. General Guidelines

1-3. Caution and Warning symbols

When servicing, observe the original lead dress. If a short circuit is found, replace all parts

which have been overheated or damaged by the short circuit. After servicing, see to it

that all the protective devices such as insulation barriers, insulation papers shields are

properly installed. Confirm that the screws parts and wiring which were removed in

(You will see them in “Matters needing attention”)

order to service are put in the original positions, or whether there are the portions which

are deteriorated around the service places serviced or not. And be sure safety of that

Any instructions in this service manual with this “Warning” sign must be

followed strictly.

To prevent damage to the washing machine, any instructions in this service

manual with this “Stop” sign must be followed strictly.

1-4.Function indication symbols

(You will see them in the specification table)

Signify the washing machine has this function.

Signify the washing machine doesn′t have this function.

-3-

Order No.TL1101S001V1

● Shift washing, shift spinning

●

Cold & warm water inlet selection

Drain up function

Cabinet with the door open in the front:

Super capacity for more clothes

Pulsator type for wash efficiency, twist free and low wear

-4-

Chapter 2.Product Feature

2-1. Features

Order No.TL1101S001V1

-5-

2-2. Specification

M od el H W M 1 1 0 - 9 1 8 8

Free standing √

Built under ×

EAN code

Energy efficie ncy class

Features for use

W ash capacity kg 11

Spin ca pacity kg 11

Level/Volum e L 1/21，2/3 2，6/42，4/5 1，5/60，6/69，7/77，8 /94

Preset H √

Residua l dam pness % <115

C o ntr a l m o d el

contraller ×

Norm al co m puterized ×

Fuzzy com puterized √

Frequency conversion ×

Service features

Program s 8

Short cycle ?

Inlet heating select √

Heating selection ×

Spinning cycle (s ele ctor) ×

Spinning cycle (variable) ×

Start/P ause √

Autom atic balncing ?

Aes thetics

Cabinet m aterial（P = P lastic/Z=Z incking/C= C old ) Z

Rolled stainless steel

Inner drum (stainl. steel=s / plastic=p) S

D rain type（U = drain up D=d rain down ）drain down

Door (g lass=g / pla stic= p) ×

Adjustable feet √

Tech n ical d ata

Voltage/frequ ency V/Hz 22 0 V-240V /50HZ

W ash pow e r W 550

Spin pow e r W 360

Special function －

Air-B ubble ×

Feet whe el ×

W ater fall current ×

Dim ension s (m eas u rem en ts)

Height / built under m m 1055

W idth m m 660

Depth / w ith open doo r m m 660

Dim ension s pack ed ( m easu rem ents pack ed)

Height m m 1140

W idth m m 727

Depth m m 727

Net weight kg 57

G ro ss w eigh t kg 70

20'Container lo ad Sets 42

40’Containe r lo a d Sets 90

40H ’Container load Sets 90

NOTE: "√" FOR AVALIABLE, " ×" FOR NOT AVALIABLE “-”FOR NOT AVAILABLE

Product Specification

" -" F O R B E A P P L IC A B LE

Order No.TL1101S001V1

Do not share one receptacle with other

electric appliances. Do not use it in

case that the power plug is damaged

or the inserting into the receptacle is

loose.

Earth

Do not wash water-proof laundries such

as the raincoat, bicycle shelter etc. To

avoid abnormal vibration during spinning.

If the power cord is bad, to avoid risk it is required to replace it by the technicians

of our special shop or the after-sale service department. Keep the pin of the power

plug clean.

Be sure to earth the earthing wire reliably.

Do not put the machine at damp place like

the bathroom. Never wash it with water.

Do not let the machine share one receptacle

with other electric appliances. If the power

plug is damaged, or the plugging into the

receptacle is loose, do not use the plug any

more.

Do not install or store the washer where

it will be exposed to the weather.

The power cord plug should be convenient

to be pluged in or pluged out with hand while

the washing machine runs normally. Be sure to

pull the plug out and close the water tap when

the machine is idle, when moving the machine,

or when cleaning the machine.Do not use wet

hand to insert or pull out the power plug.

-6-

Chapter 3. Safety Precautions

3-1. Safety

Order No.TL1101S001V1

-7-

3-2. Warning and cautions

Order No.TL1101S001V1

Unit（mm）

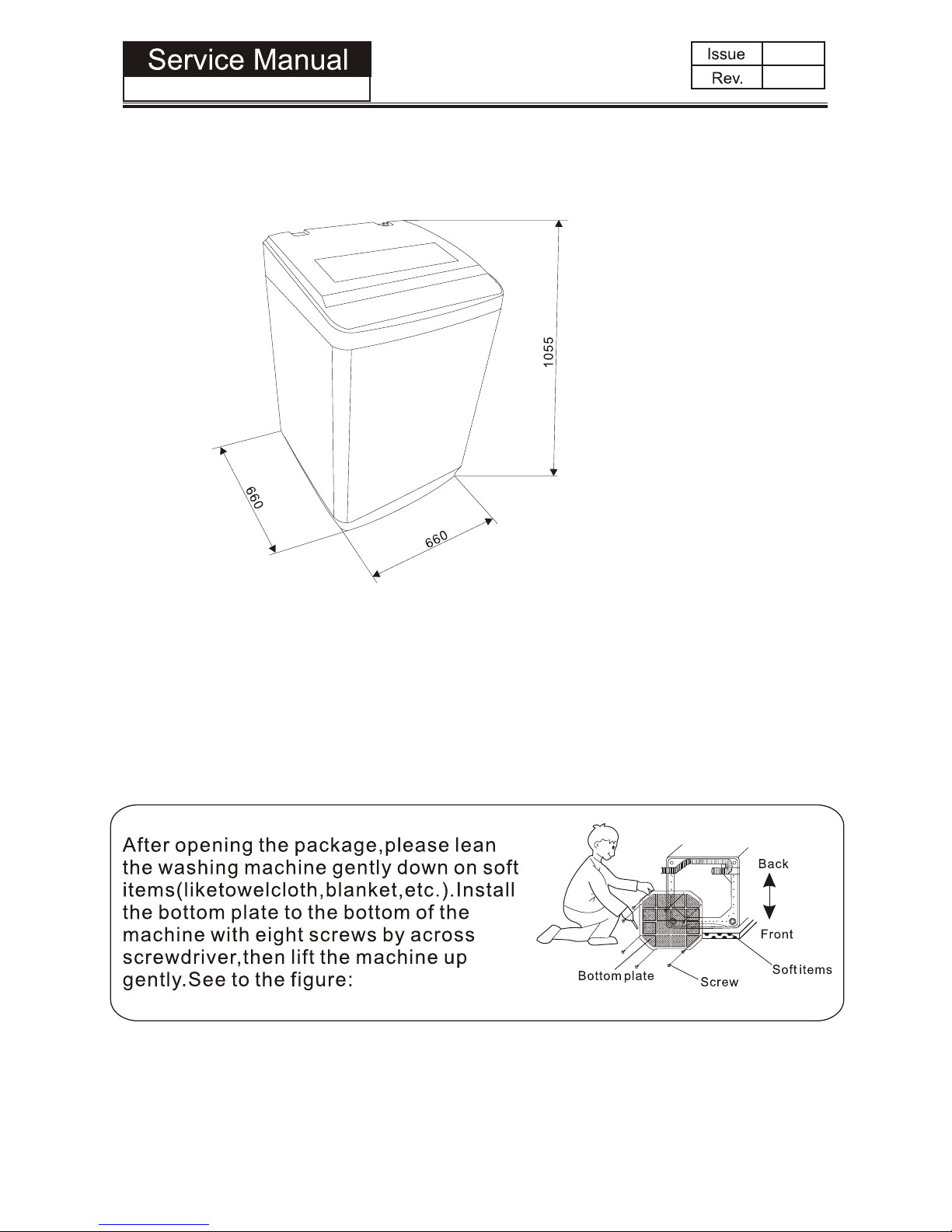

4-2. Install the bottom plate

Please install and adjust the machine according to the requirement of the manual.

It is very important to your security and correct operating the machine.

-8-

4-1. Key points in installation

3-3.Net dimension

Chapter 4. Installation and accessory parts

Order No.TL1101S001V1

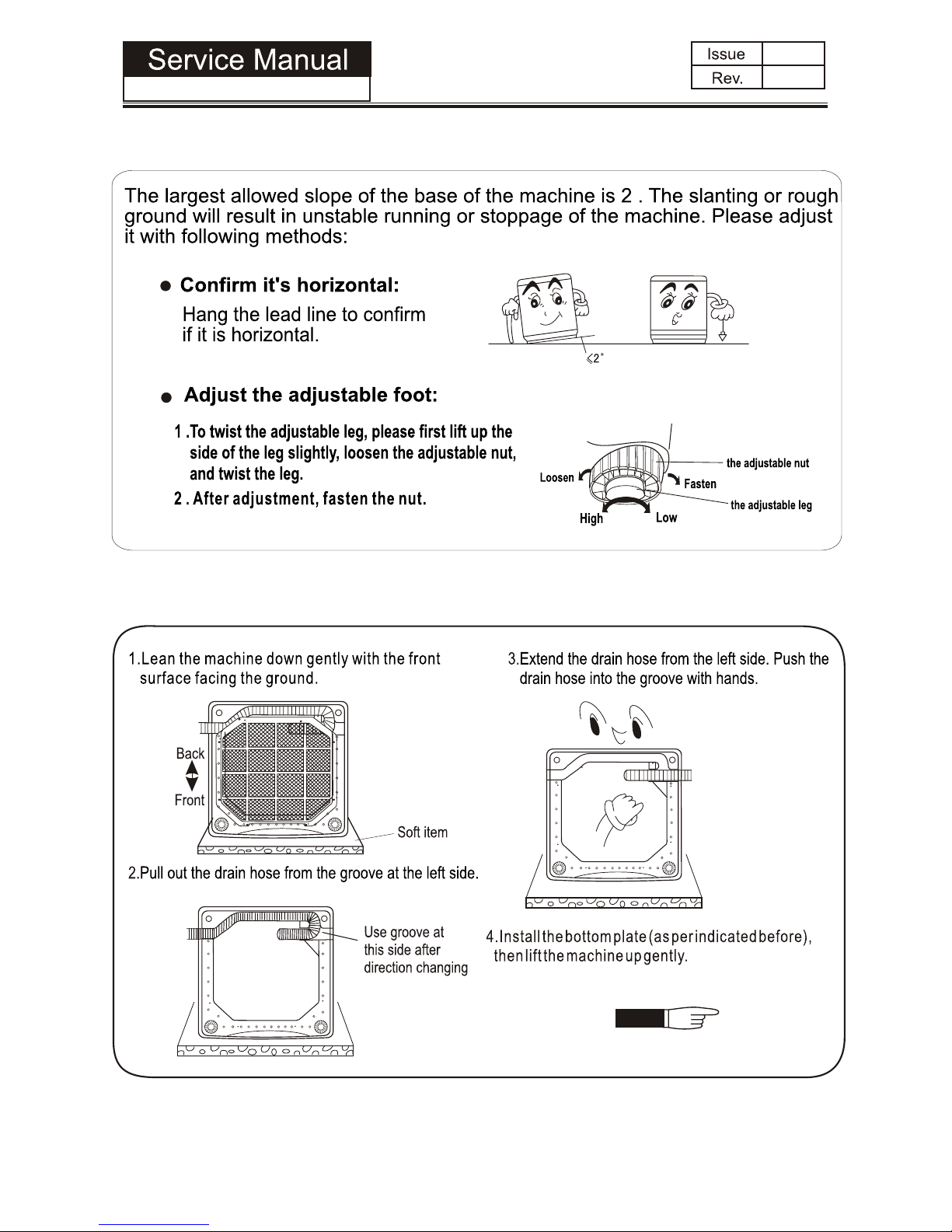

4.-4 How to change the direction of the drain hose

4 3.Adjust the installation position-

-9-

Page 4

Order No.TL1101S001V1

-10-

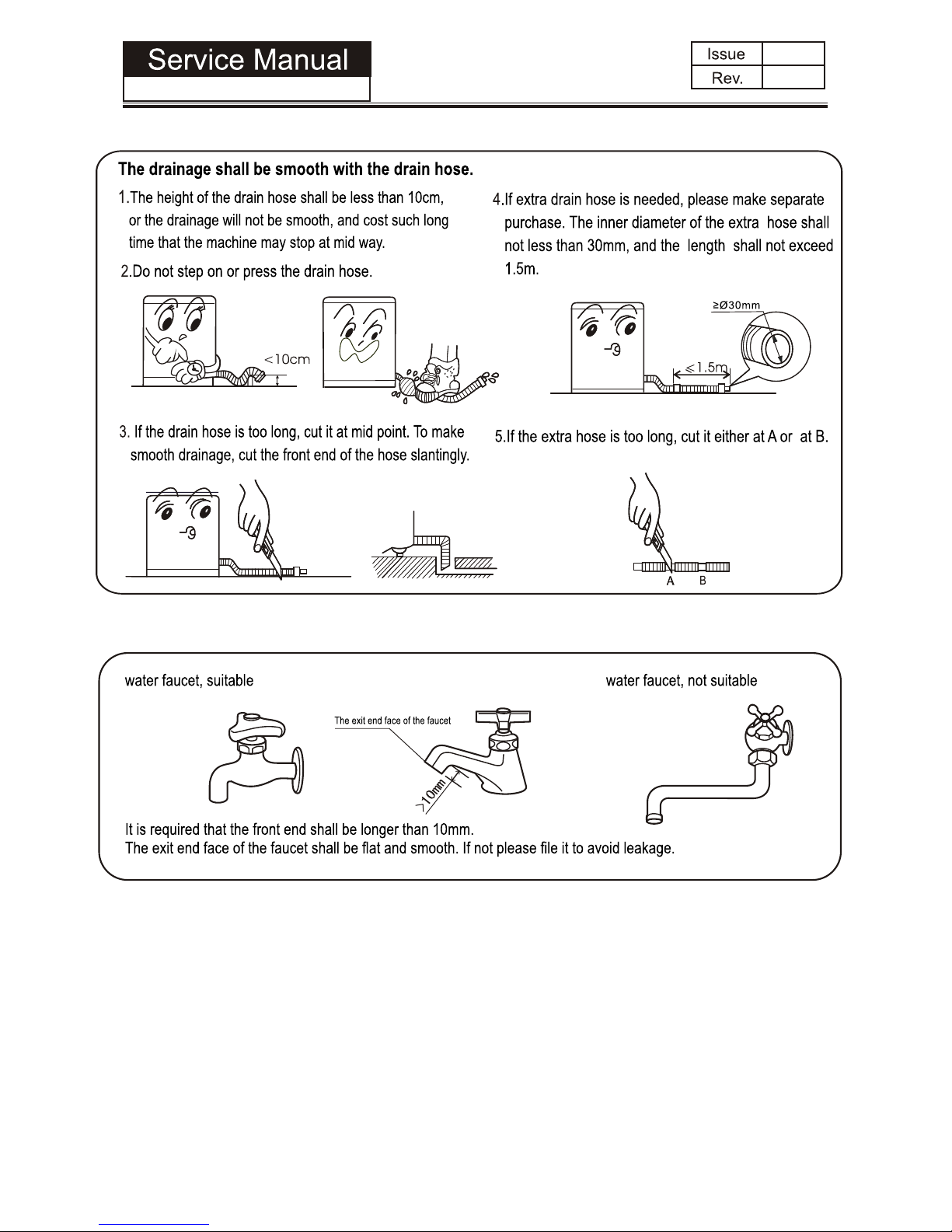

4. the drain hoses-5 Usage

4. the water faucet-6 Confirm
