Haier HWM-13.0/S Manuel utilisateur

This manual is for

HWM-13.0/S

Please read this manual

carefully before using.

Retain it for future reference.

Twin-tub Washing Machine with Pump

User's manual

003080

Contents

Safety precautions

Installation and adjustment

Preparation before washing

The musts in washing

Usage of the detergent

Washing sequence

Disposal after washing

Packing list

Names of the parts

Trouble-Shooting *Answer to question

Specification

Meaning and description of the symbols

Warning sign

Forbidding sign

Contents marked with that symbol are related

to the safety of the product and the personal

safety of the users. Please operate in strict

conformity to the contents, otherwise it may

cause damage of the machine or injure the

personal safety of the user.

Contents marked with that symbol are actions

forbidden to perform. Performing of those

actions may result in damage of the machine

or injure the personal safety of the user.

Please check if the power receptacle has good earthing

condition before using to guarantee your safety.

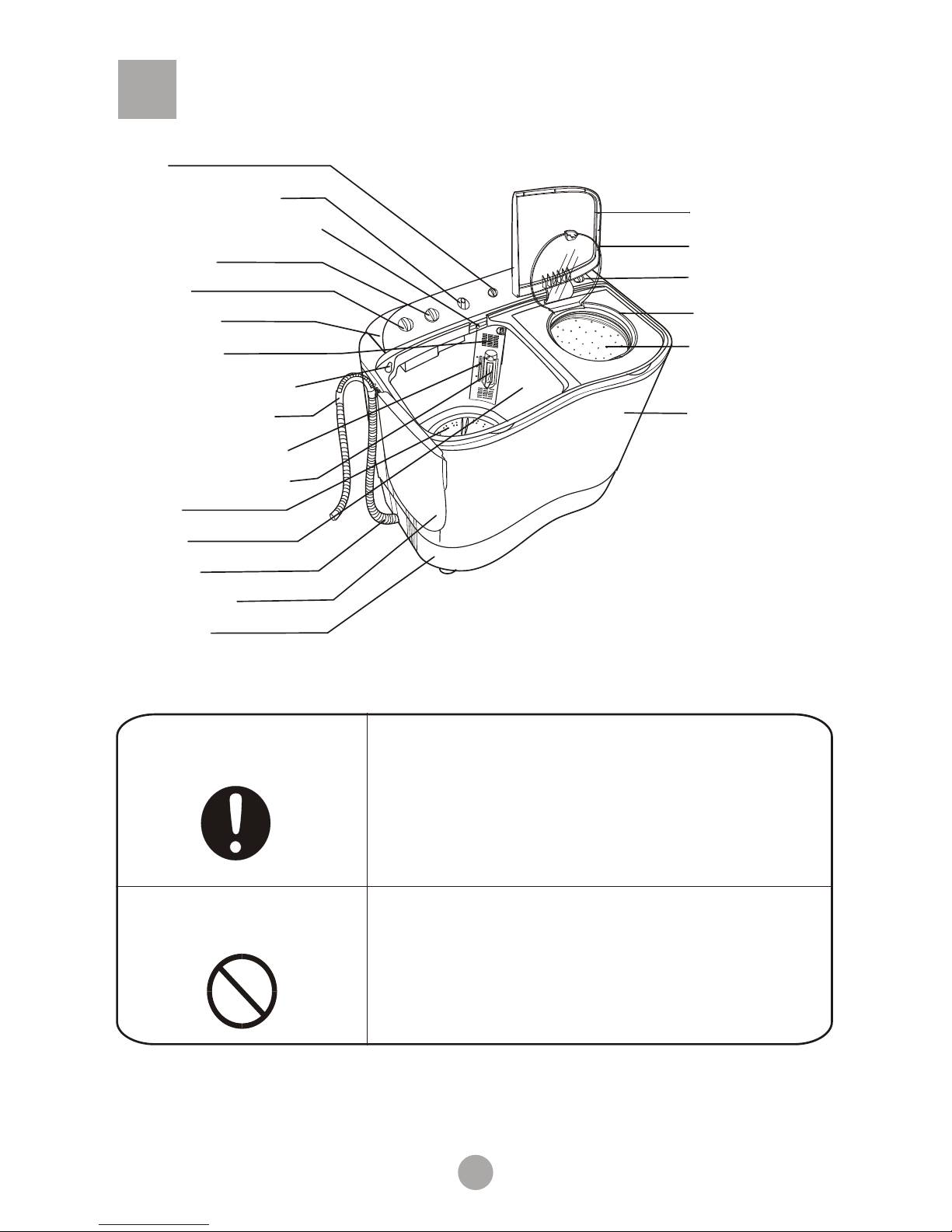

Names of the parts

Buzzer

Water-filling entrance

Water inlet selector handle

Wash selector

Wash timer

Control panel

Overflow filter

Quick water-filling entrance

Drain hose surpport

Water level adjusting lever

Lint filter(installed by user)

Pulsator

Wash tub

Drain hose

Wash tub cover

Outer cover of the spin tub

Inner cover of the spin tub

Spin timer

Spin tub frame

Spin tub

Cabinet

Base frame

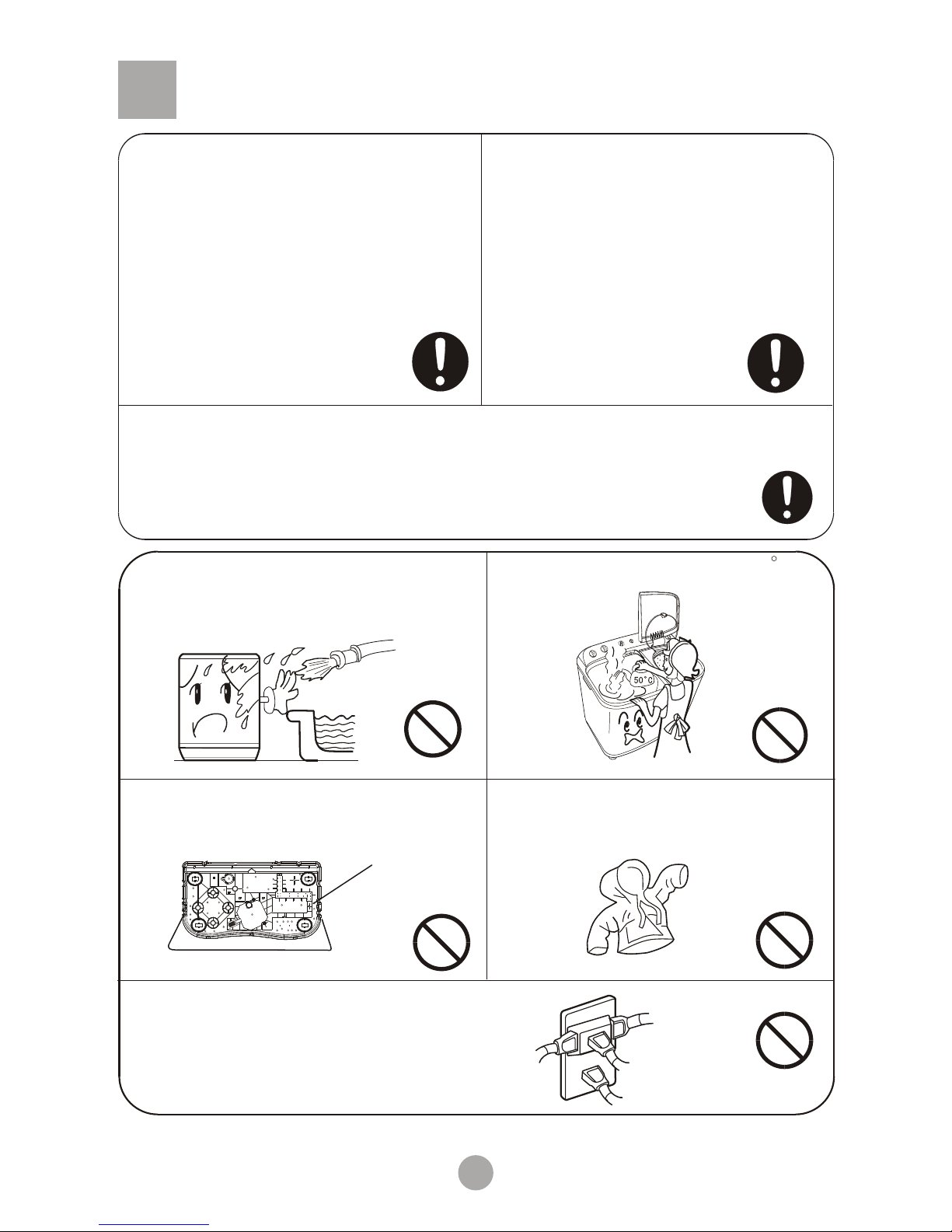

Safety precautions

Please insert the power cord into

special receptacle with rated vol-

tage. Be sure to use single-phase

three pins receptacle. The earthing

terminal of the receptacle must be

earthed reliably. If possible, please

adopt electric leakage protector.

When the machine is normally

using, please put the power plug

at the location easily to be insert-

ed and extracted by hand. Be sure

to pull the plug off when there's

power failure, or the machine is

being moved, cleaned or when it

is idle.

Do not put the machine at damp

place like the bathroom . Never

wash it with water. Do not place

wet laundries on the control panel.

Do not wash water-proof laundries like

the raincoat, bike covers etc. to avoid

abnormal vibrations in spinning.

Do not let the machine share one receptacle

with other electric appliances. If the power

plug is damaged, or the plugging into the

receptacle is loose, do not use the plug any

more.

Ventilation hole at

the bottom of the

washing machine

If the supply cord is damaged,it must be replaced

by the manufacturer or its service

agent or a similarly qualified person

in order to avoid a hazard.

Do not use water hotter than 50 C .

For washing machine with ventilation

openings in the base, that a carpet

must not obstruct the openings.

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

Safety precautions

Do not put any hot or heavy items

( such as the kettle with hot water )

on the washing machine.

Do not decompose, repair or alter the

machine by yourself.

Handicapped or children without care

shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the

heater.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.).

Petrol

Thinner

To protect your laundries and wash-

ing machine, please take out all of the

coins, buttons, sand, hairpin and

other foreign materials before washing.

Please check if the water faucet is open,

and if the connection of the water inlet

pipe is proper.

It is suggested to use foamless washing

powder.

Overflow filter

Lint filter

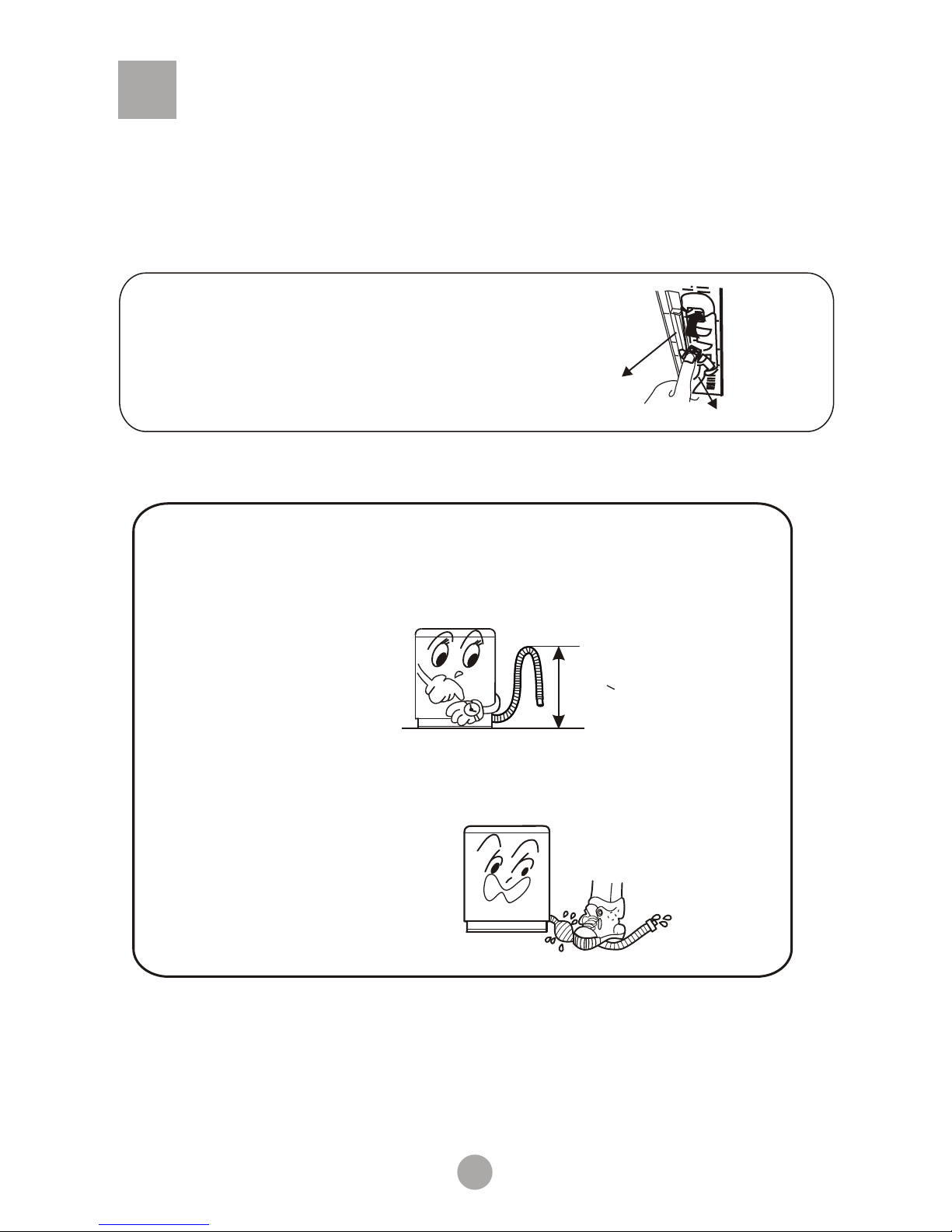

Installation and adjustment

Please install and adjust the machine according to the requirement of

the manual. It is very important to your security and correct operating

the machine.

Install the lint filter

After opening the package, please take out the lint

filter from the document bag, install it to the overflow

filter of the wash tub. See to the figure.

Usage of the drain hose

The drainage shall be smooth with the drain hose.

1.The height of the drain hose shall be less than 1.2m ,

or the drainage will not be smooth enough and cause

incomplete drainage.

2.Do not step on or press the drain hose.

0.7<H<1.2m

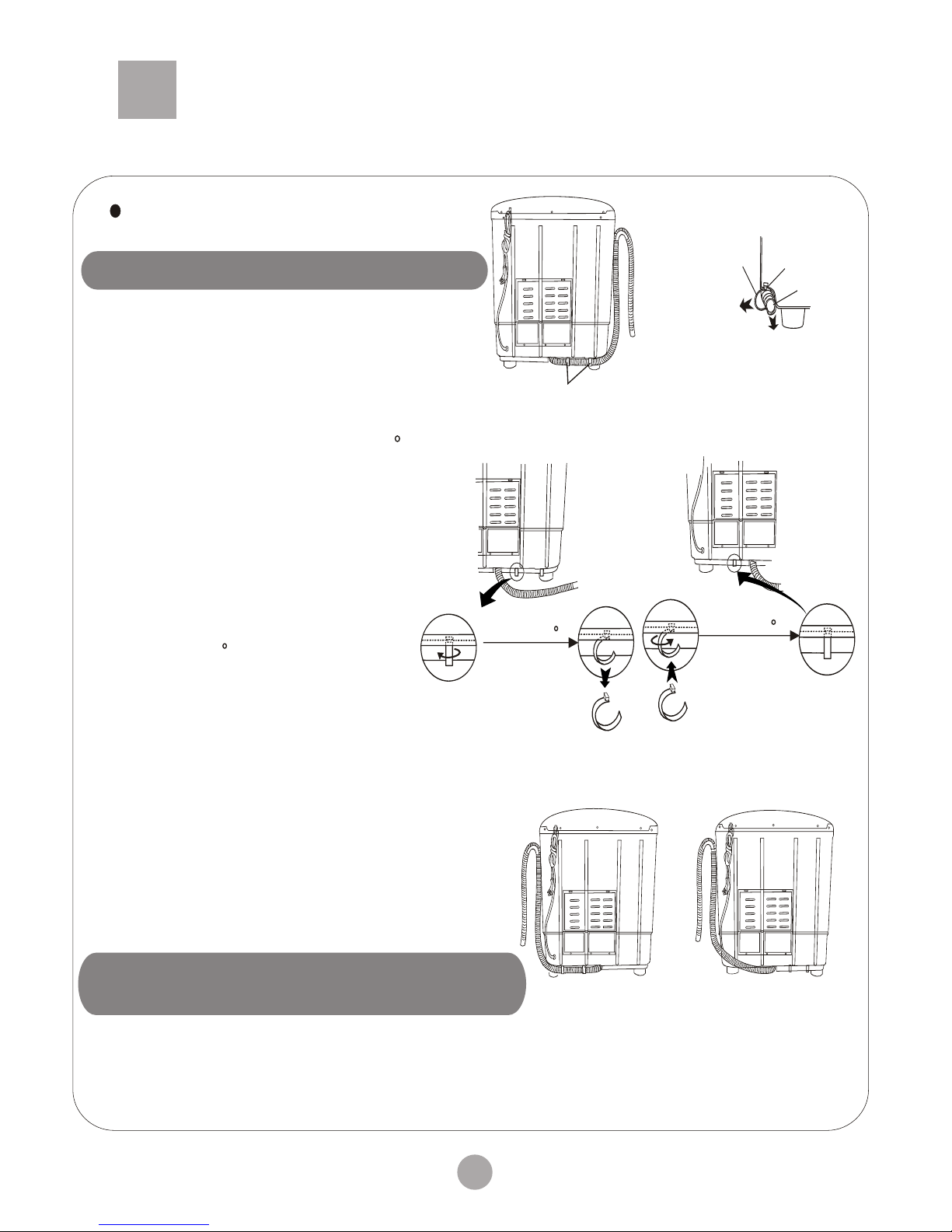

How to change the direction of the drain hoses

Figure 1 indicates the ex factory installation

position of the drain hose.

Extend the drain hose from the side of spin tub.

Extend the drain hose from the rear side

Take out the drain hose from the fixing hook. Extend it from the rear side (When

the drain hose is extended from the rear side, it can be hung on the point for drain

hose at the two sides of the cabinet.) (See to Figure 6).

Take off the drain hose from the hanging hole of

the cabinet. Pull the drain hose fixing hook

outwards gently to take out the drain hose from

the two fixing hooks. (As per Figure 2)

Pull the fixing hook outwards slightly.

Inlay the drain hose into the fixing hooks

reliably along the groove at spin tub side,

and make it extend towards spin tub side.

Rotate the drain hose fixing hook for 90

to take it out from the installation hole

(As per Figure 3).

Install the two drain hose fixing hooks

taken out into the installation hole at the

other side of the base frame (to aim at the

installation hole accurately you can lean

the washing machine forward slightly).

Then rotatefor 90 (As per Figure 4).

Figure 6 Figure 5

Figure 4

Figure 2

Figure 1

Figure 3

Drain hose

fixing hook

Drain hose

fixing hook

Pull outwards

slightly

Side sectional view

Fixing hook

installation hole

Drain hose

Take off

the drain hose

Take off the fixing

hook downwards

Rotate the fixing

hook for 90

Insert the fixing hook into the

installation hole upwards

Rotate the fixing

hook for 90

to fix it

Then hang the drain hose into the hanging

hole at the spin tub side. (As per Figure 5).

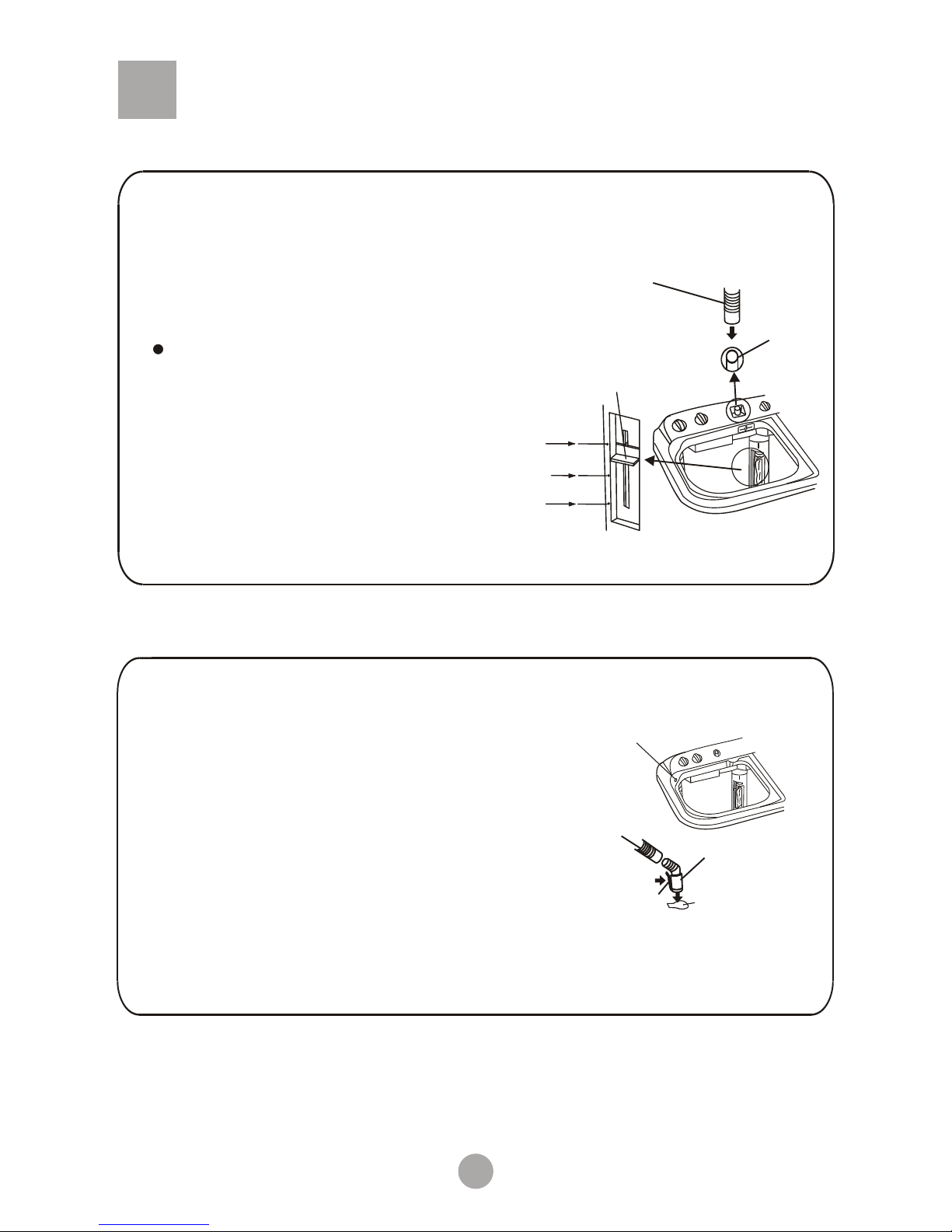

Install the water inlet hose; Select the water level

Select water level according to the

quantity of the laundries.

Set the water level adjusting lever

to needed line.

Insert the water inlet hose into the water-filling

entrance on the control pane directly.(pull it

out to dismantle it)

Water inlet hose

Water inlet

Maximum Max

Minimum Min

Medium Med

Water level

indicator

Quick water-filling entrance

You can fill water into the wash tub directly

through this entrance. It can reduce the

humidity inside the control panel significantly

and prolong the operating life of the components.

Insert the water inlet hose into the water-filling

entrance, then push the water-filling jointer into

the quick water- filling entrance. (To dismantle

the water inlet pipe, just push the control handle

as indicated in the figure and pull it out)

Quick water-filling entrance

Water inlet hose

Water inlet jointer

Control handle

Push

Quick water-filling entrance

Use the new water inlet hose provided

with the machine to connect to the

water faucet. Old hose sets should

not be reused.

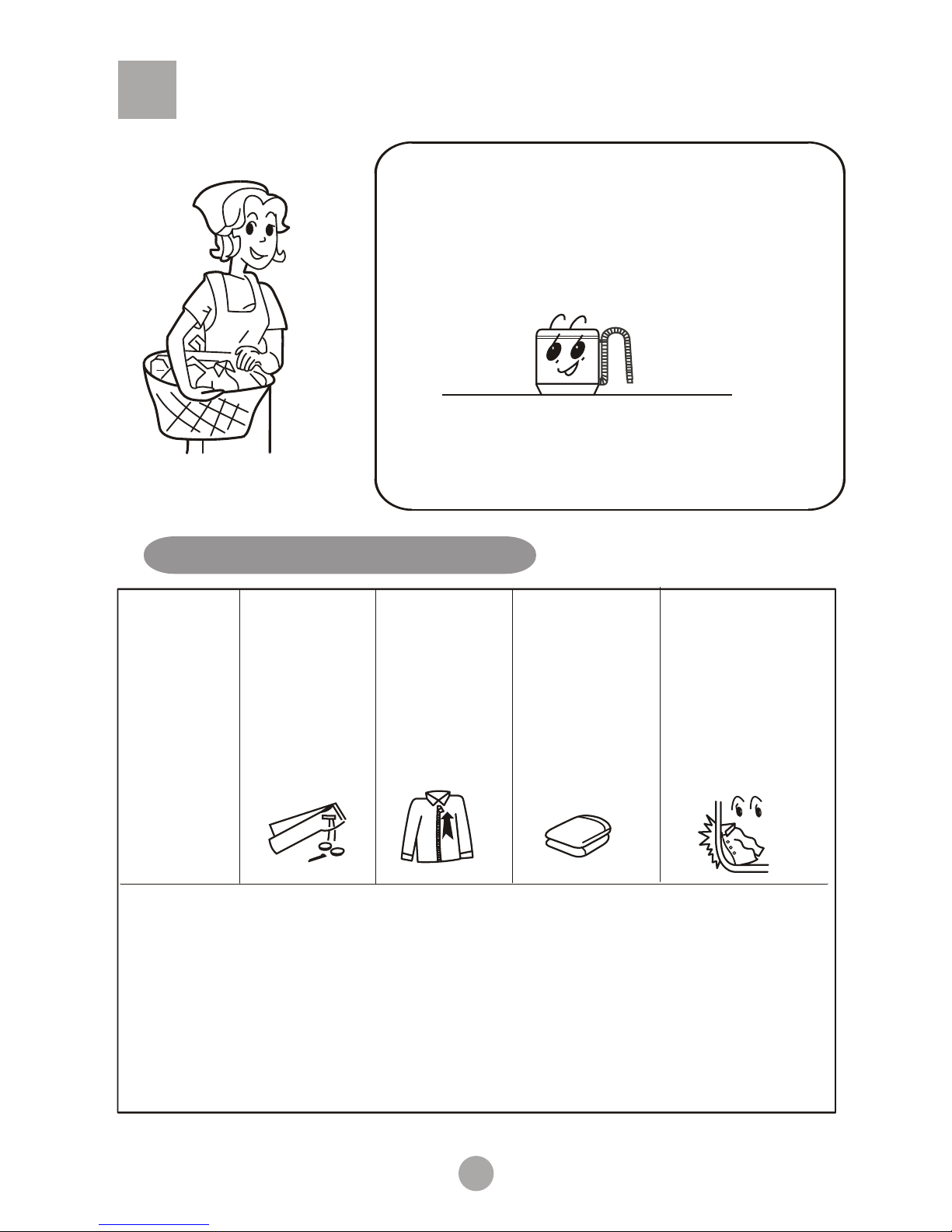

Preparation before washing

Pay attention to followings before washing the laundries

Check if

the laundries

has special

requirement

on washing

Clear the

pocket. Take

out the coins,

sand, hairpins

etc.

Tie the long

strips; fasten

the buttons;

close zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

The quantity of

the laundries

shall not be too

large. Stretch

and loosen the

laundries before

putting them in

the tub.

a. Check if the laundries are applicable for washing with machine.

b. Divide the laundries that are not colorfast from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like

mud or dust. For the parts with heavy soil, please apply detergent on

them in advance, which can make it easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur, turn

it over before putting in.

f. Do not put those laundries polluted by chemicals into the washing

machine directly.

Preparation before washing

1.Connect the water inlet hose.

2.Confirm that the washing machine is earthed

reliably . Then insert the power plug into the

receptacle. Do not connect the earth terminal

to the gas pipe and tap water pipe.

3.Put the drain hose up to suitable position.

4.Slanting or uneven ground may result in

unstable working or abnormal noise. Please

make the machine stand horizontally.

The capacity of washing and spinning of the

machine refer to the largest weight of the

standard laundries under dry condition that can

be washed or spinned in one time. Laundries

quantity in one washing cycle shall be lower

than the rated capacity.

The thickness ,size , type of the cloth will influ-

ence the actual washing capacity. It is suit-

able to put in reasonable amount of laundries

and the laundries can be turned round in wash-

ing for one time washing.

Do not select " Maximum " water level for

laundries less than 2.4kg, so as to avoid

splashing of water.

The musts in washing

How to use the whitener

Fill water to decided level. Dilute

the whitener with container.

Pour it slowly into the washing tub.

Avoid using whitener on laun-

dries with color or pattern as they

are prone to lose color.

The whitener shall not touch

the laundries directly.

Direct dissolved in the machine:

1.Fill small quantity of water.

2.Add the powder . Run for 30

seconds to dissolve it completely.

3.Put it in the laundries. Select suitable

water level.

The instant dissolving of the washing

powder:

1.Prepare warm water of 30 C and a

container.

2.Add the powder while stirring to fully

dissolve it.

The powder is more prone to pollute the

laundries than the detergent. Therefore

please use it with proper quantity.

Dosage of different washing powder is

different. Please refer to the instruction

of the washing powder for the detail

dosage.

Refer to the user's manual for

the usage and quantity of the

whitener.

For powder whitener, please

dissolve it before using.

How to use the washing powder

Usage of the detergent

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Haier Rondelle

Haier

Haier HW70-12829 Manuel utilisateur

Haier

Haier HWM60-111P Manuel utilisateur

Haier

Haier HLC1700AXS Manuel utilisateur

Haier

Haier HWX8040DW1 Manuel utilisateur

Haier

Haier WM6602AJ Manuel utilisateur

Haier

Haier HW-D1050TVE Manuel utilisateur

Haier

Haier HWM85-7288 Manuel utilisateur

Haier

Haier HWM130-113S Manuel utilisateur

Haier

Haier HWM110-0626S Manuel utilisateur

Haier

Haier HWD-C1200TXVE ME Manuel utilisateur

Haier

Haier HWM75TLU Manuel utilisateur

Haier

Haier HW80-BP12929 Manuel utilisateur

Haier

Haier HWM30-22P Manuel utilisateur

Haier

Haier HWM1070KFL Manuel utilisateur

Haier

Haier RWT150AW Instructions de montage

Haier

Haier HW07-CP1439N Manuel utilisateur

Haier

Haier HWF10DW1 Manuel utilisateur

Haier

Haier HWM90-96A Manuel utilisateur

Haier

Haier HWM150-0623S Manuel utilisateur

Haier

Haier HWM75-27S Manuel utilisateur

Haier

Haier HW60-10636WNZP Manuel utilisateur

Haier

Haier HW-C1260TVE-U Manuel utilisateur

Haier

Haier HW-D1060TVE Manuel utilisateur

Haier

Haier HL800TX Guide de démarrage rapide

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
