Haier HW70-IM12929 Manuel utilisateur

QR Code to directly chat with customer care executive.

(Customer Care WhatsApp No.: +91 8553049999)

HW70-IM12929/S3/S8/S9

HW70-IM12929C/CS3/CS8/CS9

HW75-IM12929/S3/S8/S9

HW75-IM12929C/CS3/CS8/CS9

HW80-IM12929/S3/S8/S9

HW80-IM12929C/CS3/CS8/CS9

Extra Rins e Start/ P a us e

Stea m Temp. Spee d

Delay Da ily

Spin

OFF

Refresh

Cotton

Synthet ics

Mix

Baby C are

Quick15

’

Sports w ear

J eans

Duvet

SelfClean

Delica te

Allerge n

Shirts

Legend

Warning – Important Safety information

General information and tips

Environmental information

Disposal

Help protect the environment and human health. Put

the packaging in applicable containers to recycle it.

Help to recycle waste of electrical and electronic

appliances. Do not dispose appliances marked with

this symbol with the household waste. Return the

product to your local recycling facility or contact your

municipal office.

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions

contain important information which will help you get the best out of the appliance and

ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and

proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make

sure you also pass this manual so that the new owner can become familiar with the

appliance and safety warnings.

Disconnect the appliance from the main supply. Cut off the main cable and dispose

f it. Remove the door latch to prevent the children and pets to trap inside drum during

Risk of injury or suffocation!

WARNING!

Elements

non operation of machine for long time.

1-Safety information................................................................................................ 3

2-Before Use ...... ........................................................................................ 6

3-Functions .......................................................................................................11

4-Programmes.......................................................................................................14

5-Daily use.............................................................................................................15

6-Eco-friendly washing..........................................................................................20

7-Maintenance ..............................................................................................21

8-Troubleshooting..................................................................................................24

9-Technical data....................................................................................................27

10-After-Sale Service .......................................................................................... 28

Index

............

......

........

WARNING!

Make sure there is no transit damage.

Make sure all transit bolts are removed.

Remove all packing material and keep out of reach of childrens.

Handle the appliance always with atleast two persons because it is

heavy in weight.

Daily use

Before first use

This appliance can be used by childrens aged from 8 years and above

and persons with reduced physical,sensory or mental capabilities or lack

of experience and knowledge if they have been given supervision or

instructions concerning use of the appliance in a safe way and

understand the hazards involved.

Before switching on the appliance for the first time read the following safety

hints!

Keep away from children under 3 years of age from the appliance unless

they are constantly supervised.

Childrens shall not play with the appliance.

Pull up zips, fix loose threads and take care for small items to prevent

laundry from being entangled. If necessary, use an appropriate bag or

net.

Do not let the children or pets come close to the appliance when the

door of machine is open. Store washing agents away from the childrens.

Do not start or use the appliance when you are barefoot or with wet or

damp hands or feet.

Do not cover or encase the appliance during operation or afterwards to

avoid moisture or dampness to evaporate.

Do not place heavy objects or sources of heat or damp cotton on the top

of the appliance.

Do not use or store flammable detergent or dry cleaning agent near to

the appliance.

Do not use any flammable sprays near to the appliance.

Do not wash any garments treated with solvents in the appliance without

having dried them in the air before wash.

1.Safety Information

WARNING!

Daily use

Do not insert or remove the plug in presence of flammable gas.

Do not wash foam rubber or sponge like materials.

Do not wash any laundry which is polluted with flour.

Do not open detergent drawer during any wash cycle.

Do not press the door during the washing process as it gets hot.

Do not open the door if the water level is visible over the port hole.

Do not force the door to open after the washing process is ended. The

door is fitted with a self-lock device and will open shortly.

Switch off the appliance after wash programme and before doing any

routine maintenance. Disconnect the appliance from the electrical supply

to save electricity and for safety.

Hold the plug when unplugging the appliance from electrical supply.

Maintenance/cleaning

Make sure that children are supervised at the time of cleaning and routine

maintenance.

Disconnect the appliance from the electrical supply before doing any

routine maintenance.

Keep the lower part of the porthole clean. Open the door and the detergent

drawer if appliance not in use to prevent odours.

Do not use water spray or steam to clean the appliance.

Replace a damaged supply cord only by the manufacturer or its service

agent or similarly qualified persons in order to avoid any hazard.

Do not try to repair the appliance by yourself. To repair the appliance,

please contact our customer service.

Installation

The appliance should be placed in a well ventilated place. Please ensure a

location from which door shall be opens fully.

Never install the appliance in a damp place, or in an area where is

possibility of water leaks such as under or near a sink unit. In the event

of a water leak, cut the power supply and dry the machine naturally.

1.Safety Information

Intended use

This appliance is intended for washing laundry only. Any time follow the

instructions given on the label of each garment. It is not ntended for

commercial or industrial use.

Changes or modifications in the device are not allowed. Unintended use may

cause hazards and loss of all warranty and liability claims.

WARNING!

Installation

Install the appliance only where the temperature is above 5 °C.

Do not place the appliance directly on a carpet, or close to a wall or

furniture.

Do not install the appliance in direct sunlight, or in the near of heat

sources (e.g. stoves, heaters).

Make sure that the electrical information on the nameplate agrees with

the power supply. If not, contact an electrician.

Do not use multi-plug adapters and extension board.

Make sure that only delivered electric cable and hose set shall be used.

Make sure that electrical cable and plug shall not be damaged, if yes,

then it shall be replaced by an electrician.

Use a separate earthed socket for the power supply which is easy

accessible after installation. The appliance must be earthed.

Make sure that the hose joints and connections are firm and there is no

leakage.

2.1 Picture of appliance

Front side (Fig. 2-1): Rear side (Fig. 2-2):

2.2 Accessories

Check the accessories and literature in accordance with this list (Fig.2-3):

Note :

1 Detergent/Softener drawer

Control panel

Worktop

4 Door

5 Filter cover

6 Adjustable feet

1 Transit bolts (T1-T4)

2 Backcover

Backcover screws（7 EA）

4 Power cord

5 Water inlet valve

6 Drain hose

2-1 2-2

2-3

ript

Inlet hose

assembly

5 Blanking

plugs+2 Screws Drain hose

bracket User manual Bottom plate

Due to technical changes and different models,the illustrations in the following

pictures may differ from your model.

1 32

123 4 5 6

Extra Rins e S t art/ P a us e

Steam Temp. S peed

Delay Daily

Spin

OFF

Refresh

Cotton

Synthet ics

Mix

Baby Ca re

Quick 15

’

Sports wear

Jeans

Duvet

Self Clean

Delicate

Allergen

Shirts

2. Before Use

2.3 Preparation

Take the appliance out from the packaging.

Remove all packing material including polystyrene base, keep them away from

the childrens. When removing th packaging, water drops may be seen on plastic

bag and porthole.This normal phenomenon results from water tests in the factory.

2.5 Dismantle the transit bolts

The transit bolts are designed to clamping the

components inside the appliance during

transportation to prevent inner damage.

1. Remove the transit bolts.

2. Fill the holes with blanking

plugs (Fig.2-5).

Note: Packaging disposal

Keep all the packaging materials away from the childrens and dispose it in an

environmentally friendly manner.

2.4 Installation of bottom cover board

d a bottom

cover (2-4.1). The board is used for reducing the

2-4

1. Lay down the washing machine to it’s back side,

bottom side towards the operator.

2. Insert the Bottom cover into the cabinet, then fixed

with 2 screws to the cabinet front side.

Then set the machine upright again (Fig.2-4).

On the top of the package

Tighten with

two screws

Front

Back

Hole wall(12345)

Remove the four

packing bolts Plug the five hole walls

Packing bolt

(1234)

2-5

2. Before Use

noise.

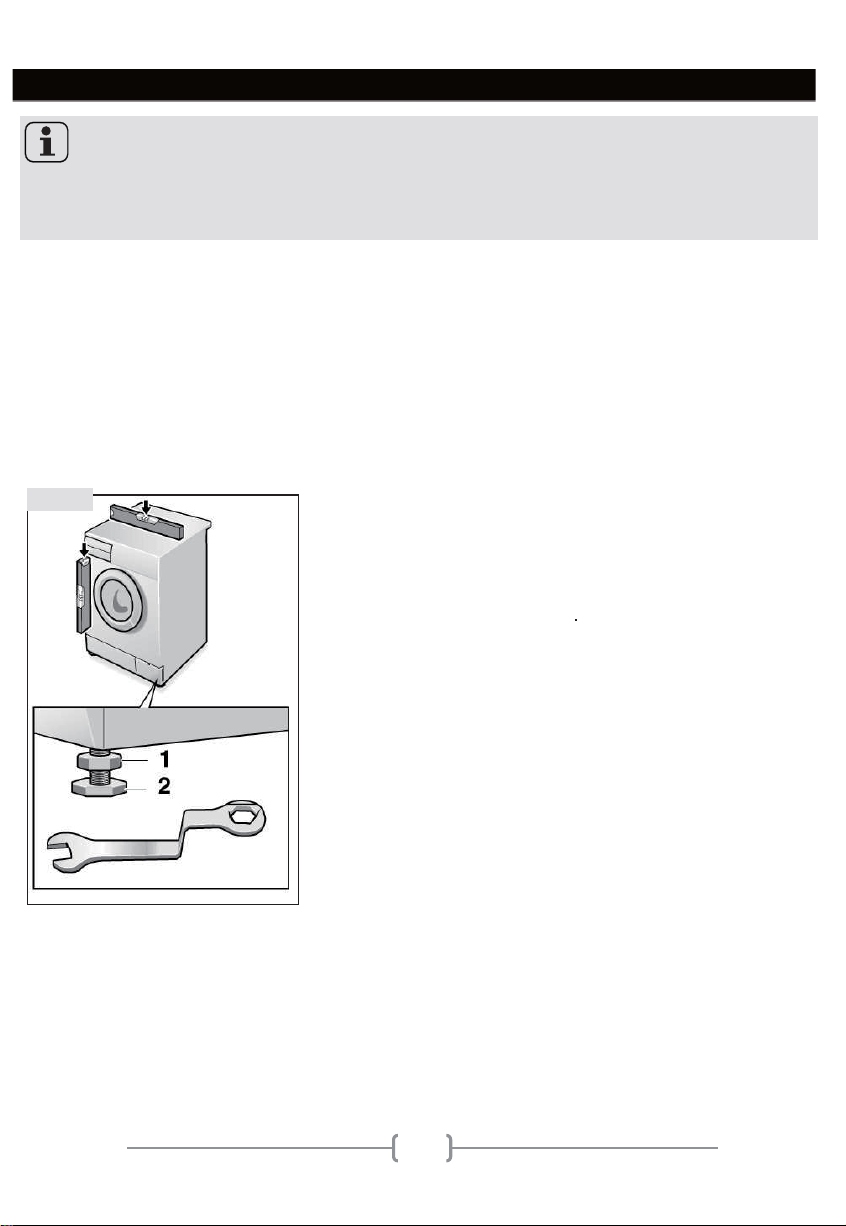

2.7 Aligning the appliance

Adjust all legs (Fig. 2-7) to achieve a complete level

position. This will minimize vibrations and noise

during use. It will also reduce wear and tear. We

recommend to use a spirit level for levelling. Floor should

1. Loose the locknut (1) by using a wrench.

2. Ad

be as stable and flat as possible.

just the leg (2) by turning.

3. Tighten locknut (1) against the housing.

2-7

2.6 Moving the appliance

If the machine is to be moved to distant location, refix the transit bolts before moving the

appliance to prevent damage.

1. Remove the blanking plugs.

2. Remove the back cover.

3. Insert the plastic spacers and the transit bolts.

4. Tighten the bolts with a spanner.

5. Refix the back cover.

Note : Keep the transit bolts in a safe place

Keep the transit bolts in a safe place for later use. Whenever the appliance need to be

moved to distant place, refix the transit bolts.

2. Before Use

Autres manuels pour HW70-IM12929

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Haier Rondelle

Haier

Haier HW55-B12866NZP Manuel utilisateur

Haier

Haier SIG100-97 Manuel utilisateur

Haier

Haier HW100-1411N-F Manuel utilisateur

Haier

Haier HWT12AD1 Manuel utilisateur

Haier

Haier HM1000T Manuel utilisateur

Haier

Haier HD800TX Manuel utilisateur

Haier

Haier 50FREE-1 Manuel utilisateur

Haier

Haier XQB60-91BF Manuel utilisateur

Haier

Haier HWM60-113S Manuel utilisateur

Haier

Haier LID1649 Manuel utilisateur

Haier

Haier HW-B1470TVE-F Manuel utilisateur

Haier

Haier 650 Manuel utilisateur

Haier

Haier AC-8888-07 Manuel utilisateur

Haier

Haier HBF1055TVE Manuel utilisateur

Haier

Haier HVS1000 Manuel utilisateur

Haier

Haier RWT360BW Manuel utilisateur

Haier

Haier HWM35-AS Manuel utilisateur

Haier

Haier HWM80-0626S Manuel utilisateur

Haier

Haier HNS1460TVE Manuel utilisateur

Haier

Haier XPB55-23BS Guide de l'utilisateur

Haier

Haier HWM95-113S Manuel utilisateur

Haier

Haier HBF600TE Manuel utilisateur

Haier

Haier HWM150-287S Manuel utilisateur

Haier

Haier HWM70-113S Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
