Twin-tub Washing Machine

Names of the parts.............the 2nd cover

Safety precautions ...............................1

Installation and adjustment ..................3

Introduction of the major functions .......5

Preparation before washing ................6

The musts in washing .........................7

Usage of the detergent .......................8

Washing sequence ..............................9

Disposal after washing .......................13

Contents

Before using

Using process

Please read this manual carefully before using.

Please retain it for future reference.

User's manual

Trouble-shooting*

Answers to question.....................15

Specification...............the back cover

Packing list ......................................17

Little Magical Conch

Before Using

Names of the parts

Buzzer

Water-filling entrance

Water inlet selector handle

Wash selector

Wash timer

Control panel

Overflow filter

Quick water-filling entrance

Cascade outlet

Water level adjusting lever

Lint filter

Valve cover

Pulsator

Wash tub

Drain hose

Base frame

Outer cover of the spin tub

Inner cover of the spin tub

Spin timer

Spin tub frame

Spin tub

Cabinet

Power cord

Meaning and description of the symbols

Warning sign

Forbidding sign

Contents marked with that symbol

are related to the safety of the

product and the personal safety

of the users. Please operate in

strict conformity to the contents,

otherwise it may cause damage

of the machine or injure the

personal safety of the user.

Contents marked with that symbol

are actions forbidden to perform.

Performing of those actions may

result in damage of the machine

or injure the personal safety of

the user.

Accessories

Water-filling jointer

(one piece)

Water inlet hose

(one piece)

Gland

(one piece)

Honorable users,

Thanks for your choosing Haier products.

Haier products integrate high-tech, precision frontier science and possess the best quality

among similar products. To facilitate your operation, please read the manual carefully and

operate this machine according to it.

Haier's star-level service is always accompanying you. No matter what problems you meet

in use please do not hesitate to contact us by the telephone number and address on the

certificate of warranty. We are at your service all the time.

Thanks again for your choosing and introducing Haier products.

Haier-sincere forever!

Before Using

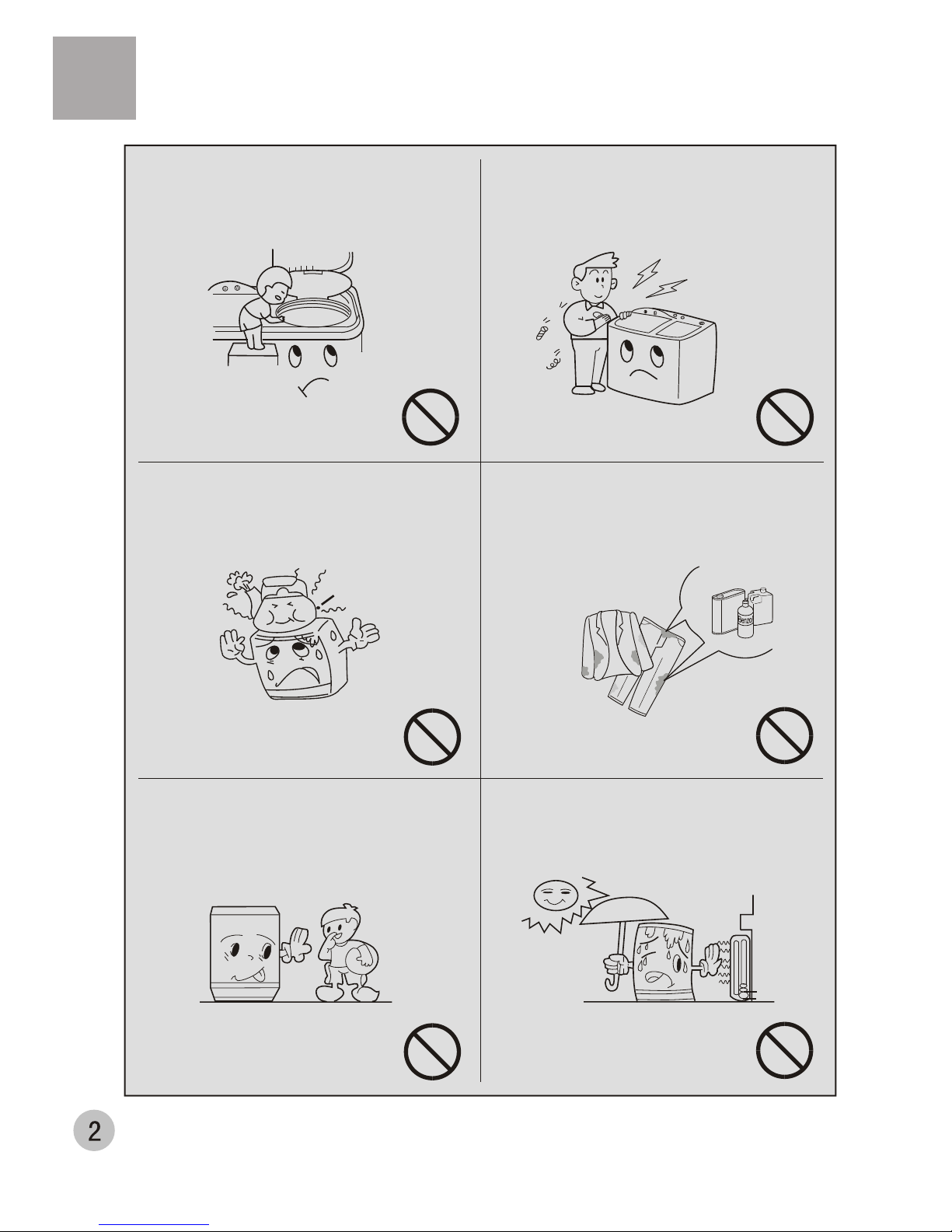

Safety precautions

If the power cord is bad, to avoid risk it is required to replace it by the technicians

of our special shop or the after-sale service department. Keep the pin of the power

plug clean.

Be sure to use three-phase receptacle.

Earth the earthing terminal of the

receptacle reliably.

Do not put the machine at damp place

like the bathroom . Never wash it with

water.

In case the washing machine is installed

on ground with carpet , do not block the

ventilation hole with carpet.

Ventilation hole at

the bottom of the

washing machine

Be sure to pull the plug off when there's

power failure, or the machine is being

moved, cleaned or when it is idle.

Do not use water hotter than 50 C .

Do not share one receptacle with other

electric appliances. Do not use it in

case that the power plug is damaged

or the inserting into the receptacle is

loose.

Earth

Do not wash water-proof laundries such

as the raincoat, bicycle shelter etc. To

avoid abnormal vibration during spinning.

Before Using

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

Handicapped or children without care

shall not use the machine.

Do not put any hot or heavy items

( such as the kettle with hot water )

on the washing machine.

Do not decompose, repair or alter the

machine by yourself.

Keep the machine away from direct

sunlight and heat source like the

heater.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.).

Petrol

Thinner

Safety precautions

Please install and adjust the machine according to the requirement of the manual.

It is very important to your security and correct operating the machine.

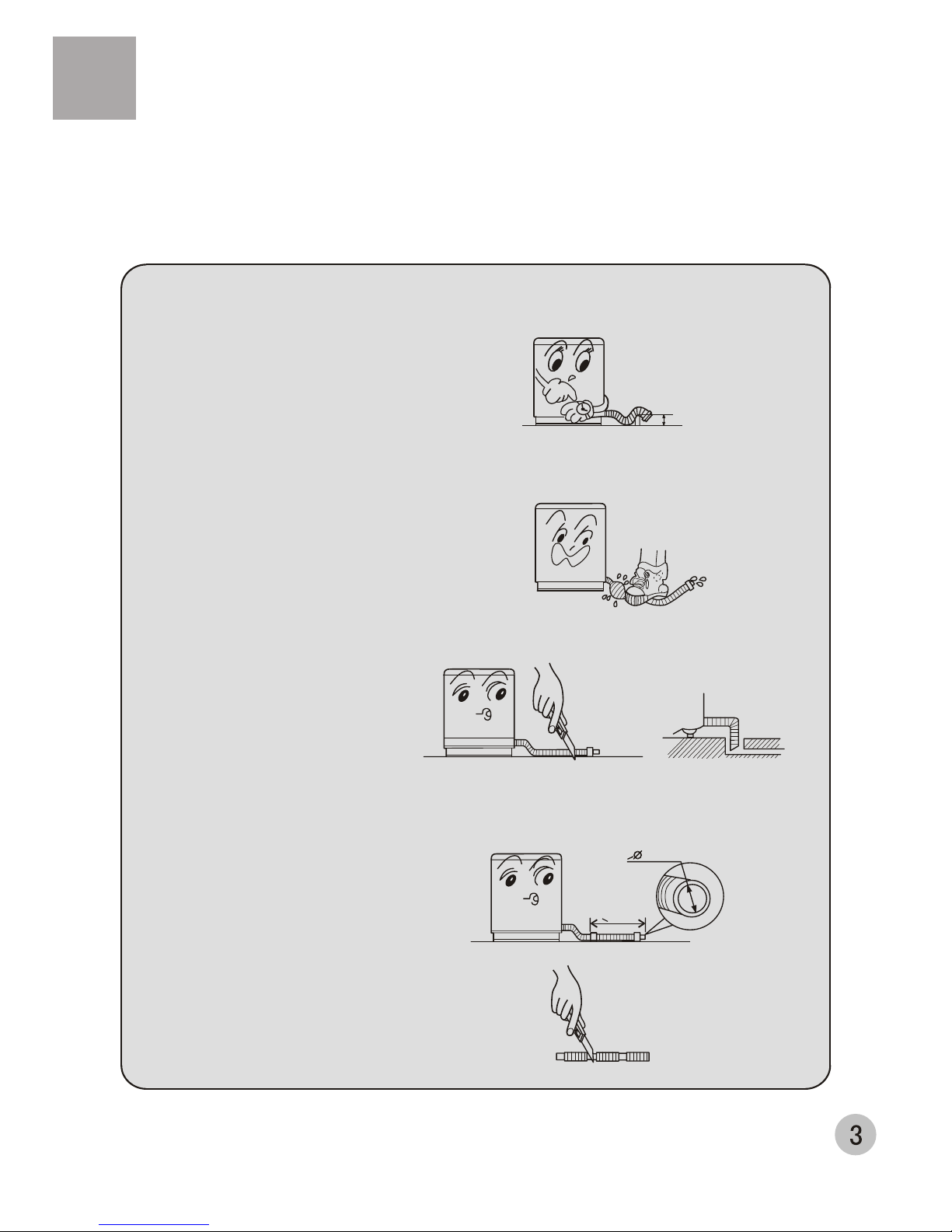

Usage of the drain hose

The drainage shall be smooth with the drain hose.

1.The height of the drain hose shall be

less than 10cm , or the drainage will

not be smooth enough and cause

incomplete drainage.

2.Do not tramp or press the drain hose.

4.If extra drain hose is needed , please make

separate purchase. The inner diameter of the

extra hose shall not less than 30mm, and the

length shall not exceed 1.5m.

If the extra hose is too long, cut it either

at point A or B.

3 If the drain hose is too long, cut it at mid point.

To make smooth drainage, cut the front end of

the hose slantingly.

<10cm

> 30mm

<1.5m

Before Using

Installation and adjustment

Extend the drain hose from the rear side

How to change the direction of the drain hoses

Figure 1 indicates the ex factory installation

position of the drain hose.

Put soft items on the ground. Lean the machine

down gently with the front surface facing the

ground. Take off the drain hose from the cabinet.

Take the hose out of the fixing groove.

(See to Figure 2).

Embed the drain hose into the groove along the side

of the spin tub in the order of (1)~(3), heading for the

side of the spin tub. (See to Figure 3).

Embed the drain hose into the groove with

hands. Take care not to damage the drain

hose in fastening the fixing clamp.

Install the water inlet hose; Select the water level

Figure 1

Figure 2

Figure 3

Figure 4

Embed into the

groove in turn

Page8

Back

Select water level according to the

quantity of the laundries.

Set the water level adjusting lever

to needed line.

Before Using

Water inlet hose

Water inlet jointer

Control handle

Push

Water inlet

High High

about 43L

about 36L

about 30L

Low Low

Medium Medium

Water level

indicator

Extend the drain hose from the side of spin tub

Soft item

Extend to the

spin tub side

Take out the drain hose from the fixing groove. Extend it from

the rear side as per the direction of the arrow. (When the drain

hose is extended from the rear side, it can be hung on the

point for drain hose at the two sides of the cabinet.)

(See to Figure 4).

Front

Insert the water inlet hose into the water-filling

entrance on the control panel, then push the

water-filling jointer into the entrance on the

control panel. (To dismantle the water inlet pipe,

just push the control handle as indicated in the

figure and pull it out)

Using process

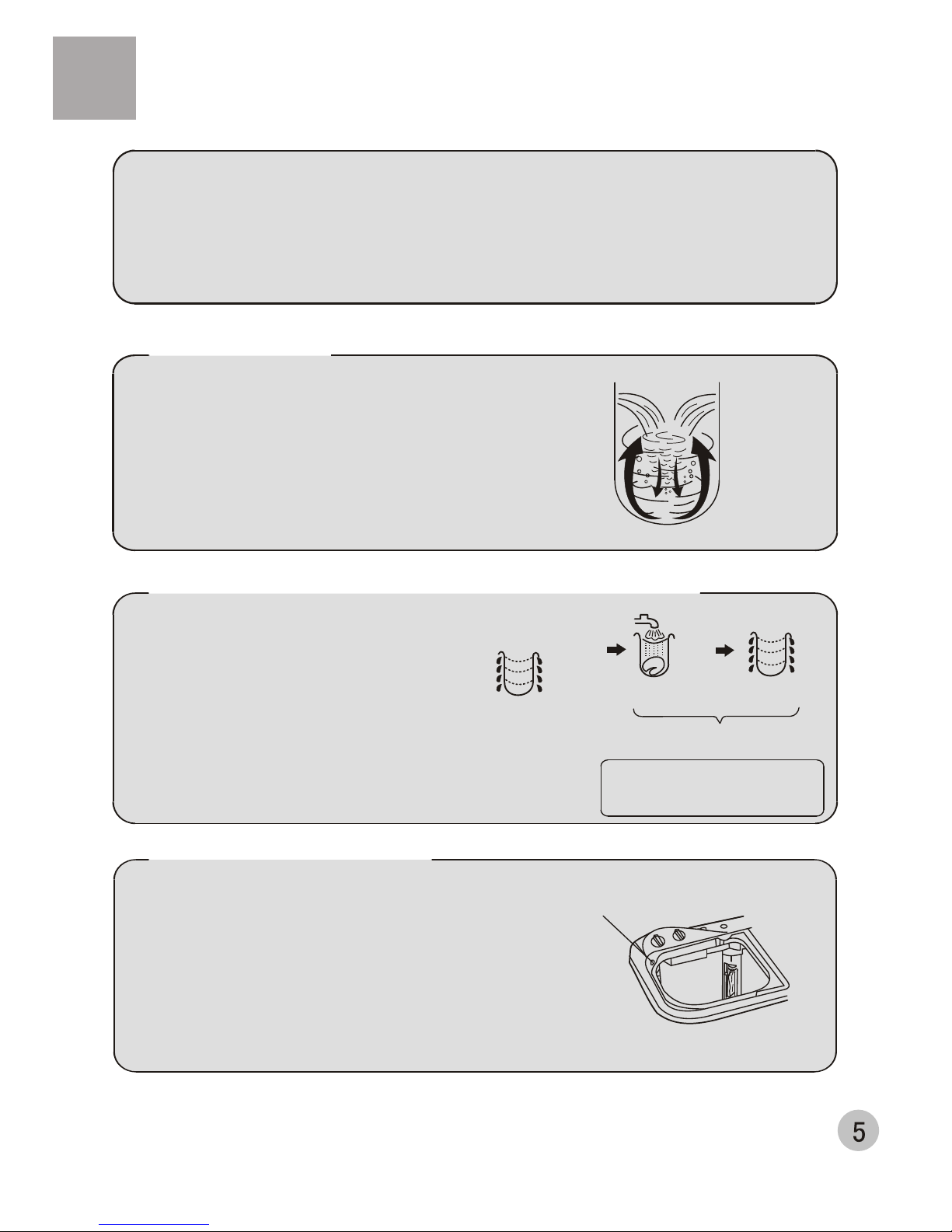

Introduction of the major function

Use the foam-removing spinning to

remove the extra detergent liquid. It

can both shorten the washing time

and save the water consumption.

Foam-removing

spinning

Remove most of

the foam extra

detergent liquid.

Remove the detergent

liquid remained

The effect is best when the

laundries quantity is below

80% of the rated value.

Spin

Fill water for

about 1 minutes Spin for about

1~2 minutes

Quick water-filling entrance

The machine has good comprehensive performance, and nice appearance.

For the design on mute ,It adopts complete enclosed base frame and low-noise

motor, and thus reduces the working noise significantly. We can guarantee that the

purchase of this machine will bring you a clean world without disturbing your quiet life.

Foam-removing spinning during high-efficiency rinsing

The cascade washing it adopts can enhance

the strength of the water current, and dissolve

the detergent quickly and completely. At the

same time it can produce flushing effect, and

improve the washing effect.

Cascade washing

If you do not need spraying spin, you can

fill water into the wash tub directly through

this entrance. It can reduce the humidity

inside the control panel significantly and

prolong the operating life of the components.

Quick water-filling entrance

Confirm if

there's special

requirement for

the laundries.

Clear the pocket.

Take out the

coins , sand,

hairpins etc.

Fasten the

buttons and

zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion,please

put the laundries

with buttons into

other laundries.

Preparation before washing

1.Connect the water inlet hose.

2.Confirm that the washing machine is earthed

reliably . Then insert the power plug into the

receptacle. Do not connect the earth terminal

to the gas pipe and tap water pipe.

3.Put down the drain hose .

4.Slanting or uneven ground may result in

unstable working or abnormal noise. Please

make the machine stand horizontally.

The quantity of

the laundries

shall not exceed

the rated value.

The big laundries

like the jeans

shall be put in

loosely.

Using process

Preparation before washing

Pay attention to followings before washing the laundries

Reference weight of the laundries

Working suit up,down

Jeans about 800g

The capacity of washing and spinning of

the machine refer to the largest weight of

the standard laundries under dry condition

that can be washed or spinned in one time.

Laundries quantity in one washing cycle

shall be lower than the rated capacity.

The largest capacity of this machine is

5.0 kg.

The thickness ,size , type of the cloth will

influence the actual washing capacity. It

is suitable to put in reasonable amount of

laundries and the laundries can be turned

round in washing for one time washing.

Do not select " High " water level for

laundries less than 2.4kg, so as to avoid

splashing of water.

Blending coat

about 800g

Shirt Jacket

Single bed sheet

Socking

Underpants

Undershirt

Pajamas

Blanket

cotton,about 900g

cotton,about

300g

cotton,about

800g

cotton,about 600g

blending,about 50g

cotton,about 70g

cotton,about 180g

Using process

The musts in washing

cotton,about 1120g

Selection of the quantity of the washing powder list 1

Selection of the current , water level and washing time list 2

How to use the washing powder

How to use the whitener

Fill water to decided level. Dilute the whitener with container. Pour it slowly into the

washing tub.

Avoid using whitener on laundries with color or pattern as they are prone to lose color.

The whitener shall not touch the laundries directly.

Direct dissolved in the machine:

1.Fill small quantity of water.

2.Add the powder . Run for 30 seconds to

dissolve it completely.

3.Put it in the laundries. Select suitable

water level.

The instant dissolving of the washing powder:

1.Prepare warm water of 30 C and a container.

2.Add the powder while stirring to fully

dissolve it.

The powder is more prone to pollute the

laundries than the detergent. Therefore

please use it with proper quantity.

It is suggested not to use high sudsing

detergent.

Dosage of different washing powder is

different. Please refer to the instruction

of the washing powder for the detail

dosage.

Refer to the user's manual for the usage and quantity of the whitener.

For powder whitener, please dissolve it before using.

Laundries

quantity

Laundries

quantity

Water level

Current

Standard dosage

Concentrated washing

powder

Laundries

Common washing

powder

Washing time

(minutes)

Water quantity

About About

About3~6

About8~10

About10~13

About7~13

About2~4

About3~6

About8~10

About About

3.6kg~5.0kg

2.4kg~5.0kg

2.0kg~3.6kg

Below2.0kg

Below2.4kg

High (about43L)

Strong

Low (about30L)

Standard

Medium (about36L)

36g

30g

25g

43g

36g

30g

Usage of the detergent Using process

Using process

Knitwear

Cotton,blending,linen

Very dirty and thick

Bed sheet

Silk(thin laundries)

Chemical fiber

Cotton,blending,linen

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Haier Rondelle

Haier

Haier HWM75-111S Manuel utilisateur

Haier

Haier HWT60FVW2 Manuel utilisateur

Haier

Haier HWMP55-918 Manuel utilisateur

Haier

Haier HLC1700AXS Manuel utilisateur

Haier

Haier JW-W30C Manuel utilisateur

Haier

Haier HWM100-828A Manuel utilisateur

Haier

Haier HLTW600AXW Manuel utilisateur

Haier

Haier HWM65-728 Manuel utilisateur

Haier

Haier HLP23E - Electronic Touch Pulsator Ing Portable Washing... Manuel utilisateur

Haier

Haier JW-W55C Manuel utilisateur

Haier

Haier HWM100-728 Manuel utilisateur

Haier

Haier HW100-B14636N Manuel utilisateur

Haier

Haier XPB58-113S Manuel utilisateur

Haier

Haier SWM1000EC Manuel utilisateur

Haier

Haier HWM100-99VGS Manuel utilisateur

Haier

Haier HBF1055TVE Manuel utilisateur

Haier

Haier HM1400TX Guide de l'utilisateur

Haier

Haier HM501 Guide de l'utilisateur

Haier

Haier HWM75-1279 Manuel utilisateur

Haier

Haier XQS70-98 Manuel utilisateur

Haier

Haier HA800T Guide de l'utilisateur

Haier

Haier HWM90-0713S Manuel utilisateur

Haier

Haier HW80-1482 Manuel utilisateur

Haier

Haier THERMOCOOL TLSA13B Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
