Warning – Important Safety information

General information and tips

Environmental information

Disposal

Help protect the environment and human health. Put

the packaging in applicable containers to recycle it.

Help to recycle waste of electrical and electronic ap-

pliances. Do not dispose appliances marked with this

symbol with the household waste. Return the product

to your local recycling facility or contact your municipal

oﬃ ce.

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions con-

tain important information which will help you get the best out of the appliance and ensure

safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper

use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure

you also pass this manual so that the new owner can become familiar with the appliance

and safety warnings.

WARNING!

Risk of injury or suﬀ ocation!

Disconnect the appliance from the mains supply. Cut oﬀ the mains cable and dispose

of it. Remove the door catch to prevent children and pets to get closed in the appliance.

EN Content

1-Safety information......................................................................................................................... 4

2-Product description ...................................................................................................................... 7

3-Control panel .................................................................................................................................. 8

4-Programmes.................................................................................................................................12

5-Daily use .........................................................................................................................................15

6-Eco-friendly washing ..................................................................................................................20

7-Care and cleaning ........................................................................................................................21

8-Troubleshooting............................................................................................................................24

9-Installation.......................................................................................................................................27

10-Technical data.............................................................................................................................31

1-Safety information EN

Read the following safety instructions before using the appliance

WARNING!

Before ﬁ rst use

▶Make sure there is no transport damage.

▶Make sure all transport bolts are removed.

▶Remove all packaging and keep out of children´s reach.

▶Handle the appliance always with at least two persons because it

is heavy.

Daily use

▶This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental ca-

pabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance

in a safe way and understand the hazards involved.

▶Keep away children under 3 years of age from the appliance un-

less they are constantly supervised.

▶Children shall not play with the appliance.

▶Do not let children or pets come close to the appliance when the

door is open.

▶Store washing agents out of reach of children.

▶Pull up zips, ﬁ x loose threads and take care for small items to

prevent laundry from being entangled. If necessary, use an ap-

propriate bag or net.

▶Do not touch or use the appliance when barefoot or with wet or

damp hands or feet.

▶Do not cover or encase the appliance during operation or after-

wards to allow any moisture or dampness to evaporate.

▶Do not place heavy objects or sources of heat or damp on top of

the appliance.

▶Do not use or store ﬂammable detergent or dry cleaning agent

in close vicinity to the appliance.

▶Do not use any ﬂammable sprays in close vicinity to the appli-

ance.

▶Do not wash any garments treated with solvents in the appli-

ance without having dried them previously in the air.

EN 1-Safety information

WARNING!

Daily use

▶Do not remove or insert the plug in the presence of ﬂammable gas.

▶Do not hot wash foam rubber or sponge-like materials.

▶Do not wash any laundry which is polluted with ﬂ our.

▶Do not open detergent drawer during any wash cycle.

▶Do not touch the door during the washing process, it gets hot.

▶Do not open the door if the water level is visibly over the port-

hole.

▶Do not force the door to open. The door is ﬁtted with a self-

lock device and will open shortly after the washing procedure is

ended.

▶Switch oﬀ the appliance after each wash programme and before

undertaking any routine maintenance and disconnect the appli-

ance from the electrical supply to save electricity and for safety.

▶Hold the plug, not the cable, when unplugging the appliance.

Maintenance / cleaning

▶Make sure children are supervised if they carry out cleaning and

maintenance.

▶Disconnect the appliance from the electrical supply before un-

dertaking any routine maintenance.

▶Keep the lower part of the porthole clean and open door and

detergent drawer if appliance is not in use to prevent odours.

▶Do not use water spray or steam to clean the appliance.

▶Replace a damaged supply cord only by the manufacturer, its

service agent or similarly qualiﬁ ed persons in order to avoid a

hazard.

▶Do not try to repair the appliance by yourself. In case of repair

please contact our customer service.

Installation

▶The appliance should be placed in a well-ventilated place. Ensure

a location which allows opening the door fully.

▶Never install the appliance outdoors in a damp place, or in an

area which may be prone to water leaks such as under or near a

sink unit. In the event of a water leak cut power supply and allow

the machine to dry naturally.

1-Safety information EN

Intended use

This appliance is intended for washing machine-washable laundry

only. Anytime follow the instructions given on the label of each gar-

ment label. It is designed exclusively for domestic use inside the

house. It is not intended for commercial or industrial use.

Changes or modiﬁ cations to the device are not allowed. Unintended

use may cause hazards and loss of of all warranty and liability claims.

WARNING!

Installation

▶Install or use the appliance only where the temperature is above

5 °C.

▶Do not place the appliance directly on a carpet, or close to a wall

or furniture.

▶Do not install the appliance in direct sunlight or in the near of

heat sources(e.g. stoves, heaters).

▶Make sure that the electrical information on the rating plate

agrees with the power supply. If it does not, contact an

electrician.

▶Do not use multi-plug adapters and extension cables.

▶Make sure only the delivered electric cable and hose set are

used.

▶Make sure not to damage the electric cable and the plug. If dam-

aged have it replaced by an electrician.

▶Use a separate earthed socket for the power supply which

is easy accessible after installation. The appliance must be

earthed.

▶Make sure the hose joints and connections are ﬁ rm and there is

no leakage.

EN 2-Product description

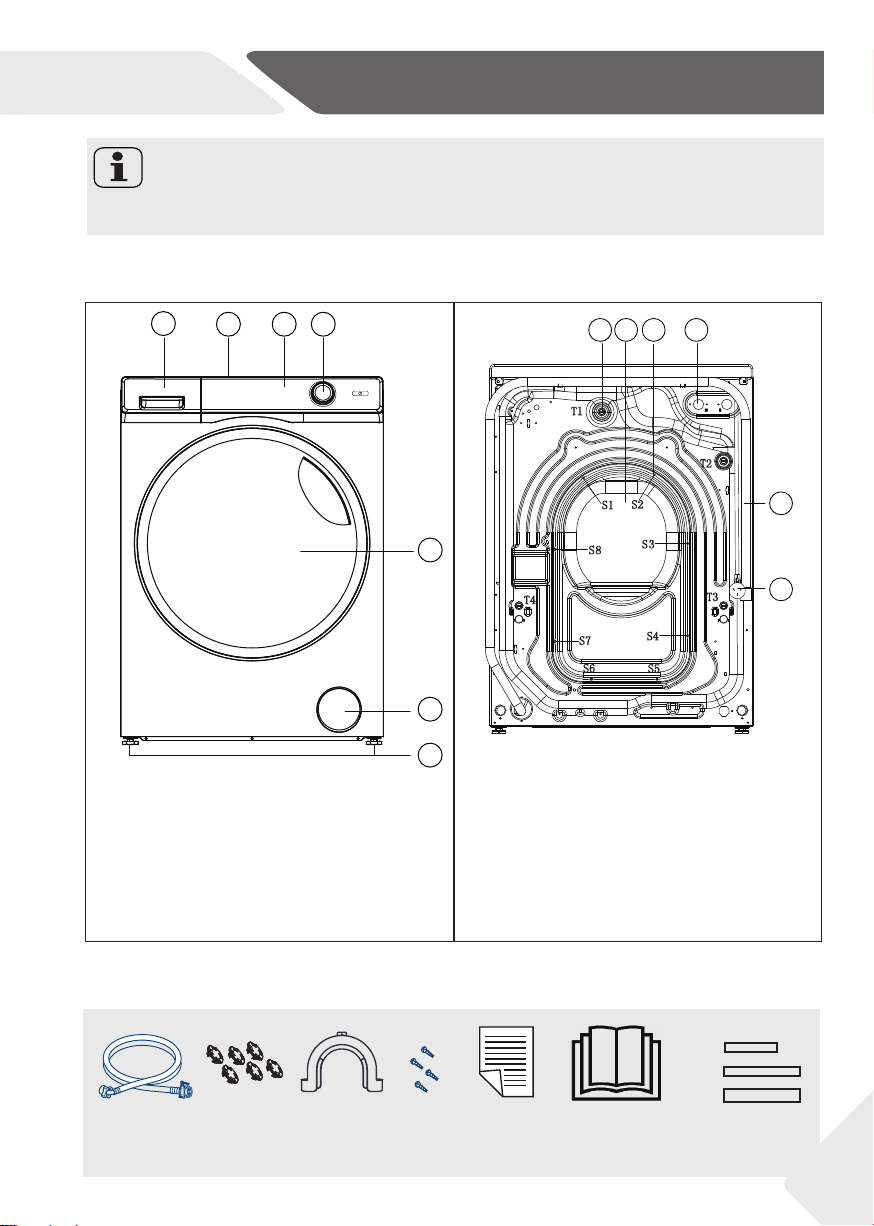

2.1 Picture of appliance

Front side(Fig. 2-1): Rear side (Fig. 2-2):

2.2 Accessories

Check the accessories and literature in accordance with this list (Fig. 2-3):

Inlet hose-

assembly

Blanking

plugs

Drain hose

bracket

Sponge

User manual

Warranty-

card

Note:

Due to technical changes and diﬀerent models, the illustrations in the following chap-

ters may diﬀer from your model.

2-3

2-1 2-2

2-2

1 2 4

S1 S2

1 Dispenser drawer

2 Worktop

3 Control Panel

4 Programme

selector

5 Washer door

6 Filter/

Service ﬂap

7 Adjustable feet

1 Shipping bolts (T1-T4)

2 Back cover

3 Back cover screws (S1-S8)

4 Water inlet valve

5 Drain hose

6 Power cord

Screws

x4 x1

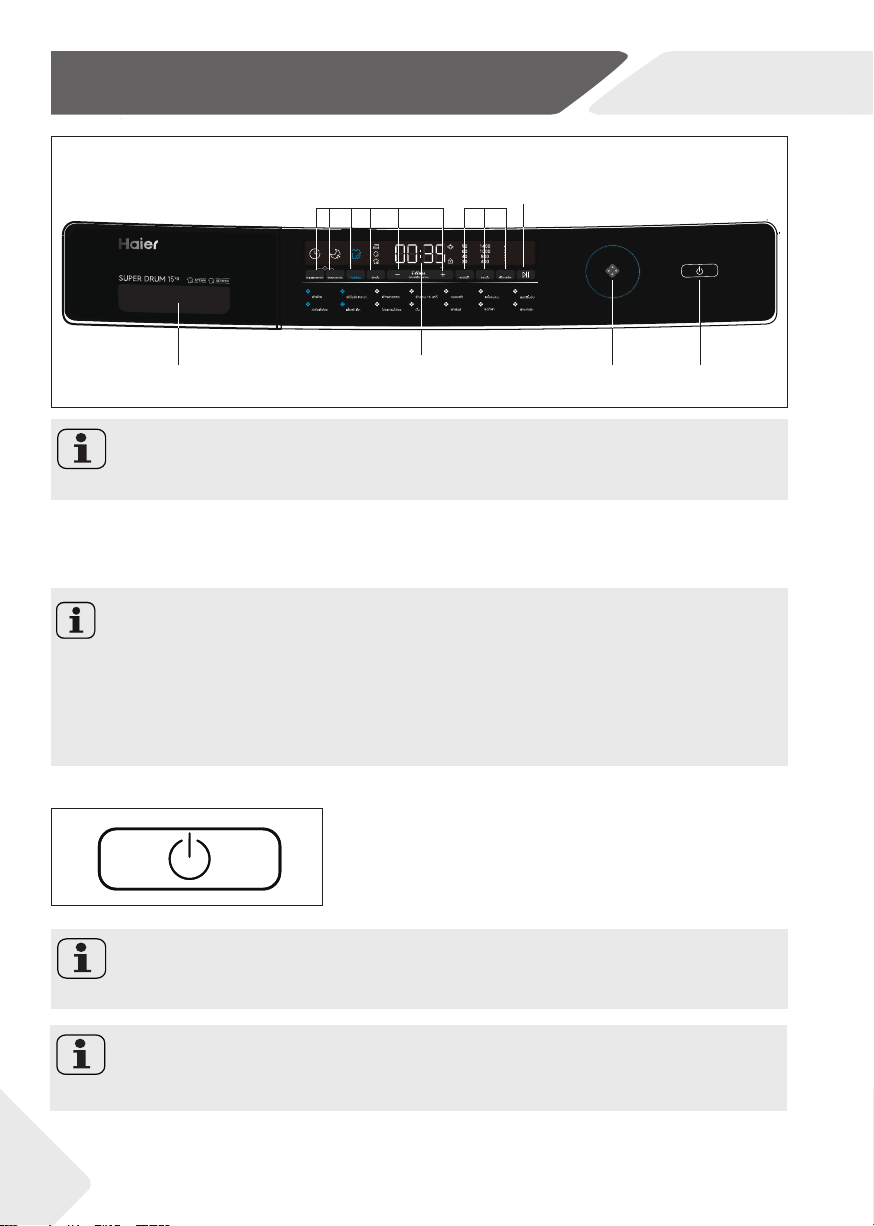

3-Control panel EN

432 1

6 7

1 “Power“ button

2 Programme selector

3 Display

4 Dispenser drawer

3.1 “Power“ button

Touch this button(Fig. 3-2) to switch on, the display

lights up.Touch it again for about 3 seconds to switch

oﬀ.

5 Function buttons

6 Setting buttons

Note : Acoustic signal

In following cases an acoustic signal sounds:

▶when pressing a button

▶when turning the programme selector

▶at the end of programme

▶in case of failures

The acoustic signal can be deselected if necessary ; see DAILY USE (see P20 6.13).

3-2

3-1

Note: Variety

Apperance and features will vary.

Note: Mode

Display will turn into standby “OFF” mode if standby mode lasts too long.

Note: Power supply

Unplug power cord to disconnect the appliance from power supply.

7 “Start/Pause“

button

Cotton Delicate Bedding

Delay

Nightwash

Steam

Func tion

Temp.

Extra Rinse

Synthetic Refresh

Baby Care

Mix

Spin

Sports

Drum CleanHygiene Daily Jeans

Quick 15’

Speed

EN 3-Control panel

3.2 Programme selector

By turning the knob (Fig. 3-3) one of 14 programmes

can be selected, related LED will light up, its default

settings will be displayed.

3.3 Display

The display (Fig. 3-4) shows following information:

▶Wash time

▶End time delay

▶Error codes and service information

▶Function buttons and “Start/Pause“ button

3-3

3.5 Function buttons

The function buttons (buttons 3.5.1-3.5.5, Fig. 3-6)

enable additional functions to programmes before

starting the programme. The related indicators are

displayed.

By switching oﬀthe appliance or setting a new pro-

gramme, all options are disabled.

If a button has multiple options, the desired option can

be selected by pressing the button in sequence.

To delete the setting or to cancel the setting process,

press the function button until the desired LED lights

or-in case of only one option-the LED switches oﬀ

3.4 Detergent drawer

Open dispenser drawer, the following components can

be seen (Fig. 3-5):

1: Compartment for powder or Liquid detergent

2: Detergent ﬂap slector, lift it up for powder detergent,

keep it down for liquid detergent.

3: Compartment for sanitizer.

4: Compartment for softener.

5: Lock tab, press it down to pull out dispenser drawer.

The recommendation on the type of detergents is

suitable for the various washing temperatures, please

refer to the manual of detergent

3-6

3.5.5 3.5.6 3.5.7 3.5.8

3.5.1 3.5.2 3.5.3 3.5.4 5

3-6

3-4

3-5

Cotton Delicate BeddingSynthetic

Baby Care

Mix Quick 15’

Spin

Sports

Refresh

Drum CleanHygiene Daily Jeans

Delay

Nightwash

Steam

Function

Temp.

Extra Rinse

Speed

Delay

Nightwash

Steam

Function

Temp.

Extra Rinse

Speed

3-Control panel EN

3-9

3-10

Note: Factory settings

To get best results in each programme Haier has well deﬁned speciﬁc default settings.

If there is no special requirement default settings are recommended.

Note: Nightwash

Max. speed can be setted is 800 rpm as you add Nightwash to a programme. Easy Iron

is the default setting of Nightwash. Nightwash will be cancelled if Easy Iron is cancelled.

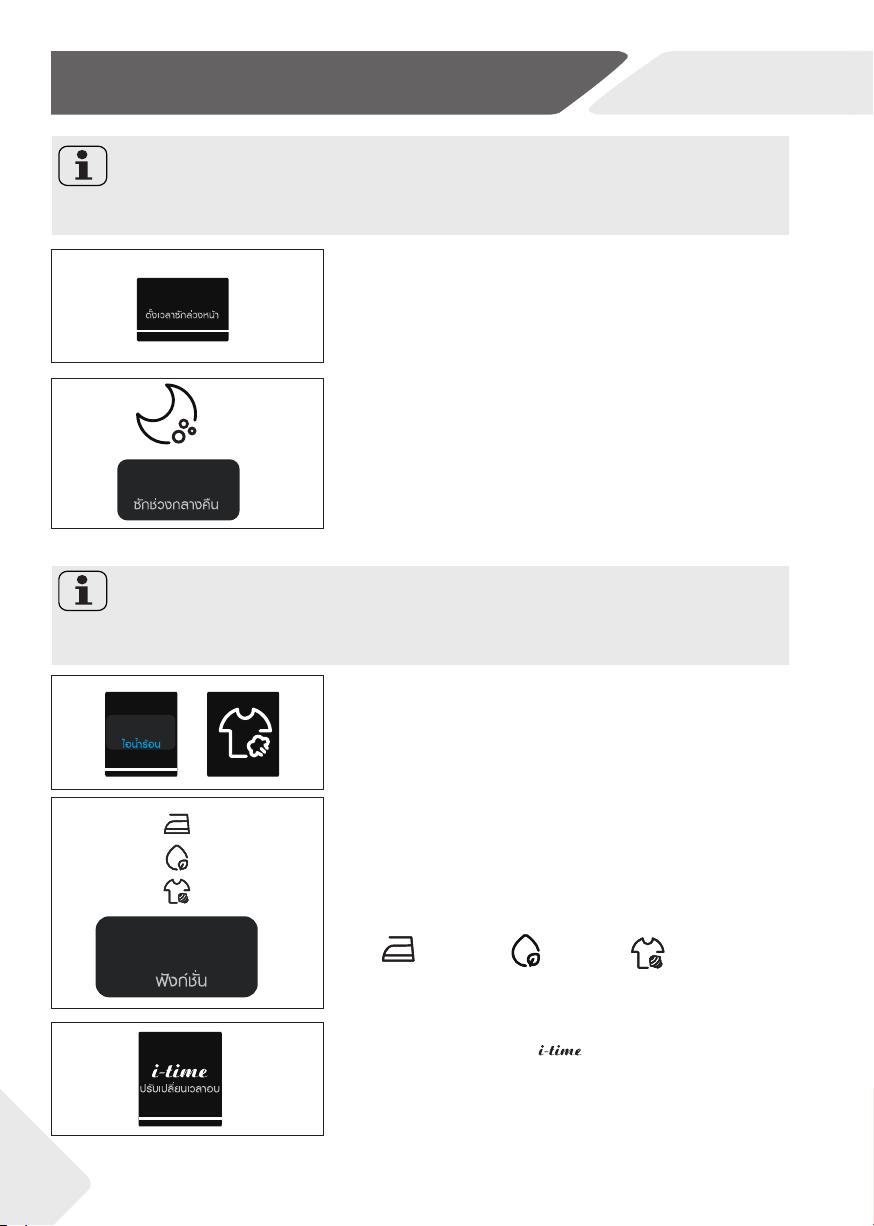

3.5.5-Function button “ “

This function (Fig. 3-11) intensiﬁes diﬀerent washing

time.The “i-time” can’t operate in single washing

function, washing spin function and easy self-cleaning.

3.5.3-“Steam“ button

This function (Fig. 3-9) is available on cycles of Cot-

ton, synthetic, Babycare, Mix. When it is selected,

temperature function turns to be unselectable. Icon

will be lighted when above cycles are selected.

3.5.4-“Function“ button

Press this button (Fig.3-10) to choose special features.

The symbols are explained below.

3.5.1-Function button “Delay“

Press this button (Fig. 3-7) to start the programme with a

delay. End time delay could be increased in steps of 30

minutes from 0,5-24h. For example displa y off 6:30 means

end of programme cycle will be in 6 hours and 30 minutes.

Touch “Start/Pause” button to activate the time delay. It is

not applicable to programme “Spin“ and "Refresh".

3.5.2-“Nightwash“ button

Press this button (Fig. 3-8) to select Nightwash function to

achieve better performance at night. All the acoustic signal

will be turned oﬀ , except for failure signal. A 12 hour

dispersing of laundry load is added to the programme as 1

minute left.

3-7

3-8

3-11

Easy Iron

Allergen

Intense

Delay

Nightwash

Steam

Function

Table des matières

Autres manuels Haier Rondelle

Haier

Haier HWD80-1482-DF Manuel utilisateur

Haier

Haier RS35 Manuel utilisateur

Haier

Haier HWM140-1826T Manuel utilisateur

Haier

Haier 50FREE-3B Manuel utilisateur

Haier

Haier HW70-1001 Manuel utilisateur

Haier

Haier HW60-1081 Manuel utilisateur

Haier

Haier HLP20E - Pulsator Washer Manuel utilisateur

Haier

Haier HWM110-0626S Manuel utilisateur

Haier

Haier HWM62-0566 Manuel utilisateur

Haier

Haier 50FREE-3 Manuel utilisateur

Haier

Haier HW80-B14266 Manuel utilisateur

Haier

Haier HWD 1500 Manuel utilisateur

Haier

Haier HNS1060TVE Guide de configuration

Haier

Haier HWM3008 Manuel utilisateur

Haier

Haier HDS1055TVE Manuel utilisateur

Haier

Haier HK1207TVE Manuel utilisateur

Haier

Haier XPB60-CS Manuel utilisateur

Haier

Haier HWM70-1708T Manuel utilisateur

Haier

Haier HW-C1260TVE-U Manuel utilisateur

Haier

Haier HWM50-10H Manuel utilisateur

Haier

Haier HW90-B14636N Manuel utilisateur

Haier

Haier HG1000TXVE Manuel utilisateur

Haier

Haier RWT350AW Manuel utilisateur

Haier

Haier HW-E1070TVE Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
