Haier HCH6500ALS Manuel utilisateur
36"Island Range Hood
Hotte de cuisinière congurée en îlot 36"
Campana decorativa isla de 36"
Installation and User Manual
Instructions d’installation et
Guide de l’utilisateur
Instrucciones de instalación y
Manual del usuario
HCH6500ALS
Part # 0570000874 REV A
1
TABLE OF CONTENTS
RANGE HOOD SAFETY INSTRUCTIONS..............................................................2
INSTALLATION REQUIREMENTS.........................................................................5
Tools and Parts...............................................................................................................5
Location Requirements ................................................................................................5
Venting Requirements ..................................................................................................6
Electrical Requirements ................................................................................................ 7
INSTALLATION INSTRUCTIONS.......................................................................... 8
Step 1 - Unpack Range Hood ........................................................................................ 8
Step 2 - Plan Installation................................................................................................ 9
Step 3 - Install Ductwork.............................................................................................10
Step 4 - Install Cross Bracing ......................................................................................10
Step 5 - Install Electrical Connection..........................................................................11
Step 6 - Calculate Mounting Height ...........................................................................11
Step 7 - Mount to the Ceiling ......................................................................................13
Step 8 - Install Decorative Vent Covers .....................................................................14
Step 9 - Install Range Hood.........................................................................................16
RANGE HOOD USE............................................................................................ 18
Range Hood Controls ..................................................................................................18
RANGE HOOD CARE ......................................................................................... 19
Cleaning .......................................................................................................................19
TROUBLESHOOTING........................................................................................ 22
LIMITED WARRANTY ........................................................................................ 23
RECORD KEEPING
Thank you for purchasing this Haier
product. This user manual will help you
get the best performance from your
new range hood.
For future reference, record the model
and serial number located inside of the
hood, and the date of purchase.
Staple your proof of purchase to this
manual to aid in obtaining warranty
service if needed.
___________________________________
Model number
___________________________________
Serial number
___________________________________
Date of purchase
2
RANGE HOOD SAFETY INSTRUCTIONS
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and
on your appliance. Always read and obey all safety messages.
DANGER
WARNING
CAUTION
This is the safety alert symbol.
This symbol alerts you to potential hazards that can
kill or hurt you and others. All safety messages will
follow the safety alert symbol and either the word
“DANGER,” “WARNING” or “CAUTION.”
These words mean:
An imminently hazardous situation. You
could be killed or seriously injured if you
don’t immediately follow instructions.
A potentially hazardous situation
which, if not avoided, could result in
death or serious bodily injury.
A potentially hazardous situation
which, if not avoided, may result in
moderate or minor injury.
All safety messages will tell you what the potential hazard is, tell you
how to reduce the chance of injury, and tell you what can happen if the
instructions are not followed.
State of California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals known to the
State of California to cause cancer.
WARNING: This product contains one or more chemicals known to the
State of California to cause birth defects or other reproductive harm.
3
IMPORTANT SAFETY
INSTRUCTIONS
WARNING: To reduce the risk of re, electrical shock, injury to persons,
or damage when using the range hood, follow basic precautions,
including the following:
• This appliance is intended for
normal family household use
only.
• Before servicing or cleaning
the unit, switch power o
at service panel and lock
the service disconnecting
means to prevent power
from being switched on
accidentally. When the
service disconnecting means
cannot be locked, securely
fasten a prominent warning
device, such as a tag, to the
service panel.
• Installation work and
electrical wiring must be
done by qualied person(s)
in accordance with all
applicable codes and
standards, including re-rated
construction.
• Do not operate any fan with
a damaged cord or plug.
Discard fan or return to an
authorized service facility for
examination and/or repair.
• Sucient air is needed
for proper combustion
and exhausting of gases
through the ue (chimney)
of fuel burning equipment
to prevent backdrafting.
Follow the heating equipment
manufacturer’s guideline
and safety standards such
as those published by the
National Fire Protection
Association (NFPA), the
American Society for
Heating, Refrigeration and
Air Conditioning Engineers
(ASHRAE), and the local code
authorities.
• When cutting or drilling into
wall or ceiling; do not damage
electrical wiring and other
utilities.
• Ducted fans must always be
vented outdoors.
• For general ventilating use
only. Do not use to exhaust
hazardous or explosive
materials and vapors.
• To reduce risk of re and to
properly exhaust air, be sure
to duct air outside - do not
vent exhaust air into spaces
within walls or ceilings, attics
or into crawl spaces, or
garages.
• To reduce the risk of re, use
only metal ductwork.
• To reduce the risk of re or
electrical shock, do not use
this fan with any solid-state
speed control device.
4
IMPORTANT SAFETY
INSTRUCTIONS
• Wipe up spill over
immediately.
• Do not allow aluminum foil,
plastic, paper or cloth to
come in contact with a hot
surface.
• Do not allow pans to boil dry.
• Always have a working smoke
detector near the kitchen.
• Moist or damp pot holders
on hot surfaces may result in
burns from steam. Do not let
pot holder touch hot heating
elements. Do not use a towel
or other bulky cloth.
WARNING: TO REDUCE THE
RISK OF A RANGE TOP GREASE
FIRE:
• Never leave surface units
unattended at high settings.
Boilovers cause smoking and
greasy spillovers that may
ignite. Heat oils slowly on low
or medium settings.
• Always turn hood ON when
cooking at high heat or when
ambeing food (i.e. Crepes
Suzette, Cherries Jubilee,
Peppercorn Beef Flambé).
• Clean ventilating fans
frequently. Grease should not
be allowed to accumulate on
fan or lter.
• Use proper pan size. Always
use cookware appropriate
for the size of the surface
element.
WARNING: TO REDUCE THE
RISK OF INJURY TO PERSONS
IN THE EVENT OF A RANGE TOP
GREASE FIRE, OBSERVE THE
FOLLOWING.a
• SMOTHER FLAMES with a
close tting lid, cookie sheet,
or metal tray, then turn o
the burner. BE CAREFUL
TO PREVENT BURNS. If
the ames do not go out
immediately, EVACUATE
AND CALL THE FIRE
DEPARTMENT.
• NEVER PICK UP A FLAMING
PAN - you may be burned.
• DO NOT USE WATER,
including wet dishcloths
or towels - a violent steam
explosion will result.
• Use an extinguisher ONLY if:
– You know you have a class
ABC extinguisher, and
you already know how to
operate it.
– The re is small and
contained in the area where
it started.
– The re department is being
called.
– You can ght the re with
your back to an exit.
a
Based on “Kitchen Fire Safety
Tips” published by NFPA.
READ AND SAVE THESE
INSTRUCTIONS
5
INSTALLATION REQUIREMENTS
TOOLS AND PARTS
Gather the required tools and parts before starting installation. Read and follow the
instructions provided with any tools listed here.
TOOLS NEEDED
• Level
• Drill with 1¼" and ¹⁄₈" Drill Bits
• Pencil
• Wire Stripper or Utility Knife
• Tape Measure or Ruler
• Pliers
• Caulking Gun
• Caulking Compound (weatherproof)
• Vent Clamps
• Jigsaw or Keyhole Saw
• Flat-blade Screwdriver
• Metal Snips
• Phillips Screwdriver
PARTS NEEDED
• 6" dia. round metal duct - length required is determined by ceiling height.
PARTS SUPPLIED
Remove parts from packages. Check that all parts are included.
• Vent Hood Assembly (including a
metal grease lter and a charcoal
lter)
• 120 V Power Cord (with 3 prong plug)
• Two-piece Vent Structure (upper and
lower)
• Two-piece Vent Cover (upper and
lower)

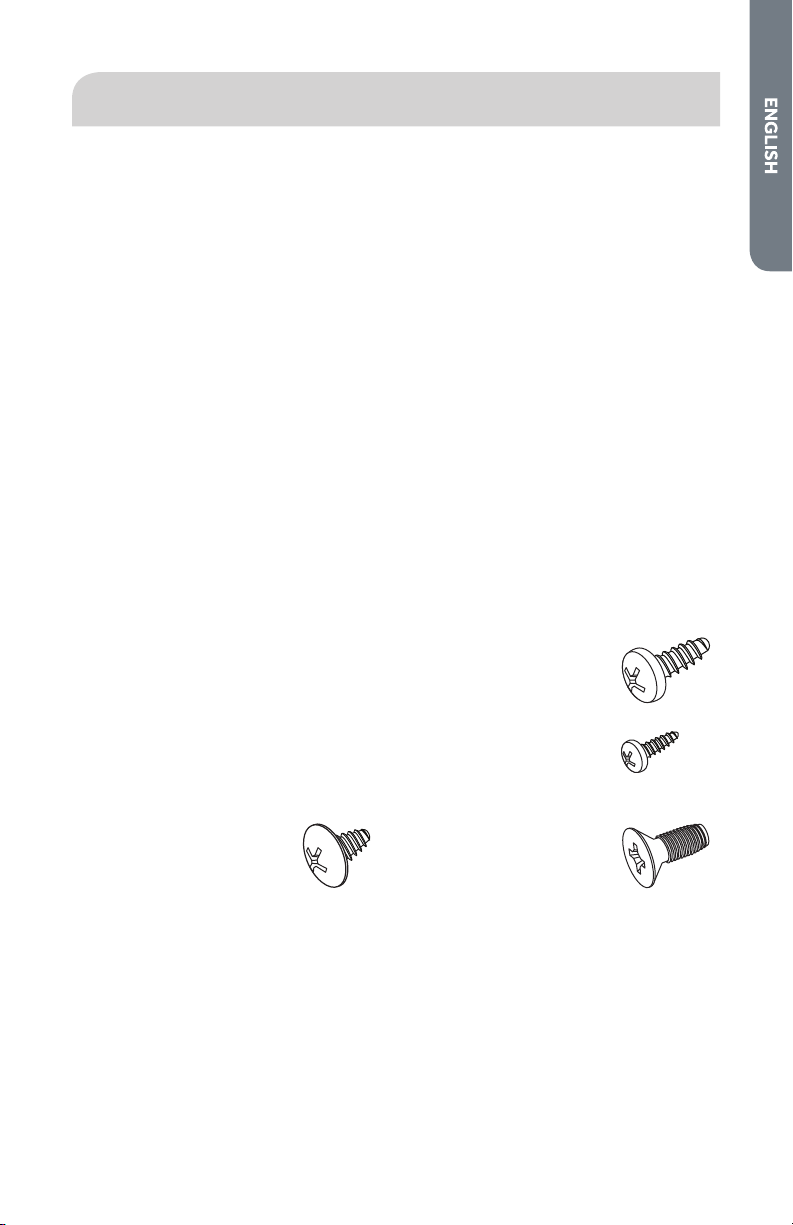

• Phillips Pan-head
Screws (8)
• Small Phillips Pan-head
Screws (3)
• Phillips Self-drilling
Screws (16) • Phillips Countersunk-
head Screws (4)
LOCATION REQUIREMENTS
IMPORTANT: Observe all governing codes and ordinances.
Have a qualied technician install the range hood. It is the installer’s responsibility to
comply with installation clearances specied on the model/serial rating plate. The
model/serial rating plate is located behind the left lter on the rear wall of the vent
hood.
Canopy hood location should be away from strong draft areas, such as windows,
doors and strong heating vents.
Grounded electrical outlet is required. See “Electrical Requirements” section.
6
FOR MOBILE HOME INSTALLATIONS
The installation of this range hood must conform to the Manufactured Home
Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal
Standard for Mobile Home Construction and Safety, Title 24, HUD, Part 280) or when
such standard is not applicable, the standard for Manufactured Home Installation
1982 (Manufactured Home Sites, Communities and Setups) ANSI A225.1/NFPA
501A, or latest edition, or with local codes.

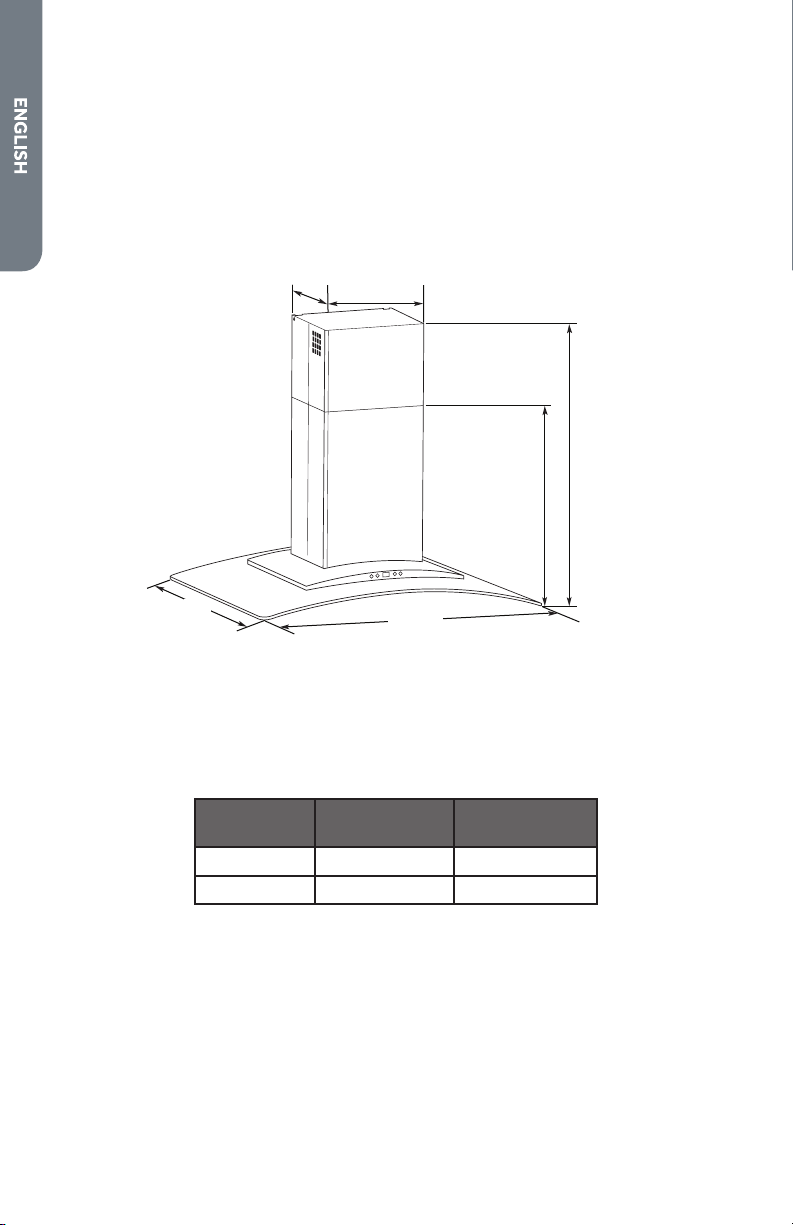

PRODUCT DIMENSIONS
46⅝"
(118.5 cm)
Max
11¹⁵⁄₁₆"
(30.4 cm)
10¹¹⁄₁₆"
(27.2 cm)
35⅜"
(90.0 cm)
26⅜"
(67.0 cm)
23⅝"
(60.0 cm)
INSTALLATION CLEARANCE
It is important to install the range hood at the correct height from the cooktop.
Hoods mounted too low could result in heat damage; while hoods mounted too high
may decrease performance and eciency.
Height from Cooktop Surface to Bottom of Hood:
Minimum: Suggested
Maximum:
Electric 24" (61 cm) 36" (91 cm)
Gas 30" (76 cm) 36" (91 cm)
VENTING REQUIREMENTS
Makeup Air
Local building codes may require the use of makeup air systems when using
ventilation systems greater than specied CFM of air movement. The specied CFM
varies from locale to locale.
Consult your HVAC professional for specic requirements in your area.
7
General Ventilation
The vent hood is designed to vent through the roof.
• Vent system must terminate to the outdoors.
• Do not terminate the vent system in an attic or other enclosed area.
• Use metal vent only. Rigid metal vent is recommended. Plastic or metal foil vent
is not recommended.
• The length of vent system and number of elbows should be kept to a minimum
to provide ecient performance.
• Always keep the duct clean to ensure proper airow.

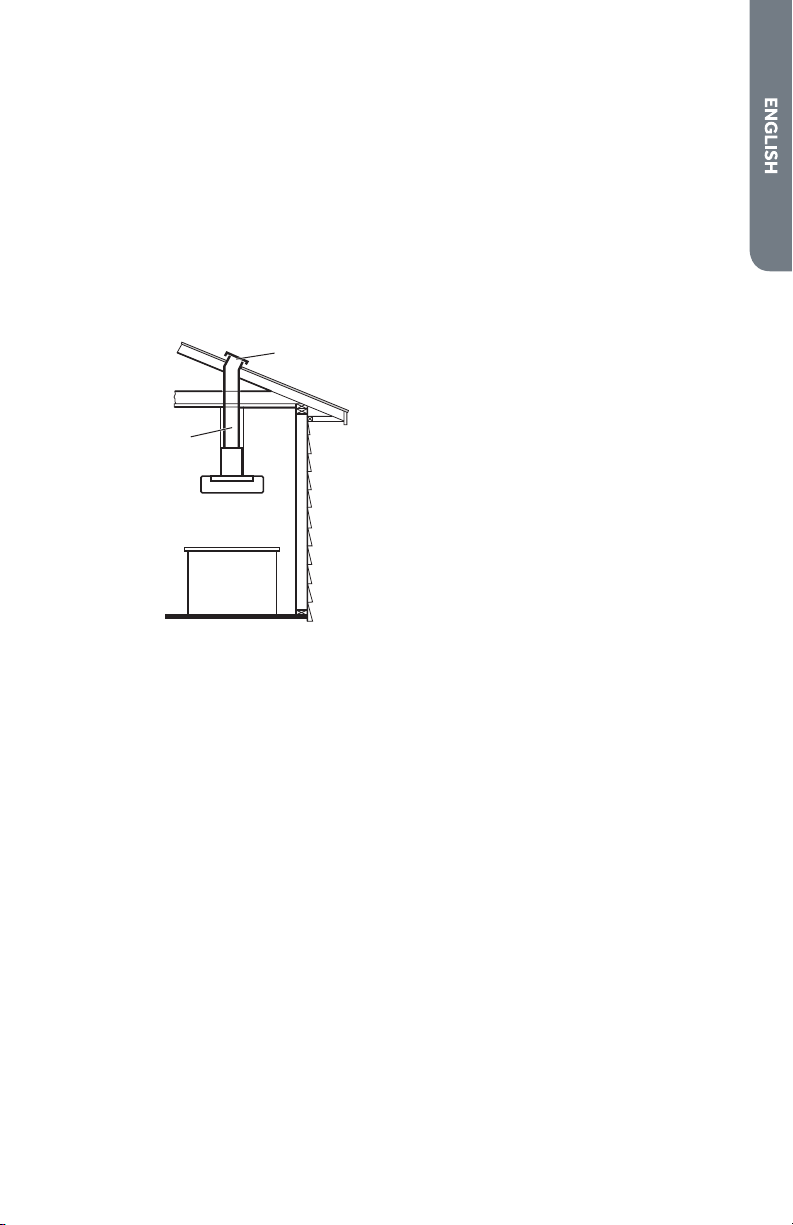

Roof Venting:
b
a
a Roof Cap
b 6" (15 cm) round vent
ELECTRICAL REQUIREMENTS
Observe all governing codes and ordinances.
Ensure that the electrical installation is adequate and in conformance with National
Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94,
Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local
codes and ordinances.
If codes permit and a separate ground wire is used, it is recommended that a
qualied electrician determine that the ground path is adequate.
A copy of the above code standards can be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, MA 02169-7471
Canadian Standards Association
178 Rexdale Blvd.
Toronto, ON M9W 1R3 CANADA
It is important to make sure you have the proper electrical connection.
8
RECOMMENDED GROUNDING METHOD
A 120 volt, 60 Hz, AC only, 15-amp fused, grounded electrical supply is required. Use
an outlet that cannot be turned o by a switch. Do not use an extension cord.
NOTE: Before cleaning, or removing a light bulb, turn vent hood o, and then
disconnect the vent hood from the electrical source. When you are nished,
reconnect the vent hood to the electrical source.
INSTALLATION INSTRUCTIONS
WARNING
Electrical Shock Hazard
Disconnect power before installing unit.
Failure to do so can result in death, fire, or electric shock.
Disconnect power before installing range hood.
STEP 1 - UNPACK RANGE HOOD
1. Select a at surface for assembling the range hood and cover the surface.
WARNING
Excessive Weight Hazard
Use two or more people to move and install range hood.
Failure to do so can result in back or other injury.
2. Using two or more people, lift the range hood onto the covered surface.
3. Separate the two-sections of the vent structure.
4. Remove the tape from the damper aps.
Table des matières
Langues :
Autres manuels Haier hotte de ventilation
Haier
Haier HATS9DS46BWIFI Manuel utilisateur
Haier
Haier 3000 Series Manuel utilisateur
Haier
Haier HHX3030 Manuel utilisateur
Haier
Haier HADG9CS46B Manuel utilisateur
Haier
Haier HHX1030 - 05-05 Manuel utilisateur
Haier
Haier HHN1230DBBB Manuel utilisateur
Haier
Haier HSH60RSX1 Schéma de câblage
Haier
Haier HHX1030 Manuel utilisateur
Haier
Haier I-Clean 4 Series Manuel utilisateur
Haier
Haier HHX2030 - 05-05 Manuel utilisateur
Haier
Haier HATS6DCS56B Manuel utilisateur
Haier
Haier HADG6DCS56B Manuel utilisateur
Haier
Haier HH-S900C Manuel utilisateur
Haier
Haier HH-S901GS Manuel utilisateur
Haier
Haier HH-T895 Manuel utilisateur
Haier
Haier HHX6030 - 05-05 Manuel utilisateur
Haier
Haier HATSI120CBS6BVOC Manuel utilisateur
Haier
Haier HH-T900GC Manuel utilisateur
Haier
Haier IT9002 Manuel utilisateur
Haier
Haier HHX2030 Manuel utilisateur
