Haier L32K60B Manuel utilisateur

L40K60B/L42K60B/L47K60B

L32K60B/L37K60B

HAIER 32/37/40/42/47T71 6M16

Table of Contents

Characteristic Functions 1

Important Safety Instructions 2

Technical Specifications 5

The Technical Specifications for Final Product 5

Technical Specifications for TV 7

VGA Display Mode 8

Power Management 8

Packing Listing 8

Installation & Connection 9

Antenna Connection 9

Power Connection 10

Computer Connection 10

AV1 Video Signal Connection 11

AV2 Video Signal Connection 12

YPbPr/YCbCr Input Connection 13

Position of Control Keys 14

Remote Control 15

Basic Operation Instruction 17

Power On 17

Standby 17

Signal Source Selection 17

Menu Operation Instruction 17

PICTURE 18

SOUND 19

OSD 20

ADVANCE 20

TV 21

Simple Troubleshooting 24

HDMI Digital Port Connection 10

HAIER 32/37/40/42/47T71 6M16

Characteristic Functions

1. LCD panel with no glint and low radiation can ease eyes' fatigue and protect

eyes.

2. High-quality LCD panel is adopted with high brightness, high contrast, wide

viewing angle, and super fast response time. Super fast response time can

greatly eliminate the shadow of moving images.

3. TV/Monitor with two in one and multiple input ports can easily switch among the

Modes.

4. De-interlacing image disposal is adopted. Today's most advanced technique for

movement compensation, can completely improve the saw tooth and vague

edges of the athletic picture.

5. There are four smart sound modes and four smart image modes.

6. Dynamic contrast technology can obviously improve the definition and contrast

of the picture

7. Tuner for frequency synthesis can support full auto search and manual search.

8. With perfect timing function, you can set time to turn off. It will be turned off in

state of no signals, too.

9. Auto Adjustment can help you to setup the image into the best performance in a

few seconds instead of complicated adjustment in PC mode.

10. Auto color balance adjustment technology can make the machine to reach the

best color setting in PC mode.

11. Support hi-definitionYPbPr and double HDMI.

12. All functions can be realized with remote control, which is really a convenient

operation.

13. Power is designed to save energy. The standby power consumption is less

than 1.5W.

14. Input ports include VGA, YPbPr, HDMI, S-Video, CVBS, USB and TV.

15. Output ports include AV and Earphone.

16. Support USB interface, you can look through picture and play music files.

HAIER 32/37/40/42/47T71 6M16

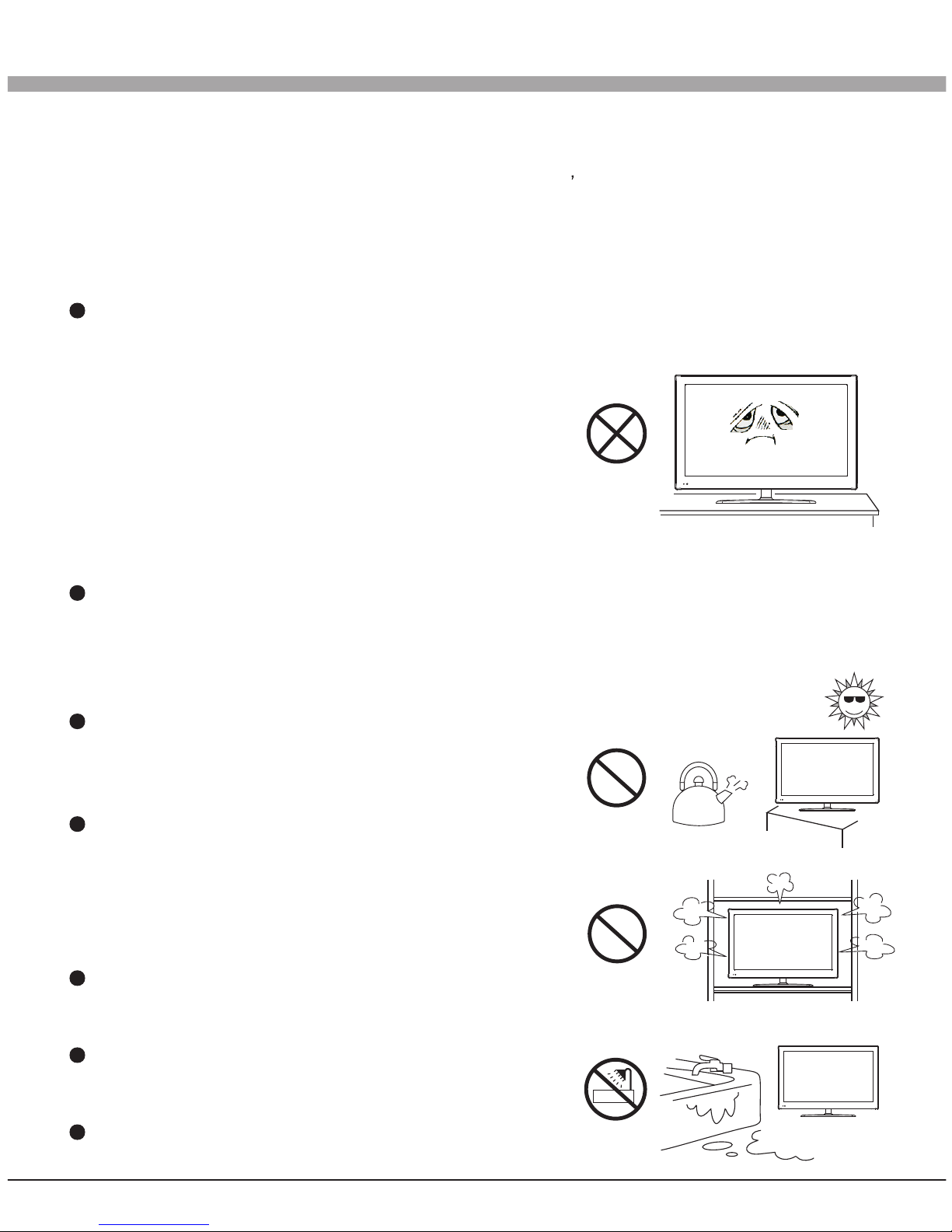

Important Safety Instructions

Thank you to choose the LCD TV made by our company, a valuable product with

excellent quality and multiple functions. This machine will bring you more

audiovisual enjoyment. Its design can insure user s safety. All machine are strictly

tested before leaving factory. But incorrect use can lead to electric shock or fire. In

order to insure safety and extend its life, please read below regulations carefully

before using it and comply with the following safety instructions.

When the following troubles occur, please pull out the plug and call the

professional engineers to repair.

A. The cable or plug is damaged.

B. The product was fallen down or the case is

damaged.

C. Obvious abnormal situation occurs. In spite

of correct operation according to the user

manual but it still can't work normally.

D. Some abnormal substances or liquid fall into it.

E. Unusual sound or smell sends out.

There is high voltage inside the machine but no parts which can be repaired by

users themselves. In order to assure the people's safety, please do not open

the case to repair it by yourself. If it is needed to repair, please contact qualified

engineer to repair.

Please put this machine in the place of well

ventilation, instead of extremely hot, cool or

moist, and direct sunlight.

The slots on the case is designed to release

heat so as to assure that all inside components

will not reach an extra high temperature and

can work normally for a long time. Please do

not cover the holes while place it.

Unless there is good ventilation installation,

please do not put this machine in inlaid device.

Please do not place it on an unstable position

so as to avoid falling off.

Do not place the LCD TV near water source,

like a bathtub, pool, washing machine, or moist

HAIER 32/37/40/42/47T71 6M16

Important Safety Instructions

cellar and similar environment.

During a thunder rain weather, do not touch

the power cord and antenna cable. Please

pull out the power line and aerial plugs for

preventing thunder and lightning damage to

this machine.

All cables can be connected or pull out only after power supply is turned off.

The power cord must be taken off before you

clean the machine. Do not use the liquid

cleanser or aerosol cleanser. It is

recommended to use a wet soft cloth to clean

the machine. Do not use the alcohol,

impregnant or ammoniac liquid to wipe the

screen.

If you will not use the machine for a long time, please pull out the power cord.

Do not keep the sleeping mode for too long time.

Read the manual and marking label before using the machine, and keep the

user manual for later use.

Don't use the attachments which are not recommended by the machine

manufacturer as they may cause hazards.

The power cord must be placed correctly so as to avoid be trample or crush.

Please do not make the power socket overloaded or the power cord extended.

Otherwise it will cause fire or electrical shock.

The LCD panel is fragile and expensive. The surface of the panel is easy to be

scratched. Please do not use the hard thing to knock, press, score the panel.

Otherwise it will be harmful for the panel. The exchange cost is very high.

All technical specification on this instruction book and outer package are

subject to change without notice. If the instruction book has slight difference

with actual operation, please take the actual operation as standard.

HAIER 32/37/40/42/47T71 6M16

Important Safety Instructions

When the MAINS plug or an appliance coupler is used as the disconnect device,

the disconnect device shall remain readily operable.

The machine should not suffer from waterdrop

or watersplash, do not place the vessel with

water (or other liquids) on it, for like this it is

possibly to cause fire or electric shock.

The attaching plug should be inserted into the

power point completely, otherwise it may cause

spark to bring fire.

Please do not put candle, ash-tray, incense, inflammables or explosive nearby

this machine.

Please do not stretch into any sharp object, metal or liquid, or touch the signal

attachment or the inner of radiation hole, in order to avoid short circuit and

product damage, or possibly causing electric shock. Especially pay attention

when there are children on the spot.

Please do not use the machine immediately when moving the machine from low

temperature place to high temperature one, or install and use at the place of

facing air conditioning, otherwise it may cause the condensation in the

machine, to cause fault.

Must be careful when moving this machine, avoiding being struck, especially

pay attention to protect the screen part. In addition, if using handcart, must

note the injury as the product is overturned from the handcart because of hard

braking, overexerting and uneven ground.

HAIER 32/37/40/42/47T71 6M16

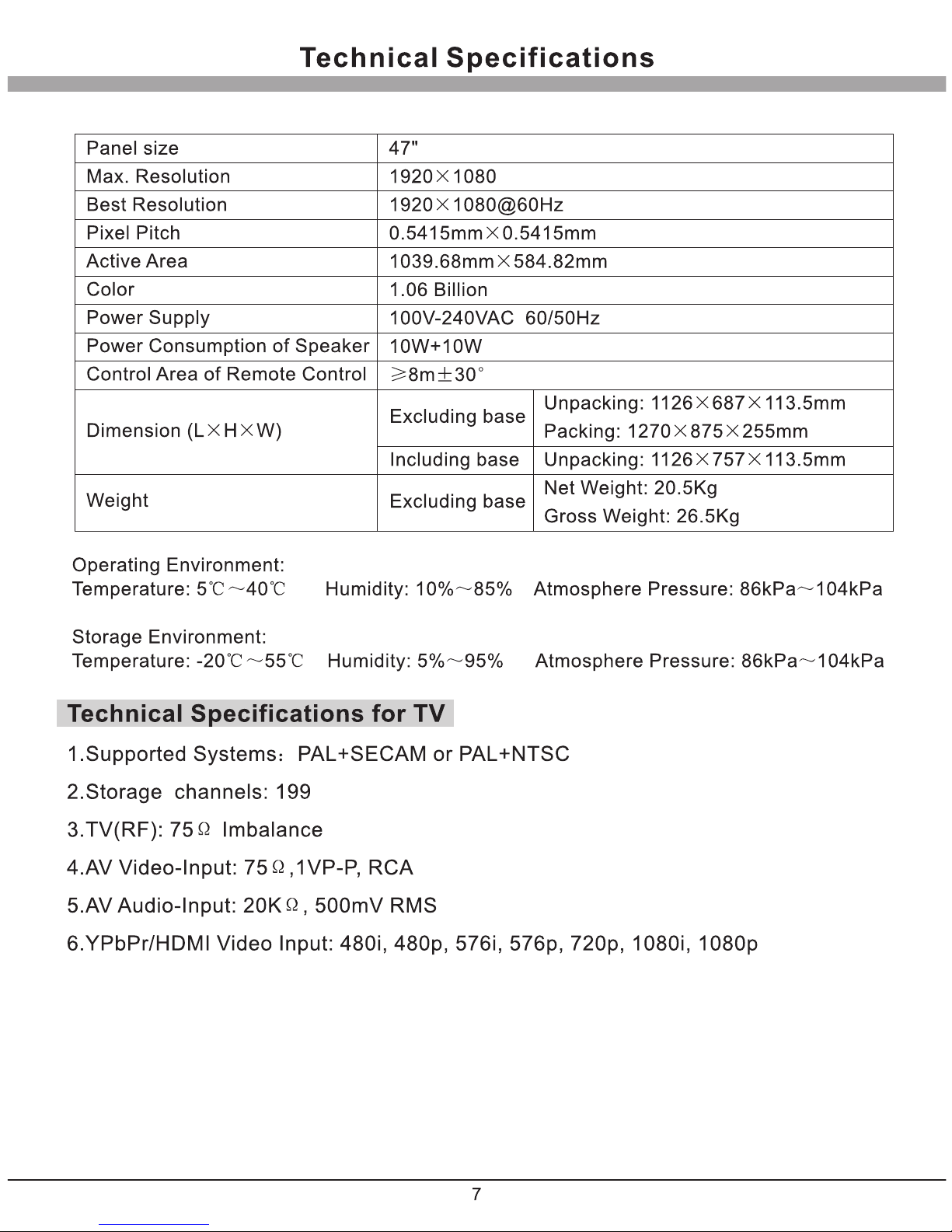

Technical Specifications

The Technical Specifications for Final Product

32"

1366 768

1360 768@60Hz

0.51075mm 0.51075mm

697.6845mm 392.256mm

16.7M

100V-240VAC 60/50Hz

10W+10W

8m 30

Unpacking: 787 494 101mm

Packing: 900 610 205mm

Unpacking: 787 555 101mm

Packing: 1015 610 200mm

Net Weight: 10.5Kg

Gross Weight: 12.0Kg

Net Weight: 12.0Kg

Gross Weight: 13.5Kg

37"

1366 768

1360 768@60Hz

0.600mm 0.600mm

819.6mm 460.8mm

16.7M

100V-240VAC 60/50Hz

10W+10W

8m 30

Unpacking: 911 565 112.5mm

Packing: 1020 685 225mm

Unpacking: 911 635 112.5mm

Packing: 1180 685 225mm

Net Weight: 13.5Kg

Gross Weight: 16.5Kg

Net Weight: 16.5Kg

Gross Weight: 19.5Kg

Panel size

Max. Resolution

Best Resolution

Pixel Pitch

Active Area

Color

Power Supply

Power Consumption of Speaker

Control Area of Remote Control

Dimension (L H W)

Weight

Excluding base

Including base

Excluding base

Including base

Panel size

Max. Resolution

Best Resolution

Pixel Pitch

Active Area

Color

Power Supply

Power Consumption of Speaker

Control Area of Remote Control

Dimension (L H W)

Weight

Excluding base

Including base

Excluding base

Including base

HAIER 32/37/40/42/47T71 6M16

42" (FHD)

1920 1080

1920 1080@60Hz

0.4845mm 0.4845mm

930.24mm 523.26mm

42" (HD)

1366 768

1360 768@60Hz

0.681mm 0.681mm

930.25mm 523.01mm

16.7M

100V-240VAC 60/50Hz

10W+10W

8m 30

Unpacking: 1014 625 115 mm

Packing: 1135 730 225 mm

Unpacking: 1014 691 115 mm

Packing: 1280 730 225mm

Net Weight: 16.5Kg

Gross Weight: 20Kg

Net Weight: 19.5Kg

Gross Weight: 23Kg

Panel size

Max. Resolution

Best Resolution

Pixel Pitch

Active Area

Color

Power Supply

Power Consumption of Speaker

Control Area of Remote Control

Dimension (L H W)

Weight

Excluding base

Including base

Excluding base

Including base

40"

1920 1080

1920 1080@60Hz

0.46125mm 0.46125mm

885.6mm 498.15mm

16.7M

100V-240VAC 60/50Hz

10W+10W

8m 30

Unpacking: 977 674 99 mm

Packing: 1250 735 220mm

Net Weight: 16Kg

Gross Weight: 19Kg

Panel size

Max. Resolution

Best Resolution

Pixel Pitch

Active Area

Color

Power Supply

Power Consumption of Speaker

Control Area of Remote Control

Dimension (L H W)

Weight

Excluding base

Including base

Unpacking: 977 603 99 mm

Packing: 1090 725 215mm

Including base

Net Weight: 19Kg

Gross Weight: 22Kg

Excluding base

HAIER 32/37/40/42/47T71 6M16

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Haier TV

Haier

Haier 55dr3505 Manuel utilisateur

Haier

Haier 21FA12 Manuel utilisateur

Haier

Haier TV-8888-09 Manuel utilisateur

Haier

Haier HL40XSL2a Manuel utilisateur

Haier

Haier 29FA1 Manuel utilisateur

Haier

Haier HTAF29S Manuel utilisateur

Haier

Haier HTN20R16 Manuel utilisateur

Haier

Haier 21F9D Manuel utilisateur

Haier

Haier 21H5FT-ME Manuel utilisateur

Haier

Haier LE46F2380a Manuel utilisateur

Haier

Haier LE24F6550 Manuel utilisateur

Haier

Haier RGBTV-25F99 Manuel utilisateur

Haier

Haier HTAF2918 Manuel utilisateur

Haier

Haier L42S9 Manuel utilisateur

Haier

Haier L42A8A-A1 Manuel utilisateur

Haier

Haier DTA-1496 Manuel utilisateur

Haier

Haier LE24B13800 Instructions de montage

Haier

Haier BH1304D Manuel utilisateur

Haier

Haier L32H-08B Manuel utilisateur

Haier

Haier 29FV6H Manuel utilisateur

Haier

Haier 29F9B-P Manuel utilisateur

Haier

Haier HL26B-A Manuel utilisateur

Haier

Haier TN201AUV Manuel utilisateur

Haier

Haier HLC22R1 - 22" LCD TV Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
