Haier 29FV6 Manuel utilisateur

29FV6

34FV6

29FV6

34FV6

COLOUR TELEVISION

OPERATING

INSTRUCTIONS

◆Digital I C bus control

◆Auto search tuning & 250 programs stored

◆Full infrared remote control

◆Multi-picture modes selection

◆Multi-function timer, appointing program

0090507287

WARNING AND CAUTIONS

1. When you clean the TV set, please pull

out the power plug from AC outlet.

Or may result in electric shock, fire or

damage to the TV set. Don't clean the

cabinet and the screen with benzene,

petrol and other chemicals.

4. Do not place the TV set near rain

or moisture as it may cause an electric

shock, or the TV set to catch fire. The TV

set must only be used

in dry indoor location.

2. In order to prolong the using life of the

TV set, please place it at a well ventilated

location.

5. The back cover must only be removed

by a registered electrical service person.

Removing the back cover may result in

electric shock, fire or damage to

the TV set.

3. Don't place the TV

set in direct sunlight

or near heat source.

6. If the TV set is not going to be used for

a long time, or there is a severe thunder &

lightening storm, it is recommended that

the TV set be disconnected from the AC

power outlet and the aerial plug

removed.

Explanation on the display tube

When the picture tube requires cleaning, please disconnect the power and use a

dry soft cotton cloth. Do not use any cleaner or abrasive cloth.

CONTENTS

Contents..................................................................................................................................1

Warning and Cautions............................................................................................................2

Basic Feature.........................................................................................................................3

Technical Specification..........................................................................................................3

Function Buttons and External Sockets.................................................................................4

AV Connection.......................................................................................................................5

Remote Controller .................................................................................................................6

Control Your TV.....................................................................................................................7

Tuning Procedure................................................................................................................10

Menu Operation...................................................................................................................11

Preparing for Operations.....................................................................................................14

Trouble Shooting Guide......................................................................................................15

BASIC FEATURE

◆Digital I C bus control

◆Auto search tuning & 250 programs stored

◆Full infrared remote control

◆Multi-picture modes selection

◆Multi-function timer, appointing program

TECHNICAL SPECIFICATION

1.POWER SUPPLY: See rating plate

2.COLOUR SYSTEM: PAL SECAM N TSC4.43/3.58(AV)

3.AUDIO SYSTEM: B/G D/K

4.CRT: 29"/

5.ANTENNA INPUT : 75Ω Standard Coaxial Cable

6.SOUND OUTPUT POWER:

7.POWER CONSUMPTION: See rating plate

8.NET WEIGHT(kg): 45.5 (29FV6 )

64.5 (34FV6)

9.NET DIMENSION(mm): 753

34"

5W + 5W

x 500 x 573 (29FV6 )

898 x 567 x 669 (34FV6 )

Supplied accessories:

Infrared remote control handset 1

Battery(AA) 2

Operating instruction 1

Design and specifications are subject to change without notice.

FUNCTION BUTTONS AND EXTERNAL SOCKETS

1.Front panel

(1)Remote sensor: let the remote

controller aim here, the TV set

can receive remote control signal.

(2)Power switch: press the button to

turn on the TV set ,press the button

again to turn off the TV set.

(3)Power indicator: the indicator lights

in standby status .The indicator

glints when you use remote

controller.

(4)Menu button

(5)Program up/down button

(6)Volume up/down button

(7)TV/AV switch button

(4)

(7)

(6)

(5)

(3)

(2)

(1)

MENU - +VOL

TV/AV

-CH+

(1) S-VIDEO input

(2) AUDIO/VIDEO input

(3) YUV-DVD component input

(4) Antenna input

(5) AUDIO/VIDEO output

(1) (2) (3)

(4)

S-VHS

OUT

VIDEO

AUDIO

(5)

2. Audio and video rear connections

VIDEO

AUDIO-R

AUDIO-L

VIDEO

AUDIO

34FV6

29FV6

REMOTE CONTROLLER

TV/AV Select

(P8)

Sound Volume

Up/Down

（Ref. P7 ）

Power/Standby

(Ref. P7 )

Program Up/Down

（Ref.

.）

(Ref.P11.)

Mute

(Ref.P

)

Lock

(Ref.P9)

Call

(Ref.P8)

Direct Access Numeric

Keys

(Ref.P7)

Quick View

(Ref.P8)

ZOOM

(Ref.P7)

Picture Effect

(Ref.P9)

-/--

1 3

4 5 6

7 8 9

0 QV

TIMER SOUND

V+

V-

P+

P-

PIC

TV/AV

Picture MENU

(Ref.P11)

Time MENU

(Ref.P12)

Sound MENU

(Ref.P11)

Ref.

AV CONNECTION

Direction of signal

white（left audio）

red（C /right audio ）

blue（C ）

green

（video）

（Y）

yellow

Note:

1.When receives s-video signal, you must remove video signal; when receive

video signal, you must remove s-video signal.

2.When receive front video signal, you must remove back video signal; when

receive back video signal, you must remove front video signal.

G R

DVD(with DVD component)

VCR (without S-VIDEO terminal)

YW R

o d o u

Taui o t

VCR (with S-VIDEO terminal)

W R

s e tTo -vido outpu

vou

To ide otput

T c mpo ent ut

o n o

S-VHS

OUT

VIDEO

AUDIO

34FV6

29FV6

You can select your video

source by the [TV/AV] key.

7. MUTE

By pushing this key, sound

output will be muted.

Push [MUTE] again or Volume

Up/Down, and sound Volume

will return.

8. Quick View

Program will quick back

to the previous program

being watched.

9. CALL

Program No.

Colour system

Clock

Sleep

TV/AV MODE

This key will call the on

screen display.

Push again to remove the

on screen display.

Menu MODE

Pressing the [?]key,

current menu will

exit directly.

7 8

TV/AV

6. TV/AV Selection

MUTE

QV 10

AV1

PAL

B/G

15:15

SLEEP 120

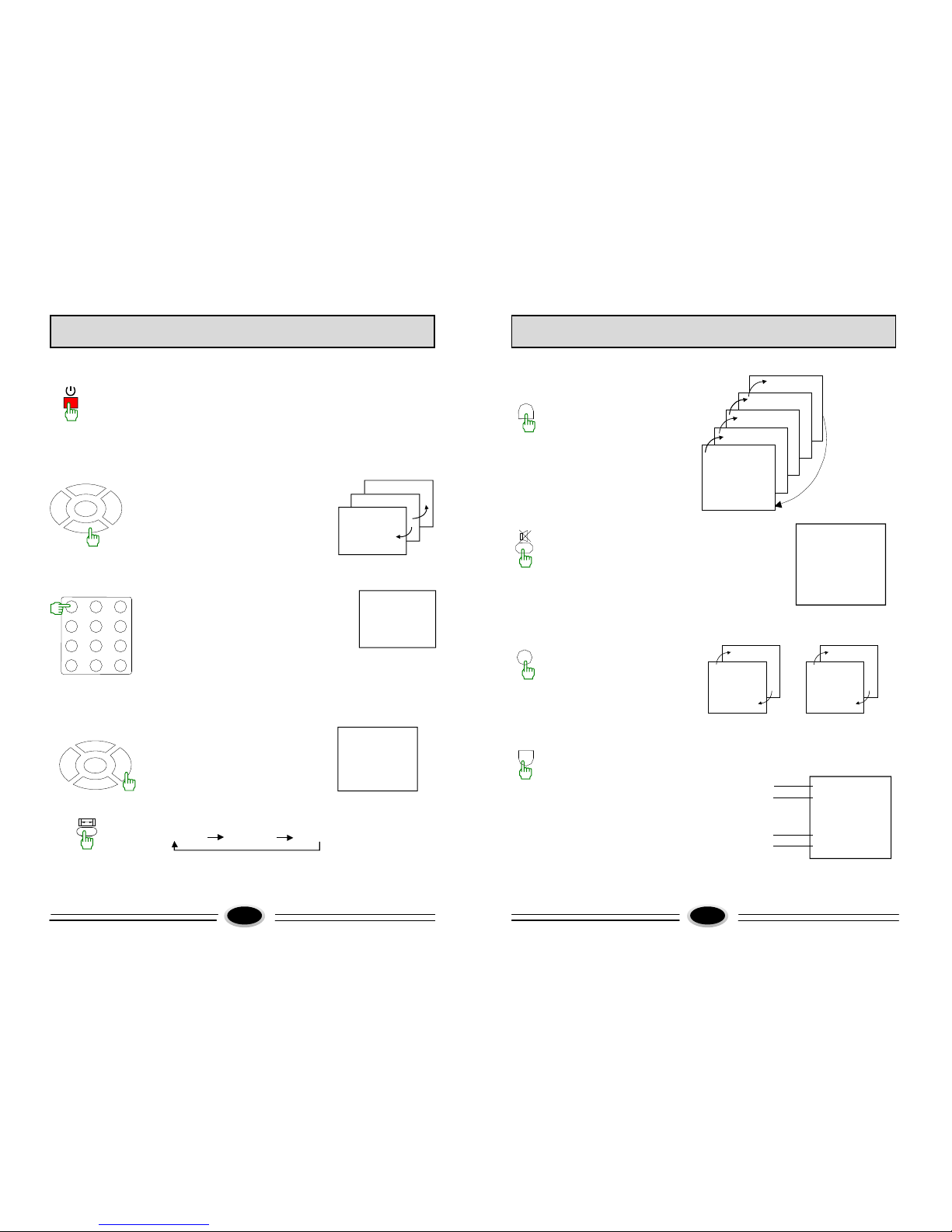

CONTROL YOUR TV

1. Power/Stand-By ON/OFF

With Mains status On, you can also turn off using Remote

Control Hand Set.

This status is called Stand-By mode. In this mode; You

can also turn on the

TV by pushing the Channel Up/Down

keys on the front controls.

There is an Automatic Power OFF function in the TV. With no

signal condition,

the TV will automatically turn off after 10 minutes.

2. Program Up/Down

Push [P+] key to change Program Up.

Push [P-] key to change Program Down.

CONTROL YOUR TV

VOLUME 15

|||||||------------

V-

V+

P+

P-

-/--

1 3

4 5 6

7 8 9

V- V+

P+

P-

Direct Access Tuning

Using the numeric keys on Remote

Control Hand Piece, channel can be

selected directly from 0 to 249 channels.

Or repeatedly press the -/-- button to

select the desired mode then press numeric buttons.

“-” 1 digit mode

“ ”-- 2 digit mode

“--- ” 3 digit mode(Max Ch. 249)

Volume Control

Push [V+] key for Volume Up.

Push [V-] key for Volume Down.

ZOOM

Push [ZOOM] key to change as follows:

NORMAL WIDE ZOOM

W ID E p icture height is reduce, ZOOM picture height is expand.

“ ”

AV1

AV2

S-VIDEO

YUV

CONTROL YOUR TV

10. Picture Effect

By repeatedly pushing this key, picture effects will change as follows.

DYNAMIC USER

MILD STANDARD

TINT setting is not included, user is the last setting made by

you.

11. LOCK

By pushing the [ ] key, ----

will appears on the screen.

Pressing the password the

digits that you defined yourself

correctly, the lock menu will appear.

A. Select each function using the

[P+] [P-] keys.

B. Each value can be changed by the

[V+] [V-] keys.

C. When general lock is on, other locks

may be locked.

D. Child lock will be locked or unlocked

for current program.

E. AV LOCK will be locked or unlocked

for AV function.

F. VOL LIMIT SW will be switched on or off.

G.When you will change the password, you may be selected

NEW PASSWORD item, then push [V+] [V-] keys, the

CHANGE PASSWORD menu will appear

NEW PASSWORD: input 4 digits you like.

CONFIRM: again input above new password 4 digits correctly.

H. Press the [ ] key or [?] key, lock menu will disappear.

Note:

The tune menu will not appear when any program would be locked.

After new password was set, the basic password 7038 still is available.

STANDARD

“ ”

CHANGE PASSWORD

NEW PASSWORD 0 0 0 0

CONFIRM - - - -

LOCK

GENERAL LOCK ON

PROGRAM NO. 25

CHILD LOCK ON

AV LOCK ON

VOL LIMIT SW ON

VOL LIMIT ON

CHANGE PASSWORD 32

- ---

TUNING PROCEDURE

1. AUTO SEARCH Function: Automatic Search and Memory (ASM) is

available for program installation from

Antenna input.

Using [MENU] key on the front or

[MENU] key on the Remote for ASM.

A. Push [MENU] key repeatedly to

select TUNE.

B. Push [P+] or [P-] key to select

AUTO SEARCH.

C. Push [V+] or [V-] key to start ASM

and memorize into program list(0~249).

D. Wait until function has finished.

2. SEARCH Function: Manual Search for Antenna input.

A. Push [MENU] key repeatedly to select TUNE.

B. Using [P+] or [P-] key, select PROGRAM. Using [V+] or [V-] or

numeric keys

to change Program Number.

C. Push [P+] or [P-] key to select BAND. Push [V+] or [V-] key to change BAND.

D. Push [P+] or [P-] key to select SEARCH.

E. Push [V+] or [V-] key to start search.

F. Wait until function has finished.

G. Push [P+] or [P-] key to select STORE. Push [V+] or [V-] key to store.

3. FINE TUNING Function: Fine Tuning for current setting.

A. Push [MENU] key repeatedly to select TUNE.

B. Using [P+] or [P-] key to select PROGRAM. Using [V+] or [V-] key to change

Program Number.

C. Using [P+] or [P-] key to select FINE TUNE.

D. Using [V+] or [V-] key to adjust for best tuning.

E. Push [P+] or [P-] key to select STORE. Push [V+] or [V-] key to store.

4. SKIP Function: Use to SKIP channels. After setting to ON, the channel will

not be selected by Channel Up/Down keys.

A. Push [MENU] key repeatedly to select TUNE.

B. Using [P+] or [P-] key to select PROGRAM. Using [V+] or [V-]

key to change

Program Number.

TUNE

BAND UHF

SKIP OFF

PROGRAM 3

FINE TUNE

STORE

AUTO SEARCH

MENU OPERATION

EXCHANGE

PROGRAM1 10

PROGRAM2 14

EXCHANGE

TIME

CLOCK --:--

ON TIME --:--

ON PROG 2

OFF TIME --:--

SLEEP TIMER 0

REMIND TIME --:--

REMIND PROG 1

11 12

5. EXCHANGE Function: number and channel exchange.

A. Push [MENU] key repeatedly to select EXCHANGE.

B. Using [P+] or [P-] key to select

PROGRAM 1. Using [V+] or [V-]

key to change Program 1 Number.

C. Using [P+] or [P-] key to select

PROGRAM 2. Using [V+] or [V-]

key to change Program 2 Number.

D. Using [P+] or [P-] key to select

EXCHANGE. Using [V+] or [V-] key,

exchange is over.

MENU OPERATION

1. [MENU] key

Push [MENU] key continually to scroll through the MENU selection as

follows:

PICTURE SOUND TIME SETUP TUNE EXCHANGE

2. PICTURE MENU Function: Brightness, Contrast, Colour, Sharpness, Tint

A. Select each function using the [P+]

or [P-] key.

B. Each value can be controlled by the

[V+] or [ V-] key.

C. Repeat any functions if required.

NOTE: TINT control will be appeared

only if a NTSC signal is being

received.

3. SOUND MENU Function: Volume

A. Press SOUND menu, the volume will appear.

B. Each value can be controlled by the [V+] or

[V-] key .

C. Using [P+] or [P-] key to select SKIP. Using [V+] or [V-] key to

select ON or OFF. 4. TIME MENU Function: Time and Timer setting

A. Select TIME with the [MENU] key.

Using the [P+] or [P-] key to select

the item.

B. Using the [P+] or [P-] key to select

CLOCK, ON-TIME, OFF-TIME,

SLEEP TIME or REMIND TIME.

C. Press [P+] or [p-] key to select minutes,

then using [V+] or [ V-] key, minutes

will change from 00 to 59. Press [P+] or

[P-] key to select hours, then using

[V+] or [ V-] key, hours will change

as follows: 0,1,..23--:--.

D. For ON-TIME, OFF-TIME or

REMIND TIME setting, using [P+]

or [P-] key to select ON PROG,

using [V+] or [ V-] key to change

On-Program number.

E. Using [P+] or [P-] key to select

SLEEP TIME, Using [V+] or [ V-] key,

sleep timer will change as follows:

0 10 20 30 40 ...160 170 180 0

5. SETUP Function: other function setting.

A. Using the [P+] or [P-] key to select

the item.

Using the [V+] or [V-] key to change

the item.

B. Using the [P+] or [P-] key to select

the LANGUAGE.

Using the [V+] or [V-] key to select the

language you need.

C. Using the [P+] or [P-] key to select the COLOR

SYS.

Using the [V+] or [V-] key to select the color system

you need.


BRIGHTNESS 48

CONTRAST 48

COLOUR 32

SHARPNESS 32

TINT

SOUND

VOLUME 20

MENU OPERATION

SETUP

LANGUAGE ENGLISH

COLOR SYS AUTO

SOUND SYS BG

BLUE BACK ON

BLACK STRETCH ON

AVL ON

CALENDAR

GAME1

GAME2

.............

34FV6

29FV6

2004 1

Su Mo Tu We Th Fr Sa

1 2 3

4 5 6 7 89 10

11 12 13 14 15 16 17

18 19 20 21 22 23

25 26 27 28 29 30 31

- - - - - - - - - - - - - - -

D. Using the [P+] or [P-] key to select

the AVL, AVL is auto volume level.

Using the [V+] or [V-] key, AVL will

be turned OFF and ON.

E. Using the [P+] or [P-] key to select

the CALENDAR.

Using the [V+] or [V-] key,

CALENDAR will appear.

After CALENDAR is appeared on the

screen:

Using the [P+] or [P-] key to change

the month.

Using the [V+] or [V-] key to change

the year.

F. Using the [P+] or [P-] key to select the GAME1 or GAME2.

Using the [V+] or [V-] key, GAME will be appear.

In game 1 mode, input digit by digit key direction. Until same

number is 4, same position 4.

Push [MENU] key to start game again.

Push [?] key to exit game.

In game 2 mode, the box will be moved to specific dot.

Push [P+] or [P-] key to move the box for up or down.

Push [V+] or [V-] key to move the box for right or left.

Push [?] key to exit game.

- - - - - - - - - - - - - - -

MENU OPERATION

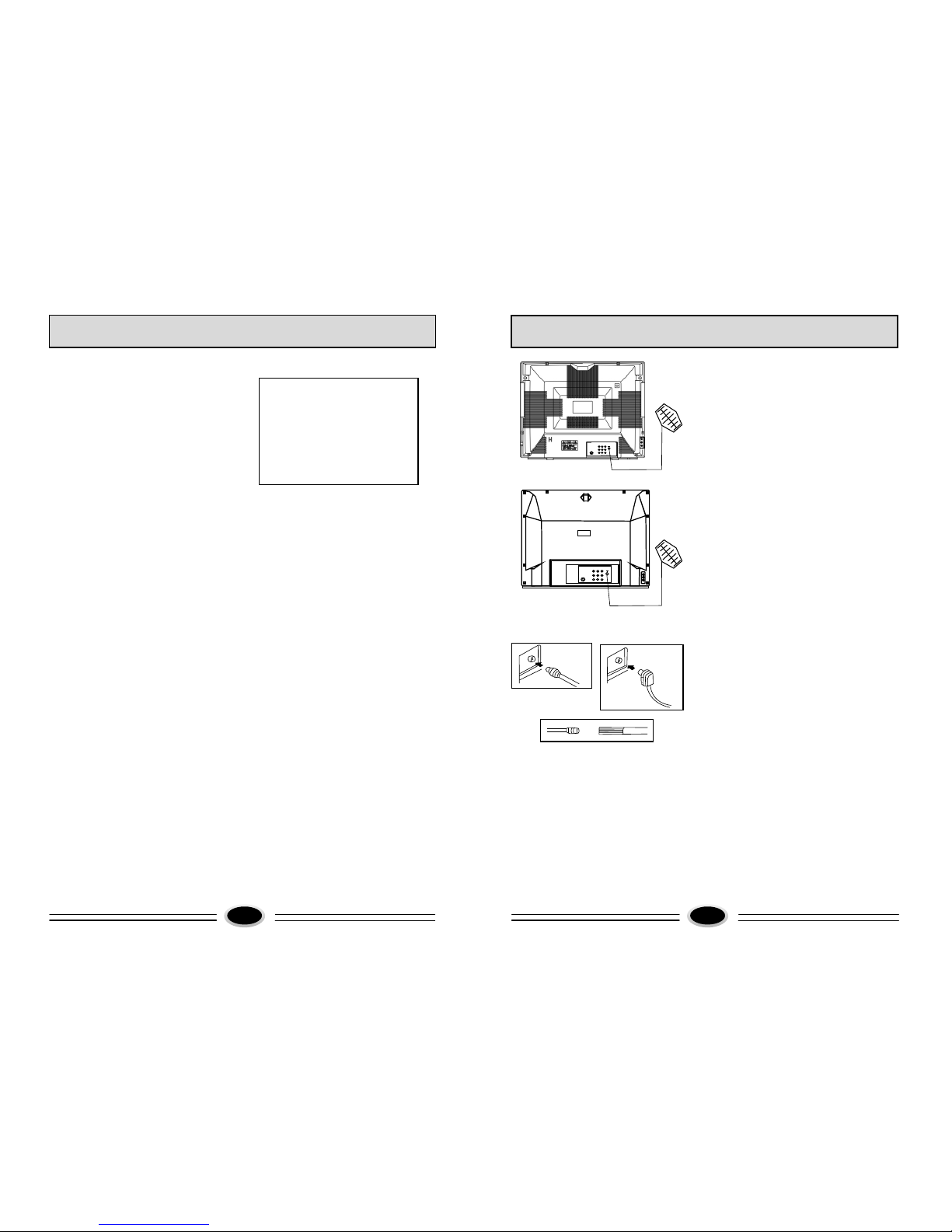

Figure A Figure B

Antenna cable

with a plug

Figure C Figure D

Antenna feeder

Antenna adapter

75-300Ω

Coaxial cable(75Ω) twin-lead cable(300Ω)

Antenna connection

Connect an antenna to the antenna socket on

the TV set, we recommend using a Cable TV

system for better picture and audio quality.

1.If you use a coaxial cable(75Ω),insert the

antenna plug (see figure C) into 75Ωsocket

(see figure A).

2.If you use a twin-lead cable(300Ω),please

shape the cable as figure D, and connect the

leads to antenna adapter and then insert the

antenna adapter into the 75Ωsocket (see

figure B).

Power source wire connection

Insert the power plug into AC outlet.

Install and replace batteries of the

remote control unit:

1.Place the remote control unit with the face

down, then open the battery cover of the

unit.

2.Place the two"AA"size batteries, matching

the + and - signs on each battery to the +

and -signs of the battery compartment.

3.Close the cover of the battery compartment.

NOTE:

(1)Don't drop or wet or dismantle the unit.

(2)If you don't intend to use the unit for a

long period or the electricity of the

batteries is used up, remove the batteries

to prevent batteries acid from leaking

into the battery compartment.

(3)Replace the two old batteries at the

same time.

(4)Don't use charge battery (Ni-cd )and

don't mix battery type.

(5)Don't throw your batteries into a fire.

Dispose of your batteries in a required

place.

PREPARING FOR OPERATIONS

Antenna

Note:1.If the problem can not be fixed after you check above items. DO NOT attempt

to remove the back cover by yourself.

2.If the snapping sound from the cabinet of the TV set can be heard occasionally

because of temperature changing of environment, it is normal, you can use it

reassuringly.

TROUBLE SHOOTING GUIDE

BREAKDOWN PHENOMENON

The following problems are not always caused by hardware failure, please use

the follow trouble shooting guide before you call for service:

PICTURE SOUND

CHECKING

The direction and connection of the

antenna

Direction, station and connection

of the antenna

Interference from electric

appliance. Automobile、Motor,

Vehicle Fluorescence lamp etc.

Volume, Sound mute

The power plug isn't plugged in AC

outlet. The main power isn't turned

on. The setting up of contrast, brig-

htness and volume.

Adjust color control

Adjust channel again

Moving the TV set or using magnetic electric appli-

ance near TV, Which will lead to color spot on sc-

reen. Please remove the electric appliance and cut

off power. After 120 minutes turn the TV on, the pic-

ture will be recovered.

Picture with Snow

Color Spot

No Color

No Picture

Normal

Disturb

Double or Triple Image

Noise

Normal

Noise

No Sound

Normal Volume

Normal or Weak Volume

Normal Volume

Scramble

Autres manuels pour 29FV6

Ce manuel convient aux modèles suivants

Autres manuels Haier TV

Haier

Haier HTX25S31, HTX29S31S, HTX34S31 Manuel utilisateur

Haier

Haier HL42XR1 - 42" LCD TV Manuel utilisateur

Haier

Haier DX-RCRT20-09 Manuel utilisateur

Haier

Haier L24F6 Manuel utilisateur

Haier

Haier 21FV6H Manuel utilisateur

Haier

Haier 21FA10-AM Manuel utilisateur

Haier

Haier LE40T3 Manuel utilisateur

Haier

Haier L42C1180 Instructions de montage

Haier

Haier 34P9A Manuel utilisateur

Haier

Haier HLH37ATBB - 37" LCD TV Manuel utilisateur

Haier

Haier L55B2181 Instructions de montage

Haier

Haier HL26B-A Manuel utilisateur

Haier

Haier 21FA12-AM Manuel utilisateur

Haier

Haier 29FA12 Manuel utilisateur

Haier

Haier DX-LDVD22-10A Manuel utilisateur

Haier

Haier L42A8A-A1 Manuel utilisateur

Haier

Haier HLH26BBTV Manuel utilisateur

Haier

Haier LE32D2320 Manuel utilisateur

Haier

Haier HLH406BB Manuel d'instructions

Haier

Haier MX-TM7414Mpeg4 Manuel utilisateur

Haier

Haier LT32R3A Manuel utilisateur

Haier

Haier L40F1180 Instructions de montage

Haier

Haier HL47K Manuel utilisateur

Haier

Haier HT-3718 Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
