COLOUR TELEVISION

OPERATING

INSTRUCTIONS

◆Stage curtain for open and close effect

◆Digital I C bus control

◆Auto search tuning & 218 programs stored

◆Full infrared remote control

◆Multi-picture modes selection

◆Multi-function timer,appointing programme

WARNING AND CAUTIONS

1. When you clean the TV set, please pull

out the power plug from AC outlet.

Or may result in electric shock, fire or

damage to the TV set. Don't clean the

cabinet and the screen with benzene,

petrol and other chemicals.

4. Do not place the TV set near rain

or moisture as it may cause an electric

shock, or the TV set to catch fire. The TV

set must only be used

in dry indoor location.

2. In order to prolong the using life of the

TV set, please place it at a well ventilated

location.

5. The back cover must only be removed

by a registered electrical service person.

Removing the back cover may result in

electric shock, fire or damage to

the TV set.

3. Don't place the TV

set in direct sunlight

or near heat source.

6. If the TV set is not going to be used for

a long time, or there is a severe thunder &

lightening storm, it is recommended that

the TV set be disconnected from the AC

power outlet and the aerial plug

removed.

Explanation on the display tube

When the picture tube requires cleaning, please disconnect the power and use a

dry soft cotton cloth. Do not use any cleaner or abrasive cloth.

CONTENTS

Warning and cautions.............................................................................................1

Basic feature...........................................................................................................2

Technical specification...........................................................................................2

Preparing for operations.........................................................................................3

Function buttons and external sockets....................................................................4

AV connection.........................................................................................................5

Remote controller guide..........................................................................................6

Power supply...........................................................................................................7

Tuning procedure....................................................................................................7

Picture adjustment...................................................................................................9

Other functions......................................................................................................10

Multi function timer...............................................................................................14

Lock function.........................................................................................................15

Trouble shooting guide..........................................................................................17

BASIC FEATURE

●I C bus control

●218 programs stored

●Display full functions on the screen and infrared remote control

●Multi picture modes and sound modes selection

●Auto searching, function selecting and program number skipping

●Multi function timer

●Progammes scanning

●Game, multi-function lock

●Stage curtain for open and close effect

TECHNICAL SPECIFICATION

1.POWER SUPPLY: See rating plate

2.COLOUR SYSTEM: PAL N TSC4.43/3.58(AV)

3.AUDIO SYSTEM: B/G

4.CRT: 25"

5.ANTENNA INPUT : 75Ω Standard Coaxial Cable

6.SOUND OUTPUT POWER: 5W

7.POWER CONSUMPTION: See rating plate

8.NET WEIGHT(kg): 29

9.NET DIMENSION(mm): 688 x 480 x 526

Supplied accessories:

Infrared remote control handset 1

Battery(AA) 2

Operating instruction 1

Design and specifications are subject to change without notice.

Figure A Figure B

Antenna cable

with a plug

Figure C Figure D

Antenna feeder

Antenna adapter

75-300Ω

Coaxial cable(75Ω) twin-lead cable(300Ω)

Antenna connection

Connect an antenna to the antenna socket on

the TV set, we recommend using a Cable TV

system for better picture and audio quality.

1.If you use a coaxial cable(75Ω),insert the

antenna plug (see figure C) into 75Ωsocket

(see figure A).

2.If you use a twin-lead cable(300Ω),please

shape the cable as figure D, and connect the

leads to antenna adapter and then insert the

antenna adapter into the 75Ωsocket (see

figure B).

Power source wire connection

Insert the power plug into AC outlet.

Install and replace batteries of the

remote control unit:

1.Place the remote control unit with the face

down, then open the battery cover of the

unit.

2.Place the two"AA"size batteries, matching

the + and - signs on each battery to the +

and -signs of the battery compartment.

3.Close the cover of the battery compartment.

NOTE:

(1)Don't drop or wet or dismantle the unit.

(2)If you don't intend to use the unit for a

long period or the electricity of the

batteries is used up, remove the batteries

to prevent batteries acid from leaking

into the battery compartment.

(3)Replace the two old batteries at the

same time.

(4)Don't use charge battery (Ni-cd )and

don't mix battery type.

(5)Don't throw your batteries into a fire.

Dispose of your batteries in a required

place.

PREPARING FOR OPERATIONS

合理安放 Antenna

AV CONNECTION

FUNCTION BUTTONS AND EXTERNAL SOCKETS

1.Front Panel

(1)Power switch: press the button to turn on the TV set ,press the button again to

turn off the TV set.

(2)Program up/down button

(3)Volume up/down button

(4)TV/AV switch button

(5)Menu button

(6)Power indicator: the indicator lights in standby status .The indicator glints

when you use remote controller.

(7)Remote sensor: let the remote

controller aim here, the TV set

can receive remote control signal.

2.The sockets on the rear and side panel

(1)Antenna socket

(2)Audio/Video socket

(3)S-Video socket

(4)DVD component socket

(5)Video input socket

(6)Audio(L) input socket

(7)Audio(R) input socket

G R

DVD(with DVD component)

Direction of signal

white（left audio）

red（C /right audio ）

blue（C ）

green（Y）

yellow（video）

VCR (without S-VIDEO terminal)

YW R

To adio ut

VCR (with S-VIDEO terminal)

W R

s- e tp

To vidoou ut

v oTo ideo utput

o mp et u

Tcoon n o t

Note:

1.When receive s-video signal, you must remove video signal; when receive

video signal, you must remove s-video signal.

2.When receive front video signal, you must remove back video signal; when

receive back video signal, you must remove front video signal.

(1)

(2)

(4)

(3)

VIDEO

L AUDIO R

S-VIDEO

YCb Cr

OUT

VIDEO

L AUDIO R

YCb Cr

OUT

S-VIDEO

(1)

(2)

(3)

(4)

(5)

MENU TV/AV

－＋－＋

(7)

(6)

VIDEO

AUDIO

(5)

(6)

(7)

Remote control functions

TV/AV exchanging button

Mute button

Numeric button

One/two/three digital buttons

Picture mode selection

Volume up/dwon button

1 2 3

4 5 6

7 8 9

TV/AV

SCAN

LOCK

SYSTEM

DISPLAY

-/-- BAR

CH+

RESTART

WIDE

PRE

FIRE

MIX

SHORT

SECOND

EXIT

LIGHT

NARROW

BACK

SELC.PIC SELC.VOL

CH-

VOL- VOL+

7Recall

8Calendar/game selection

Second timer button

Volume mode selection

12 Display

13 Invalid button

14 System preset button

Lock preset button

Scan button

DC standby button

18 Sleep timer

Programme promote

Note :Because there is no bar function in the TV,"LONG", "SHORT",

“WIDE", "NARROW" buttons are invalid.

Program number up/down button

Menu button

REMOTE CONTROLLER GUIDE POWER SUPPLY

1.Power supply (switch on/off to set main power supply).

Press power switch button and the set shall be under normal receiving condition.

Press it again and the power shall be off.

2.Standby button (remote control power supply).

Press the button and the set enters standby condition, press it again and the set

enters normal receiving condition.

1.Preparation

Connect the aerial and power supply

wire, press power switch button, the

power indicator will light after a few

seconds.

2.Auto-search

The TV set will automatically search all

programs, after the search is finished, all

fine tuned programs will be stored automatically.

(1)Press [MENU] buttons, let TUNING menu display on the screen.

(2)Press [-CH+] buttons, and select AUTO MEMORY item.

(3)Press [VOL+] button, the TV set will begin to search programs from program

number 0. After the searching is finished, program number 0 will display on

the screen.

(4)During auto-search, if you want to stop searching, press [VOL-] button.

3.Semi-Auto search

You can preset the program you need to the pointed channel.

TUNING PROCEDURE

POSITION 1

BAND UHF

SKIP OFF

SEARCH UP

MFT DOWN

AUTO MEMORY

SELECT ADJUST

TUNING

VHFL VHFH UHF

TUNING PROCEDURE

(1)Press [MENU] button, let TUNING menu display on the screen.

(2)Press [-CH+] buttons, and select SEARCH item.

(3)Press [-VOL+] buttons to change channel number into pointed channel

number.

(4)Press [-VOL+] buttons, when the TV set has searched a program, stop

searching, if the program isn't the one you need, press[-VOL +] buttons

again, the set will search continually until it has searched the program you

need. And pointed program is stored in pointed channel.

4.Selecting band

In the semi-auto search mode, if the signal you want to search isn't on

the present band, you can change the band to improve searching speed.

(1)Press [MENU] button, let TUNING menu display on the screen.

(2)Press [-CH+] buttons to select BAND item.

(3)Press [-VOL+] buttons to select the band you need.

5.Fine tuning

Because of some reasons, if auto searching effect of program

isn't good, please fine tune your TV set.

(1)Press [-CH+] buttons to select MFT item.

(2)Press and hold [-VOL +] buttons until the effects of the picture

and audio are good.

6.Skip

The function can skip the TV program which you don't need.

(1)Press [-CH+] buttons or numeric button, select the program

number which you want to skip. (for example: channel 002)

(2)Press [MENU] button to select TUNING menu.

(3)Press [-CH+] buttons to select SKIP item.

(4)Press [-VOL+] buttons to preset SKIP ON mode.

Note: When a certain program number is in SKIP ON

mode, the program number will not appear when you select

program with the [-CH+] buttons, but program number will

appear with numeric button. When a certain program number

is in the SKIP OFF mode, the program number will appear

when you select program with the [-CH+] buttons.

Press [MENU] button, and select PICTURE menu.

Press [-CH+] buttons, and select an item.

Press [-VOL+] buttons to adjust the value of the item function.

Brightness adjustment:

Press [-CH+] buttons to select BRIGHT item.

Press [-VOL+] buttons to adjust brightness.

Contrast adjustment:

Press [-CH+] buttons to select CONTRAST item.

Press [-VOL+] buttons to adjust contrast.

Colour adjustment:

Press [-CH+] buttons to select COLOR item.

Press [-VOL+] buttons to adjust colour.

Sharpness adjustment:

Press [-CH+] buttons to select SHARP item.

Press [-VOL+] buttons to adjust sharpness.

Background selection:

Press [-VOL+] buttons to select a background on or off.

PICTURE ADJUSTMENT

CONTRAST 100

BRIGHT 50

COLOR 50

SHARP 50

B.B OFF

SELECT ADJUST


OTHER FUNCTIONS

2.FUNCTION 2

(1)Press [MENU] button, and select FUNCTION1menu.

(2)Press [-CH+] buttons, and select an item.

(3)Press [-VOL+] buttons to set function of the item .

(1)Press [MENU] button, and select FUNCTION2 menu.

(2)Press [-CH+] buttons, and select an item.

(3)Press [-VOL+] buttons to set function of the item .

Note:

(1)If you select COUNT item , you can get

the total time of receiving TV program

(except standby time).

(2)Soft-exchanging channel No. function:

select S.C.C ON, so when you exchange channel No.,

the picture will fade in/out.

Note:

(1)When you select VOL STORE ON, the TV set can hold the same volume with

changing channel No. .(The channel No. must be 1 between 50.)

(2)When you select CURTAIN item, you can select three curtain modes: I, II and

III.

LANG. ENGLISH

CURTAIN

LOW VOL 20

NORMAL VOL 40

HIGH VOL 60

VOL STORE OFF

SELECT ADJUST

FUNCTION1

SELECT ADJUST

SUBMARINE

POS.EX

S.C.C OFF

COUNT 13:21

FUNCTION2

3.POS.EX item:

Press [VOL+] button to enter its sub-menu(digits

in POS.EX and EX.POS2 items are present

channel No.).

Press [-CH+] buttons to select EX.POS2 item.

Press [CH+] button to put into channel No.(for

example:9).

Press [-CH+] buttons to select EXCHANGE item,

press [VOL+] button to approve. The program in

channel No. 1 will change with the program in

channel No.9.

OTHER FUNCTIONS

POS.EX.

EX.POS1 23

EX.POS2 23

EXCHANGE ？

RETURN

POS.EX.

EX.POS1 1

EX.POS2 9

EXCHANGE ？

RETURN

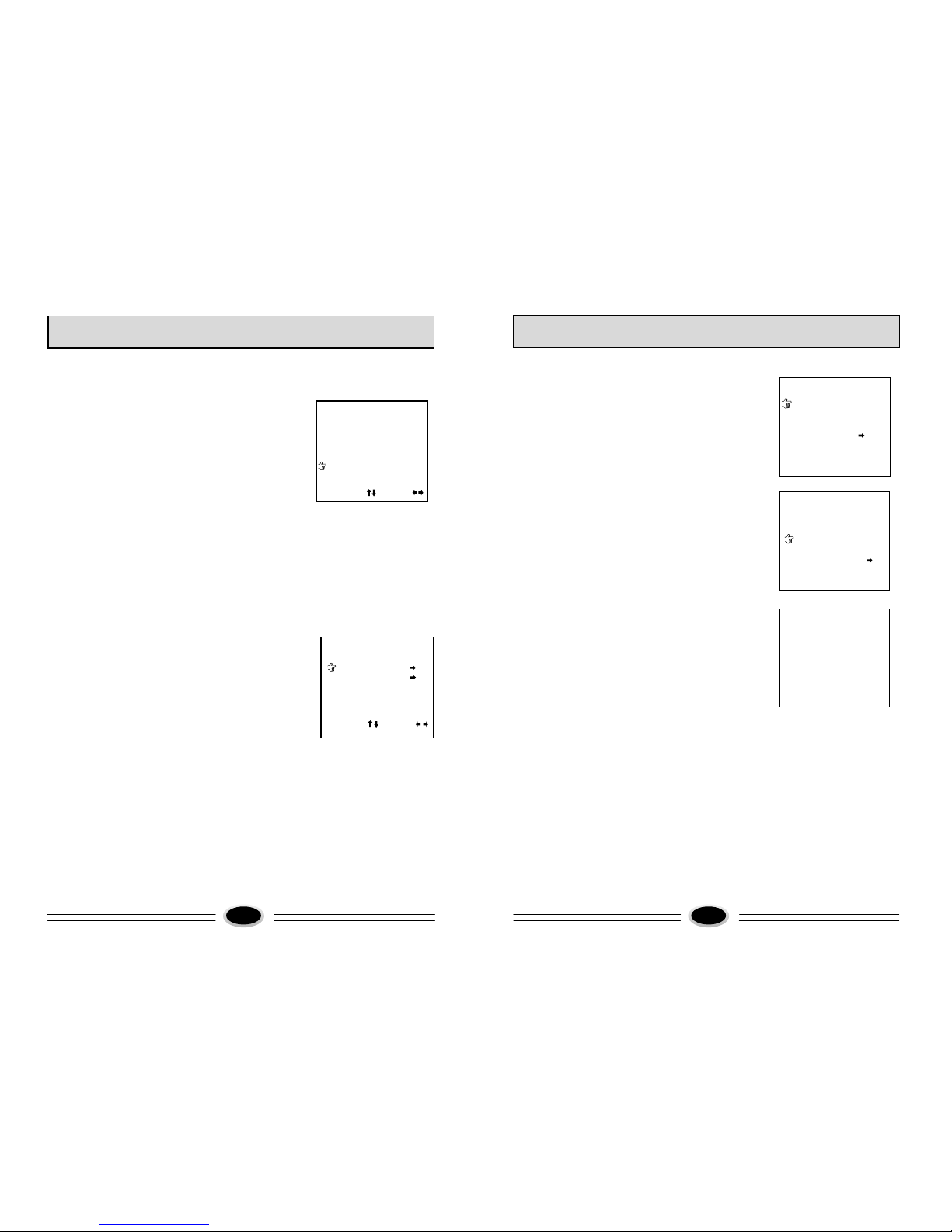

1.FUNCTI ON 1

The function can select OSD language, curtain mode, volume mode and volume

memory mode.

When you select“SUBMARINE”game item, enter game mode and the other

buttons (except [GAME],[VOL-/+],[CH+/-]， ) are invalid.

Play game:

Instructions of game controlling buttons

2.Press red game button and game begins ,

use the remote controller to operate yellow

battle ship. Yellow battle ship bump one of

green ship or blue ship or purple ship or red

ship or blue shot. and game is over. Yellow ship

use [MENU] or blue [FIRE] button shoot shots.

The shot bump green ship or blue ship or purple

ship or blue shot and win 100scores,the shot

bumps red ship, and win 1000 scores.

3.During game or game is over, press red button

and game can restart. Ship obtaining highest

scores wins.

SCORE 000

SCORE 5800

GAME OVER

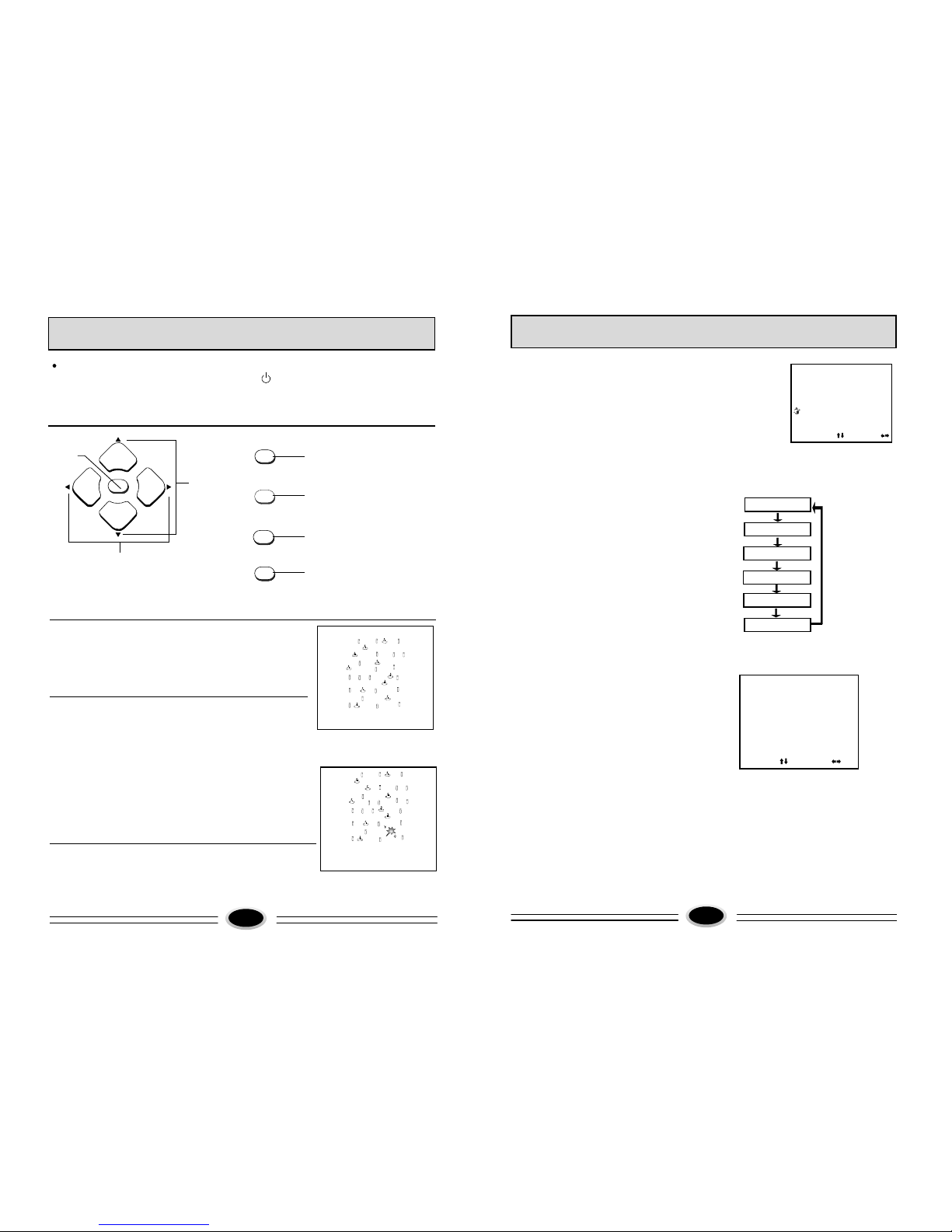

1.Press [MENU] button to make FUNCTION2 menu

display, then press[ CH-/+] buttons to select

SUBMARINE item, and press [VOL+] button to enter

SUBMARINE game mode.

CH+

FIRE

CH-

VOL- VOL+

RESTART

MIX

EXIT

LIGHT

FIRE

Fire button

Up/Down

button

Left/Right

button

Fire button

Selection buttons of

game background

Game restart button

Game exit button

OTHER FUNCTIONS

CALENDAR

OTHER FUNCTIONS

3.System selection:

(1)Press [SYSTEM] button, then OSD is as figure.

(2)Press [-CH+] buttons, and select an item.

(3)Press [-VOL+] buttons to select a system(color system or

sound system) you need. COLOR AUTO

SOUND B/G

SELECT ADJUST

4.Picture mode selection:

Press [SELC.PIC] button and select a

picture mode you need:

DY NAMIC

MILD

MEMORY

COLOR MUTE

5.Calendar function:

(1)Press [CALENDAR] button, and OSD is

as figure(press the button again, the OSD

disappears.).

(2)Press [-CH+] buttons to select year,

press [-VOL+] buttons to select month.

STANDARD

PICTURE MUTE

OCT 200 2

YEAR M O NTH

6 7 8 9 10 11 12

13 14 15 16 17 18 19

20 21 22 23 24 25 26

27 28 29 30 31

SU MO TU WE TH FR SA

4 5

Press [MENU] button, and select TIMER menu.

(1)Clock

Press [-CH+] buttons to select CLOCK item;

Press [-VOL+] buttons to set present time.

Note: At first, you must set CLOCK item,

then you can set other items.

(2)On-timer and off-timer

Press [-CH+] buttons to select ON-TIMER

or OFF-TIMER item, press [-VOL+] buttons

to set.(ON-TIMER/OFF-TIMER can be set to ONCE or EVERY or OFF.)

(3)Appointing time

Press [-CH+] buttons, and select APPOINTMENT item.

Press [CH-] button, and enter "appointing program" sub-menu.

Press [-VOL+] buttons to select a channel No.(for example :100).

Press [CH-] button, and enter APPOINTMENT mode, then press

[-VOL+] buttons to preset time.

(Note:

1.Press [-VOL+] buttons once and time changes

with one minute unit; press and hold [-VOL+]

buttons and time changes with 10 minutes unit.

2.When it is appointing time, the TV set changes

channel No. into appointing channel No. .

3.The function is valid only in TV mode.)

Press [DISPLAY] button and exit APPOINTMENT

menu.

MULTI FUNCTION TIMER

OFF TIMER OFF

0:00

ON TIMER OFF

0:00

POS 0

CLOCK 0:50

APPOINTMENT

SELECT ADJUST

APPOINTMENT

POS. TIME

001 0:01

002 0:02

003 0:03

004 0:04

005 0:05

006 0:06

SELECT ADJUST

TIMER

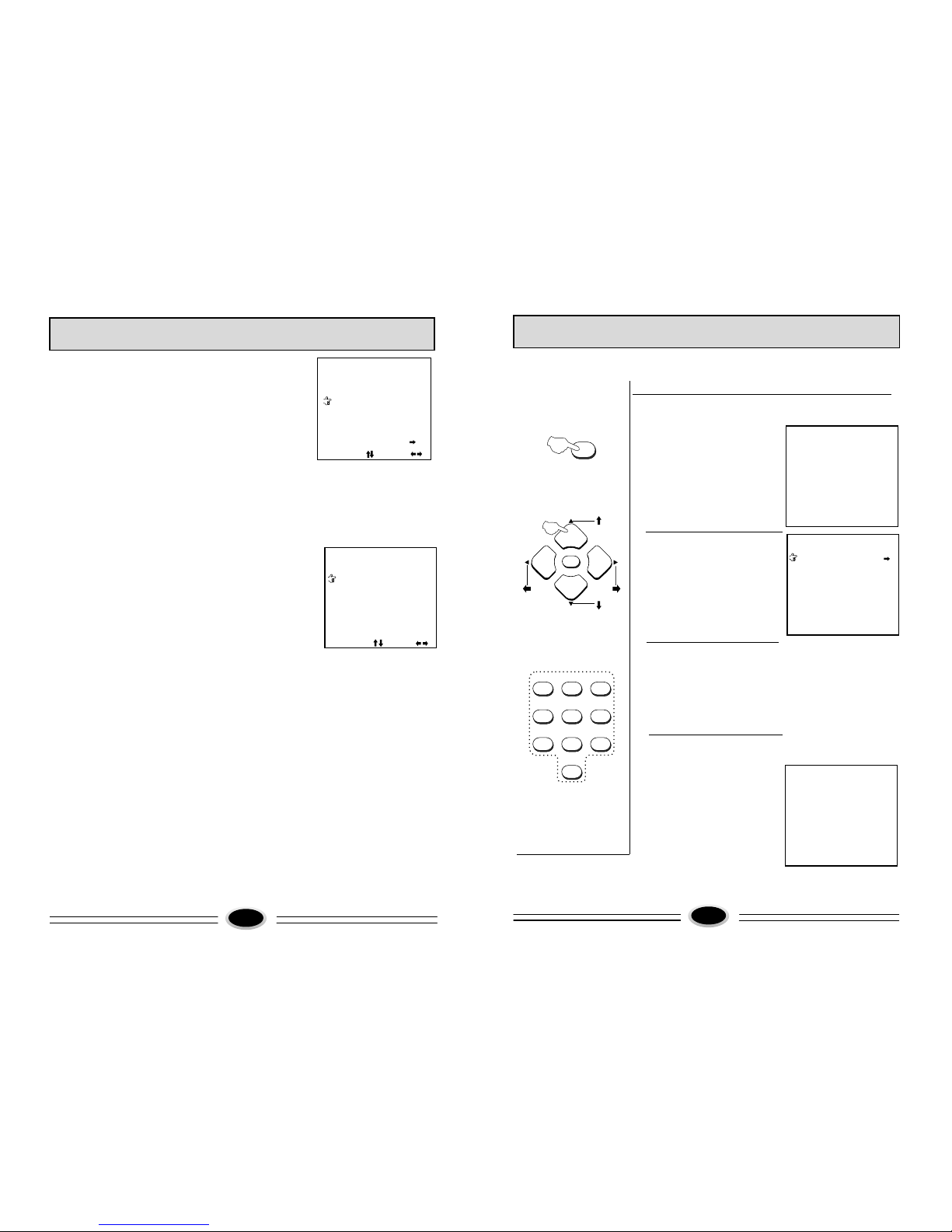

The password of the TV set is preset "0000" in

manufacture, if you want to change the password,

you can fill in four digits.

Changing password

3.Press numeric buttons and fill in

four digits.

1.Press [LOCK] button, OSD is

as the right figure.

4.You can fill in new password.

LOCK OR UNLOCK

PASSWORD: ----

LOCK OR UNLOCK

CHANGE PASS

SEARCH LOCK OFF

POS LOCK OFF

AV LOCK OFF

TIMER LOCK OFF

CHILD LOCK OFF

ALL CLEAR OFF

CHANGE PASS:

NEW PASS: ----

LOCK

123

456

789

CH+

CH-

VOL+VOL-

2.Press "0" button directly for

four times, and enter LOCK

OR UNLOCK menu.

Press [CH+/- ] buttons to

select "CHANGE PASS" item,

then press [VOL+] button to

enter "CHANGE PASS"

sub-menu.

LOCK FUNCTION

FIRE

The TV set can lock search, channel number,

AV, timer and child lock items, if you need to lock

them.

Lock preset

3.Press [CH+/-] buttons to

select "SEARCH LOCK"

item, and press [VOL+]

button to select "ON" or

"OFF".

1.Press [LOCK] button, and

OSD is as the right figure.

LOCK

1 2 3

4 5 6

7 8 9

CH+

CH-

VOL+VOL-

LOCK OR UNLOCK

PASSWORD: ----

LOCK OR UNLOCK

CHANGE PASS

SEARCH LOCK OFF

POS LOCK OFF

AV LOCK OFF

TIMER LOCK OFF

CHILD LOCK OFF

ALL CLEAR OFF

CHANGE PASS:

NEW PASS: ----

Note:

1.After locking channel or AV, screen is black, no

picture and no sound.

2.After locking child lock, the buttons on the TV set

are invalid.

3.After locking channel search or timer, if you want

to enter menu, you need to fill in password.

2.Press "0" button directly

for four times (or press the

four-digit password you have

changed) to enter LOCK

OR UNLOCK menu.

LOCK FUNCTION

Note:1.If the problem can not be fixed after you check above items. DO NOT attempt

to remove the back cover by yourself.

2.If the snapping sound from the cabinet of the TV set can be heard occasionally

because of temperature changing of environment, it is normal, you can use it

reassuringly.

TROUBLE SHOOTING GUIDE

BREAKDOWN PHENOMENON

PICTURE SOUND

CHECKING

The direction and connection of the

antenna

Direction, station and connection

of the antenna

Interference from electric

appliance. Automobile、Motor,

Vehicle Fluorescence lamp etc.

Volume, Sound mute

The power plug isn't plugged in AC

outlet. The main power isn't turned

on. The setting up of contrast, brig-

htness and volume.

Adjust color control

Adjust channel again

Moving the TV set or using magnetic electric appli-

ance near TV, Which will lead to color spot on sc-

reen. Please remove the electric appliance and cut

off power. After 120 minutes turn the TV on, the pic-

ture will be recovered.

The following problems are not always caused by hardware failure, please use the

follow trouble shooting guide before you call for service:

Picture with snow

Color Spot

No Color

No Picture

Normal

Disturb

Double or Triple Image

Noise

Normal

Noise

No Sound

Normal Volume

Normal or Weak Volume

Normal Volume

Scramble

FIRE

Autres manuels pour HT-2599

Autres manuels Haier TV

Haier

Haier LY26R3A Manuel utilisateur

Haier

Haier L26F6 Manuel utilisateur

Haier

Haier HLA32K2 Manuel utilisateur

Haier

Haier HT-2599AV Manuel utilisateur

Haier

Haier HL32R1 - R-Series - 31.5" LCD TV Manuel utilisateur

Haier

Haier NS-L19W2Q-10A Manuel utilisateur

Haier

Haier BH1304D Manuel utilisateur

Haier

Haier NS-13CTV Manuel utilisateur

Haier

Haier 25T8D Manuel utilisateur

Haier

Haier HL26ATB Manuel utilisateur

Haier

Haier KXT7020BK Manuel utilisateur

Haier

Haier L42C1180 Instructions de montage

Haier

Haier LE22B13800 Instructions de montage

Haier

Haier 21F9D Manuel utilisateur

Haier

Haier L40A8A-A1 Manuel utilisateur

Haier

Haier LT22R3COW Manuel utilisateur

Haier

Haier LE43B7000 Manuel utilisateur

Haier

Haier HT-2599 Manuel utilisateur

Haier

Haier L32K60B Manuel utilisateur

Haier

Haier HLC26 Manuel utilisateur

Haier

Haier 42EP25BAT - ANNEXE 685 Instructions de montage

Haier

Haier NS-F27C Manuel utilisateur

Haier

Haier HTR13 - 13" CRT TV Manuel utilisateur

Haier

Haier 29FV6H Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
