Haier HBF165 Manuel utilisateur

REFRIGERATOR

OPERATING

INSTRUCTIONS

The manufacturer is continuously developing

their products and reserves the right to modify

designs, products and technical data without further

notice.

MODEL HBF165

PARTS DESCRIPTION

1. Bottle Shelves

3. Vegetable Bin

5. Drip Tray

7. Thermostat

2. Tall Bottle Storage

4. Shelves

6. Ice Box

8. Light Switch

LAMP

WIRING DIAGRAM

Lamp: 220-240V,15W

Lamp holder: E14 (lamps exceeding 15W must not be used).

When replacing the lamp:

To replace the lamp:

* Unplug the appliance and remove the

water tray from under the ice box.

* Press on the front of the lamp cover

while pulling it down to release it from

the lamp holder.

* To remove the lamp, turn it anti-

clockwise.

* Replace the lamp and cover then refit

the water tray.

LAMP

REPLACEMENT

NOTICE

SETTING UP

The fridge cannot be installed with its

rear panel directly against the wall. For

good air circulation it should have a

gap of 100mm. Install the machine on a

flat and firm ground to minimize noise.

Poorly ventilated rooms

are unsuitable. Avoid

installing the appliance in

direct sunshine or exposed

to other similar sources of

eat.

Thepowersupplyfor

this appliance is

220-240V, 50Hz

Single phase.

It is not

recommended

to use extension

cords.

Connect the appliance to a properly

earthed three pin socket.

Never store anything dangerous

in this unit, such as

combustibles, explosives,

strong acid or alkali etc.

THERMOSTAT

The knob graduations are: 0, 1, 2, 3, 4, 5, 6, 7.

The numbers on the thermostat do not stand for the

actual temperature. The larger the number, the colder

the temperature inside and vice versa.

Usually, it is best to start the thermostat in position

1 - 3 then turn it to a higher setting if required.

Position ‘0’ is off.

STORING FOOD

The temperatures in different positions

inside the refrigerator vary. Thus when

storing food, select the appropriate

position to meet your needs.

The coldest position is ‘1’ and the

warmest is ‘5’.

ICE-MAKING

When making ice,add water to the ice tray

until 4/5 full with the grid in it and place it

on the bottom of the icebox. Twist the tray

or place it briefly in warm water to remove

the ice cubes.

NOTE

Do not use a knife or sharp

instrument when removing the ice

tray.

n the event of a fault occurring during operation, check below to see if

he fault is due to an operator error. You can repair the following faults

ourself.

The appliance does

not run.

1. It is not switched on properly,

or the plug is not inserted properly

into the socket.

2. The thermostat knob is set on “0”.

3. The supply voltage is too low.

The temperature inside

the appliance is not

cool enough.

1. The appliance is too full of food.

2. The appliance is located too near

a source of heat.

3. The door is not properly closed or

is opened too frequently.

Excessive noise

from the appliance. The appliance is not standing

securely on the ground.

If none of these circumstances applies and you are not able to repair

the fault, please contact a service agent:-

PHONE 1300 729 948

DEFROSTING

Remove food from the ice box, wrap it and

store in a chilly bin.

Switch off the appliance at the wall and

leave the ice box door open, it will defrost

automatically. When the defrosting process

has finished, empty the drip-tray under the

ice box and wipe the ice box dry. Replace

the food and switch on the appliance.

NOTES

4~6mm

DO NOT USEA KNIFE OR SHARP

INSTRUMENT TO ASSIST WITH ICE

REMOVAL.

If the appliance is going to be out of use for any length of

time or put into storage, unplug and clean the interior as

described in the previous page.

Dry thoroughly and store with the door open.

To reduce energy consumption, do not leave the door open

for too long and dont’t open it too often.

In the event of a power failure, try to keep the door closed to

keep the cool air inside for as long as possible.

OTES ON STORAGE

LEANING

Where necessary, food should be

packed in bags to avoid giving off

strong odours or getting freezer

burn.

Do not overstock the appliance with

food. Allow space among the

packages of food for air circulation

and better cooling.

Hot food or liquid must be allowed to

cool to room temperature

before placing in the refrigerator.

lways remove the plug before cleaning.

lean with lukewarm water containing a little detergent.

o not use hot water, corrosive scouring agent or anything rough.

Table des matières

Autres manuels Haier Réfrigérateur

Haier

Haier HSQ05WNC - 04-06 Manuel utilisateur

Haier

Haier HA10TG31SS Manuel utilisateur

Haier

Haier HXC-936 Manuel utilisateur

Haier

Haier A3FE737CPJM Manuel utilisateur

Haier

Haier HR-844F Manuel utilisateur

Haier

Haier HRT18RCP Manuel utilisateur

Haier

Haier JR-NF170B Manuel utilisateur

Haier

Haier DD400RS Manuel de la liste des pièces

Haier

Haier HB21FC45N Series Manuel utilisateur

Haier

Haier HRF-658FF Manuel utilisateur

Haier

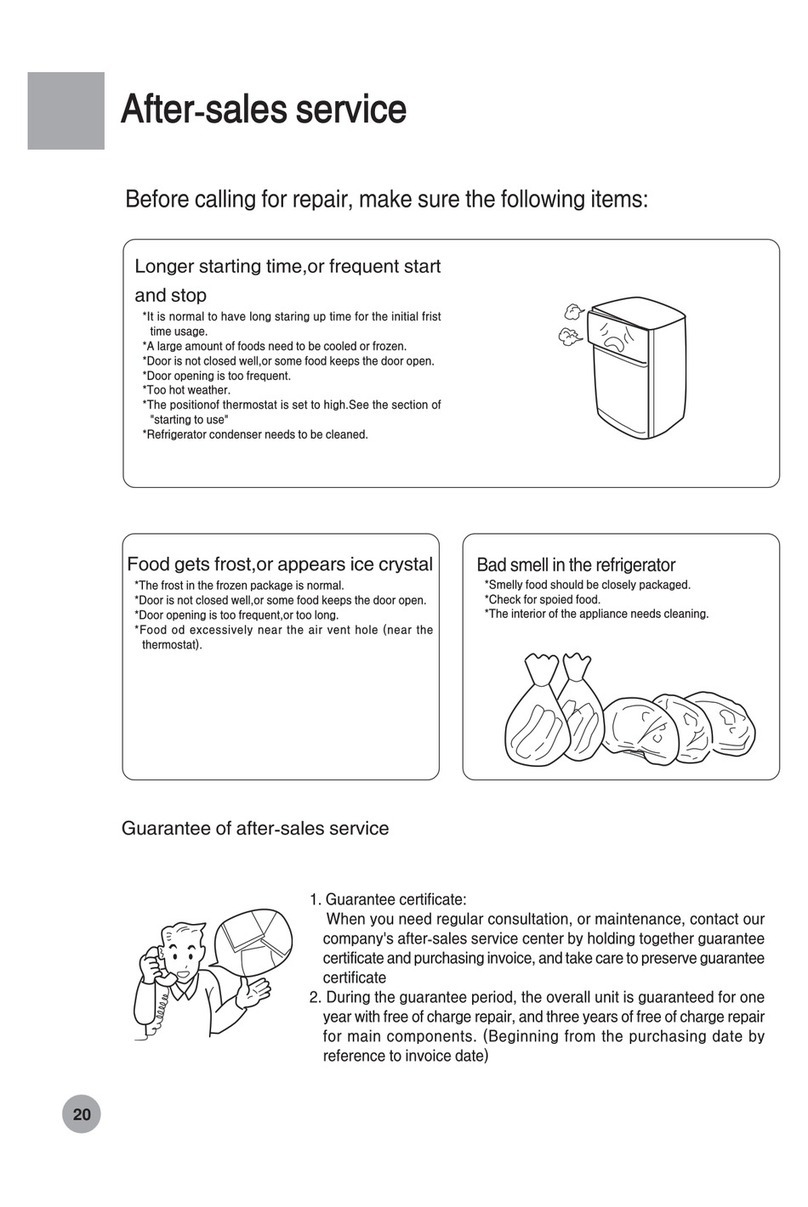

Haier CF426H Manuel utilisateur
