Haier HDBC100AFS Manuel utilisateur

18” Built-In Dishwasher

Lave-Vaisselle Incorpere 18”

Lavavajillas Empotrado 18”

Installation Instructions

Instructions d’installation

Instrucciones de instalación

HDBC100AFS

TABLE OF CONTENTS

DISHWASHER SAFETY........................................................................................2

INSTALLATION REQUIREMENTS......................................................................... 4

Tools and Parts...............................................................................................................4

Location Requirements................................................................................................. 5

Product Dimensions...................................................................................................... 6

Drain Requirements.......................................................................................................7

Water Supply Requirements .........................................................................................8

Electrical Requirements ................................................................................................ 8

INSTALLATION INSTRUCTIONS..........................................................................9

Prepare Cabinet Opening Using Existing Utility Hookups...........................................9

Install the Drain Hose ..................................................................................................10

Prepare Cabinet Opening Where There Are No Existing Utility Hookups ................12

Prepare Dishwasher.....................................................................................................15

Check Door Spring Tension.........................................................................................17

Move Dishwasher Into Cabinet Opening....................................................................17

Level the Dishwasher ..................................................................................................18

Make Electrical Connection ........................................................................................19

Connect To Water Supply............................................................................................22

Connect To Drain .........................................................................................................23

Securing Dishwasher To Countertop..........................................................................24

Complete Installation..................................................................................................25

DISHWASHER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and

on your appliance. Always read and obey all safety messages.

DANGER

WARNING

CAUTION

This is the safety alert symbol.

This symbol alerts you to potential hazards that can

kill or hurt you and others. All safety messages will

follow the safety alert symbol and either the word

“DANGER,” “WARNING” or “CAUTION.”

These words mean:

An imminently hazardous situation. You

could be killed or seriously injured if you

don’t immediately follow instructions.

A potentially hazardous situation

which, if not avoided, could result in

death or serious bodily injury.

A potentially hazardous situation

which, if not avoided, may result in

moderate or minor injury.

All safety messages will tell you what the potential hazard is, tell you

how to reduce the chance of injury, and tell you what can happen if the

instructions are not followed.

In the State of Massachusetts, the following installation instructions

apply:

• Installations and repairs must be performed by a qualied or

licensed contractor, plumber, or gastter qualied or licensed by the

State of Massachusetts.

• If using a ball valve, it shall be a T-handle type.

• A exible gas connector, when used, must not exceed 3 feet.

WARNING

Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door.

Failure to follow these instructions can result in serious injury or cuts.

YOU NEED TO:

• Slowly open dishwasher door while someone grasps the rear of the

dishwasher. Remove shipping materials, drain hose and lower rack.

Close dishwasher door until latched.

• Observe all governing codes and ordinances

• Install this dishwasher as specied in these instructions.

• Installation should be performed by a qualied service technician. The

dishwasher must be installed to meet all electrical and plumbing national

and local codes and ordinances.

INSTALLATION REQUIREMENTS

TOOLS AND PARTS

Gather the required tools and parts before starting installation.

ALL INSTALLATIONS

Tools Needed:

• Phillips screwdriver

• Flat-blade screwdriver

• Measuring tape or ruler

• 6” adjustable wrench

• Small level

• Flashlight

• Shallow pan

Parts Needed:

• 90° elbow with ” N.P.T. external

threads on one end. (The other end

must t your water supply line.)

• Plumbers tape

• 3 UL listed wire nuts

• One 1½” - 2” screw type clamp

IN ADDITION, FOR NEW INSTALLATIONS

Tools Needed:

• Electric drill with ½”, ¾”and 1½”

hole saw bits

• Small tubing center

Parts Needed:

• Copper tubing (” recommended)

• Clamp connector (strain relief) to ts

” (22.2 cm) diameter hole.

• One 1½” - 2” screw type clamp if

connecting to waste-tee

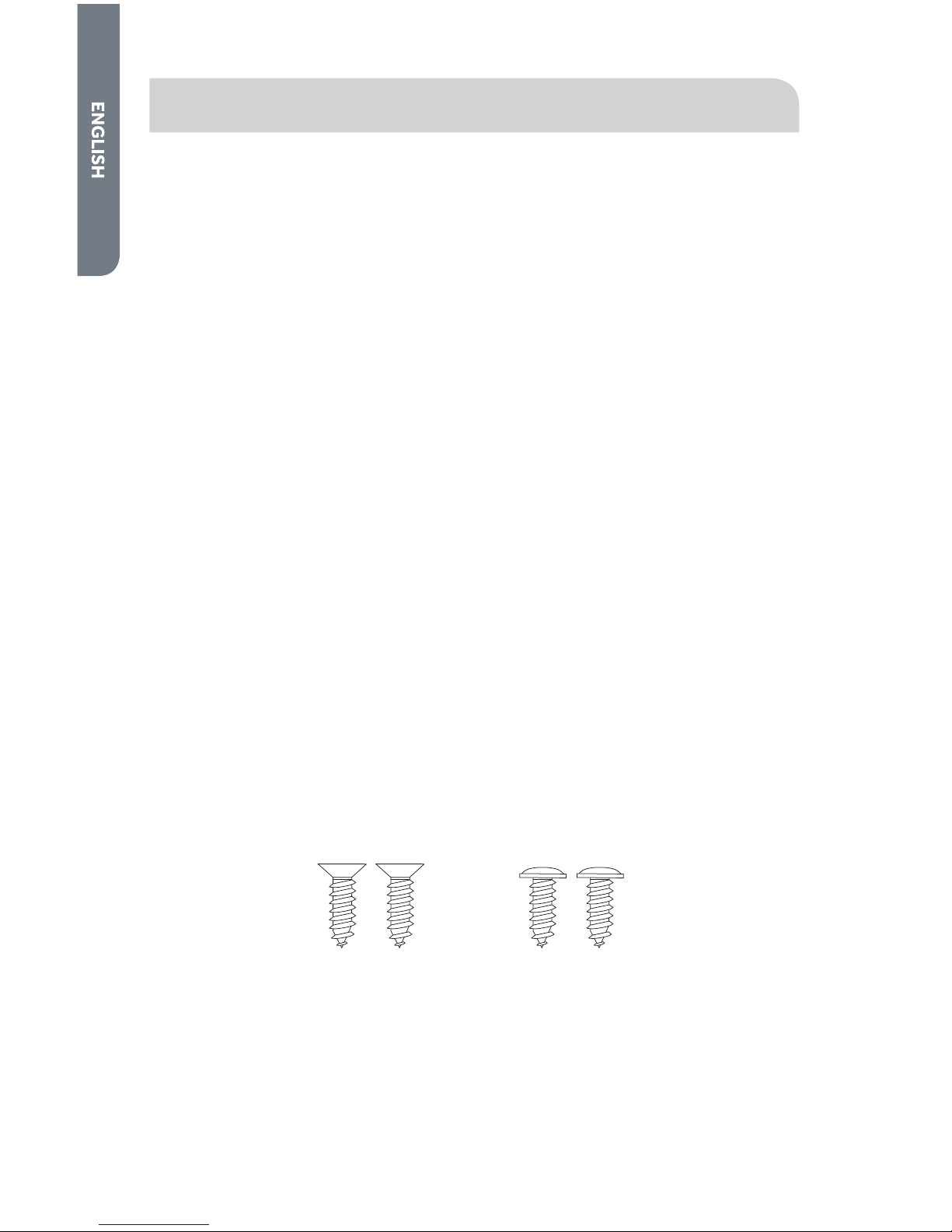

PARTS SUPPLIED:

a 2 - #8 x ” Phillips at head wood screws

b 2 - Phillips head, color matched toekick screws

Make sure these parts are included.

See separate parts list for accessories available for your dishwasher.

LOCATION REQUIREMENTS

Do not run drain lines, water lines or electrical wiring where they can interfere with

or contact dishwasher motors or legs.

The location where the dishwasher will be installed must provide clearance between

motors and ooring. Motors should not touch the oor.

Do not install dishwasher over carpeted ooring

Protect dishwasher and water lines leading to dishwasher against freezing. Damage

from freezing is not covered by the warranty.

Check location where dishwasher will be installed. The location must provide:

• Easy access to water, electricity and drain

• Convenient access for loading and unloading dishes. Corner locations require a

2” (5.1 cm) minimum clearance between the side of the dishwasher door and the

wall or cabinet.

• Minimum of 25” (65.1 cm) in front of dishwasher to allow door to fully open.

Countertop

Dishwasher

25-5/8"

( 65.1 cm)

2" ( 5.1 cm)

clearance for door

opening min.

• An area, fully enclosed on both sides, back and top.

• Square opening for proper operation and appearance.

• Cabinet front perpendicular to oor.

• Level oor. (If oor at front of opening is not level with oor at rear of opening,

shims may be needed to level dishwasher.)

NOTE: To prevent shifting during dishwasher operation, shims must be securely

attached to the oor.

If dishwasher will be left unused for a period of time or in a location where it may be

subject to freezing, have it winterized by authorized service personnel.

Make sure pipes, wires and drain hose are within the shaded area shown in the

“Cutout Dimensions” section.

PRODUCT DIMENSIONS

* to front of door frame

22" (59cm)*

18" (45.7 cm)

32-1/2"

(82.5 cm) min.

35" (88.9 cm)

max

SIDE VIEW

REAR VIEW

17-1/2" (44.5 cm) min.

18" (45.7 cm) max.

CUTOUT DIMENSIONS

(15.2 cm)

(10.2 cm)

24"

(61 cm)

min.

All surfaces must be free

from intrusions

34" to 35"

(86.4 cm to

88.9 cm)*

17-5/8" (44.8 cm) min.

18" (45.7 cm) max.

*Underside of countertop to oor.

Cut holes in the shaded area of the cabinet walls or oor for plumbing and electrical service.

NOTE: ADA installation, 32” (82.5) cm beneath 34” (86.4 cm) high countertops

may be accomplished by adjusting the toekick and leveling legs.

DRAIN REQUIREMENTS

• Use the new drain hose supplied with your dishwasher. If this is not long enough,

use a new drain hose with a maximum length of 10 ft (3.05 m) that meets all

current AHAM/IAPMO test standards, is resistant to heat and detergent, use

”(1.58 cm) or ”(2.2 cm) inside diameter (I.D.) hose and a coupler to connect

the two hose ends. Secure the connection with two clamps

• Connect drain hose to waste T or disposer inlet above drain trap in house

plumbing and 32” (81.3 cm) minimum above the oor. It is recommended that

the drain hose either be looped up and securely fastened to the underside of the

counter, or be connected to an air gap.

• Use an air gap if the drain hose is connected to house plumbing lower than 20”

(50.8 cm) above the oor.

air gap

• Use ” minimum I.D. drain line ttings.

• Do not connect drain lines from other devices to the dishwasher drain hose.

WATER SUPPLY REQUIREMENTS

• A hot water line with 20-120 psi (138-862 kPa) water pressure.

• 120°F (49°C) water at dishwasher.

• ” outside diameter (O.D.) copper tubing with compression tting or exible

stainless steel braided ll line (” minimum plastic tubing is not recommended).

• A 90° elbow with ” N.P.T. external pipe threads on one end.

ELECTRICAL REQUIREMENTS

Contact a qualied electrician. Be sure that the electrical connection and wire size

are adequate and in conformance with the National Electrical Code, ANSI/ NFPA No.

7-latest edition and all local codes and ordinances.

A copy of the above code standards can be obtained from:

National Fire Protection Association

One Batterymarch Park

Quincy, MA 02269

You must have:

• 120 volt, 60 Hz, AC-only, 15 or 20 amp., fused electrical supply

• Wiring must be 2 wire with ground.

We recommend:

• A time-delay fuse or circuit breaker.

• A separate circuit.

If direct wiring dishwasher:

• Use exible, armored or non-metallic sheathed, copper wire with grounding

wire that meets the wiring requirements for your home and local codes and

ordinances.

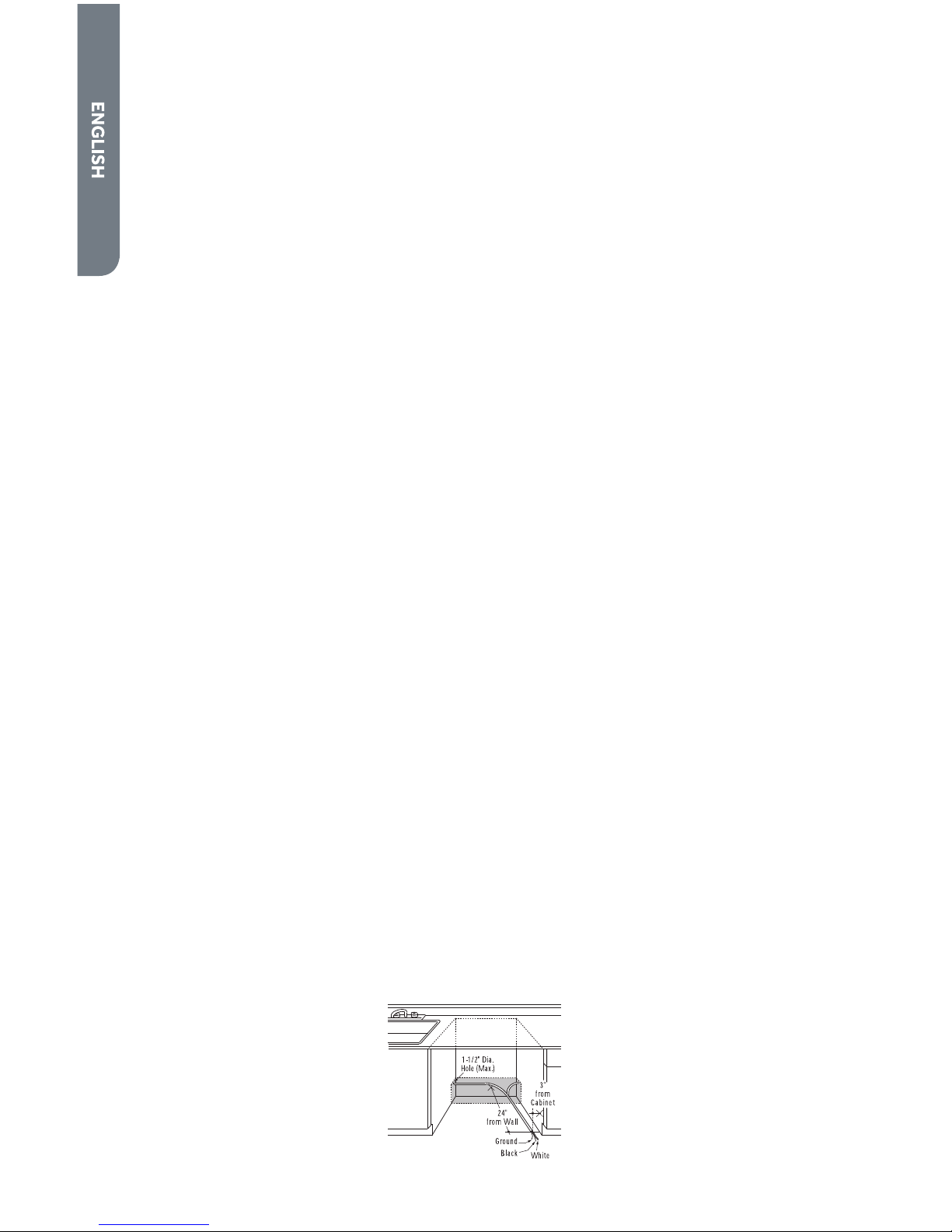

Electrical Connection to Dishwasher

Electrical connection is on the right front of dishwasher.

• For cable direct connections the cable must be routed as shown. Cable must

extend a minimum of 24” from the rear wall.

• For power cord connections, have a qualied electrician install a 3 prong

grounding type receptacle. The power-supply receptacle for the appliance shall

be installed in a cabinet or on a wall adjacent to the under counter space in which

the appliance is to be installed.
