Haier HDW15F2S1 Manuel utilisateur

HDW15F2S1 HDW15F2B1

NZ AU

User Manual

Dishwasher

Please read these instructions carefully before using this appliance.The

instructions contain important information which will help you get the

best out of the appliance and ensure safe and proper installation, use

and maintenance.

Keep this manual in a convenient place so you can always refer to it for

the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move

house, make sure you also pass on this manual so that the new owner

can become familiar with the appliance and safety warnings.

Legend

General information and tips

Warning–Important Safety information

Environmental information

Disposal

Help protect the environment and human health. Put the

packaging in applicable containers to recycle it. Help to recycle

waste of elec- trical and electronic appliances. Do not dispose

appliances marked with this symbol with the household waste.

Return the product to your local recycling facility or contact

your municipal office.

WARNING!

Risk of injury or suffocation!

Disconnect the appliance from the mains supply. Cut off the

mains cableand dispose of it. Remove the door catch to prevent

children and pets to get closed in the appliance.

Thank you NZ AU

Safety .....................................................................................................................

Content

NZ AU

Installation ............................................................................................................

Product Description ..........................................................................................

Control Panel ......................................................................................................

Programme ..........................................................................................................

Before first use ...................................................................................................

Wi-Fi Connection ...............................................................................................

Daily Use ..............................................................................................................

Care and Cleaning ..............................................................................................

Troubleshooting .................................................................................................

Standards Test ....................................................................................................

Technical Data .....................................................................................................10

Intended Use

The appliance is designed for domestic use inside the house，or in similar

applications such as staff kitchen areas in working environments, farm

houses, by clients in hotels, motels or other residential environments,

and bed and breakfast environments.It is not intended for commercial or

industrial use. Do not use it for purposes other than that for which it

was designed.

Changes or modifications to the device are not allowed. Unintended use

may cause hazards and loss of warranty claims.

Standards and Directives

This product meets the requirements of all applicable EC directives with

the corresponding harmonised standards, which provide for CE marking.

Before Switching on the Appliance for the First Time

Do…

make sure all packaging is removed and is kept out of children’s reach.

make sure that the electrical information on the rating plate agrees

with the power supply. If it does not, contact an electrician.

use a separate earthed socket for the power supply.The appliance

must be earthed.

make sure the plug is easy accessible.

make sure only the delivered electric cable and hose set are used.

hold the plug and not the electric cable when unplugging the power supply.

make sure not to damage the electric cable and the plug. If dam aged,

have it replaced by an electrician.

make sure the hose joints and connections are firm and there is no leakage.

Do not…

install or use the appliance where the temperature is below 5 °C. use

multi-plug adapters and extension cables.

let persons, children included, with reduced physical sensory, reduced

mental functions or lack of experience and knowledge use the appli-

ance if not supervised by a person responsible for their safety.

put flammable products or items that are wet with flammable products

in, near, or on theappliance.

Safety NZ AU

During Daily Use

Do…

supervise children to prevent them playing with the appliance.

put sharp pointed objects (e.g. knives) in a way that there is no danger

of injury.

Do not…

open the door while a programme operates.The appliance can release

hot steam.

keep the appliance door open without supervision to prevent tripping

and falling.

let children or pets come close to the appliance when the door is open.

sit or place heavy items on the open door.

remove the dishes from the appliance until the programme is completed.

There can still be detergent on the dishes.

drink the water in the appliance.The water may be contaminated with

detergent residues.

cover any ventilation openings in the base by a carpet or similar object.

use water spray or steam to clean the appliance.

let the children make the cleaning and user maintenance without

supervision.

WARNING:

Some dishwasher detergents are strongly alkaline.They can be extremely

dangerous if swallowed. Avoid contact with the skin and eyes and keep

children away from the dishwasher when the door is open.Check that

the detergent receptacle is empty after completion of the wash cycle.

- The door is not left in the open position since this could present a

tripping hazard.

- Warning: Knives and other utensils with sharp points must be loaded in

the basket with their points down or placed in a horizontal position.

- Only use hose-set provided by manufacture, old hose-set cannot be reused.

Safety

NZ AU

WARNING!

Installation under Worktop

5. The dimensions of the recess should

at least agree with the dimensions in

7. Put

6. After installation, the minmum gap

between the side planel and the

cupboard is 1mm, and the minmum

gap between the rear and the cupboard

is 10mm. The top gap is controlled

by adjusting the feet.

the appliance adjacent to the

slot. Make sure that all connections

(water,drain water,power) are neatly

positioned and connected.

4. Install the appliance carefully into

the recess.

Stick the water-proof sticker on the

bottom of the countertop.

WARNING!

If used as free standing appli-

ance again, the worktop must be

remounted.

598

min580

570

820

min820

min600

Any installation may be carried out only by a qualitied technician

refer to section SAFETY.

Installation NZ AU

Optional:Remove the work top of

the appliance.

Adjust accurately all feet to get a

firm level position.

Free Standing Installation

Install the appliance on solid ground.

Adjust accurately all feet to get a firm,

horizontal position.

Only with a correct level the

appliance door closes and seals

correctly.

Fresh Water Connection

fig.A

>10mm

The appliance should be connected to

the water main using the new water

inlet hose supplied. Old hoses should

not be used.

Do not shorten the inlet hose.

IMPORTANT!

25°C.

1. Take note of water connection requirements.

The dishwasher has a single valve water connection.

We recommend a cold water connection for best performance

and energy efficiency.

The incoming water temperature should not exceed

2. Take note of the permitted water pressure extremes.

Lowest: 0.3 bar = 3 N/cm = 30kPa

Where pressure is below 1 bar, contact a qualified plumber.

Highest: 10 bar = 100 N/cm = 1MPa

Where pressure is above 10 bar, a pressure reduction valve

must be installed. Contact a qualified plumber.

3. Connect the water inlet hose to an accessible water tap with

a 3/4” BSP connector (see fig.A). Ensure that there is no kink in

the inlet hose that could restrict the flow of water. A 90° bend

requires a minimum height of 200 mm for a kink-free curve.

Ensure incoming water is clear. If the water pipes have not

been used for a long period of time, let the water run to make

sure it is clear with no impurities. Not doing so may result in

the water inlet hose getting blocked and damaging the appliance.

If required, use a filter insert to filter out deposits from the

piping. The filter insert is available from your Authorised

Service Centre or Customer Care.

4. Tighten the hose coupling a further half turn after seal contact.

5. Check that the connection does not leak.

Installation

NZ AU

Drain Water Connection

Fix the water drain hose properly to

Following connections are possible:

Drain hose to sink

the piping.The hose has to reach at one

point a height between 400 and 850 mm

above the appliance bottom line.

An extension hose for the water drain

hose must not exceed a total length of 4

m and must have the same diameter as

the water drain hose.

Hang the drain hose with the

U-support over the edge of a sink

with adequate size.

Protect the U-support sufficiently

against slipping.

Installation NZ AU

Drain hose to waste water connection

Drain hose to sink connection

When connecting the drain hose to a

sink trap with a drain hose spigot, make

sure that the drain hose is supported

to the height of the bench.

Ensure the drain spigot has a minimum

hole diameter of 15 mm and it has been

drilled out.

The internal diameter of the stand pipe

with vent-hole must be minimum 40 mm.

Put the drain hose for approx.80 mm

in the wastewater pipe.

Attach the U-support and secure it

sufficiently

CAUTION!

Power connection

Ensure always that all connections (power supply, drain and fresh

water hose) are firm, dry and leak free.

Take care these parts are never to be crushed, kinked, or twisted

If the supply cord is damaged, it must be replaced by the service

agent (see warranty card) in order to avoid a hazard.

As shown in the figure, the power supply

is plugged into an externally accessible

place through the service hole for easy

plugging.

Installation

NZ AU

Installation NZ AU

REAR

WALL

FLOOR

PROFILE

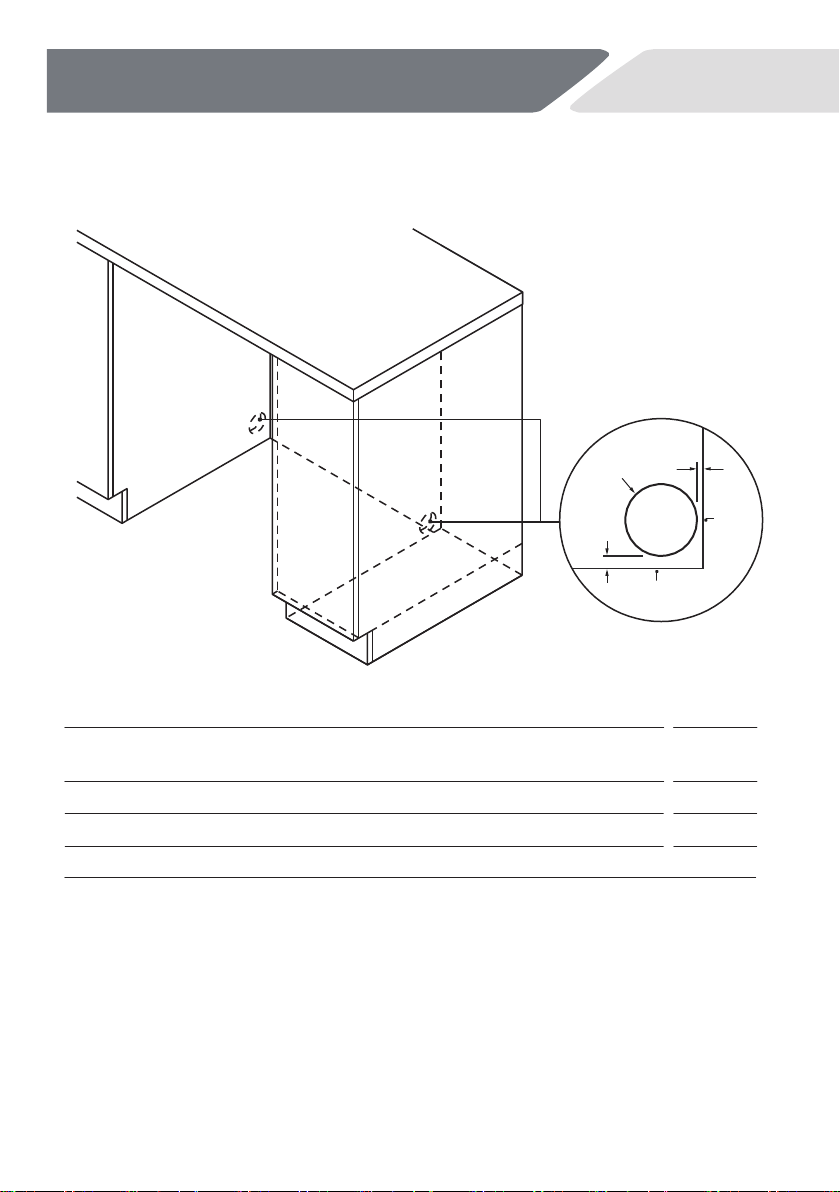

CMinimum diameter of service hole

0-50

Maximum distance between rear of cavity and service hole*

Maximum distance between floor and service hole**

based on a cabinetry depth of 580mm.

depending on adjustment of levelling feet.

Service hole dimensions

Service hole

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Haier Lave-vaisselle

Haier

Haier HDBL655AFS Manuel utilisateur

Haier

Haier DW-7777-01 Manuel utilisateur

Haier

Haier DW12-PFE1S Manuel utilisateur

Haier

Haier GE DDT700S N0 Series Comment utiliser

Haier

Haier HDW100WHT Manuel utilisateur

Haier

Haier WQP12-EFM Manuel utilisateur

Haier

Haier DW12-TFE3-F Manuel utilisateur

Haier

Haier DW9-AFM ME Manuel utilisateur

Haier

Haier WQP12-PHS Manuel utilisateur

Haier

Haier DW12-LFE SS Manuel utilisateur

Haier

Haier HDC2406TW Instructions de montage

Haier

Haier WQP12-B9227E Manuel d'utilisation

Haier

Haier HDW9SS Manuel utilisateur

Haier

Haier DW12-BFES Manuel utilisateur

Haier

Haier HDT18PA - Space Saver Compact Dishwasher Manuel utilisateur

Haier

Haier HDW15V3S1 Manuel utilisateur

Haier

Haier HDW9WH Manuel utilisateur

Haier

Haier DW12-EFMSS Manuel utilisateur

Haier

Haier DWL3025DBBB Instructions de montage

Haier

Haier DW12-BFE ME Manuel utilisateur

Haier

Haier GE GDF510P M4 Series Manuel utilisateur

Haier

Haier WQP12-ABM2 Manuel utilisateur

Haier

Haier DW12-AFM4 Manuel utilisateur

Haier

Haier HDB24EA - 08-04 Manuel utilisateur

Manuels Lave-vaisselle populaires d'autres marques

Electrolux

Electrolux ESI5211LOX Manuel utilisateur

KitchenAid

KitchenAid KUDB230B Manuel utilisateur

Brandt

Brandt BDJ424DB Manuel utilisateur

Asko

Asko DSD767UXXL.AU Manuel utilisateur

Beko

Beko DFN26210W Manuel utilisateur

NEFF

NEFF S153ITX00E Fiche technique

Midea

Midea SV 4.45 wi Manuel utilisateur

LG LDF7932 Manuel utilisateur

Gorenje

Gorenje GV63214 Manuel utilisateur

Hotpoint

Hotpoint HDA1100ZWH Manuel de service

Blomberg

Blomberg LDFN2240W Manuel utilisateur

AEG

AEG FFB83836PM Manuel utilisateur

Cylinda

Cylinda DM3220RFD Manuel utilisateur

Atag

Atag DW8214MB Manuel utilisateur

GE GLD8000 Series Manuel utilisateur

Siemens

Siemens SN23HI02KE Fiche technique

Omega

Omega ODW717X Manuel utilisateur

BORETTI

BORETTI BVW-683 Manuel utilisateur
