Haier DW-8888-08 Manuel utilisateur

HAIER

HOUSEHOLD ELECTRICAL

DISHWASHER

Service Manual

PART# DW-8888-08

HAIER AMERICA TRADING, LLC

www.haieramerica.com

TABLE OF CONTENTS PAGE

Product Code Explanation and Series Introduction 3

Features 3

Specification 3

Safety Precaution 6

Warning and Conditions 8

Net Dimension

Installation And Accessory Parts

Parts and Functions 3

Function Schedule 2

Program Indication 22

Maintenances Service and Trouble Shooting 24

Circuit Diagram 3

Resistance Measurements and Codes 32

1. PRODUCT CODE EXPLANATION AND SERIES INTRODUCTION

Model Identification

ESD 100

A B

A: Energy star dishwasher

B: Series of factory design

Examples:

ESD101

Energy star dishwasher, NO.101

2. FEATURES

2.1. Easy Control and Variety of Washing Mode.

This model adopts mechanical controlling structure, with an integrated

knob, thus variety of washing programs are available for selection by

turning the knob.

2.2 Pre-washing

It may avoid the peak of using electricity effectively, saving electricity

consumption.

2.3 Rapid Wash

Economic, fast cycle to be used on very dirty dishes right after they are

used. No drying cycle.

3. SPECIFICATION

DISHWASHER

BI BI

Last update 2002-

12-31

Supplier Type

Suppliers bar code N°.

N°.

EAN

ESD100 ESD101

Sales Brand / Model GXCH

Sales bar code N°. EAN

Key-features

Energy efficiency

Washing efficiency

Drying efficiency

Class

Energy Star

Noise level power / pressure

Energy consumption*

dB(A)

kWh /

year

kWh/24h

56/-

430

56/-

430

Water consumption*

Duration of program (Based on 65°

normal prog.)

Gallon

min. 4.8

4.8

Place settings(international standard) 12 12

Programs (incl. additional program

functions)

Program selection single dial / electronic

n° 5

/ -

Washing temperatures °F 122 122

Spray levels n°. 33

Certification's (ETL/CSA/UL/EEV/ISO9001) ETL /

DOE/EEV/ISO

9001

ETL /

DOE/EEV/ISO

9001

2. Technical equipment

Work top / -removable

Decor frame / optional

Water heating element hidden / open Refill

spy-lamps salt / rinse aid

Program progress indicator LED / visual

- /-

Inner door S= stainless steel / P= plastic SS

Interior S= stainless steel / P= plastic SS

Dispenser system Detergent / Rinse aid //

Water softening system / n°. of water

hardness levels

Electronically controlled water hardness --

Easy clean filter system / self cleaning micro filter /- /-

Height adjustable top basket

Cutlery sliding tray / removable basket / /

Plates sizes bottom basket / upper basket Inch -- --

Water inlet hose cold water / hot water /- /

Water drain hose / -hose support //

Drying system Condenser / Turbo

vented

Natural Natural

Height adjustable feet n°. / max. Inches 4/-5/64 4/-5/64

Delay timer (from - to) h

3. Safety systems

Child resistant door lock CDL --

Anti flood system AFS

Waterproof anti leak system ALS

Water return protection WRP

Acqua Stop kit --

4. Programs

Pots & Pans Wash °F 122 122

Heavy Dry °F - -

Normal Wash °F 122 122

Light Wash °F - -

Glassware Wash °F 122 122

Rinse & Hold Wash °F Cold Water Cold Water

5. Additional program settings

(optional function key)

Half load Wash °F - -

Hi-Temp Wash °F 161 161

Heated Dry °F - -

6. Technical data

Voltage/frequency V/Hz AC115V/60Hz AC115V/60Hz

Nominal power(W) W 1460 1460

Main fuse (intensity)(A) A 15 15

7. Product dimensions

Unit dimensions (H x W x D) In.

Depth with open door In.

Net weight lbs 88.5 88.5

8. Built-In

Requested measures of niche

(H x W x D)

In. 34X23-

9/16X22-7/8

34X23-

9/16X22-7/ 8

Dimensions of door panel

(H x W) In. 28-1/2X23-

9/16

28-1/2X23-

9/16

9. Packing

Dimensions of packing

(H x W x D)

In. 36-7/32X26-

9/16X25-

19/32

36-7/32X26-

9/16X25-19

/32

Weight of packing (all materials) lbs. 99.5 99.5

10. Information for importer

14,5m(84CBM) Truck load capacity Pcs - -

Jumbo (120 CMB) Truck load capacity pcs - -

40’ Container load capacity Pcs - -

40’ HC load capacity Pcs 144 144

Max. Failure (12 Month after sales to end

customer)

Pcs/% - -

11. Packing materials / Recycling symbols RS RezY RezY

Carton (weight lbs 9.93 9.93

Polistyren (Weight) lbs 3.35 3.35

Polyetylene foil (Weight) lbs 0.14 0.14

Other packing materials (Weight) lbs 0.12 0.12

Wood (weight) lbs 7.30 7.30

12. Delivery Time of First Batch

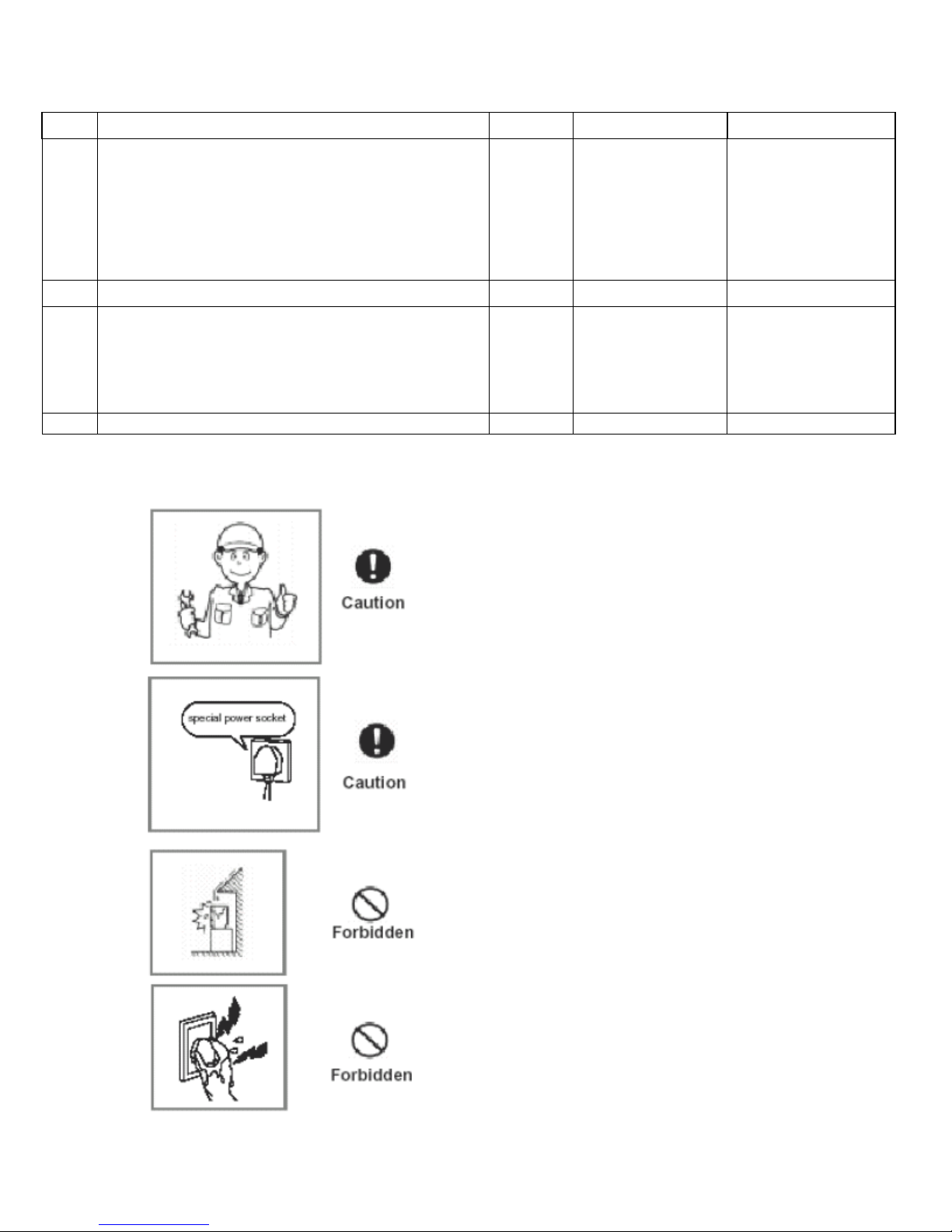

4. SAFETY PRECAUTION

The unit must be installed by experts. If the

customer himself installs it, it is easy to cause

water leakage, electric shock wire and fire. After

installation and test run, if there is no fault, then

tell the customer how to use the dishwasher.

Use the special power socket

If the power cable connected at the middle way,

or a prolonged cable or a socket with several

spigots is used, the cable may turn hot or catch

fire.

The special socket must be grounded firmly.

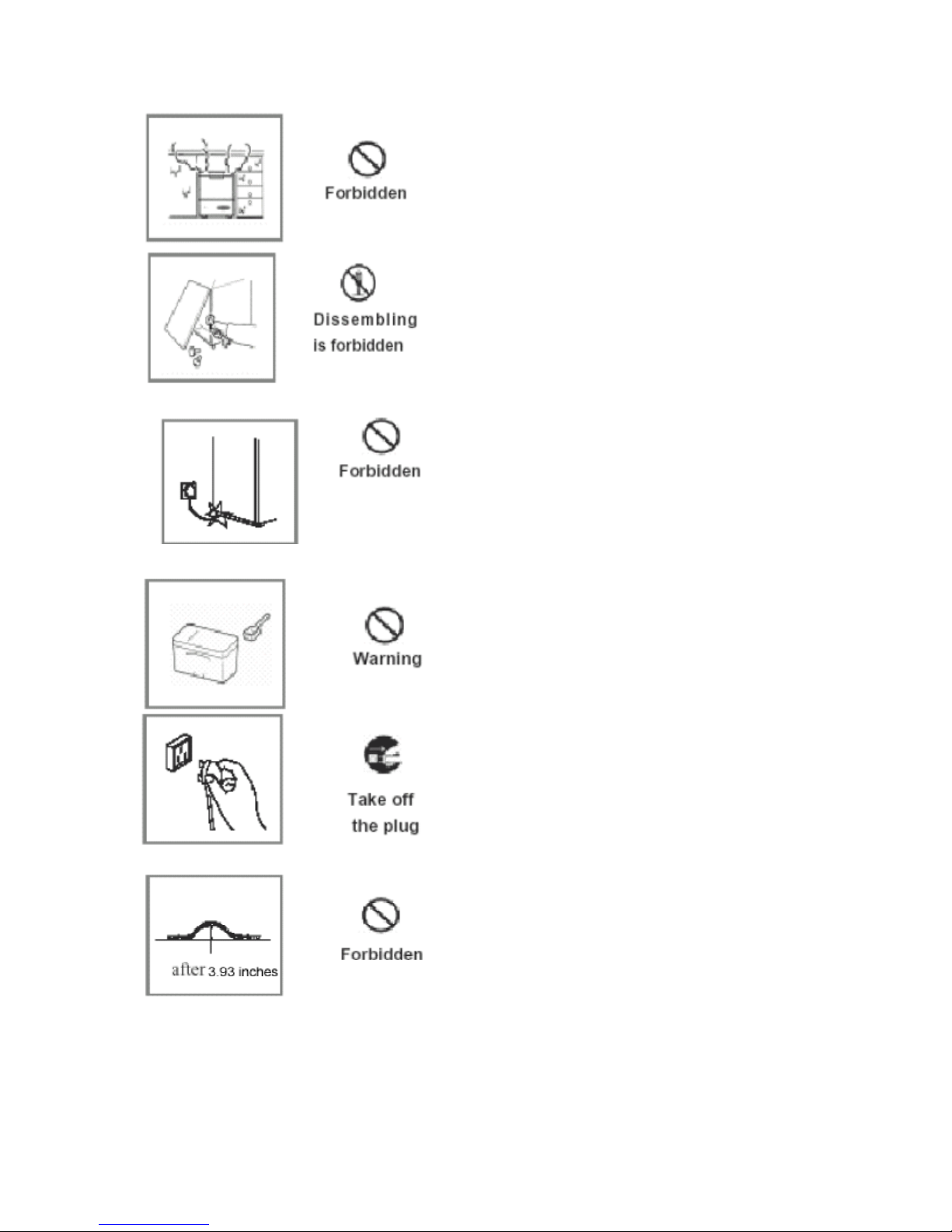

Do not use the unit outdoors

If it is used in wet environment, it may lead to electric

leakage or electric shock.

Never touch the power plug, electric parts, nor

operate the switch with wet hands.

It is easy to cause electric shock

Do not use the unit as flush dishwasher

It is difficult to eliminate heat, it may cause electric

shock or wet around the appliance.

Nobody is allowed to disassemble or repair the

appliance except special service men.

Abnormal action may lead to injury, electric shock or

fire.

Power cable must not be damaged

If the power cable is reprocessed, stretched, knotted, or

pressed, the cable may be damaged, electric shock or

fire may occur.

If the supply cord is damaged, it must be replaced by

the manufacturer or it service agent or similarly qualified

person in order to avoid a hazard.

Dishwasher shall be set evenly.

Do not touch detergent with hands when you use it,

to avoid contact with eyes.

Otherwise, it may lead to rough skin. If it enters your

eyes, if may affect your eyesight. Prevent children from

approaching it.

When abnormal phenomenon appears, turn the

power switch to “Off”, take off the power plug,

or cut off the main power supply and get in touch

with HAIER after-sales service center at once.

Continually operation at abnormal state may cause

electric shock or fire

The draining hose should be as lateral as possible.

Do not let the end or the middle part of the draining

hose protrude 3.93 inches high. It is an indirect draining

type. Draining water cannot go up. If protrusion is

higher than 3.93 inches, water cannot be drained out

completely. If hose is shrunken or bent, it may affect

water draining. If water cannot be drained out smoothly,

the machine will stop operation.

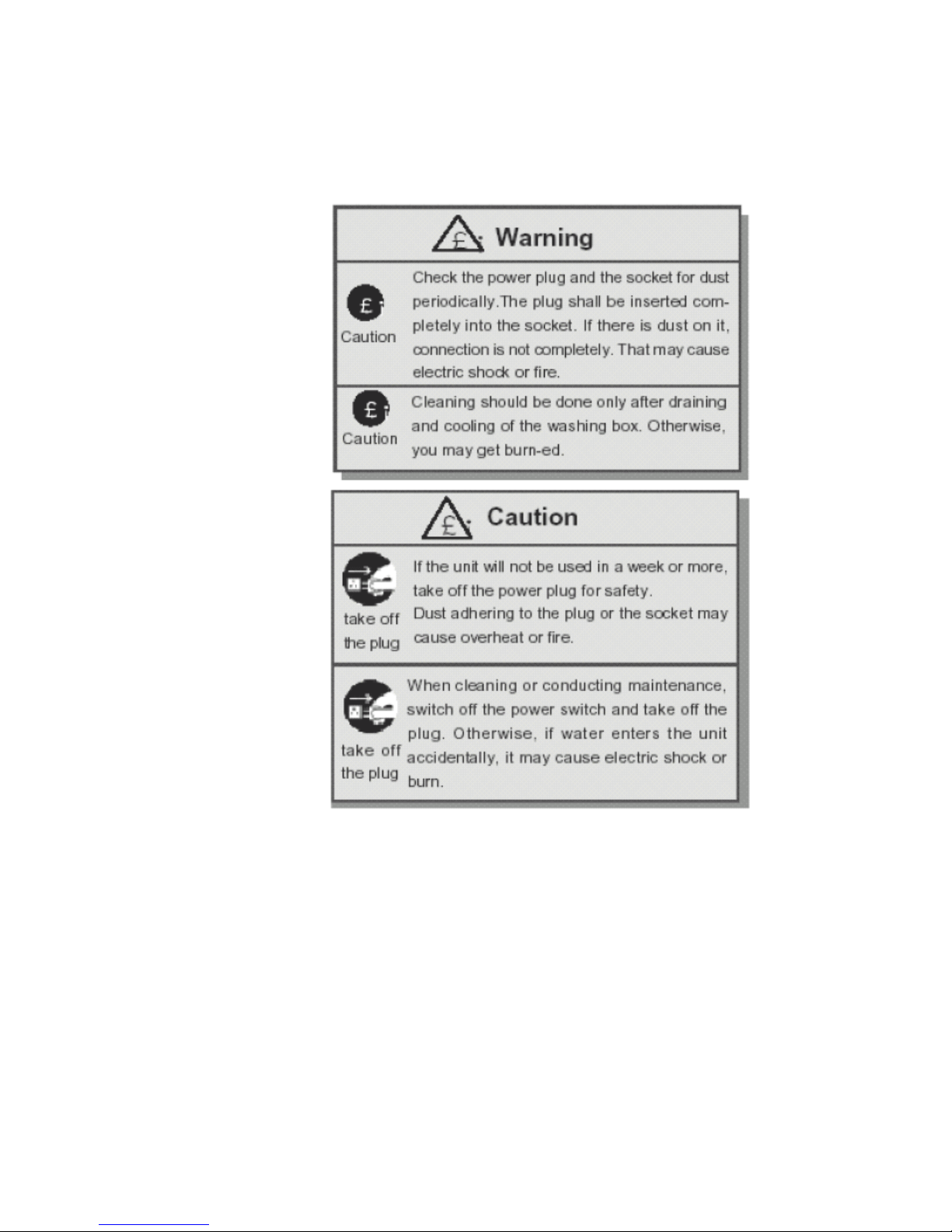

Cut off the power supply before cleaning or

checking

Electric shock or burn may occur by carelessness.

Take off the power plug to prevent thunder.

If the plug is in, it may cause fault fire.

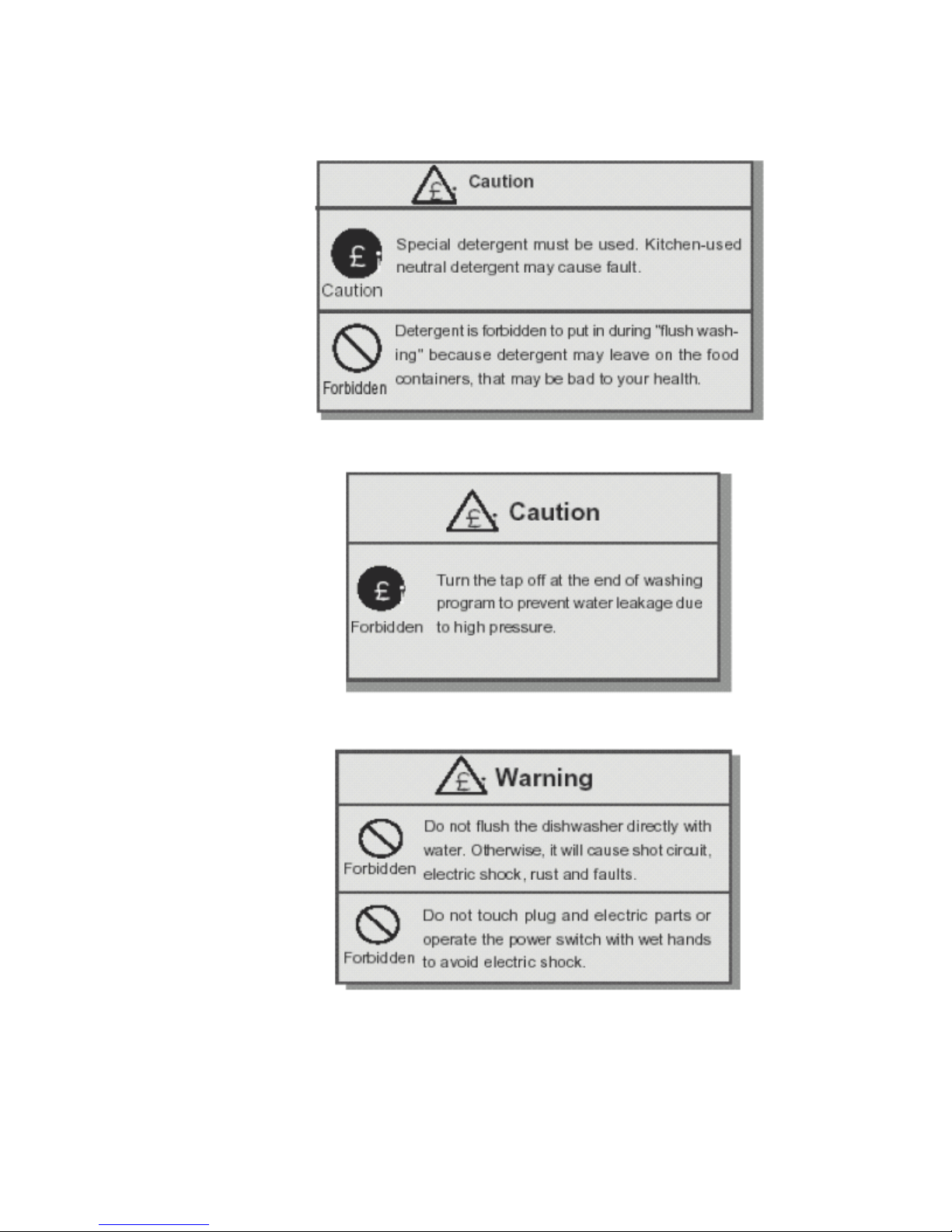

5. WARNING AND CONDITIONS

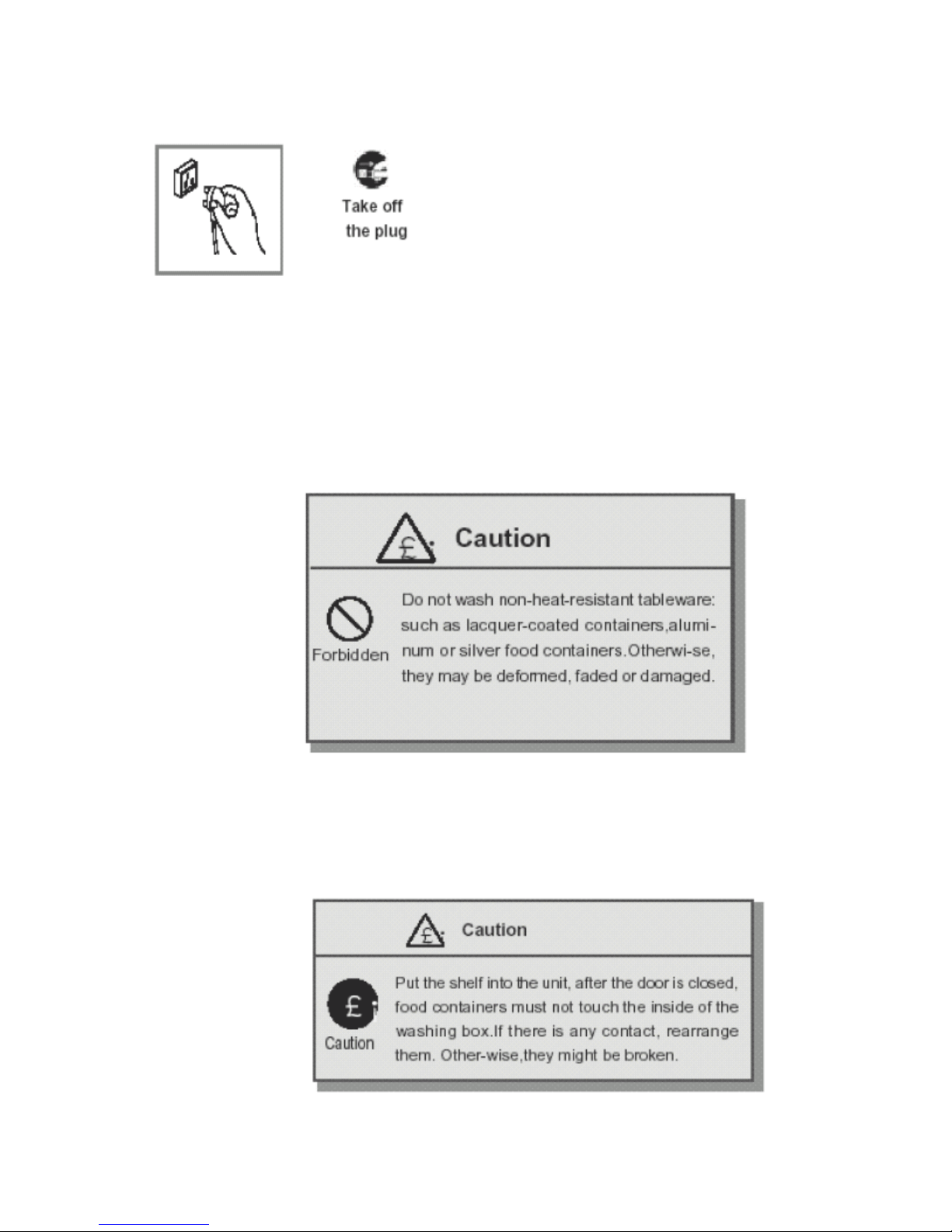

1. shelf (The container which dishes are put in is called shelf)

2. Put the shelf into the washing box

3. Put in detergent

4. End of cycle

5. Weekly maintenance
