Haier HDW6WH Manuel utilisateur
61510
Parts Manual
Dishwasher
Model:
HDW6WH HA
Product Code:
61510
61510
2
61510 - NOVEMBER 2009
Fisher & Paykel Appliances Ltd
78 Springs Road,
East Tamaki,
PO Box 58-732, Botany,
Manukau 2163,
New Zealand
Telephone: 09 273 0600
Facsimile: 09 273 0656
COPYRIGHT©FISHER & PAYKEL LTD 2009 - ALL RIGHTS RESERVED
3
PRODUCT
Brand Haier
Voltage 220-240V, 50Hz
Model HDW6WH HA
Product Code 61510
61510
4
61510
5
CONTENTS
CABINET & BASKET AREA .............................................................................................................6
RETICULATION AREA.....................................................................................................................8
DOOR AREA...................................................................................................................................12
61510
6
CABINET & BASKET AREA
61510
7
CABINET & BASKET AREA
REF PART DESCRIPTION
1 H012G9380552 COMPLETE TOP
2 H012G2150035 SHELF FASTENING SMALL BLOCK
3 H0120200251 HOOKING SMALL BLOCK
4 H012G2150036 DOOR HOOK
5 H012G1310010 UPPER REAR CROSSPIECE
6 H0120805887 INSULATED TUB ASSEMBLY
7 H0120503495 CLAPBOARD OF BACK
8 H012G1120032 PAINTED LEFT SIDE PANEL
9 H012G1120027 PAINTED RIGHT SIDE PANEL
10 H012G4050169 TUB GASKET
11 H0120200966 RAIL SUPPORT ASSEMBLY
12 H012G1450619 MOBILE RAIL FOR BASKET
13 H0120200967 BASKET RAIL STOP
14 H012G2150057 UPRIGHTS SMALL BLOCK
15 H012G1310011 LOWER FRONT CROSSPIECE
16 H0120200065 COVER FOR FRONT CROSSPIECE
17 H012G1450622 FOOT SUPPORT
18 H012G1451092 ADJUSTABLE FOOT
19 H012G2130315 BASEBOARD
20 H012G2130316 LEFT BASEBOARD SIDE PLATE
21 H012G2130317 RIGHT BASEBOARD SIDE PLATE
22 H012G1451092 ADJUSTABLE FOOT
23 H012G1390004 TRAY
24 H012G1310012 REAR INTERMEDIATE CROSSPIECE
25 H012G2160204 DRAIN HOSE STOP
26 H012G1310013 LOWER REAR CROSSPIECE
27 H012G2150046 TERMINAL BOX ASSEMBLY
28 H0120801890 UPPER BASKET ASSEMBLY
29 H0120201455 RACK FOR UPPER BASKET
30 H0120201482 CUTLERY BASKET
31 H0120801891 LOWER BASKET ASSEMBLY
61510
8

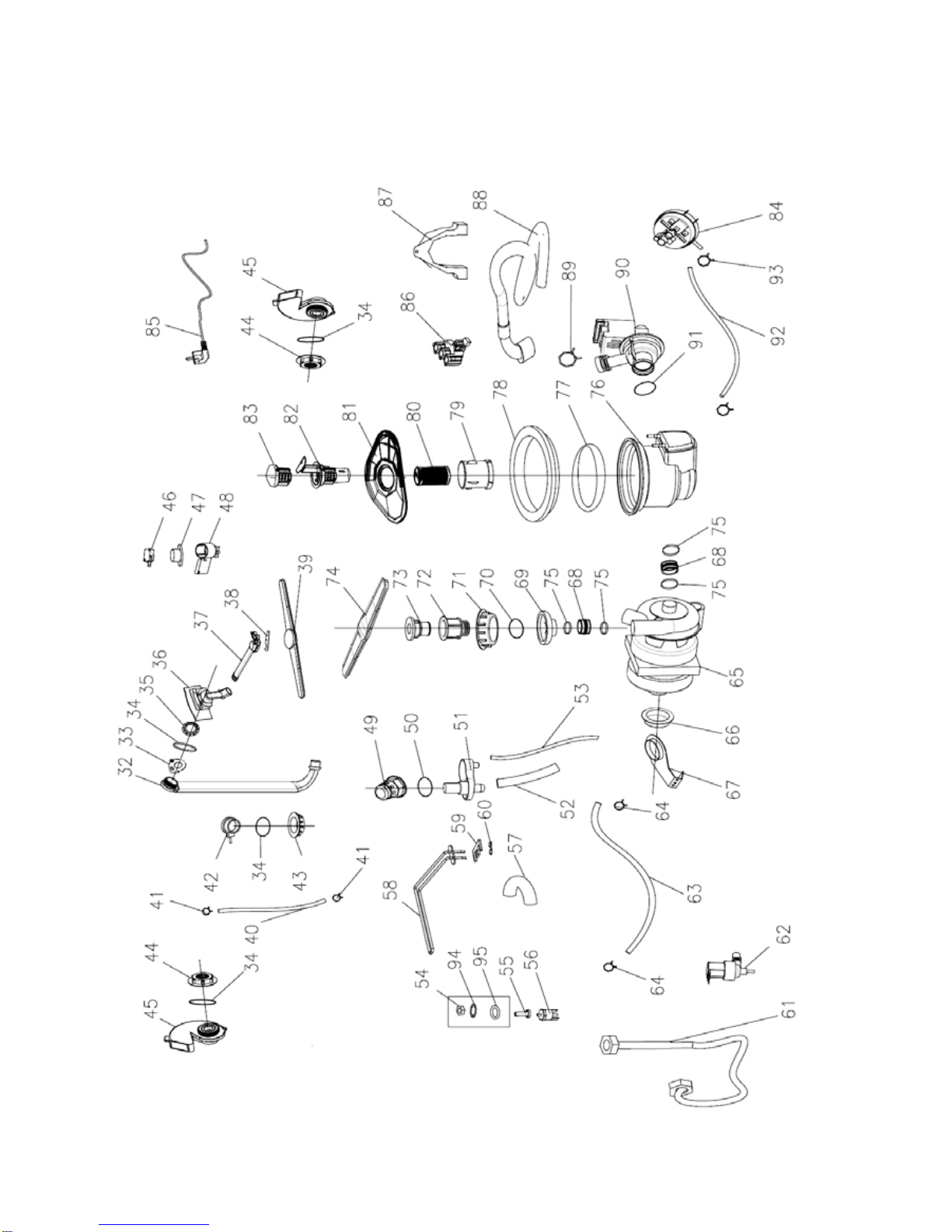

RETICULATION AREA
61510
9
RETICULATION AREA
REF PART DESCRIPTION
32 H012G2160236 OUTER DUCT
33 H0120201007 BASKET GUIDE HOUSING
34 H012G4050157 O-RING
35 H012G2160194 RING NUT FOR OUTER DUCT FASTENING
36 H0120801832 FEEDING DISPENSER ASSEMBLY
37 H0120201483 INNER DUCT
38 H0120201010 PIN FOR INNER DUCT HOOKING
39 H0120802488 UPPER SPRAYER ASSEMBLY
40 H012G4050166 PVC TUBE + 39% NITRILIC RUBBER
41 H012G1040022 BAND
42 H012G2160200 CONNECTION FOR 3RD SPRAYER
43 H0120201003 3RD SPRAYER
44 H0120201008 BREATHER RING NUT
45 H012G2160197 AIR OUTLET
46 H012G6050040 MICRO SWITCH ELBI TYPE S3
47 H0120503119 FLOAT FOR ACQUASTOP
48 H0120202056 SUPPORT FOR FLOAT
49 H0120201028 OVERFLOW CAP
50 H0120300283 OVERFLOW RING
51 H0120201029 OVERFLOW SEAT
52 H0120300281 OVERFLOW OUTLET PIPE
53 H0120300282 OVERFLOW PROTECTION PIPE
54 H012G8060036 ELASTICITY RETAINER
55 H012G1450902 INDUCTION CONTACT
56 H012G6010008 THERMO LIMITER
57 H012G4050165 DUCT COUPLING
58 H0120800645 HEATING ELEMENT
59 H012G1020032 HEATER SUPPORT BLOCK
60 H012G4050162 HEATER PROTECT
61 422680P HOSE INLET LONG (2M) PKD
62 H012G5060020 1-WAY SOLENOID VALVE
63 H012G4050225 TUBE
64 H012G1040022 BAND
65 H012G9370094 MOTOR PUMP ASSEMBLY
66 H012G4050159 VIBRATION-PROOF RING FOR MOTOR
67 H012G1250031 MOTOR SUPPORT BRACKET ASSEMBLY
68 H012G4050152 RUBBER COUPLING
69 H012G2160193 RING NUT FOR FASTENING OF LOWER SUPPORT
70 H012G4050153 O-TYPE SEALING RING
71 H0120201006 RING NUT FOR LOWER SPAYER FASTENING
72 H0120201293 LOWER MANIFOLD SUPPORT
73 H0120201005 LOWER MANIFOLD
74 H012G1450620 LOWER SPRAYER
75 H012G1040028 BAND
Continued next page
61510
10
RETICULATION AREA
