Instruction leaflet for fitting 250A Meter Pack

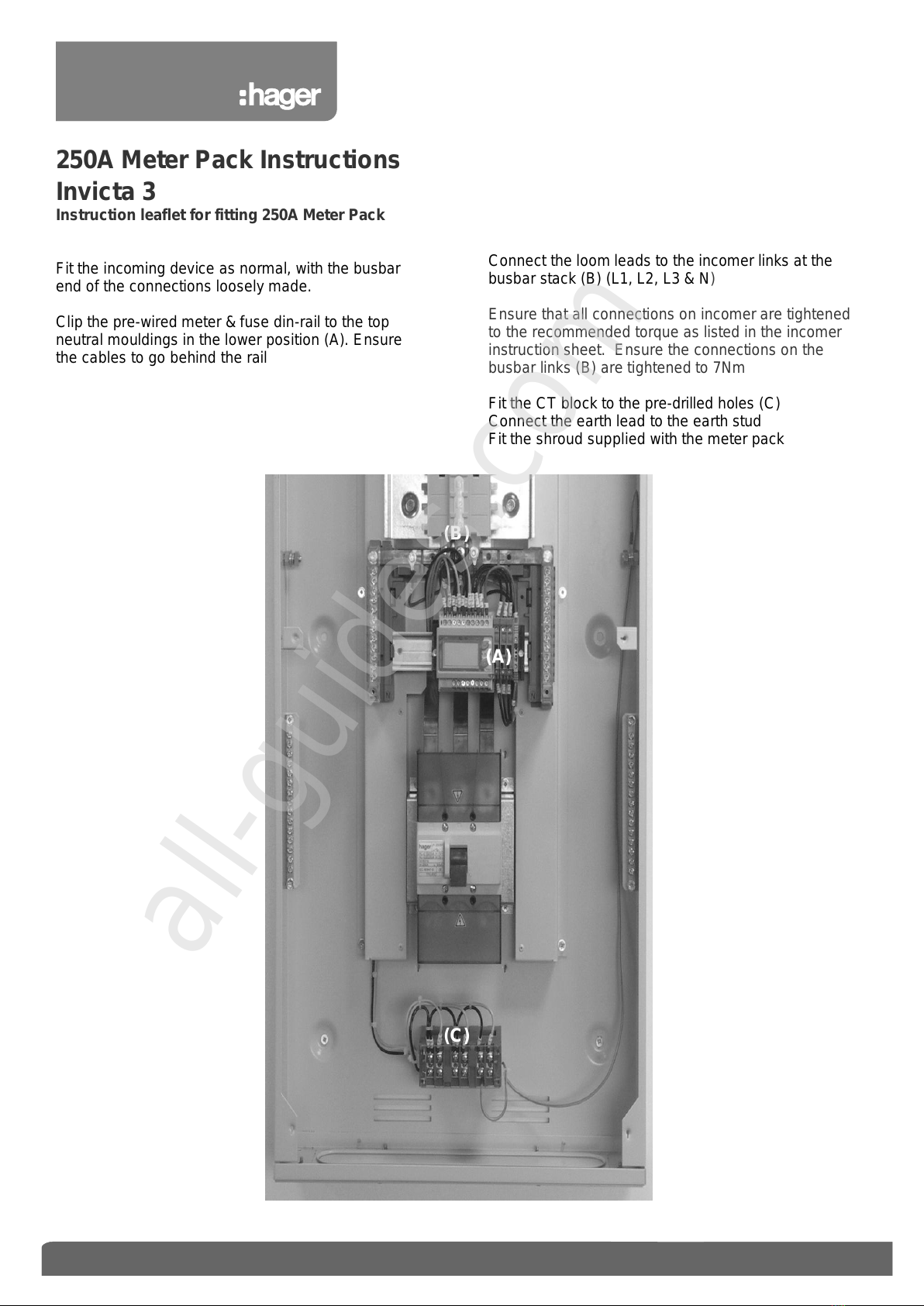

Fit the incoming device as normal, with the busbar
end of the connections loosely made.
Clip the pre-wired meter & fuse din-rail to the top
neutral mouldings in the lower position (A). Ensure
the cables to go behind the rail
Connect the loom leads to the incomer links at the
busbar stack (B) (L1, L2, L3 & N)
Ensure that all connections on incomer are tightened
to the recommended torque as listed in the incomer
instruction sheet. Ensure the connections on the
busbar links (B) are tightened to 7Nm
Fit the CT block to the pre-drilled holes (C)
Connect the earth lead to the earth stud
Fit the shroud supplied with the meter pack
25
0
A Meter Pack Instructions
(A)
(B) (C)
(E)
(D)
(A)
(B)
(C)
All manuals and user guides at all-guides.com
all-guides.com
Contents
Digital multi-function meter
3 pole CT block
3 x Fuses & carriers on din-rail
Wiring loom
Hager Ltd
Hortonwood 50
Telford
Shropshire
TF7 7FT
National Sales Hotline 0870 240 2400
National technical Support helpline 0870 607 6677
Incomer shroud
Instructions (including torque settings for electrical
connections)
Website: www.hagergroup.co.uk
Email us @: info@hager.co.uk

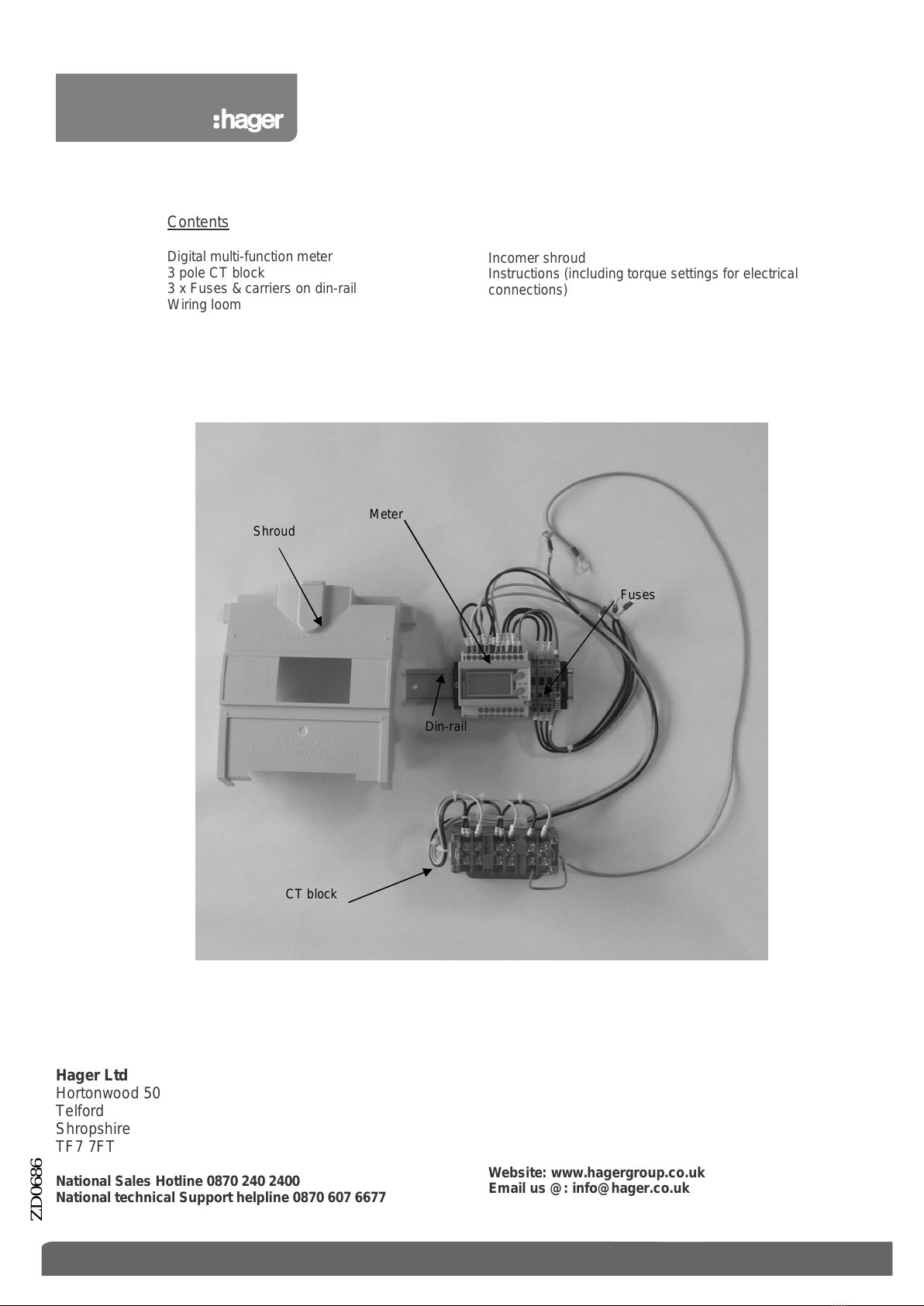

Shroud
CT block
Fuses
Din-rail
Meter
ZD0686
