Hager Hw+ Manuel utilisateur

User manual

hw+

Air circuit breakers

up to 1600A

RESET AUTO

MANUAL

In 160

Ø5.8

COM

26LE007331A

01 About this manual 3

1.1 Safety instructions 3

1.2 Using this manual 5

02 Circuit breaker operation 6

2.1 Description 6

2.2 Circuit breaker closing 9

2.3 Circuit breaker opening 11

2.4 Locking the opening and closing push buttons 12

2.5 Locking the circuit breaker in the OFF position using padlocks 14

2.6 Locking the circuit breaker in the OFF position using keylocks 17

2.7 Locking the circuit breaker position in the chassis using padlocks 21

2.8 Locking the circuit breaker position in the chassis using keylocks 24

2.9 Racking interlock RI 28

2.10 Mechanical interlock 30

03 Positions of the drawout circuit breaker in the chassis 31

04 Positions of the drawout circuit breaker in the chassis 32

4.1 Changing from connected position to test position 32

4.2 Changing from test position to disconnected position 35

4.3 Changing from disconnected position to test position 37

4.4 Changing from test position to connected position 39

05 Extracting the drawout circuit breaker 41

06 Inserting the drawout circuit breaker 43

07 Closing the circuit breaker after tripping 45

Contents Page

36LE007331A

About this manual

1.1 Safety instructions

Warnings and instructions

This documentation contains safety advice which must be respected for your own safety and

to prevent property damage.

Safety advice relating to your own safety is identiﬁed by a safety warning symbol in the

documentation. Safety advice relating to damage to property is identiﬁed by "ATTENTION".

The safety warning symbols and the wording below are classiﬁed according to the risk level.

DANGER

DANGER indicates an imminent dangerous situation which, if not avoided, will result in

death or serious injuries.

ATTENTION

ATTENTION indicates a warning message relating to equipment damage.

ATTENTION also indicates important instructions for use and particularly relevant

information regarding the product, which must be respected to ensure eective and safe

use.

WARNING

WARNING indicates a potentially dangerous situation which, if not avoided, may result in

serious injuries or even death.

CAUTION

CAUTION indicates a potentially dangerous situation which, if not avoided, may result in

minor or moderate injuries.

46LE007331A

About this manual

1.1 Safety instructions

Qualiﬁed personnel

The product or the system described in this documentation must be installed, operated and

maintained by qualiﬁed personnel only. Hager Electro accepts no responsibility regarding the

consequences of this equipment being used by unqualiﬁed personnel.

Qualiﬁed personnel are those people who have the necessary skills and knowledge for

building, operating and installing electrical equipment, and who have received training

enabling them to identify and avoid the risks incurred.

Appropriate use of Hager products

Hager products are designed to be used only for the applications described in the catalogues

and in the technical documentation relating to them. If products and components from other

manufacturers are used, they must be recommended or approved by Hager.

Appropriate use of Hager products during transport, storage, installation, assembly,

commissioning, operation and maintenance is required to guarantee problem-free operation in

complete safety.

The permissible ambient conditions must be respected. The information contained in the

technical documentation must be respected.

Publication liability

The contents of this documentation have been reviewed in order to ensure that the information

is correct at the time of publication.

Hager cannot, however, guarantee the accuracy of all the information contained in this

documentation. Hager assumes no responsibility for printing errors and any damage they may

cause.

Hager reserves the right to make the necessary corrections and modiﬁcations to subsequent

versions.

56LE007331A

Purpose of the document.

This manual is designed to provide users, electricians, panel builders and maintenance

personnel with the technical information required to use the hw+ circuit breakers with

electronic trip units.

Field of application

This document applies to hw+ circuit breakers with electronic trip units.

Revisions

Version Date

6LE007331A September 2022

Documents to consult

Document Reference

Installation manual for hw+ air circuit breakers 6LE007893A

hw+ user maintenance guide 6LE007897A

User manual for Sentinel hw+ electronic trip

units

6LE007969A

You can download these publications and other technical information from our website: www.

hager.com

Contact

Address Hager Electro SAS 132 Boulevard d’Europe

67215 Obernai France

Phone + 33 (0)3 88 49 50 50

Website www.hager.com

About this manual

1.2 Using this manual

66LE007331A

Circuit breaker operation

2.1 Description

The hw+ circuit breaker has the following elements on the front:

1Charging handle

2Closing push button

3Closing spring status

indicator

4Contact opening and

closing indicator

5Opening push button

6RESET re-arm button

In 160

RESET AUTO

MANUAL

Status indicators

The combination of the two indicators shows the status of the circuit breaker.

Opening and

closing indicator

Closing spring

status

indicator

Circuit breaker status

Circuit breaker open.

Closing spring discharged.

Circuit breaker open.

Closing spring charged but not ready to close.

The circuit breaker is not ready to be closed

because:

• Following tripping, it has not been reset via the

acknowledgement procedure

(see Chapter 07 Closing the circuit breaker after

a trip operation)

• The circuit breaker is locked in open position

using a lock or padlock.

Circuit breaker open.

Closing spring charged.

The circuit breaker is ready to be closed.

Circuit breaker closed.

Closing spring discharged.

Circuit breaker closed.

Closing spring charged.

76LE007331A

Circuit breaker operation

2.1 Description

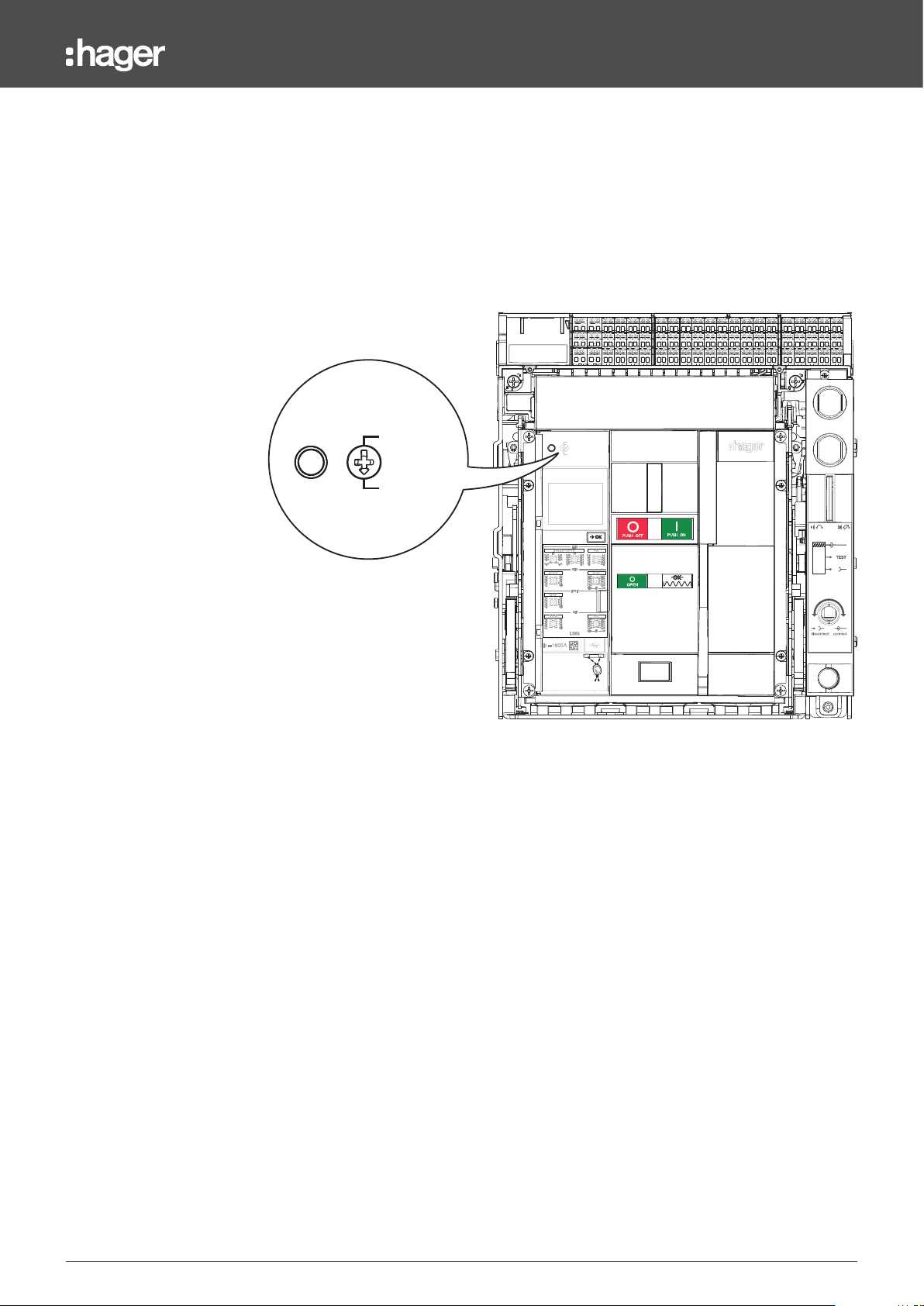

RESET re-arm button

The RESET re-arm button is used to reset the circuit breaker after tripping

(see Chapter 07 Circuit breaker closure after a trip operation).

The operation of the RESET re-arm button depends on the Auto or Manual mode set using the

adjustment dial on the right.

- Auto mode, in which it is not necessary to press the RESET re-arm button before closing the

circuit breaker again after tripping.

This mode is usually used if the circuit breaker is remotely monitored, as it can be closed

without requiring a person to perform the action on-site.

- Manual mode, in which the RESET re-arm button must be pressed in before closing the

circuit breaker again after tripping.

In 160

RESET AUTO

MANUAL

RESET AUTO

MANUAL

86LE007331A

Circuit breaker operation

2.1 Description

Closing spring

The closing spring is used to mechanically close the circuit breaker. It must be charged ﬁrst,

and there are two procedures for this:

- Manual charging

Charge the spring using the charging handle until the status of the indicator changes.

- Automatic charging

If an MO charging motor is installed and powered, the closing spring charges automatically

each time the circuit breaker closes.

96LE007331A

Circuit breaker operation

2.2 Circuit breaker closing

To close the circuit breaker:

Action Illustration

1Check that the circuit

breaker is open, the

closing spring discharged

or charged if a charging

motor is installed.

2If necessary, charge the

closing spring using the

charging handle until

the following indicators

appear.

DANGER

Risk of electric shock, explosion or electric arc.

Inspect the electrical installation and remove the tripping cause before closing the circuit

breaker again.

Never close a circuit breaker locally or remotely without ﬁrst making sure that the

installation complies with the safety standards.

10 6LE007331A

Circuit breaker operation

2.2 Circuit breaker closing

Action Illustration

3Close the circuit breaker

by pressing the closing

push button

4Check that the indicators

change status.

5If a charging motor is

installed and powered,

the closing spring charges

automatically.
