Installation guide
www.hafele.com

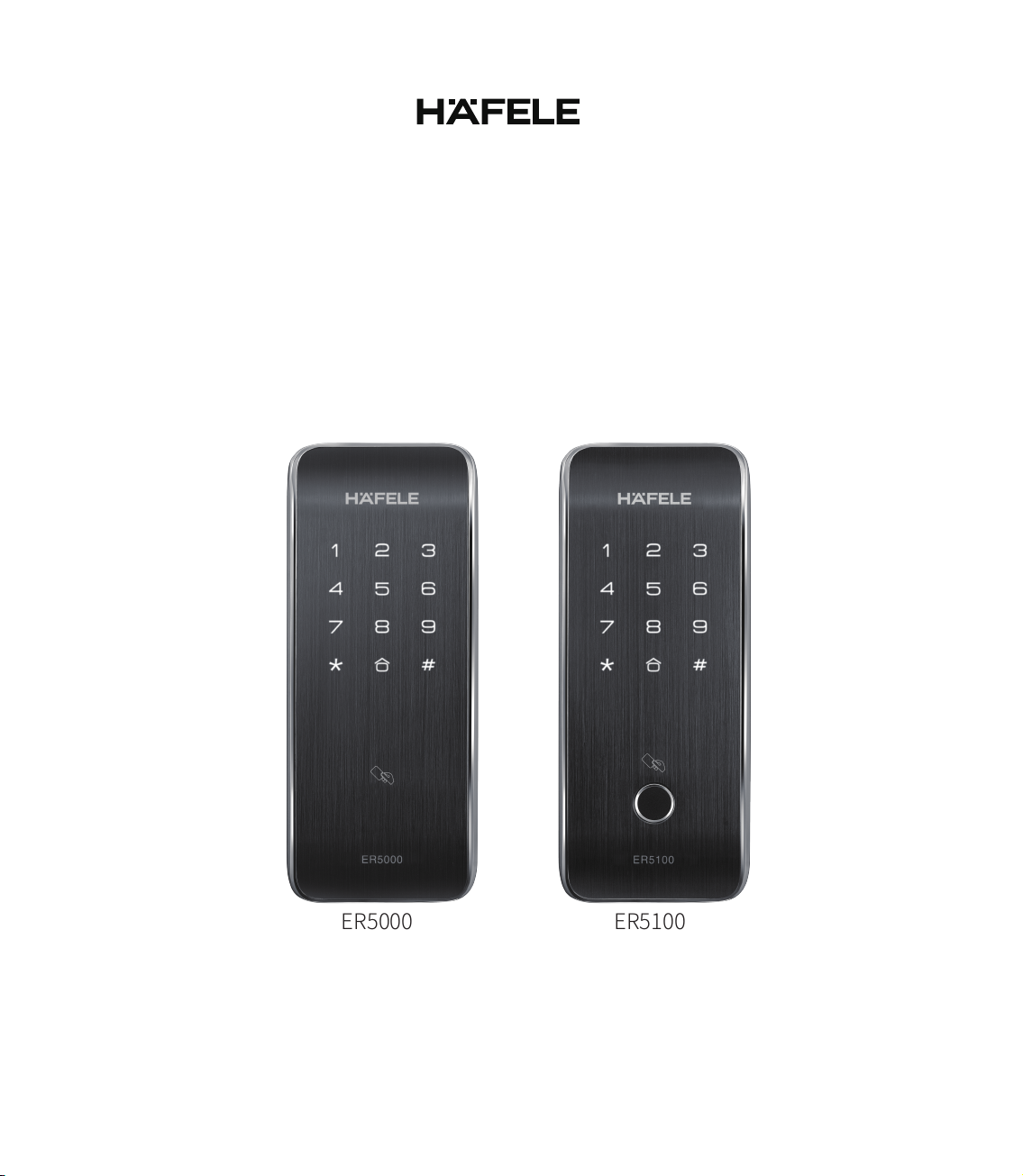

ER5000 ER5100
* The contents of this user manual are subject to change without prior notice to
the user in order to enhance performance of the products.
RES
200mm
200mm
172mm
172mm
13mm 48mm
77mm
71mm
Touch screen
Keypad
Sensor
latch bolt
Card reader
area Fingerprint
sensor
(Only availabe
on ER5100) Dead bolt
Battery cover
Manual open/
close knob
Open/close
button
outside panel inside panel
Reboot
Micro USB emergency power supply
X1
Inside Panel
X1
Strike
X1
Strike Plates (5mm)
X2
Strike Plates (2.5mm)
X4
Mounting Screws
M4 X 6mm
X1
Outside Panel
X1
Inside Mounting Plate
X6
Wood Combination Screws
ST4 X 20mm
X6
Flat Head Screws M5 X 30mm
(Door thickness 30~40mm)
X3
Flat Head Screws M5 X 40mm
(Door thickness 40~50mm)
Left handed door Right handed door
Left handed door Right handed door
Left handed door Right handed door
1.Check whether the door is left handed
or right handed before installation.
2.Confirm inside panel installation
direction.
3.Based on door type and direction,match
and hold intallation template on door
tightly and drill a hole on door.
Inside Inside
Edge the door
1.Get the front panel cable through the drill
hole on the door.
3.Depending on installation condition,fix proper
positon of striker with screws.
4.Get the outside panel cable connected
to inside panel.
2.Get the outside panel cable through the
inside panel bracket and fix screws from
inside of the door.
Be careful not to damage
the connecting cable.

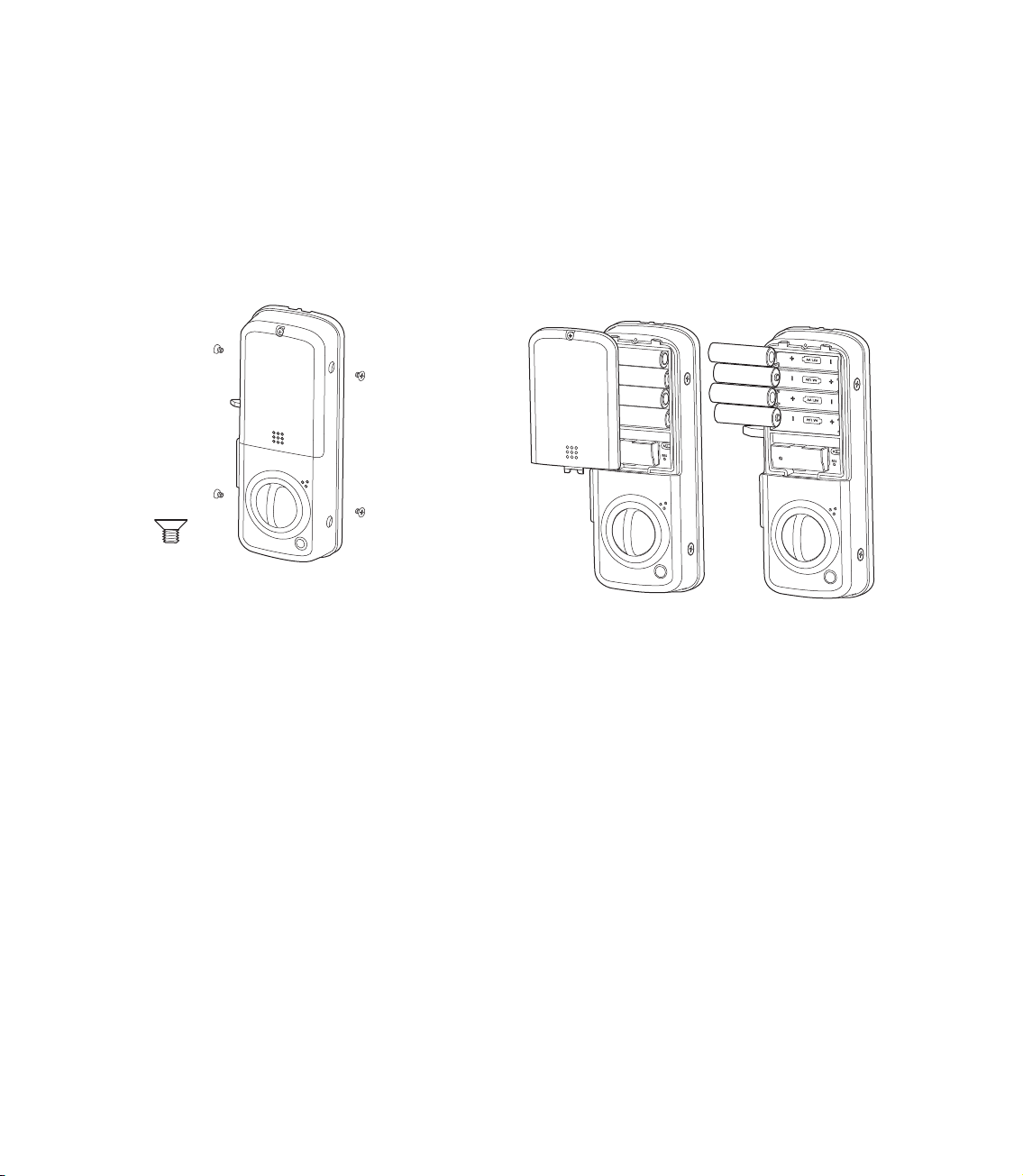

5.Get the inside panel on the bracket and
fix screws.
6.Fix battery cover screws after insert 4ea batteries
and test functions.
45~50mm
Left handed door
Edge the door
Edge bolt
Dead bolt
Folding line
Need to drill a hole
with 32mm diameter
Backset
45~50mm
Right handed door
Edge the door
Edge bolt
Dead bolt
Folding line
Need to drill a hole
with 32mm diameter
Backset
45~50mm
45~50mm
