HAC UM Series Manuel utilisateur

HAC-UM Series RFModuleManual

Version 2.3C

SHENZHENHAC TELECOMTECHNOLOGYCO., LTD

Address :Fl.6, Building 2, JiuxianglingNewIndustryPark, No.4227, Xilihu

Road, Nanshan, Shenzhen, China.

Tel :+86-755-23981078 23981077

Fax :+86-755-23981007

E-mail :webmaster@ rf-module-china.com

Website :http://www.rf-module-china.com

HAC-UM Series RFModuleManualSHENZHENHACTECHNOLOGYCO., LTD.

FAX:+86-755-23981077 23981079 -2- www.rf-module-china.com

Catalogue

I. FeaturesofHAC-UMSeries.................................................................................3

II.Applications ofHAC-UMSeries...........................................................................4

III. Howto useHAC-UMSeries..................................................................................4

IV. NetworkingApplication ofHAC-UMSeries.......................................................13

V. TechnicalspecificationofHAC-UMSeries.........................................................14

VI. Descriptionoftype...............................................................................................14

HAC-UM Series RFModuleManualSHENZHENHACTECHNOLOGYCO., LTD.

FAX:+86-755-23981077 23981079 -3- www.rf-module-china.com

I. FeaturesofHAC-UM Series

1. Ultra lowpower transmission with 10mWas themaximaltransmittingpower

2. ISM frequencyband with no require ofapplyingfrequency

Thefactorydefault carrier frequencyis433MHz.(868/915MHzavailableasanothertype

UN)

3. High anti-interferenceandLowBER(Bit errorRate)

Basedon theGaussianFrequencyShiftKeying(GFSK) modulation, thehigh-efficiency

forwarderrorcorrection channelencodingtechnologyisusedtoenhancedata sresistanceto

bothtransientinterferenceand randominterferenceand theactualbit errorrateof10-5 ~10-6

can beachieved whenchannelbit errorrateis 10-2.

4. Long Transmission Distance

Withinthevisiblerange,whentheheightofantennaishigher than2mand TheBit Error

Rate(BER)is10-3,thereliabletransmission distancesrespectivelyis1000m@1200bps.

Whenthebaudrateis4800bps, it ismore than700m.Whenthebaudrateis9600bps, it is

more than 500m.

5. Transparentdatatransmission

Transparentdatainterfaceusedintransceiversisformeetingmanystandardornonstandard

user protocols.Anyfalsedatageneratedinaircanbefiltratedautomatically(Whathasbeen

received is exactlywhathas been transmitted).

6. Multi-channels

HAC-UMtransceiversoffer 8channels, ifneeded, 16 or32 channelsavailabletosatisfy

various configuration ofcommunication under user s demand atthesametime

7. 2 ports with three connection methods

HAC-UMtransceiversprovide2portswiththreeconnections, ports:aUARTinterfaceof

TTLlevel,anon-standardRS-232 portand anon-standardRS-485 port,whichbothare

definedbyuser software (defineit justbypluggingoutand inoneshortcircuit device and

then power on).

Note:UM384 (i.e. 38400bps) iswithout anynon-standardRS-232/485port.

8. Bigdatabufferarea

Withoptionalinterfacebaud rate:1200/4800/9600/19200/38400bps and 8N1/8E1 data

format(setbyuser),thetransceivercantransmitunlimiteddataframeswithflexibleuser

program.

HAC-UM Series RFModuleManualSHENZHENHACTECHNOLOGYCO., LTD.

FAX:+86-755-23981077 23981079 -4- www.rf-module-china.com

9. Intelligentdatacontroland no anyextra programsrequired

Evenforhalfduplexcommunication, no anyexcessiveprogramsrequired. All RFsystem

datasending/receivingand other On-the-Flyconversion and controlare performedby

HAC-UM transceiversautomatically.

10. Lower power consumption &Sleep function

With+5Vpower,thereceivecurrentisless than32mA,thetransmitcurrentisless than

42mA, and thesleepingcurrentis less than 5µA.

With+3.3Vpower,thereceivecurrentisless than26mA,thetransmit currentisless than

36mA, and thesleepingcurrentis less than 5µA.

11. High reliability, small and light

Byusingmonolithicradio-frequencyintegratedcircuit and single-chipMCU,the

transceivers haveless peripheralcircuits, high reliability, and lowfailure rate.

12. More options ofconfigurableantennas foruser differentapplications.

II. ApplicationsofHAC-UM Series

HAC-UM Series Ultra lowpower dataradio moduleis suitablefor:

Auto Meter Readingsystem.

Remotecontroland monitoring.

Automaticdatacollection.

Buildingautomatization, security, machine-houseequipmentwireless monitoring

POSsystem,wireless keyboard and mouse

Traffic, Personnelpositioningand alarmin thewell

III. HowtouseHAC-UM Series

HAC-UMisamember ofHACserieslowpower dataradiomodules, whichprovidesRS-232,

RS-485 and UART/TTLlevelinterfaceportfordirectconnection withPC,RS485devices, SCM

and other UARTcomponents kind ofapplications. Theschematicdiagramis shown below:

HAC-UM Series RFModuleManualSHENZHENHACTECHNOLOGYCO., LTD.

FAX:+86-755-23981077 23981079 -5- www.rf-module-china.com

1. Powersupply

HAC-UMworkwithsupplyvoltage+3.3~5.0 DC.Byusingbetterripplefactor,HAC-UM

transceiverscanalsoshare power supplywithother equipment.Ifpossible,a

voltage-stabilizingchipwith5Vvoltageismore recommendedastheonlypowersupplythan

Switchpower supply.Butifonlyswitchpower supplyavailable,thejambyswitchpulseto

thetransceiversshouldbeavoided. Inaddition, thereliablegroundingmustbeusedifthere is

other deviceinthesystemequipment.Incaseoffailing toconnectwiththeground, it can

formits own groundingbutmustbeabsolutelyseparatedfromthemunicipalelectricsupply.

Iflower power forlowerpower consumption needed, wecanspeciallydesigntolower the

power as+3V.

2. ConnectionDefinitionwithterminal

HAC-UMtransceiverssupplyone9-pinconnector(JP1),theirdefinitions and connection

methods with terminals are shown inTable1.

Table1:JP1PinDefinitions and connectionmethods

SignalName

Function Level Connection

with terminal

Remarks

1 GND Ground Ground

2 VCC Power supplyDC +3.3~

5.0V

3 RxD/TTL Serialdatafor

receivingterminal

TTL TxD

4 TxD/TTL Serialdatafor

transmittingterminal

TTL RxD

5 SGND Signalground

6 A(TxD) AofRS-485 (TxDof

RS-232)

A(RxD)

HAC-UM Series RFModuleManualSHENZHENHACTECHNOLOGYCO., LTD.

FAX:+86-755-23981077 23981079 -6- www.rf-module-china.com

7 B(RxD) BofRS-485 (RxDof

RS-232)

B(TxD)

8 SLEEP Sleep control(input) TTL Sleep signal High levelsleep

9 RESETReset signal(Input) TTL Negativepulsereset

3. TheconnectionschematicdiagramofHAC-UMtransceivers withterminal.

4. Setting ofchannel, interface and data format:

Before usingHAC-UM, theuser needs tomakesimpleconfiguration basedon itsownneeds to

determinethechannel, interface modeand dataformat.

There isonegroup of5-bit short-circuit jumper wire(JP2)on theupper rightcorner of

HAC-UM, definedasABCDErespectively.Assumingtheopencircuit ofjumper wire (without

shortcircuiter) ismode1and shortcircuit ofjumper wire (withshortcircuiter) ismode0, then

theconfiguration is as follows:

a. Channelconfiguration:

ABCjumper wiresofJP2provide8options, and theuser canchoosetouse0-7channels

throughABCjumperwires. Withinonesmall communication network, aslongasABCjumper

wire modeis same, there can bemutualcommunication.

Table2:Correspondingfrequencyof0~7 channels

ChannelNo. Frequency ChannelNo. Frequency

CBA=000(0)

430.2000MHz CBA=100(4) 434.6940MHz

CBA=001(1)

431.4288MHz CBA=101(5) 434.2332MHz

CBA=010(2)

431.7360MHz CBA=110(6) 433.1580MHz

CBA=011(3) 430.5072MHz CBA=111(7) 433.9260MHz

HAC-UM Series RFModuleManualSHENZHENHACTECHNOLOGYCO., LTD.

FAX:+86-755-23981077 23981079 -7- www.rf-module-china.com

Note: Thefrequencypointscorrespondingtoeachchannelcanbeadjustedbasedon

theuser s needs.

1=Unpluggingshortcircuiter (unconnected)

0 =Pluggingin circuiter

b. Selectionofinterface mode:

HAC-UM provides 2serialports. COM1(Pin3 and Pin4 ofJP1)is fixed asUARTserialportof

TTLlevel; COM2 (Pin6 and Pin7 ofJP1)canchoosenon-standardRS232/485 interfacemode

through DofJP2:

D=1 (Unpluggingshortcircuiter) COM2 =RS-485

D=0 (Pluggingin shortcircuiter) COM2 =RS-232

Thefollowing attentionshouldbepaidforthetwo serialports providedby HAC-UM:

i. Forthedatareceivedfromtheair,whenHAC-UMtransmitsit totheterminal

equipmentthroughserialport,COM1 andCOM2 outputsimultaneously,i.e.iftheuser

connectsonedeviceatCOM1 and COM2 respectively,theybothcanreceivethedata

simultaneously.

ii. Forthedatatransmittedfromtheterminalequipmentand readytotransmit totheair,

HAC-UMcanonlyreceivethedatasentfromeither COM1 orCOM2 butnot

simultaneously.

Suggestion:Theusers arerecommended to useoneserialportofCOM1 orCOM2.

c. Paritymodeselection:

HAC-UMcansupportno-parityorevenparitymodesoftheserialcommunication UART,i.e.

8N1/8E1, which can bechosen byE ofJP2:

E=1 (Unpluggingshortcircuiter) Parity:8E1 (even parity)

E=0 (Pluggingin shortcircuiter) Parity:8N1 (no parity)

NOTE:Thecommunicationdataratecannotbesetbyuser,itisconfirmedwhen

placingordersand set beforedelivery.Theshort circuiterwill beeffectivebyre-powering

onifits methodofplugging inchanged.

5. Supportedprotocoland Transmitcapability

HAC-UM Series RFModuleManualSHENZHENHACTECHNOLOGYCO., LTD.

FAX:+86-755-23981077 23981079 -8- www.rf-module-china.com

HAC-UMstandardtransceiversoffer transparentprotocoltosupportvarious applications and

protocolsofusers. Iftheuser needs todecreasehiscostoreasetheworkloadofterminalCPU,

wecanadd otherspecificfunctions basedon thetransparentprotocol,suchasaddressing,data

acquisition, command interpretation, etc.

6. Sleepfunctioninstruction:

Duetoreducingmore consumption, HAC-UMtransceiverssupportSleepfunction. Insleep

mode, thecurrentconsumption is less than 5µA.

Thedefault setofsleepfunction isusuallyclosedtoensure thereliabilityofpreventing

transceiversfromgetting inwrongsleepmode.Thesleepfunction canbeopenedbyHACafter

informed orbyuserviaprogrammingthemsoftware.

a. Howto usetheSleepfunction:

ThePin8 ‘SLP inJP1isthesignalofsleepcontrol.Inhighpower level,whenthetransceiver

staysinsleepmode,theconversion fromidlemodetosleepwill befinishedin1ms. TheSLP

signalcanconverttransceiver fromidletosleepmodein1msafter risingedge.IftheSleep

signalarriveswhenthetransceiver istransmittingdata,themodulewill enter sleepmodeafter

finishingtransmission. Fromsleep modeto idle, it takes thetransceiver 10ms after fallingedge.

Todisablethesleepfunction ofHAC-UM, theSLP(SLEEP)pinshouldbedefinitelyconnected

with 0 orground.

b.Attentions aboutuseofsleepfunction:

Whenthesleepfunction enabled, anysupplyglitches, suchasswitchdithering,fire strikingor

quickswitchingon and off,couldcausethetransceiver tobeswitchedtothewrongsleepmode.

After switching on, userscanavoidthiserrorbymakingacompulsiverestoration onceafterthe

CPUdelays 100ms. Butsuch acondition occurs seldom.

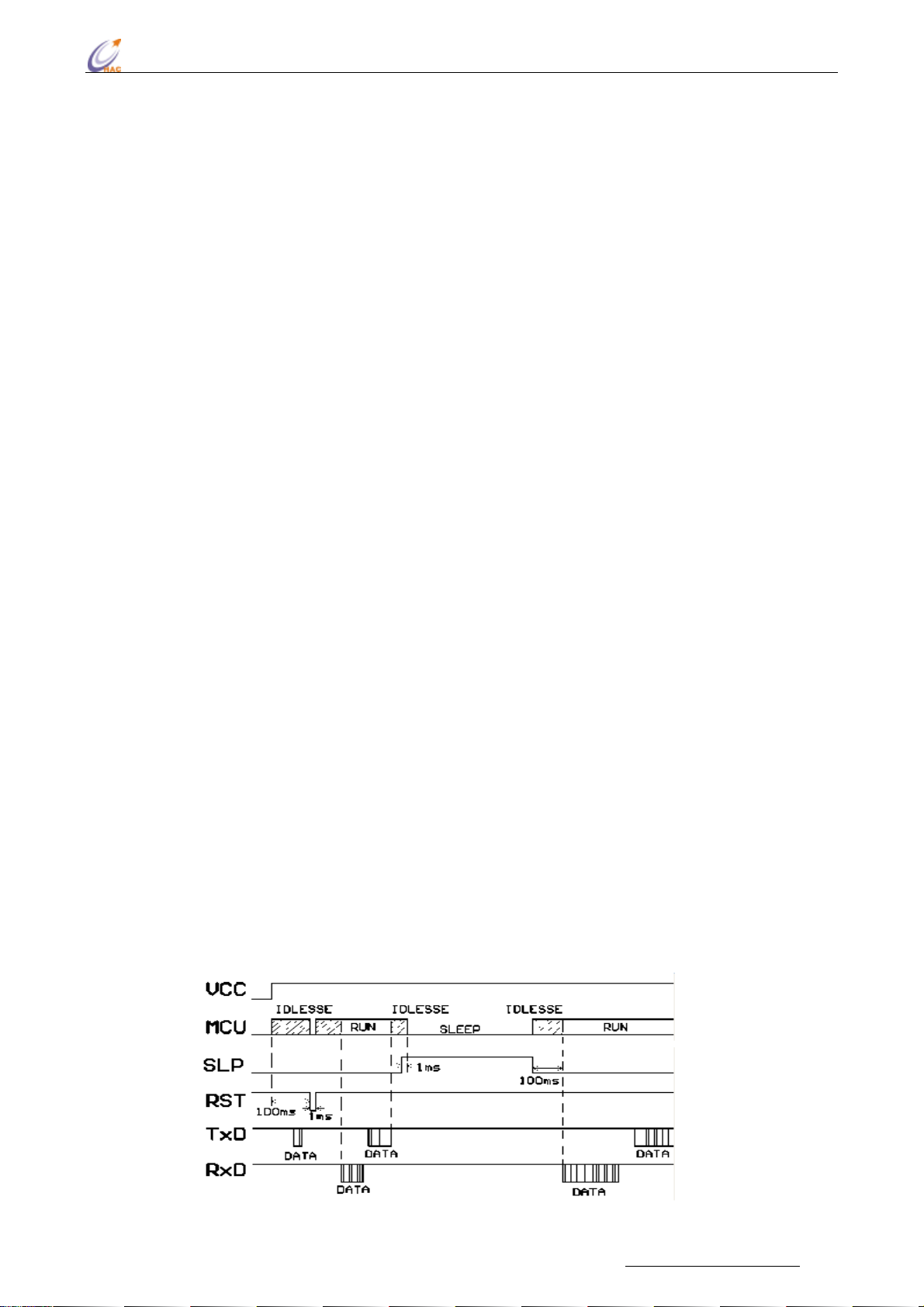

c. SleepTime Diagram:

HAC-UM Series RFModuleManualSHENZHENHACTECHNOLOGYCO., LTD.

FAX:+86-755-23981077 23981079 -9- www.rf-module-china.com

7. Theattentions ofdata transmission

a. Thedelay time (tc)ofconversionbetweentransmitting and receiving is less than1ms.

Timing diagram:

b.Thedelay timeoftransceiversbetweenthefirstbitsentbyTxDtothefirstbit

receivedby RxD.

Duetoadataprocessingwill bemadeon user sdatabyHAC-UMtransceiver usingFEC

(ForwardErrorCorrection)orother correction algorithm,whenRxDofaHAC-UM

transceiver ‘Areceivesthedata,thentransmitsit,theotheronetransceiver ‘Bwill havea

delay(ts)toreceiveand transmit byTxD.DifferentRFdataratecausesdifferentdelaytime.

Pleasesee thespecificdelaytimebelow:

Rf DateRate

bps）

Delay

ts ms）

RFDataRate

bps）

Delay

ts ms）

1200 90 9600 12

2400 48 19200 6

4800 24 38400 3

Timing diagram:

c.Errordealing procedure:

Toenhancethereliabilityandstabilityofuser ssystems, averifybit oraCyclicRedundancy

Check(CRC)modeishighlyrecommendedtoresentthewronginformation whileusing

HAC-UM series modules.

HAC-UM Series RFModuleManualSHENZHENHACTECHNOLOGYCO., LTD.

FAX:+86-755-23981077 23981079 -10 - www.rf-module-china.com

d.Large-numberdatatransmission

Intheory,whentheinterface datarateisfaster thantheRFdatarate,HAC-UMtransceiverscan

send unlimited-longdatapackage,butanylongpackagesmore than120Bare notrecommended.

Thelengthofeachpackageshouldbebetween60~100B.Wealso recommend user toresentthe

wronginformation using AutomaticErrorRequestEquipment(ARQ).

Theanalyzing as below:

Whatiftheactualtransmission BER(Bit ErrorRate)is10-4,1packetwith1KBdata,whichis

about10-thousand bits, issent,theoretically,atleast1bit will bereceivedwrongly,thenthe1KB

information will never bereceived correctly.

Butifwepackagethedatainto10 packetswith100Bforeach, whenall 10 packetsare sent,there

will beonly1packetwrongaccordingtothisprobability.After that,resend thiswrongpacket

usingARQmode.Sobyresendingonemore packetand theefficiencyrateisreduced10%,all

datawill beabsolutelyreceived correctly.

8. Dimensiondiagram(Unit: mm):

Thedimension diagrambelowisthefactorysetdefault ofHAC-UMtransceiver.Other required

smaller sizes and differentshapes canalso beprovided.

Table des matières

Autres manuels HAC Module sans fil

HAC

HAC HAC-MLW Manuel utilisateur

Manuels Module sans fil populaires d'autres marques

Laird

Laird RM024 Manuel utilisateur

Laird

Laird BT830-SA Guide de configuration rapide

Ebyte

Ebyte E49-400T20S Manuel utilisateur

Fibocom

Fibocom FM101-NA-20 Instructions d'installation

Waldmann

Waldmann EnOcean TALK MODUL G2 Manuel utilisateur

Smartech

Smartech LBT-1.DO4 Manuel utilisateur

Cooper Wiring Devices

Cooper Wiring Devices ESPIRE RF RFAPM Manuel utilisateur

Yuga

Yuga CLM920 Manuel utilisateur

Waldmann

Waldmann TALK Bluetooth Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions UC864-G Manuel d'installation

Ebyte

Ebyte E07-900M10S Manuel utilisateur

Quectel

Quectel SC690A Series Supplément

Panasonic

Panasonic INDUSTRY PAN9028 Guide de configuration rapide

Ebyte

Ebyte E70-433NW30S Manuel utilisateur

LongSung Technology

LongSung Technology U9507E Manuel utilisateur

Wistron NeWeb

Wistron NeWeb DNUR-S2 Manuel utilisateur

Ebyte

Ebyte E49-400M20S4 Manuel utilisateur

RF-Star

RF-Star SimpleLink RF-BM-2652P1 CC2652P Manuel utilisateur
