Ebyte E07-900M10S Manuel utilisateur

E07-900M10S

CC1101 855-925MHz 10dBm SPI Wireless Module

Chengdu Ebyte Electronic Technology Co.,Ltd E07-900M10S User Manual

Contents

Disclaimer...............................................................................................................................................................................2

1 OVERVIEW..................................................................................................................................................................... 3

1.1 Brief Introduction..................................................................................................................................................... 3

1.2 Features.....................................................................................................................................................................3

1.3 Application................................................................................................................................................................3

2 Specification and Parameter............................................................................................................................................. 4

2.1 Limit Parameter........................................................................................................................................................ 4

2.2 Operating Parameter................................................................................................................................................. 4

3 Size and Pin definition............................................................................................................................................ 5

4 Basic operation................................................................................................................................................................. 6

4.1 Hardware design..................................................................................................................................................... 6

4.2 Programming............................................................................................................................................................ 7

5 Recommended circuit diagram......................................................................................................................................... 7

6 FAQ...................................................................................................................................................................................8

6.1 Communication range is too short............................................................................................................................8

6.2 Module is easy to damage.........................................................................................................................................8

6.3 BER(Bit Error Rate) is high..................................................................................................................................... 8

7 Production guidance......................................................................................................................................................... 8

8 E07 series..........................................................................................................................................................................9

9 Antenna Guide.................................................................................................................................................................. 9

9.1 Antenna recommendation....................................................................................................................................... 9

Revision history...................................................................................................................................................................... 9

About us................................................................................................................................................................................10

Chengdu Ebyte Electronic Technology Co.,Ltd E07-900M10S User Manual

Disclaimer

The information in this document, including the URL address for reference, is

subject to change without notice. The document is provided "as is" without any

guarantee responsibility, including any guarantee for marketability, suitability for a

specific purpose, or non-infringement, and any guarantee for any proposal,

specification or sample mentioned elsewhere. This document does not bear any

responsibility, including the responsibility for infringement of any patent rights caused

by the use of the information in this document. This document does not grant any

license for the use of intellectual property rights in estoppel or other ways, whether

express or implied.

The test data obtained in the article are all obtained by the Ebyte laboratory, and

the actual results may vary slightly.

We hereby declared that all brand names, trademarks and registered trademarks

mentioned in this document are the property of their respective owners.

The final interpretation right belongs to Chengdu Ebyte Electronic Technology

Co., Ltd.

Notice :

Due to product version upgrades or other reasons, the contents of this manual may be changed. Ebyte

Electronic Technology Co., Ltd. reserves the right to modify the contents of this manual without any

hint or noticet. This manual is only used as a guide. Chengdu Ebyte Electronic Technology Co., Ltd.

makes every effort to provide accurate information in this manual. However, we does not guarantee

that the contents of the manual are completely free of errors. All statements, information and

suggestions in this manual do not constitute any express or implied guarantee.

Chengdu Ebyte Electronic Technology Co.,Ltd E07-900M10S User Manual

1 OVERVIEW

1.1 Brief Introduction

E07-900M10S is an independently developed 410-450MHz SMD wireless

module based on the CC1101 chip produced by Texas Instruments (TI), using

industrial-grade high-precision 26MHz crystal oscillator.

Due to the adoption of the already mature CC1101 chip as the core of the

module, its stability has won unanimous praise from users, and there is no need to

worry about compatibility. This module is mainly aimed at smart home, industry,

scientific research and medical, and short-distance wireless communication

equipment. It can provide extensive hardware support for data packet processing,

data buffering, burst transmission, received signal strength indicator (RSSI), clear

channel assessment (CCA), link quality indicator, and wireless wake-up (WOR).

Since the module is a pure RF transceiver module, you need to use the MCU driver or a dedicated SPI debugging

tool.

1.2 Features

The measured communication distance can reach 1500m;

Maximum transmission power of 10mW, software multi-level adjustable;

Support the license-free ISM 868MHz/915MHz band;

Support air date rate of 0.6k～500kbps;

Support multiple modulation modes (OOK、ASK、GFSK、2-FSK、4-FSK and MSK)

Independent 64-byte RX FIFO and TX FIFO;

Support 2.5～3.6V power supply, power supply over 3.3 V can guarantee the best performance;

Industrial grade standard design, support -40 ~ 85 °C for working over a long time;

IPEX interface, which can be easily connected to external antenna;

Support RSSI (received signal strength indicator) and LQI (link quality indicator)

It is connected to the MCU through a 4-wire SPI interface and provides 2 general-purpose digital output pins with

programmable functions.

1.3 Application

Smart home and industrial sensors, etc.;

Wireless alarm security system;

Home security alarm and remote keyless entry;

Wireless industrial-grade remote control;

Chengdu Ebyte Electronic Technology Co.,Ltd E07-900M10S User Manual

Health care products;

Advanced Meter Reading Architecture(AMI);

Automotive industry applications.

2 Specification and Parameter

2.1 Limit Parameter

Main parameter

Performance

Remark

Min

Max

Power supply（V）

3.6

Voltage over 3.6V will cause permanent damage to

module

Blocking power（dBm）

Chances of burn is slim when modules are used in

short distance

Operating temperature（℃）

-40

+85

Industrial grade

2.2 Operating Parameter

Main parameter

Performance

Remark

Min

Typical

Max

Operating voltage（V）

1.8

3.3

3.6

3.3 V ensures output power

Communication level（V）

3.3

For 5V TTL, it may be at risk of burning down

Operating temperature（℃）

-40

+85

Industrial grade

Operating frequency（MHz）

855

868

925

Support ISM band

Power

Consump-

tion

TX current（mA）

Instant power consumption

RX current（mA）

Sleep current （μA）

0.6

Shut down by software

Max TX power（dBm）

9.5

Receiving sensitivity（dBm）

-105

-107

-108

Air data rate is 1.2kbps

Air data rate（bps）

0.6k

500k

Controlled via user’s programming

Main parameter

Description

Remark

Reference distance

1.5km

Test condition：clear and open area, antenna gain: 5dBi，

antenna height: 2.5m，air data rate: 1.2kbps

FIFO

64Byte

Maximum length of a single transmission

Crystal Oscillator

26MHz

10ppm

Modulation

GFSK(recommended)

Support OOK、ASK、GFSK、2-FSK、4-FSK and MSK

Chengdu Ebyte Electronic Technology Co.,Ltd E07-900M10S User Manual

Package

SMD

Interface method

1.27mm

Half hole

Communication Interface

SPI

0～10Mbps

Size

14*20mm

Antenna

IPEX/STAMP

50 ohm impedance

Net Weight

1.2g

3 Size and Pin definition

Pin No.

Item

Direction

Description

GND

Ground wire, connected to the power reference ground

GND

Ground wire, connected to the power reference ground

GND

Ground wire, connected to the power reference ground

GND

Ground wire, connected to the power reference ground

GND

Ground wire, connected to the power reference ground

No need to connect

VCC

Power supply, 3.0~3.6V (It is also recommended to add external

ceramic filter capacitor)

Chengdu Ebyte Electronic Technology Co.,Ltd E07-900M10S User Manual

No need to connect

GND

Ground wire, connected to the power reference ground

GND

Ground wire, connected to the power reference ground

No need to connect

GD02

CC1101 chip pins (see CC1101 official user manual for details)

GD00

CC1101 chip pins (see CC1101 official user manual for details)

MISO/GD01

Output

SPI master output slave input

MOSI

Input

SPI master input slave output

SCK

Input

Serial Clock Input

CSN

Input

SPI Chip select for starting SPI communication

GND

Ground wire, connected to the power reference ground

ANT

Input/Output

Antenna, stamp hole（50 ohm impedance）

GND

Ground wire, connected to the power reference ground

4 Basic operation

4.1 Hardware design

It is recommended to use a DC stabilized power supply. The power supply ripple factor is as small as possible and

the module needs to be reliably grounded;

Please pay attention to the correct connection of the positive and negative poles of the power supply,

reverse connection may cause permanent damage to the module;

Please check the power supply to ensure that between the recommended supply voltage, if exceeding the maximum,

the module will be permanently damaged;

Please check the stability of the power supply. Voltage can not fluctuate greatly and frequently;

When designing the power supply circuit for the module, it is often recommended to reserve more than 30% of the

margin, so the whole machine is beneficial for long-term stable operation;

The module should be as far away as possible from the power supply, transformers, high-frequency wiring and other

parts with large electromagnetic interference;

Bottom Layer High-frequency digital routing, high-frequency analog routing, and power routing must be avoided

under the module. If it is necessary to pass through the module, assume that the module is soldered to the Top Layer,

and the copper is spread on the Top Layer of the module contact part(well grounded), it must be close to the digital

part of the module and routed in the Bottom Layer;

Assuming the module is soldered or placed over the Top Layer, it is wrong to randomly route over the Bottom Layer

or other layers, which will affect the module's spurs and receiving sensitivity to varying degrees;

It is assumed that there are devices with large electromagnetic interference around the module that will greatly

affect the performance. It is recommended to keep them away from the module according to the strength of the

interference. If necessary, appropriate isolation and shielding can be done;

Assume that there are traces with large electromagnetic interference (high-frequency digital, high-frequency analog,

power traces) around the module that will greatly affect the performance of the module. It is recommended to stay

Chengdu Ebyte Electronic Technology Co.,Ltd E07-900M10S User Manual

away from the module according to the strength of the interference.If necessary, appropriate isolation and shielding

can be done;

If the communication line uses a 5V level, a 1k-5.1k resistor must be connected in series (not recommended, there is

still a risk of damage);

The mounting structure of antenna has a great influence on the performance of the module. It is necessary to ensure

that the antenna is exposed, preferably vertically upward. When the module is mounted inside the case, use a good

antenna extension cable to extend the antenna to the outside;

The antenna must not be installed inside the metal case, which will cause the transmission distance to be greatly

weakened.

4.2 Programming

It can complete the wireless data transceiving by operating its control register and transceiving buffer. Please refer

to the latest CC1101 data sheet for the timing operation of module register.

GDO0 is a general purpose I/O port，see CC1101 user manual；

GDO2 is generally configured as an IRQ-like function, or not connected. SPI query mode can be used to obtain the

interrupt status, but it is still recommended to use external interrupt by connecting to a MCU;

After CC1101 restores IDLE mode or configured as sleep mode, it is recommended to reinitialize the power

configuration table.

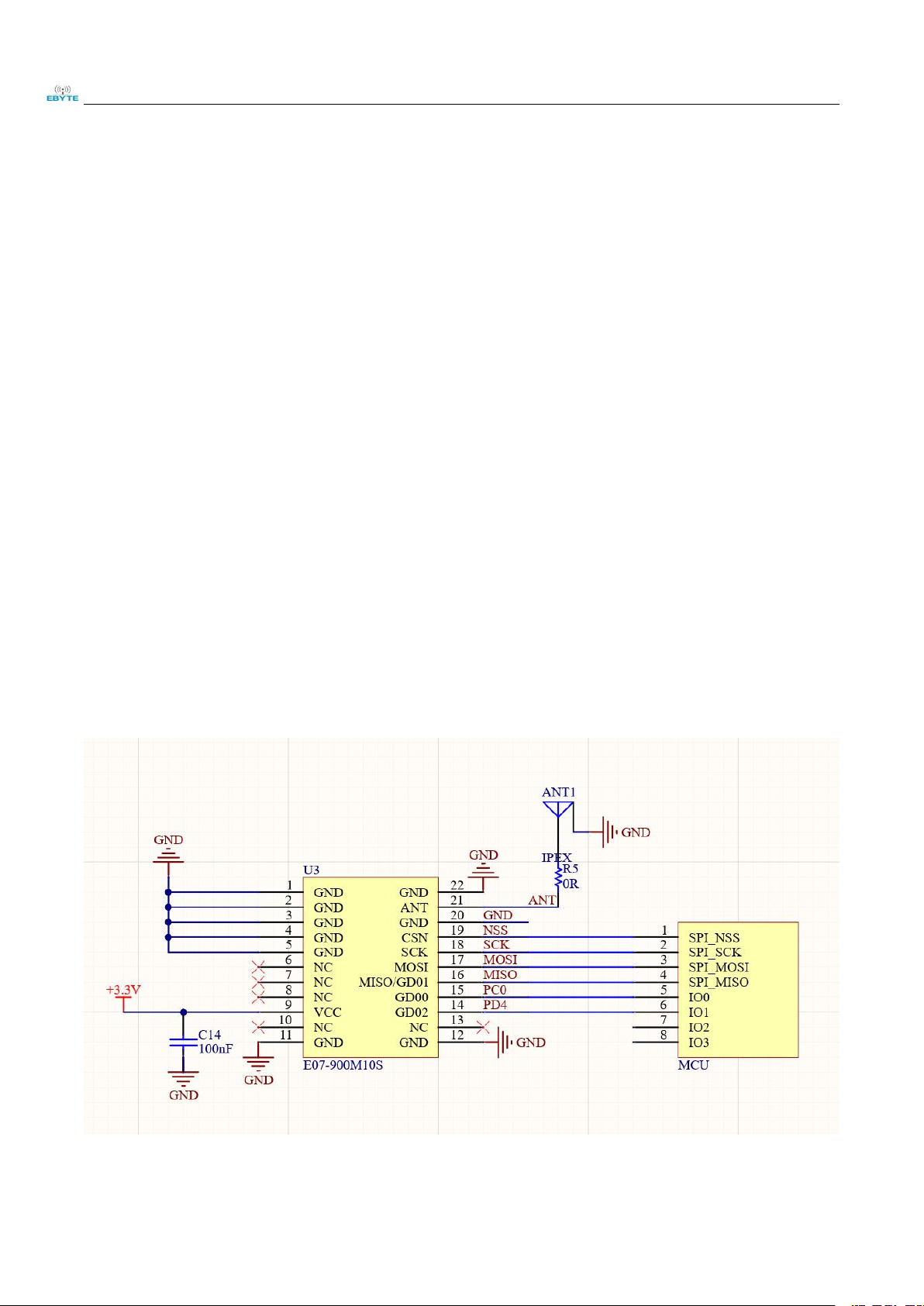

5 Recommended circuit diagram

Chengdu Ebyte Electronic Technology Co.,Ltd E07-900M10S User Manual

6 FAQ

6.1 Communication range is too short

The communication distance will be affected when obstacle exists;

Data lose rate will be affected by temperature, humidity and co-channel interference;

The ground will absorb and reflect wireless radio wave, so the performance will be poor when testing near ground;

Sea water has great ability in absorbing wireless radio wave, so performance will be poor when testing near the sea;

The signal will be seriously affected when the antenna is near metal object or put in a metal case;

Power register was set incorrectly or air data rate is set as too high (the higher the air data rate, the shorter the

distance);

The power supply low voltage under room temperature is lower than our recommendation, the lower the voltage,

the lower the transmitting power;

Due to antenna quality or poor matching between antenna and module.

6.2 Module is easy to damage

Please check the power supply source, ensure it is 1.8V~3.6V, voltage higher than 3.6V will damage the module;

Please check the stability of power source, the voltage cannot fluctuate too much;

Please make sure anti-static operation when installing and using, high frequency devices have electrostatic

susceptibility;

Please ensure the humidity is within limited range, some parts are sensitive to humidity;

Please avoid using modules under too high or too low temperature.

6.3 BER(Bit Error Rate) is high

There are co-channel signal interference nearby, please be away from interference sources or modify

frequency and channel to avoid interference;

The clock waveform on SPI is not standard, check whether there is interference on the SPI line, and the SPI bus line

should not be too long;

Poor power supply may cause messy code. Make sure that the power supply is reliable;

The extension line and feeder quality are poor or too long, so the bit error rate is high.

7 Production guidance

This product is a SMD module. When soldering the module, the soldering personnel must work in accordance with

the anti-static operation specification;

This product is an electrostatic sensitive product. If the module is not welded according to the specification, the

module may be permanently damaged.

Chengdu Ebyte Electronic Technology Co.,Ltd E07-900M10S User Manual

8 E07 series

Model No.

Frequency

Tx power

Distance

Package

Antenna

dBm

E07-900M10S

CC1101

868M/915M

1500

SMD

STAMP

E07-400M10S

CC1101

433M

1500

SMD

STAMP

All modules in E07 series can communicate with each other

9 Antenna Guide

9.1 Antenna recommendation

The antenna is an important role in the communication process. A good antenna can largely improve the communication

system. Therefore, we recommend some antennas for wireless modules with excellent performance and reasonable price.

Revision history

Version

Date

Description

Issued by

1.0

2021-06-18

Initial version

Linson

Model No.

Type

Frequeny

Interface

Gain

dBi

Length

Feeder

Features

TX868-XP-100

Sucker

antenna

868M

SMA-J

3.5

290

100cm

Sucker antenna, high gain

TX868-JK-20

Rubber

antenna

868M

SMA-J

200

Fixed bending, omnidirectional

antenna

TX868-JZ-5

Rubber

antenna

868M

SMA-J

Ultra-short and straight,

omnidirectional antenna

TX915-XP-100

Sucker

antenna

915M

SMA-J

3.5

250

100cm

Sucker antenna, high gai

TX915-JK-20

Rubber

antenna

915M

SMA-J

210

Fixed bending, omnidirectional

antenna

TX915-JK-11

Rubber

antenna

915M

SMA-J

2.5

110

Fixed bending, omnidirectional

antenna

TX915-JZ-5

Rubber

antenna

915M

SMA-J

Ultra-short and straight,

omnidirectional antenna

Autres manuels pour E07-900M10S

Table des matières

Autres manuels Ebyte Module sans fil

Ebyte

Ebyte E19 Series Manuel utilisateur

Ebyte

Ebyte E07-400M10S Manuel utilisateur

Ebyte

Ebyte ESP32-S3-WROOM-1 Manuel utilisateur

Ebyte

Ebyte E220-900T30S Manuel utilisateur

Ebyte

Ebyte E19 Series Manuel utilisateur

Ebyte

Ebyte E70-400M14S1B Manuel utilisateur

Ebyte

Ebyte E31-433T17D1B Manuel utilisateur

Ebyte

Ebyte E28-2G4M12 Series Manuel utilisateur

Ebyte

Ebyte E32 Series Manuel utilisateur

Ebyte

Ebyte E220-230T30D Manuel utilisateur

Ebyte

Ebyte E01-2G4M27D Manuel utilisateur

Ebyte

Ebyte E22-400M30S Manuel utilisateur

Ebyte

Ebyte E49-400T30D Manuel utilisateur

Ebyte

Ebyte E32-433T33D Manuel utilisateur

Ebyte

Ebyte E22-230TXXS Manuel utilisateur

Ebyte

Ebyte E01-2G4M20S1B Manuel utilisateur

Ebyte

Ebyte E28-2G4M12S Manuel utilisateur

Ebyte

Ebyte E32-900T30D Manuel utilisateur

Ebyte

Ebyte E22-400T22DC Manuel utilisateur

Ebyte

Ebyte E180-Z5812SP Manuel utilisateur

Ebyte

Ebyte E73-2G4M04S1F Manuel utilisateur

Ebyte

Ebyte E70-433T Series Manuel utilisateur

Ebyte

Ebyte E70-433NW3S0 Manuel utilisateur

Ebyte

Ebyte E73-2G4M08S1CX Manuel utilisateur

Manuels Module sans fil populaires d'autres marques

Laird

Laird RM024 Manuel utilisateur

Laird

Laird BT830-SA Guide de configuration rapide

Fibocom

Fibocom FM101-NA-20 Instructions d'installation

Waldmann

Waldmann EnOcean TALK MODUL G2 Manuel utilisateur

Smartech

Smartech LBT-1.DO4 Manuel utilisateur

Cooper Wiring Devices

Cooper Wiring Devices ESPIRE RF RFAPM Manuel utilisateur

Yuga

Yuga CLM920 Manuel utilisateur

Waldmann

Waldmann TALK Bluetooth Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions UC864-G Manuel d'installation

Quectel

Quectel SC690A Series Supplément

Panasonic

Panasonic INDUSTRY PAN9028 Guide de configuration rapide

LongSung Technology

LongSung Technology U9507E Manuel utilisateur

Wistron NeWeb

Wistron NeWeb DNUR-S2 Manuel utilisateur

RF-Star

RF-Star SimpleLink RF-BM-2652P1 CC2652P Manuel utilisateur

CHIEF

CHIEF AVMW Manuel utilisateur

Huawei

Huawei EM701 Manuel utilisateur

SIYI

SIYI FTM30 Manuel utilisateur

RF-Star

RF-Star RF-BM-4055B1L Mode d’emploi
