H3C WA4320H-ACN Access Point

Installation Guide

Hangzhou H3C Technologies Co., Ltd.

http://www.h3c.com

Document version: 6W100-20150626

No part of this manual may be reproduced or transmitted in any form or by any means without prior

written consent of Hangzhou H3C Technologies Co., Ltd.

Trademarks

H3C, , H3CS, H3CIE, H3CNE, Aolynk, , H

Care, , IRF, NetPilot, Netflow,

SecEngine, SecPath, SecCenter, SecBlade, Comware, ITCMM and HUASAN are trademarks of

Hangzhou H3C Technologies Co., Ltd.

All other trademarks that may be mentioned in this manual are the property of their respective owners

Notice

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute the warranty of any kind, express or implied.

Environmental protection

This product has been designed to comply with the environmental protection requirements. The storage,

use, and disposal of this product must meet the applicable national laws and regulations.

Preface

The

H3C WA4320H-ACN Access Points Installation Guide

guides you through the installation of your AP.

It covers product overview, preparing for installation, installing the AP, logging in to the AP, and LEDs and

ports.

This preface includes the following topics about the documentation:

•Audience.

•Conventions.

•Obtaining documentation.

•Technical support.

•Documentation feedback.

Audience

This documentation is intended for:

•Network planners.

•Field technical support and servicing engineers.

•Network administrators working with the WA4320H-ACN

APs.

Conventions

This section describes the conventions used in the documentation.

Command conventions

Convention Descri

tion

Boldface Bold text represents commands and keywords that you enter literally as shown.

Italic

text represents arguments that you replace with actual values.

[ ] Square brackets enclose syntax choices (keywords or arguments) that are optional.

{ x | y | ... }

Braces enclose a set of required syntax choices separated by vertical bars, from which

you select one.

[ x | y | ... ]

Square brackets enclose a set of optional syntax choices separated by vertical bars, from

which you select one or none.

{ x | y | ... } *

Asterisk marked braces enclose a set of required syntax choices separated by vertical

bars, from which you select at least one.

[ x | y | ... ] *

Asterisk marked square brackets enclose optional syntax choices separated by vertical

bars, from which you select one choice, multiple choices, or none.

&<1-n>

The argument or keyword and argument combination before the ampersand (&) sign can

be entered 1 to n times.

# A line that starts with a pound (#) sign is comments.

GUI conventions

Convention Descri

tion

Boldface

Window names, button names, field names, and menu items are in Boldface. For

example, the New User window appears; click OK.

> Multi-level menus are separated by angle brackets. For example, File > Create > Folder.

Symbols

Convention Descri

tion

WARNING

An alert that calls attention to important information that if not understood or followed can

result in personal injury.

CAUTION

An alert that calls attention to important information that if not understood or followed can

result in data loss, data corruption, or damage to hardware or software.

IMPORTANT An alert that calls attention to essential information.

NOTE An alert that contains additional or supplementary information.

TIP An alert that provides helpful information.

Network topology icons

Represents a generic network device, such as a router, switch, or firewall.

Represents a routing-capable device, such as a router or Layer 3 switch.

Represents a generic switch, such as a Layer 2 or Layer 3 switch, or a router that supports

Layer 2 forwarding and other Layer 2 features.

Represents an access controller, a unified wired-WLAN module, or the access controller

engine on a unified wired-WLAN switch.

Represents an access point.

Represents a mesh access point.

Represents omnidirectional signals.

Represents directional signals.

Represents a security product, such as a firewall, UTM, multiservice security gateway, or

load balancing device.

Represents a security card, such as a firewall, load balancing, NetStream, SSL VPN, IPS,

or ACG card.

Port numbering in examples

The port numbers in the documentation are for illustration only and might be unavailable on your device.

Obtaining documentation

Access the most up-to-date H3C product documentation on the World Wide Web

at http://www.h3c.com.

Click the following links to obtain different categories of product documentation:

[Technical Documents]—Provides hardware installation, software upgrading, and software feature

configuration and maintenance documentation.

[Products & Solutions]—Provides information about products and technologies, as well as solutions.

[Software Download]—Provides the documentation released with the software version.

Technical support

servic[email protected]

http://www.h3c.com

Documentation feedback

You can e-mail your comments about product documentation to info@h3c.com.

We appreciate your comments.

i
Contents
Product overview ·························································································································································· 1
Preparing for installation ············································································································································· 2
Safety recommendations ········································································································

Product overview

A n H 3 C WA 432 0 H - AC N A P c a n a c t a s a f i t A P t o c o o p e ra t e w i t h w i re l e s s s wi t c h es o r a c c e s s c o n t ro l l e r s

to provide wireless access for WLAN users. The network settings are configured on the wireless switches

or access controllers. The H3C WA4320H-ACN can also act as a fat AP to provide wireless access for

WLAN users.

Table 1 H3C WA4320H-ACN specifications

Item S

ecification

Protocol IEEE 802.11a/b/g/n/ac

Radio interfaces Two

Built-in antennas

•2.4 G antenna: gain 2 dBi

•5 G antenna: gain 2 dBi

Power consumption 10 W

Dimensions (H × W × D) 150 × 86 × 35 mm (5.91 × 3.39 × 1.38 in)

Weight 240 g (8.47 oz)

Preparing for installation

Safety recommendations

ARNING!

Only qualified personnel can install and remove the AP and its accessories. You must read all safety

instructions supplied with the AP before installation and operation.

To avoid possible bodily injury and equipment damage, read the following safety recommendations

One M2.9 × 4 anti-theft screw

MAC address label

Installation tools and equipment

When installing the AP, you may need the following tools. Prepare these tools and equipment yourself.

Wire-stripping pliers Phillips screwdriver Torx screwdriver Crimping pliers

Installing the AP

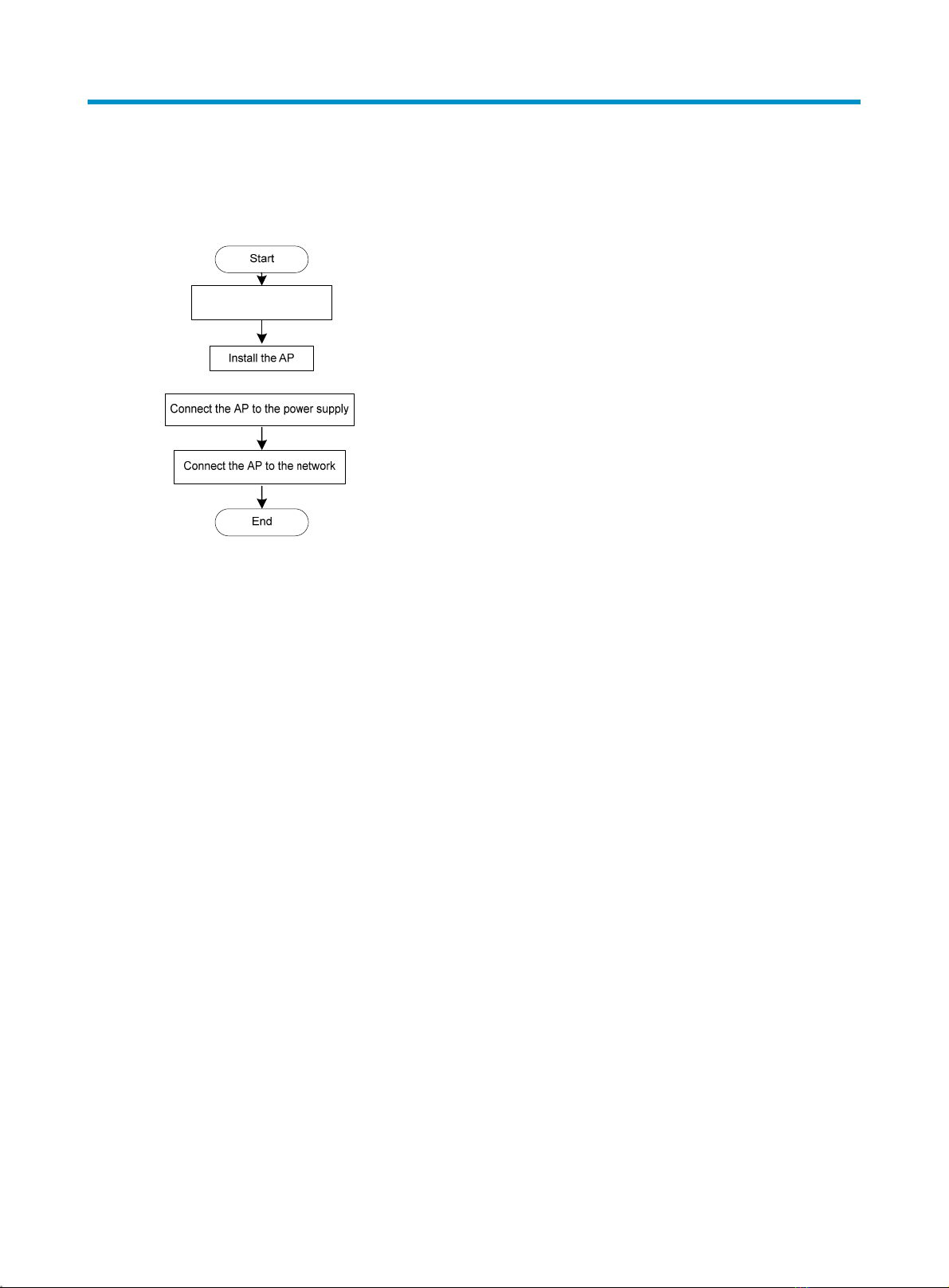

Figure 1 Installation flowchart

Check before installation

Before installing an AP, perform the following tasks:

•Connect the AP to the power supply and the network. Examine the LEDs to verify that the AP can

operate correctly. For more information about AP LEDs, see “Appendix LEDs and ports.”

•Verify that cabling on the installation site has been completed.

•To ensure the PoE performance, H3C recommends that you use GE interfaces for PoE power supply.

•Record the AP MAC address and serial number marked on the rear of the AP for future use.

Installing the AP

1. Use the M3.5 × 25 screws to secure the wall-mounting bracket to the terminal box.
