H3C WX2560H Access Controller Installation Quick Start-6W104

H3C WX2560H无线控制器快速安装指南-6W104

Introduction to installation accessories 安装附件介绍

Cage nut

(user supplied)

浮动螺母(用户自备)

Grounding cable

(required)

接地线缆(标配)

Mounting bracket

(required)

挂耳(标配)

M6 screw

(required)

M6 螺钉(标配)

Rubber feet

(required)

脚垫贴（标配）

Console cable

(required)

配置电缆（标配）

M4 countersunk-head screw

(required)

M4沉头螺钉(标配)

Mounting the access controller on a workbench

安装设备到工作台

Make sure the workbench is stable and reliably grounded.

Do not place heavy objects on the access controller. Attach

the rubber feet to the four round holes in the chassis bottom.

Place the access controller on the workbench.

保证工作台的平稳与良好接地，并且不要在设备上放置重物。

粘贴脚垫贴到设备底部，将带脚垫贴的设备平放到工作台上。

Wear an ESD wrist strap, and make sure the wrist strap makes good skin contact and is

reliably grounded.

操作者需佩戴防静电腕带，确保防静电腕带与皮肤良好接触，并确认防静电腕带已经良

好接地。

Power cord clasp

(required)

电源卡勾(标配)

The installation tools are not provided with the access controller. Prepare them yourself.

设备不随机提供安装工具，请用户根据实际安装需求自己准备安装工具。

Heat gun

热风枪

Tool list 工具参考

Flathead screwdriver

一字螺丝刀 Phillips screwdriver

十字螺丝刀 Needle-nose pliers

尖嘴钳 Wire-stripping pliers

剥线钳

Diagonal pliers

斜口钳 Marker

记号笔 ESD wrist strap

防静电腕带

Make sure the air inlet and outlet vents are not blocked and the installation site has a good

ventilation system.

请确保设备的进、出风孔不被遮挡，并将设备安装在具有良好通风散热系统的环境中。

Airflow of the access controller 设备的风向设计

Left-to-right airflow.

设备采用左进右出的风道设计。

Mounting the access controller in a rack 安装设备到机柜

Attach the mounting brackets to the access controller.

安装挂耳到设备。

Install cage nuts.

安装浮动螺母。

Connecting the grounding cable 连接保护地线

Mount the access controller in the rack.

安装设备到机柜。

Correctly connecting the grounding cable is crucial to lightning protection and EMI

protection. To guarantee the grounding effect, use the grounding cable provided with

the access controller.

设备地线的正确连接是设备防雷、防干扰的重要保障，请使用设备随机提供的保护地线

正确接地。

Ring terminal

接地端子

Heat shrink tube

热缩套管

5mm

Grounding cable

地线

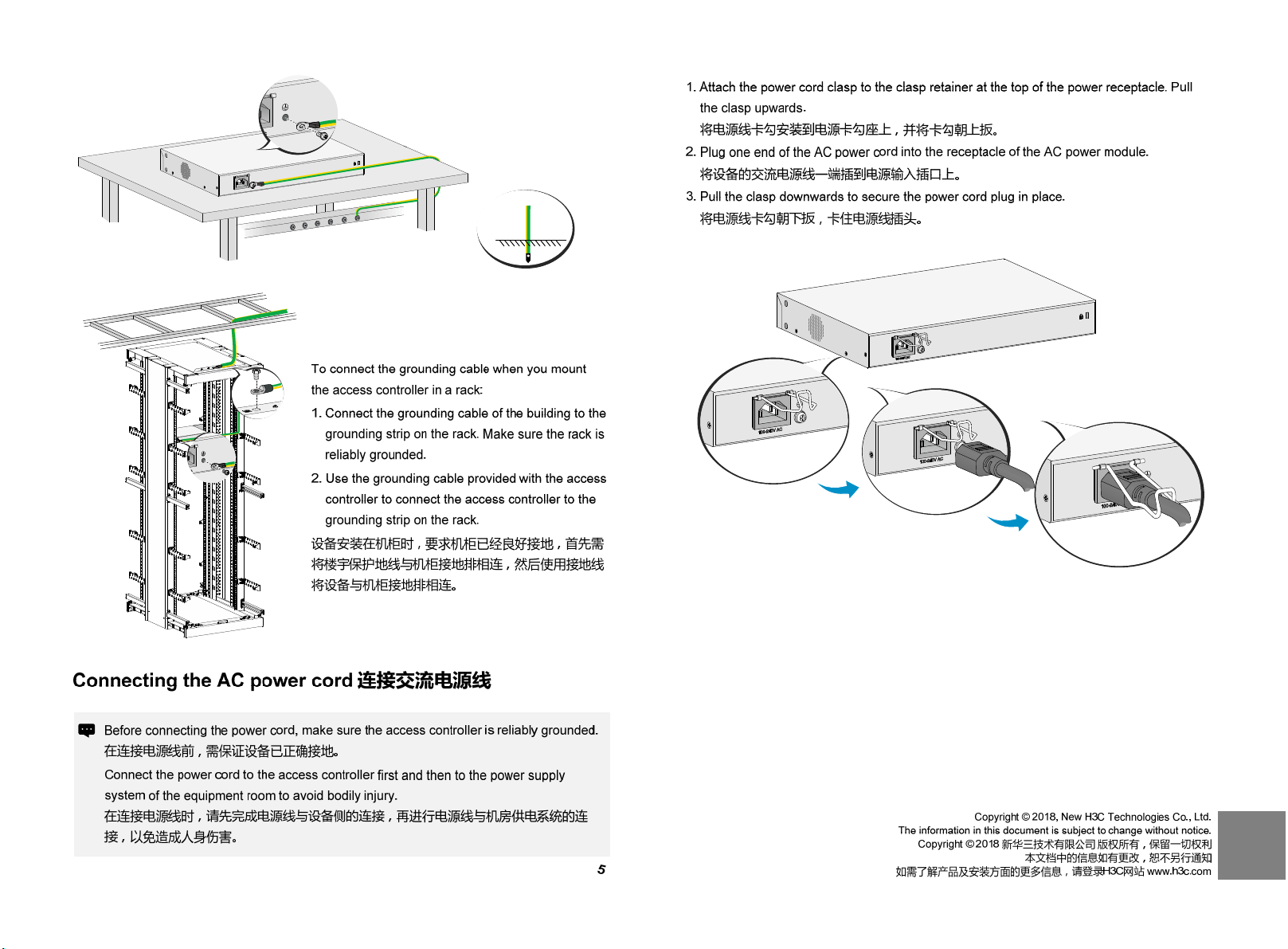

To connect the grounding cable when you mount the access controller on a workbench:

1. Connect one end of the grounding cable to the access controller and secure it with the

grounding screw provided with the access controller.

2. Connect the other end of the grounding cable to the grounding equipment in the building. If

the installation site does not have grounding equipment but earth ground is available,

ground the access controller by burying a grounding conductor in the earth ground.

设备安装在工作台时，应将接地线一端与设备相连，并使用随机提供的接地螺钉固定，接地线

另一端与楼宇接地装置相连。如果安装环境中不具备专用的接地线连接装置也可以采用埋设接

地体的方式将设备妥善接地。
