H-KING Nino Manuel utilisateur

INSTRUCTION MANUAL

Packing list:

1: EPP Nino fuselage *1

2: Carbon tube 4*4*750mm *1

3: Carbon strip 1mm *5

4: Carbon rod 2mm *2

5: Pull rod *4

6: Motor mount *1

7: Quick rod adjuster *4

8: Hinge *4

9: Hook and loop tape *1

10: Wood strips *3

Tools:

1: 1.5mm allen wrench

2: Phillips screwdriver

3: Modelling knife

4: Wire cutters

5: Hot melt glue gun and glue sticks

6: Foam Glue

7: No.502 glue

8: Y cord *1

9: Servo extension cord *1

Electronic equipment:

Motor： 2208-2212-2216 1400KV-2600KV *1

Prop： 5-8 inch *1

ESC： 20-40A *1

Servo： 8/9g *4

Battery： 1300-2200mah 3S *1

Indoor Flying electronic equipment:

Motor： 2205-2206 1400KV-1700KV *1

Prop： 7-8 inch *1

ESC： 10-12A *1

Servo： 4.5/4.7g *4

Battery： 350-500mah 2S/3S *1

Install the carbon tube on fuselage using foam glue.

Install the carbon strip on fuselage using foam glue.

Install 3 pcs different length carbon strips on upper

half vertical fuselage using foam glue.

Important: don’t install bottom half vertical fuselage!

Assemble the vertical fuselage on horizontal fuselage

using hot glue sticks or foam glue or No.502 glue(for

indoor flying), make sure the motor mount location

must be flat!

Install carbon strip and wood strip on horizontal tail

using foam glue. Then wait glue dried.

Glue the 2 pcs horizontal fuselages using hot glue sticks.

Wait glue dried. Then put plane on horizontal desk as

shown picture above.

Install the 3 pcs carbon strips on bottom half vertical

fuselage and assemble bottom half vertical fuselage

on horizontal fuselage using foam glue.

Must check whole fuselage to ensure orthogonality

before glue dry.

Reinforce all carbon strips using No.502 glue after

check. Especially for cross parts.

Then reinforce cross part of fuselage using hot glue

sticks with l-square.

Ensure fuselage orthogonality before glue dried.

Make sure both side unification.

Install servo into the hole on wing using hot glue sticks.

Install arm on servo and electrify all servos to make

sure the arm perpendicular to servo. Then assemble

Quick rod adjuster and install it on arm, apply a little

No.502 on the nuts.

Install hinge into the hole on aileron with No.502 glue.

Install the 2 pcs 2mm carbon rod using No.502 glue

as shown picture above. Make sure the carbon rod

touch the 2pcs carbon strips.

Install pull rod on servo and hinge and adjust the

rod’s length. Then tighten the screws.

Same way to install hinge. Install wood strip in the hole using No.502 glue or hot

glue sticks. Notice must let pull rod through the

second hole on wood strip.

Install pull rod on servo and hinge and adjust the

rod’s length. Then tighten the screws.

Same way to the install rudder’s hinge and pull rod.

Don’t forgot wood strip.

Same way to install fuselage’s servos. Let the 2

servo’s wires in same side.

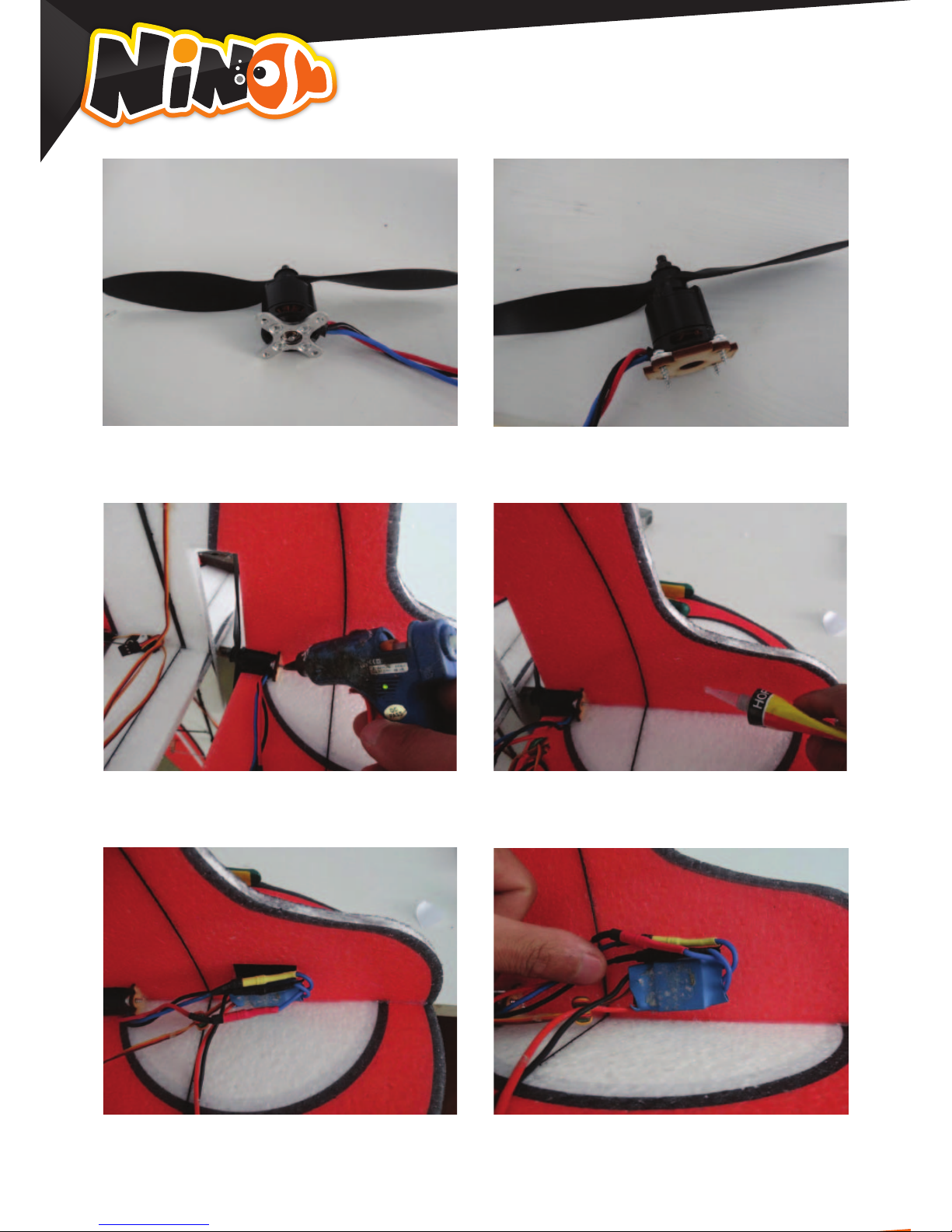

Assemble motor on the metal cross using screws.

Assemble prop on motor. Notice the prop’s direction.

Then assemble motor mount on fuselage using hot

glue sticks.

Put on hook and loop tape on fuselage using foam glue.

Then install ESC .

Install motor mount on metal cross with 4 pcs

m3 screws.

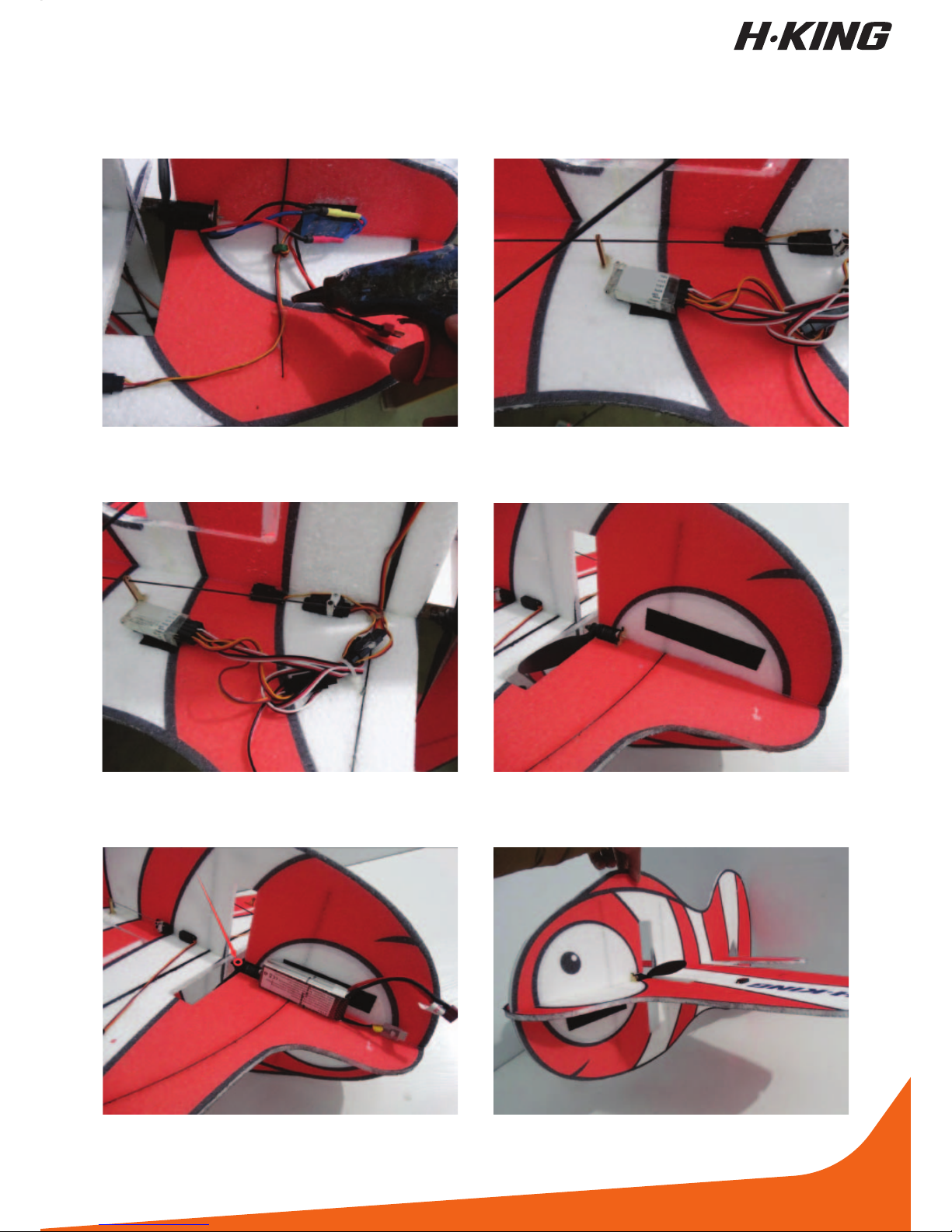

Glue the cord on carbon strip using hot glue sticks.

Then connect ESC with extension cord.

Tie all wires up with cable ties Put on hook and loop tape on fuselage using foam

glue behind ESC. Then install battery.

C of G is on the middle of prop as shown in the

picture above.

EPP Nino looks very Cute and funny when flying, it

will take you a new flying feeling.

Same way to install receiver near wood strip.

EPP Nino looks very Cute and funny when flying, it

will take you a new flying feeling.
