H-KING FW190 Manuel utilisateur

INSTRUCTION MANUAL

Packing list:

1: PP FW190 fuselage *1

2: Carbon tube 5*5*940mm *1

3: Pull rod *4

4: Motor mount *1

5: Quick rod adjuster *4

6: Hinge *4

7: M3 screws *4

8: Hook and loop tape *1

9: Wood strip *4

10: Carbon strip *4

11: Landing gear *2

12: PP sheets *2

Tools:

1: 1.5mm allen wrench

2: Phillips screwdriver

3: Modelling knife

4: Wire cutters

5: Hot melt glue gun and glue sticks

6: Foam Glue

7: No.502 glue

Electronic equipment:

Motor：2208-2212-2216 1400kv *1

Prop：8 inch *1

ESC：20-40A *1

Servo：8/9g *4

Battery：1300-2200mah 3S *1

Press it after assembly.

Press it after assembly. Install the carbon tube into the wing.

Important: don’t glue the carbon tube now!

Assemble the 3 pcs top fuselages using foam glue.

Assemble the 3 pcs bottom fuselages using foam

glue.

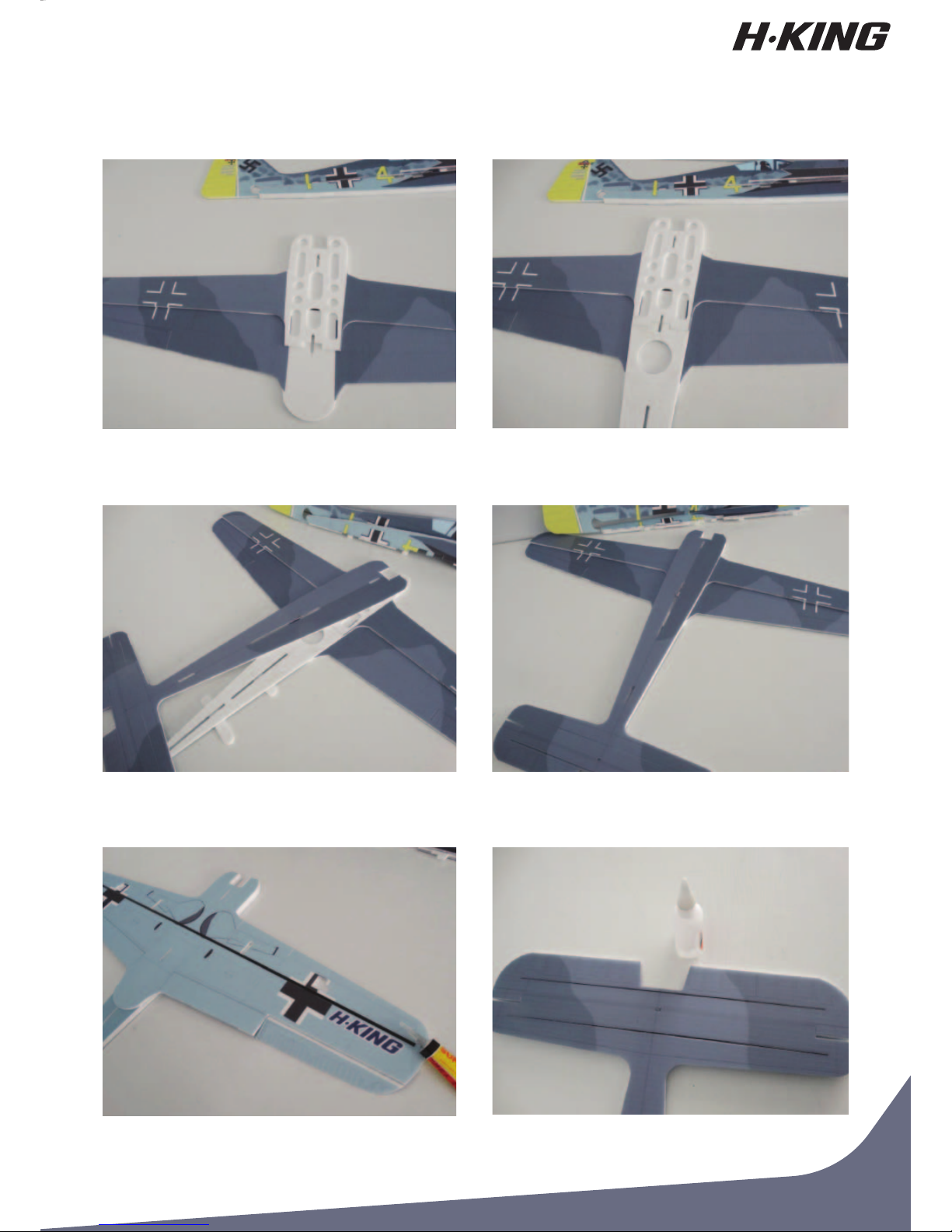

Assemble the 2 pcs wings using foam glue.

Make sure 2 pcs wings trim.

Assemble the mid horizontal fuselage on wings using

foam glue. Make sure all parts trim.

Assemble the bottom horizontal fuselage on wings

using foam glue.

Make sure all parts trim. Especially the hole.

Turn over fuselage after assembly, Reinforce wing

and horizontal tail using foam glue. Then glue the

carbon tube using foam glue or No.502 glue.

Install the 2 pcs carbon strip into the horizontal tail

and glue them using No.502 glue.

Install the carbon strip into the vertical tail and glue it

using No.502 glue.

Install motor mount on fuselage after assembly using

foam glue.

Press the carbon strip into the horizontal fuselage’s

hole first.

Applying foam glue on top vertical fuselage and

horizontal fuselage.

Wait glue dried. Then assemble bottom fuselage into

the horizontal fuselage using foam glue.

Then press the top vertical fuselage into horizontal

fuselage.

Reinforce all bonding parts using hot glue sticks.

Especially for weakness point as shown picture

above.

Assemble 2 pcs PP sheets on wing using hot glue

sticks. Make sure the hole trim.

Install the landing gear on the PP sheets using hot

glue sticks as shown picture above.

Glue the vertical tail using hot glue sticks.

Install the shortest carbon strip into the hole using

No.502 glue.

Assemble the metal cross with motor on the wood

motor mount using the 4 pcs M3 screws.

Assemble Quick rod adjuster and install it in hinge,

apply a little No.502 to the nuts.

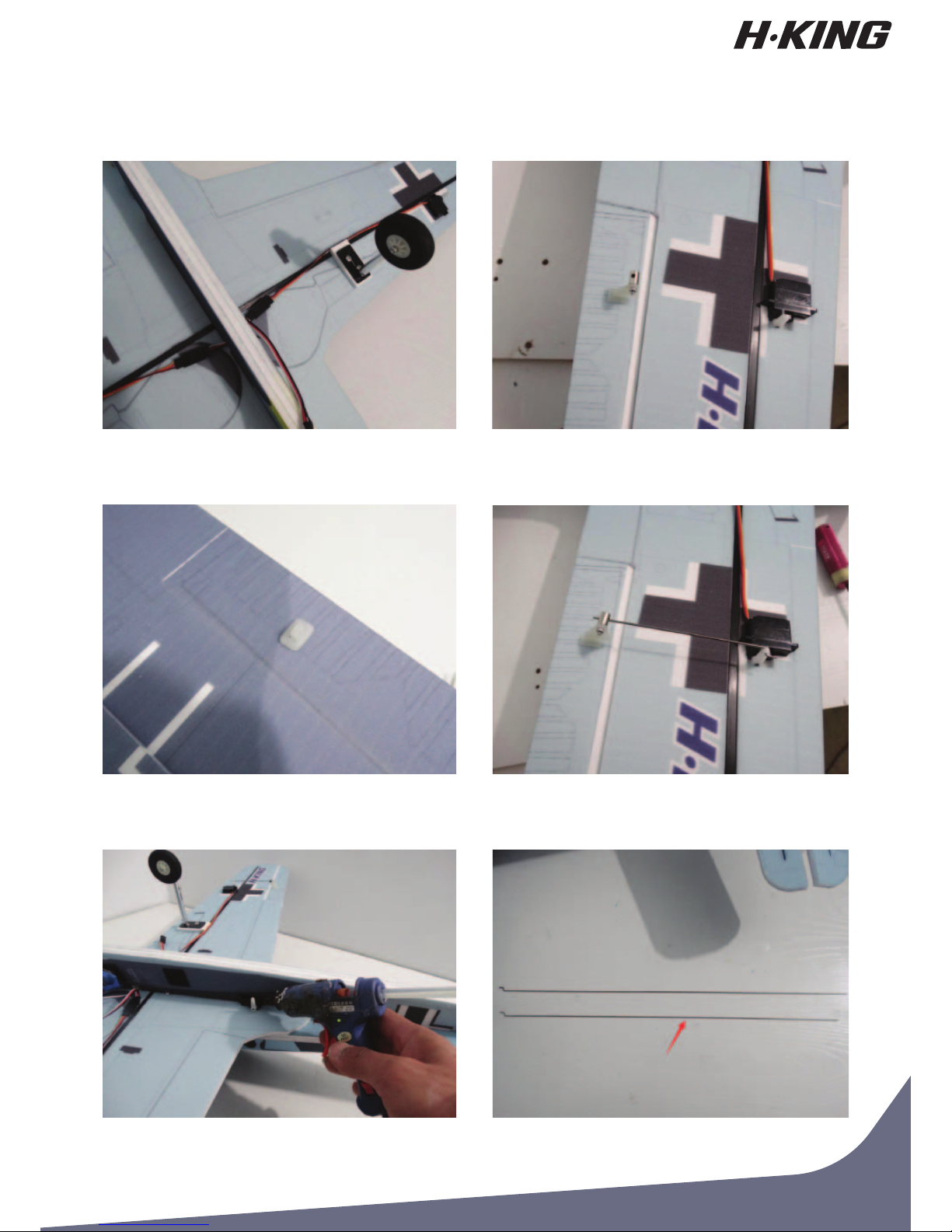

Install arm on servo and electrify all servos to make

sure the arm perpendicular to servo. Then install arm

screws.

Applying glue into the servo’s hole on the wing using

hot glue sticks. Then put servo into the hole.

Assemble motor on the metal cross using screws.

Glue the servo’s wire on wing using hot glue sticks

and use Y cord connect the 2 servos on wing.

Don’t forget block the hinge with cover and apply glue

to reinforce.

Install the 2 pcs shorter rods into arm and Quick rod

adjuster. Then adjust the pull rod and tighten the

screws.

Same way to install the front fuselage’s servo. Use the shorter pull rod for the front fuselage’s servo.

Install hinge into the hole on wing using foam glue.

Install wood strip in the hole using No.502 glue or hot

glue sticks. Notice must let pull rod through the hole

on wood strip.

Same way to install the middle fuselage’s servo.

Install hinge into the hole on vertical tail using foam

glue. Don’t forget block the hinge with cover and

apply glue to reinforce.

Also need install 2 pcs wood strips using No.502 or

hot glue sticks. Notice must let pull rod through the

hole on wood strip.

Glue the servo’s wire on wing using hot glue sticks. Connect servo, ESC with receiver. Glue hook and

loop tape on fuselage using foam glue. Then put

receiver on tape.
