Rack Adapter Panel
GRA-451
Assembly Manual
GW INSTEK PART NO. 82RA-45100MA1
This assembly manual contains proprietary information, which is protected by copyrights. All rights are
reserved. No part of this manual may be photocopied, reproduced or translated to another language
without prior written consent of Good Will company.
The information in this manual was correct at the time of printing. However, Good Will continues to
improve products and reserves the rights to change specification, equipment, and maintenance
procedures at any time without notice.
Good Will Instrument Co., Ltd.
No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan.
ISO-9001 CERTIFIED MANUFACTURER
GRA-451 Assembly Manual
GRA-451
The GRA-451 rack mount is suited for the ASR-6000 AC/DC Power Supplies.
The GRA-451 supports both the EIA and JIS standards for use with standard
sized rack units.
Rack Mount Adapter Component List and Assembly
Description
Please check to make sure all the components of the
GRA-451 rack mount kit are provided. The JIS and EIA rack
mounts have slightly different component sets.

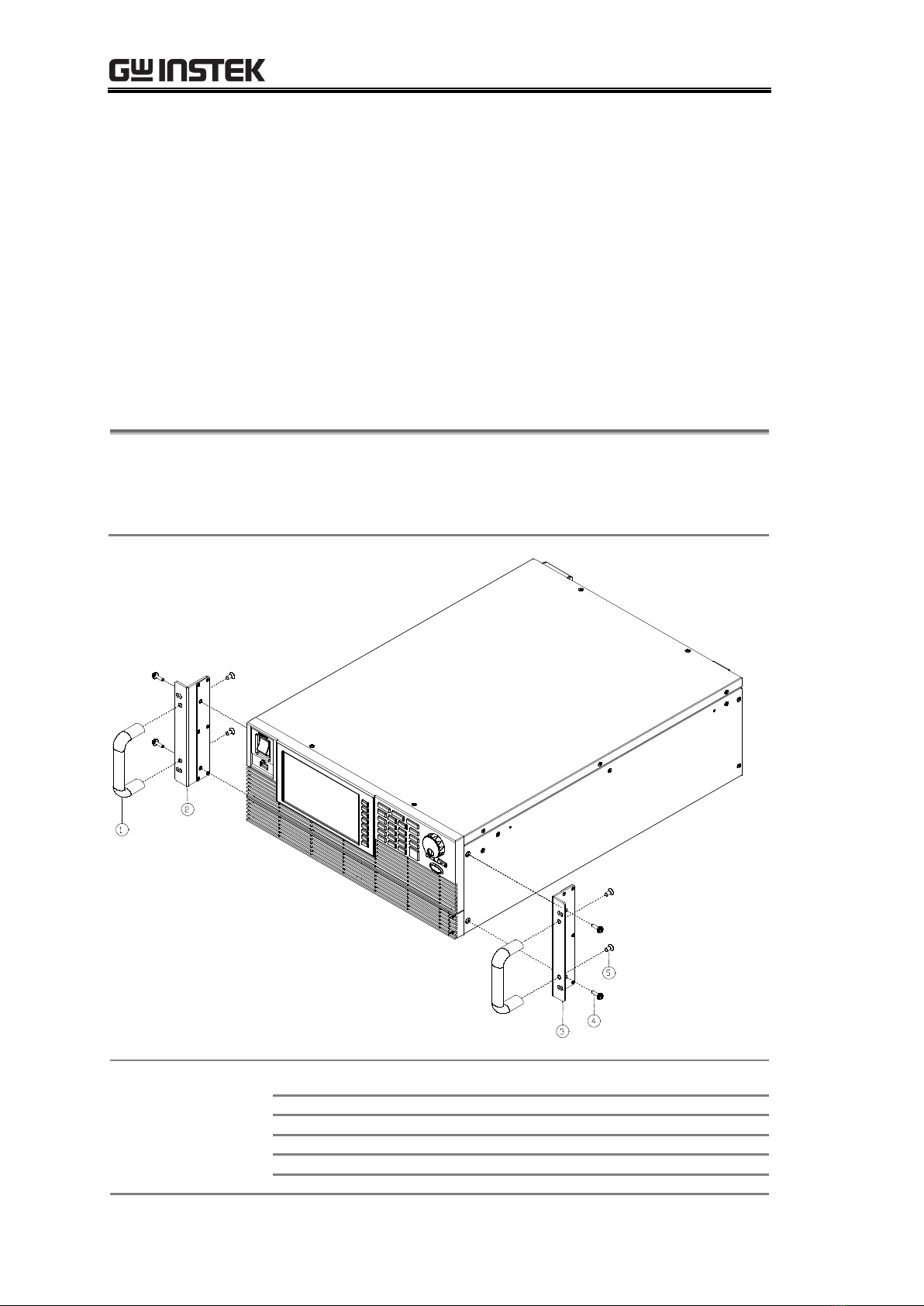

GRA-451-EIA
Assembly
Item
Part NO.
Description
QTY
1
62EL-200HD101
HANDLE
2
2
62RA-451HP201
E RIGHT BRACKET
1
3
62RA-451HP101
E LEFT BRACKET
1
4
593B-06010NS1
FMS-6*10
4
5
594B-W4012NS1
BMS-W-4*12
4
GRA-451 Assembly Manual
3

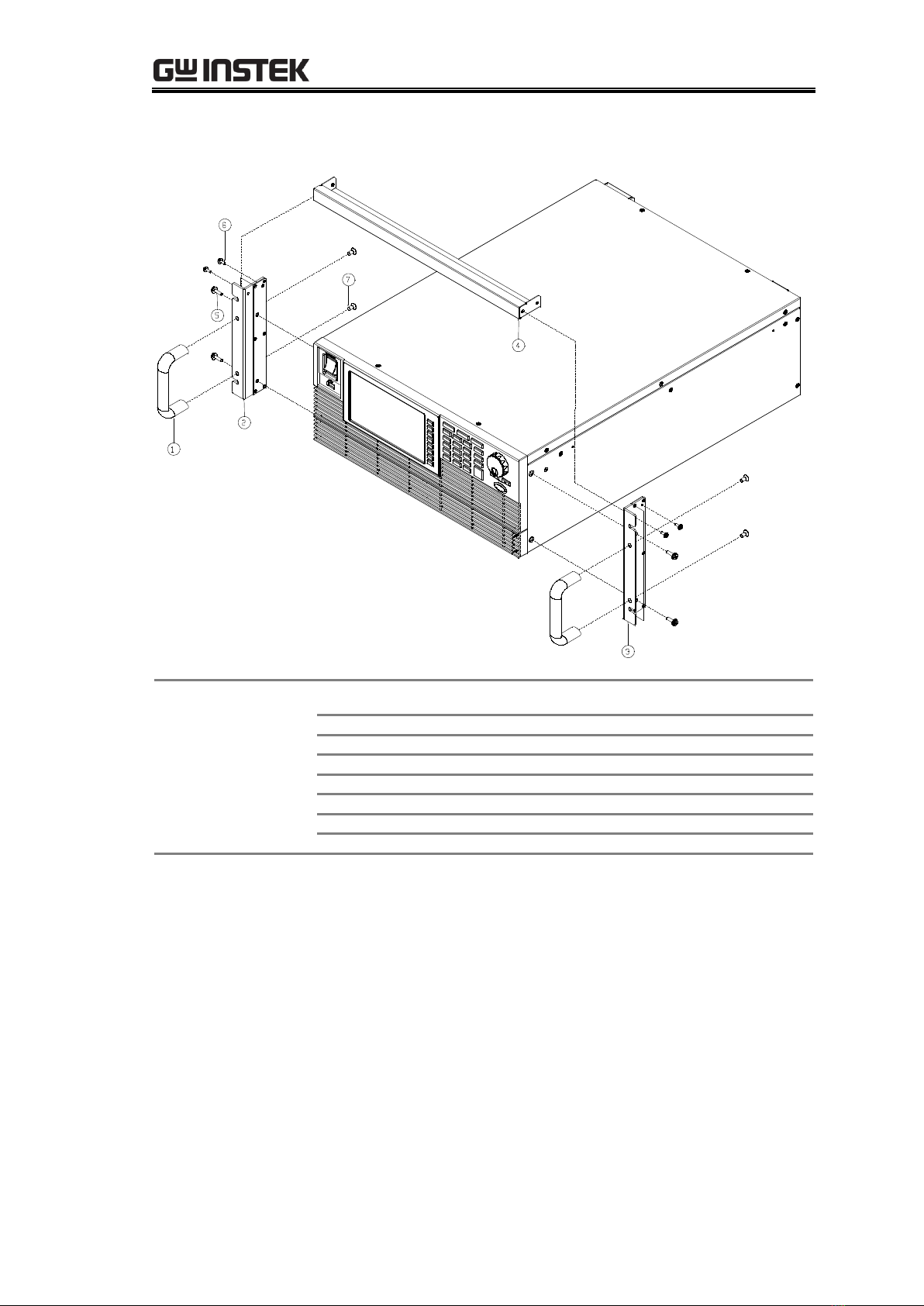

GRA-451-JIS
Assembly
Item
Part NO.
Description
QTY
1
62EL-200HD101
HANDLE
2
2
62RA-451HP401
J RIGHT BRACKET
1
3
62RA-451HP301
J LEFT BRACKET
1
4
62RA-442HP501
J MIDDLE BRACKET
1
5
594B-W4012NS1
BMS-W-4*12
4
6
594B-W3008NS1
BMS-W-3*8
4
7
593B-06010NS1
FMS-6*10
4
GRA-451 Assembly Manual
4
Assembly
Initial setup
1. Remove the parts described below from the underside of
the power supply units.
Foot * 6
M4*10 screw * 6
Installation
process
1. Attach the left and right brackets to both sides of power
supply units.
2. Fasten the left and right brackets with power supply units
by fixing the four screws (BMS-W-4*12).
3. Attach the middle bracket to the top of power supply
units. (JIS model only)
4. Fasten the left and right brackets with the middle bracket
by fixing the four screws (BMS-W-3*8). (JIS model only)
5. Attach the two handlers to the left and right brackets.
6. Fasten the two handlers onto the left and right brackets by
fixing the four screws (FMS 6*6).
GRA-451 Assembly Manual
5

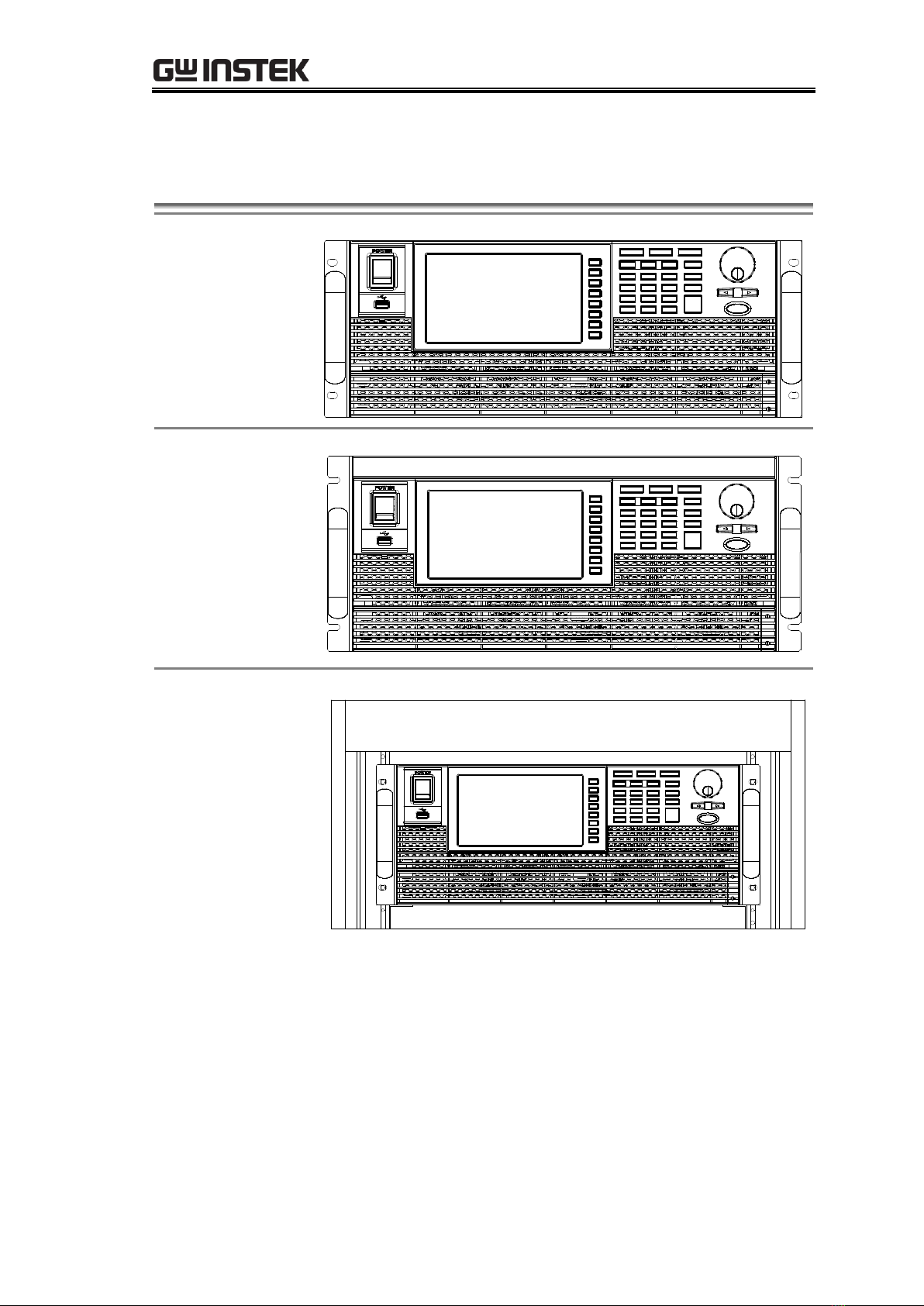

Specification
Rack installation
Diagram (EIA)
Rack installation
Diagram (JIS)
It is suggested to
utilize L-shape
angle bars to
provide support
from the bottom
of unit while
assembling the
rack mount.
