GW Instek GRA-430 Manuel utilisateur
Rack Adapter Panel
GRA-430
Assembly Manual
GW INSTEK PART NO. 82RA-43000M01
This assembly manual contains proprietary information, which is protected by copyrights. All rights are
reserved. No part of this manual may be photocopied, reproduced or translated to another language
without prior written consent of Good Will company.
The information in this manual was correct at the time of printing. However, Good Will continues to
improve products and reserves the rights to change specification, equipment, and maintenance
procedures at any time without notice.
Good Will Instrument Co., Ltd.
No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan.
ISO-9001 CERTIFIED MANUFACTURER
GRA-430 Assembly Manual
GRA-430
The GRA-430 rack mount is suited for use with the APS-7300 AC power sources.
Only one power source can be used with the GRA-430 rack adapter. The
GRA-430 will accommodate a 9U-sized rack.
Rack Mount Adapter Component List
Description
Please check to make sure all the components of the
GRA-430 rack mount kit are provided.
Item
Part NO.
Description
QTY
1
594B-W4012NS1
SCREW BMS, 4*12, ISO, N (WASHER
P.S) , RoHS
6
2
62RA-430HP101
GRA-430 9U LEFT
BRACKET ,RoHS
1
3
62RA-430HP201
GRA-430 9U RIGHT
BRACKET ,RoHS
1
GRA-430 Assembly Manual
3
Assembly
Initial setup

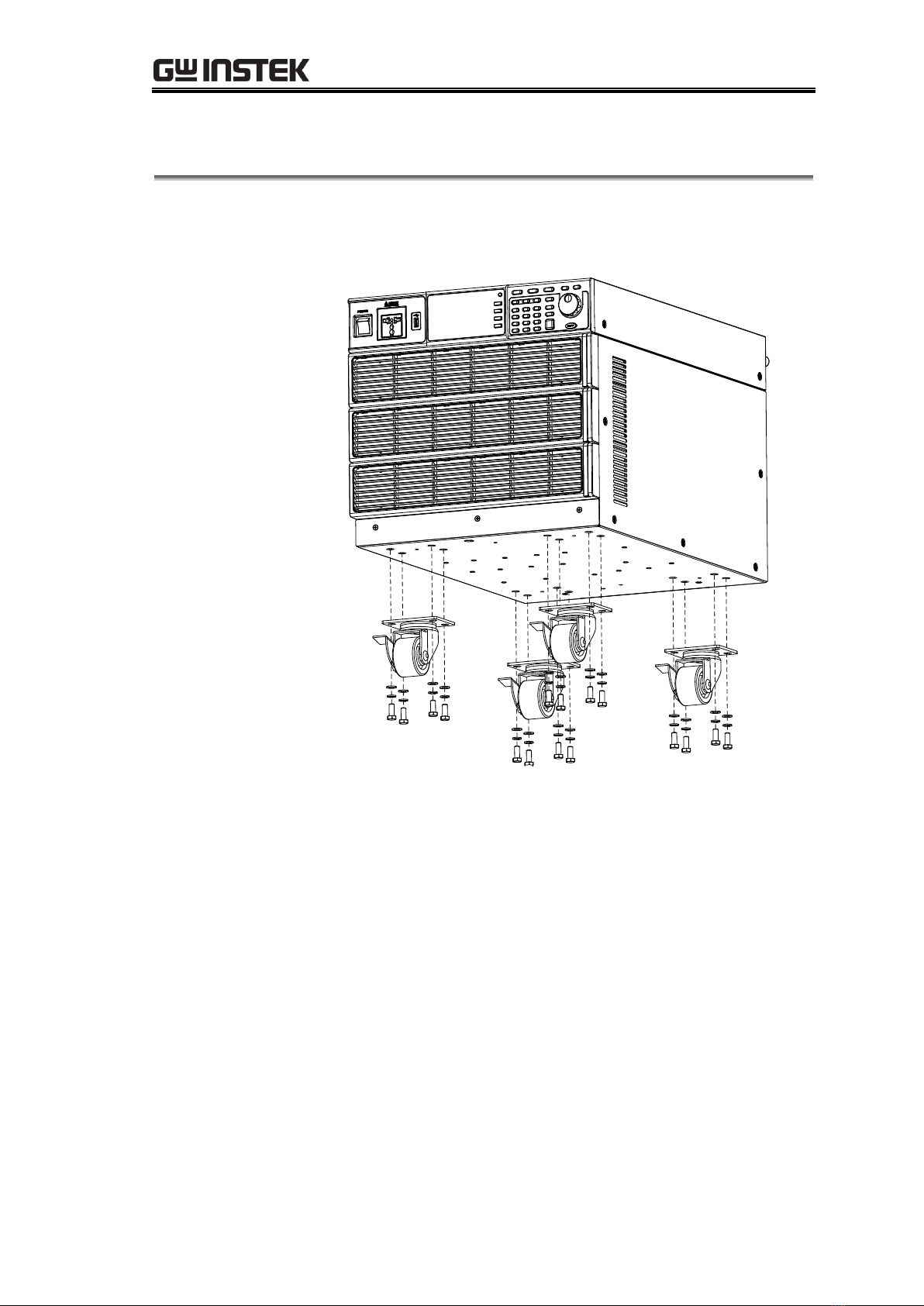

1. Remove the four wheel casters from the APS-7300 as
shown in the below diagram.
Specification
4
2. Remove the six screws located on each side panel of the
APS-7300 as shown in the below diagram.
3. Screw the left bracket (62RA-430HP101) to the left side
panels of the APS-7300 and right bracket
(62RA-430HP201) to the right side panel of the APS-7300
using the six (594B-W4012NS1) screws as shown in the
below diagram.
1
3
2
GRA-430 Assembly Manual
5
Specification
Rack Dimensions
APS-7300
