GVD M1121 Manuel utilisateur

GVD

Mobile NVR M1121

Quick Start Guide

Mobile NVR M1121 Quick Start Guide i

Contents

Contents ....................................................................... i

Preface .........................................................................ii

About this Document ......................................................... ii

Declaration of Conformity.................................................. ii

Hardware Requirements..............................................iii

Introduction.................................................................. 1

Accessories ................................................................. 2

Take a Tour .................................................................. 4

Front Panel........................................................................4

Rear Panel ........................................................................6

Side Panel .........................................................................7

Motherboard ................................................................ 8

Install Hardware..........................................................11

Open Cutout Door ........................................................... 11

Install SATA HDD/SSD ....................................................12

Install a WiFi Module .......................................................14

Install a 3G or 4G plus GPS Module (Optional) ..............17

Install a SIM Card............................................................20

Mount the Mobile NVR .............................................. 23

Wire DC-in Power Source ......................................... 25

Manage Ignition Power.............................................. 27

Wire Ignition Signal .........................................................27

Select Ignition Power Mode.............................................28

Set up Windows®...................................................... 29

Initialize HDDs........................................................... 30

Launch & Log in......................................................... 31

Use Installation Wizard.............................................. 32

Congure Network Parameters ................................. 39

Create Storage Volumes ........................................... 40

Auto-add a Camera ................................................... 41

Appendix. Install 3G/4G Device Driver & Connect Mobile

Network for the 1st Time............................................ 43

Appendix. Install WiFi Device Driver & Connect WiFi

Network for the 1st Time............................................ 46

Mobile NVR M1121 Quick Start Guide

Preface

About this Document

This document is meant for the experienced users and integrators with hardware knowledge of personal

computers. If you are not sure about the description herein, consult your vendor before further handling.

We recommend that you keep one copy of this document for the quick reference for any necessary

maintenance in the future. Thank you for choosing GVD products.

Declaration of Conformity

FCC

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant

to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications. Operation of this equipment

in a residential area is likely to cause harmful interference in which case the user will be required to correct

the interference at his own expense.

The product(s) described in this manual complies with all applicable European Union (CE) directives.

For computers systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE

compliance also requires proper cable and cabling techniques.

This document contains proprietary information protected by copyright. All rights are reserved. No part

of this document may be reproduced by any mechanical, electronic, or other means in any form without

prior written permission of the manufacturer. Company/product names mentioned herein are used

for identification purposes only and are trademarks and/or registered trademarks of their respective

companies.

Mobile NVR M1121 Quick Start Guide iii

Hardware Requirements

Recording data is one of the most important parts for video surveillance, and hard disk drives are one of

the most important components to safely store the recording data.

It is always recommended that you use the hard disk drives certified by GVD. Find the list of the GVD-

certified hard disk drives at the link below:

http://www.gvdigital.com/gvdweb/html/document/Support_Lists/Certified%20HDD%20List.pdf

NOTE:

* GVD does not guarantee the system performance if a HDD model that is not certified by GVD is used.

* GVD recommends that you always use enterprise-level SATA hard drives for GVD enterprise NVR, Failover Server, Backup Server,

Extended Storage because it supports TLER (Time Limited Error Recovery), higher MTBF, higher Duty Cycles and typically include a

sensor for rotation and vibration.

Mobile NVR M1121 Quick Start Guide

Mobile NVR M1121 Quick Start Guide 1

Introduction

Thank you for choosing GVD products. The M1121 is the light-weight

solution of GVD's brand new mobile NVR line, M1 Series. Powered by

Intel® Atom™ Bay Trail E3845 Quad-core, M1121 is a fanless NVR to

deliver appropriate CPU calculation with low power consumption. The

integrated Intel®HD Graphics that brings DirectX11 also allows the

NVRs to deliver superb video and audio.

The M1121 comes with rich data connection including 3G, 4G

and WiFi to stay constantly connected with the control center. The

intelligent power management prevents startup failure and allows

the control center to watch over the car battery usage through 3G,

4G or WiFi. Isolated DIO on the other hand keeps the mobile NVR connected with other in-vehicle devices

such as a car door sensor, and the change of DIO states can be sent to the control center.

If you opt for a GPS (plus 3G or 4G) module to go inside the mobile NVR, the control center can instantly

locate the vehicle that carries the mobile NVR on the map. Also on option is a G-sensor to measure the

vibration every couple of minutes and feed the data back to the control center. On the other hand the

mobile NVR is verified to be anti-shock and anti-vibration to guarantee more protection to the hard disk

drives onboard and ensures non-stop video recording.

Two PoE LAN ports are featured on the M1121. Each port

delivers power up to 25.5W and simultaneously transfers data

up to 1000 Mb/s over a single CAT-5e/CAT-6 cable. The highly

integrated mechanical design on the other hand allows the

M1121 to efficiently distribute the heat generated by the PoE

circuit and therefore makes the M1121 a very stable fanless

NVR with PoEs. The mechanical design is also modular to

make the NVR easy-to-install and maintain.

The simple and sturdy design makes the M1121 ideal for all

kinds of vehicles. It is your best choice for IP video surveillance

on the go.

Product Highlights

■Power over Ethernet

■Anti-shock / anti-vibration

■Rich data connections

■Intelligent power management

■Isolated DIO

Mobile NVR M1121 Quick Start Guide

Accessories

Driver CD & User's Manual

DRIVERS

User’s

Manual

Terminal Block

1 x 3-pin male terminal block for 8~35VDC output

WiFi Module Kit

SparkLAN WPER-172GN 802.11b/g/n USB Half Mini Card

■802.11b/g/n ISM Band: 2.400 ~ 2.4835GHz

■Antenna: 2 x U.FL connectors (diversity antenna), 1T1R

1 x External Antenna

■RP-SMA male body & female inner contact

A few screws to x the module

■stainless-steel round philips screws

Wall-mount Kit

■1 wall-mount bracket

■8 x rubber bumpers

■8 x M4 screws

Power Adapter

(Optional)

24V/6.67A 160W AC/DC adapter

(for +8~35VDC output)

Mobile NVR M1121 Quick Start Guide 3

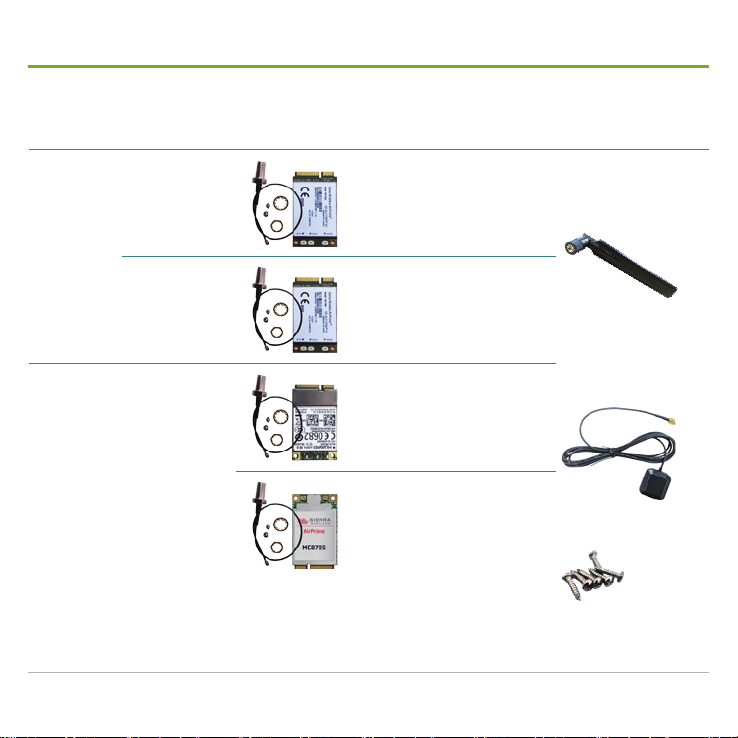

Accessories

Region Module (w/ GPS capability) & Wire External Antenna

4G+GPS

Module Kit

(Optional)

Southeast Asia,

Middle East &

partly India (1800

MHz only)

Sierra Wireless® AirPrime™

MC7304 w/ 15cm internal wire

■LTE-FDD / HSPA+ (B1, B2, B3, B5,

B7, B8, B20)

1 x 3G or 4G External

Antenna

■RP-SMA male body &

male inner contact

1 x GPS External

Antenna

■Length: 300cm

■RP-SMA male body &

male inner contact

A few screws to x the

module

■Stainless-steel round

philips screws

North America &

Latin America

Sierra Wireless® AirPrime™

MC7354 w/ 15cm internal wire

■LTE-FDD, HSPA+, GSM/GPRS/

EDGE, GSM/GPRS/EDGE, CDMA

(B1, B2, B4, B5, B8, B13, B17, B25,

BC0, BC1, BC10)

3G+GPS

Module Kit

(Optional)

All regions

HUAWEI MU609 Mini-PCIe

■HSPA+/UMTS quad-band

850/900/1900/2100 MHz

■GSM/GPRS quad-band

850/900/1800/1900 MHz

Sierra Wireless® AirPrime™

MC8705 w/ 15cm internal wire

■Operational bands: WCDMA 850,

WCDMA 900, WCDMA 1900,

WCDMA 2100

Mobile NVR M1121 Quick Start Guide

Take a Tour

Front Panel

Power

button DB-15 video

connector

USB 3.0

port

PoE ports

DC-in

power

jack

USB 2.0

ports

Reset

button

Status

LEDs

COM2 COM1

Title Description

Power button

Turns on/off the system. Hit this button to turn on the system. Hit this button again to power off the

system. Press-and-hold this button to force system shutdown.

There must be no less than 5 seconds between each power on/off.

The PWR status LED lights green when the system is powered on.

COM1 & COM2

Two serial COM ports.

Both support RS232, RS422 and RS485, user-denable at the BIOS Setup utility.

Implemented with industrial-grade ITE8783 Super IO chip (-40 to 85°C) and up to 115200 bps data

transfer rate.

See also COM1 & COM2 on page 9 for the pin denition.

DB-15 video

connector Connector for an external VGA monitor or projector.

USB 3.0 port

One USB 3.0 port that runs with xHCI (eXtensible Host Control Interface) by default and supports the

devices of USB 3.0, USB 2.0, USB 1.1 and USB 1.0.

Legacy USB is only supported when the xHCI is set to Smart Auto in the BIOS Setup utility.
