Important Safeguards

êIMPORTANT:

READ ALL INSTRUCTIONS BEFORE USE.

RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

êWARNING:

When using an electrical appliance, basic safety precautions should

always be observed, including the following, to reduce the risk of fire,

electrical shock, or injury:

aDo not use or store the unit outdoors or on wet surfaces.

aDo not leave the cleaner when plugged in. Turn off the appliance and

unplug the cord when not in use and before servicing.

aDo not use with a damaged cord or plug.

aIf the appliance is not working as it should, has been dropped, damaged,

left outdoors, or dropped in water, return it to a service centre before using.

aDo not pull or carry by cord, use cord as a handle, close door on cord, or

pull cord around sharp edges or corners. Do not run vacuum cleaner over

cord. Keep cord away from heated surfaces.

aDo not pull cord to disconnect from socket; grasp the plug and pull to

disconnect.

aTurn off the appliance before unplugging.

aDo not handle appliance with wet hands.

aNot to be used as a toy; pay close attention when used by or near children.

aUse only as described in this manual.

aDo not use without dust bag or filters in place.

aDo not use with any opening blocked; keep openings free of dust, lint, hair

and anything that may hinder the airflow.

aKeep hair, clothing, fingers, and all parts of body clear of moving parts.

aDo not pick up anything that is flammable, burning or smoking.

aUnplug electrical appliances before vacuuming them.

aUse extra care when cleaning on stairs.

aUse only with the manufacturers recommended attachments.

aThe plug must be fitted with a 13A fuse.

aRepairs should be carried out by a service agent or a suitably qualified

person in accordance with relevant safety regulations. Repairs by

unqualified persons could be dangerous.

FOR HOUSEHOLD USE ONLY

Unpacking: Part location

1. Vacuum cleaner, main unit

2. Combi-head

3. Scorpion hard floor head

4. Pet hair tool

5. On/off button

6. Cord rewind button

7. “Bag full” indicator light

8. Carry handle

9. Cover latch

10. Attachment for flexible hose

11. Exhaust filter

12. Power cord

13. Flexible hose

14. Hose End Connector

15. Upper handle

16. Crevice tool

17. Dusting brush

18. Tool clip

19. Telescopic tubes

20. Brush pedal

Getting Started

Assembly

Assembling the tubes:

aPush the tubes firmly together (by twisting slightly).

aPush the head and upper handle onto the ends of the tube.

aFit the Crevice tool and the dusting brush onto the tool clip, and snap the tool

clip onto the handle.

Connecting the flexible hose:

aPush the hose end connector of the flexible hose onto the attachment part on

the vacuum cleaner and twist to lock.

aFollow the same procedure to attach the flexible tube to the upper handle.

aTo remove the flexible hose from the vacuum cleaner, twist the hose end

connector and pull to release. Do not pull the hose itself!

Using the vacuum cleaner

Operation

On/Off

Cord rewind

How to plug in and use:

aPull out the power cord to the desired length and plug into a socket.

aTo start press the on/off button of the vacuum cleaner. To stop press button again.

aRemove the plug from the socket. Pull the plug only, not the cord.

aPress the cord rewind button to rewind the power cord.

Operation

Combi-head: The combi-head has a pedal which allows you to alter its function

according to the type of floor to be cleaned.

a Hard floor position (tiles, parquet floors...) Press on the pedal to lower the

brush. (Pedal tilted back)

a Carpet or rug position. Press on the pedal to lift the brush up.

Hard floors

Carpets or rugs

Operation

Scorpion hard floor head: The scorpion head is ideal for use on hard floors, for

example hard wood floors, tiles, linoleum, polished concrete, etc.

Pet hair tool: The pet hair tool is ideal for cleaning hair from chairs, upholstery and

carpets. The pet hair tool can be fitted onto the handle or the extension tubes for

extra reach.

Fit the scorpion head onto

the end of the tubes.

Dust and large objects are

collected in the ‘v’ shape,

with finer dust being able to

be collected down the

channels of the head.

Dust and large objects are

collected in the ‘v’ shape,

with finer dust being able to

be collected down the

channels of the head.

Operation

Crevice tool: The crevice tool can be used for vacuuming in those normally

inaccessible places like a window frame, a crevice in a wall or creases in the car

seats.

Dusting brush: The dusting brush can be used for vacuuming picture frames,

furniture outlines, books and other uneven objects. The dusting brush can fitted to

the extension tubes for extra reach.

The crevice tool

can be fitted

onto the handle

or extension

tubes for extra

reach.

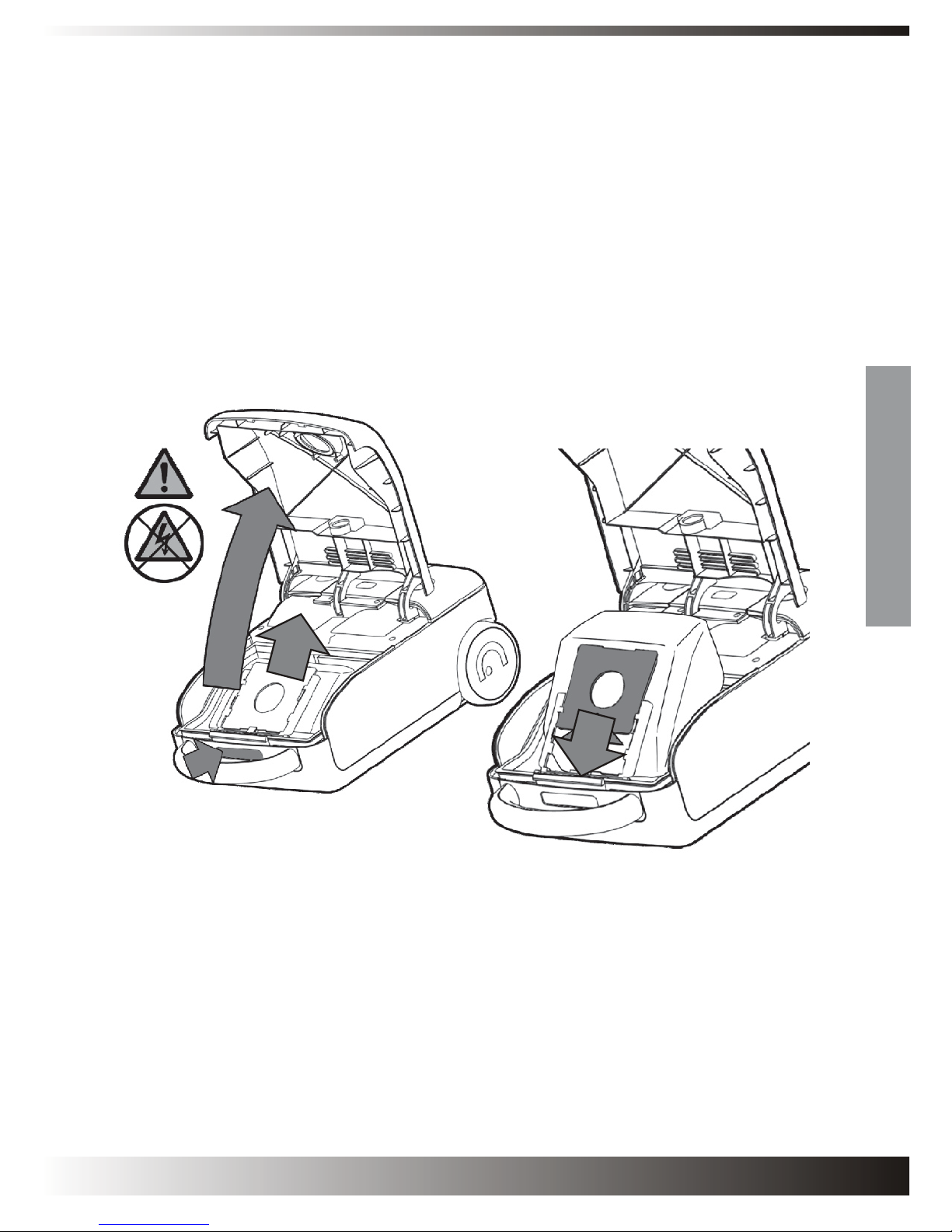

Changing the dust bag:

êTURN OFF THE APPLIANCE AND UNPLUG THE POWER CORD

FROM THE SOCKET! Pull the plug only, not the cord.

The dust bag needs changing when the ‘bag full’ indicator light illuminates. Even if

the dust bag does not appear to be full at this stage, it should be changed. It

could be that a great deal of fine dust has blocked up the pores of the dust bag.

aTurn off the appliance and unplug the power cord.

aOpen the bag cover by pushing the cover latch and lifting the cover.

aTo remove the dust bag, slide it out of the bag holder, by pulling the

cardboard of the dust bag upwards. Discard the bag.

aTo refit a new bag, push the cardboard support of a new bag fully into the

bag holder.

iSPARE DUST BAGS (part number:CY-B1) CAN BE PURCHASED FROM

GTECH CUSTOMER SERVICES:

Tel; 0870 794 4001 Email; sales@greytechnology.co.uk

www.greytechnology.co.uk

iUSE ONLY SPARE PARTS AS SUPPLIED BY THE MANUFACTURER

Operation

êThe dust bags are disposable. Once full, dispose of the bag and

replace with a new, clean bag. Do not re-use as blocked bags will

reduce the efficiency of the vacuum cleaner.

êThe cover will not close without a bag being fitted, or if bag is not

fitted correctly.

Care and maintenance

Latch

Cleaning the inlet filter: The filter needs to be cleaned regularly to ensure

optimal operation of the appliance.

êTURN OFF THE APPLIANCE AND UNPLUG THE POWER CORD!

aThis filter is situated inside the cleaner between the dust bag and the motor

aTo remove the filter, slide it upwards out of its mounts.

aThis filter is washable. After washing, make sure that the filter is

completely dry before replacing it in the appliance!

Cleaning the exhaust filter: The filter needs to be cleaned regularly to ensure

optimal operation of the appliance.

aTo remove the exhaust filter, remove the filter holder by pushing the latch on

the right of the filter holder sideways (left) towards the filter.

aRemove the exhaust filter from the filter holder.

aThis filter is washable. After washing, make sure that the filter is

completely dry before replacing it in the appliance!

Care

iSPARE FILTERS CAN BE PURCHASED FROM GTECH CUSTOMER

SERVICES:

Tel: 0870 794 4001 Email; sales@greytechnology.co.uk

www.greytechnology.co.uk

iUSE ONLY SPARE PARTS AS SUPPLIED BY THE MANUFACTURER
