ENGLISH

Detailed instruction manual

You can find the detailed

instructions at www.grundig.

de under “Service”.

2 EU directives

3 About your TV set

3 Intended use

3 Safety

4 Environmental information

5 Packing contents

6 Setting up or hanging

7 Connections

8 Control elements

9 Inserting batteries into the remote

control

9 Setting up the TV set

9 Adding new TV stations at a later

point

9 Sorting TV stations in the channel list

10 Remote control

11 Favourites lists

11 Zapping function

11 HbbTV

12 Media player

12 SMART inter@ctive TV 4.0

12 Web browser

13 Product data sheet

14 Licence

14 Cleaning the TV set

14 Abbreviations

Table of Contents

EU directives

This product complies with the

following EU directives:

2014 / 53 / EU 2014/30/EC,

2014/35/EC, 2009/125/ EC, 2010/30/

EU and 2011/65/EU.

TV’s wireless system can only be used in

the countries below.

AT, BE, BG, CH, CY, CZ, DE, DK, EE, ES, FI,

FR, GB, GR, HU, IE, IS, IT, LI, LT, LU, LV, MT,

NL, NO, PL, PT, RO, SE, SI, SK, TR.

This device can also be operated in the

countries outside Europe.

ENGLISH

About your TV set

7 With your TV set, you can receive and

watch digital TV programmes over

DVB-S, DVB-T and DVB-C, along with

analogue TV.

7 Many features of the TV set require

an Internet connection. The TV set is

equipped with WLAN and a LAN port.

You can connect various data media, for

example, an external hard drive, a USB

memory stick or a digital camera to the

USB sockets. Using the file browser, you

can then select and play the file formats

you want (for example, MP4, MP3 or

JPEG data).

Intended use

7 The TV set is designed for use in dry

rooms.

7 Use the TV set with the supplied stand or

a suitable VESA bracket.

7 The TV set is primarily intended for the

playback of TV programmes, streaming

content and audio/video material from

external devices. Any other use is strictly

prohibited.

It is not intended as an information

display or for predominant use as a

computer monitor. If a still image or a

non-full-format image is displayed for

an extended period, visible traces may

remain on the screen for some time.

This is not a defect that can be used as

the basis for a warranty claim.

Safety

WARNING

Risk of electrical accident

7 Do not open the TV set. Safety risk may

arise and also the guarantee of the

product can be void if the television set is

opened.

7 The TV set can only be operated with

the power cable or the AC/DC adapter

supplied with the product.

7 Do not operate the TV set with a

damaged power cord/AC/DC adaptor

(if supplied).

7 If the plug on the TV set has an earthing

contact, only insert the plug into a socket

with an earthing contact.

7 Plug the TV set into the mains socket only

after you have connected the external

devices and the antenna.

7 Protect the TV set from moisture. Do not

place any vessels filled with water (such

as vases) on the TV.

Fire hazard

7 To prevent the spread of fire,

keep candles or other open

flames away from this product

at all times.

7 Do not cover the ventilation slots on the

TV set.

7 Always unplug the power plug and

antenna plug during a thunderstorm.

7 Keep candles or other open flames away

from the TV set.

7 Do not expose the batteries to extreme

heat such as sunshine, fire or the like.

7 Only use batteries of the same type

(brand, size, properties). Do not use used

and new batteries together.

ENGLISH

WARNING

Injuries caused by falling TV set

Never place the TV set on an unstable

surface. The TV set may fall, causing

serious injury, possibly leading to death in

isolated cases.

Observe the following precautions:

7 Only use the manufacturer’s

recommended cabinets or stands.

7 Only use furniture that can safely support

the TV set.

7 Make sure that the TV set does not

protrude beyond the dimensions of the

furniture on which it is resting.

7 Do not place the TV set on tall furniture

(such as kitchen cabinets, bookshelves)

without securely anchoring the furniture

and TV set.

7 Do not place the TV set on fabric or other

materials located between the TV set and

furniture.

7 Instruct children that there is danger

associated with climbing on furniture

when the TV set is to be reached.

NOTICE

Shortened service life due to high

operating temperature

7 Do not place the TV set next to heating

units or in direct sunlight.

7 To ensure adequate ventilation, maintain

clearance of at least 10 cm around the

TV set.

Discolouration of furniture due to

rubber feet

7 Some furniture surfaces may discolour

when they come in contact with rubber.

To protect furniture, you can place a

sheet made of glass or plastic under the

stand. Do not use textile underlays or

mats such as doilies.

Electromagnetic noise

Devices connected to the product (satellite

receiver, DVD player, and etc.) or signal

emitting devices (router and etc.) close to

the product may cause disturbance in the

image and noise in the sound.

Connection cables used on the product

must be shorter than 3 m.

If the product cannot perform its function

due to electrostatic discharge, the user

may need to switch off and then switch

on the product.

A shielded, HDMI-certified and ferrite

cable must be used with the product.

Environmental information

7 Do not dispose of batteries in

the household waste. Used

batteries must be returned to

retail stores or public collection points. You

help to protect the environment in this way.

7 Be sure to dispose of packaging

materials for your product separately

according to the guidelines of local

authorities so that they can be recycled in

an environmentally safe manner.

If you are not using your TV set for a

while, turn it to standby mode. In standby

mode, the TV set uses very little energy

(≤ 0.5 W).

If you do not use the TV set for an

extended period, turn it off with the

power switch or unplug the power cord

from the socket. If you turn off the device

or disconnect it from the power supply,

the switch-on timer and programmed

recordings will not work.

7 Select a location for the TV set so that

no direct sunlight falls on the screen. This

allows a lower backlight to be selected,

which saves energy.

7 Do not dispose of the product

along with normal household

waste at the end of its service

life. Take it to a recycling centre for

electrical and electronic equipment.

ENGLISH

Packing contents

User

Manual

Standart accessory

1. TV

2. Stand

3. Remote control

4. Batteries for remote controls

5. Screws and mounting instructions

for stand

6. Brief Instruction

Optional accessory

Easy-Use Remote Control

Batteries for Easy-Use remote controls

Cleaning cloth

Screws for VESA bracket

ENGLISH

Setting up or hanging

7 Select a location so that no direct sunlight

falls on the screen.

Setting up with stand

7 To mount the stand, refer to the

installation instructions included.

7 Place the TV set on a hard, level surface.

Preparing for mounting on

the VESA bracket

You will need:

7 A pair of scissors,

7 A crosstip screwdriver.

Follow the installation instructions for the

VESA bracket.

1. Place the TV set in the film on a smooth

surface with the screen facing down.

2. Cut open the film on the back side

using the scissors.

3. Connect the required cables to the

connectors on the TV set. See the

“Connections” section in this manual.

4. Tie the cables so they do not hang

down onto the floor.

5. Screw the VESA bracket onto the TV set

and mount it according to its installation

instructions.

AV/S-VHS/COMPONENT

SERVICE

SATELLITE

13/18V

max.500mA

ANT-IN

max.50mA

OpticOut USB(HDD) HDMI3(ARC) HDMI2

LAN

VESA

ENGLISH

Connections

AV/ S-VHS/COMPONENT

SERVICE

LAN

AV / S-VHS/COMPONENT

SERVICE

LAN

ANT-IN

max.50mA

Optic Out SATELLITE

13/18V

max.500mA

HDMI2HDMI3(ARC)USB(HDD)

USB1 HDMI1 +V/P-

ENGLISH

7 LAN: Network connection

7 AV / S-VHS / COMPONENT:

SCART socket, audio/video input and

output

S-VHS socket, audio/video input for

S-Video camera using a SCART-S-VHS

adapter cable.

Component socket, audio/video input

(YUV signal) using a SCART-YPbPr

adapter cable.

7 SERVICE: Service only.

7 Optic Out: optical audio output

7 USB(HDD): connect data media as an

external hard disk.

7 HDMI3 (ARC): Input for digital audio

and video data with audio return chan-

nel.

7 HDMI2: Input for digital audio and im-

age data.

7 SATELLITE: for satellite antenna.

Suitable for single-cable GSCR system.

7 ANT IN: for antenna cable (terrestrial

antenna or cable connection).

7 U: Headphone jack or line output via

adapter.

7 USB1: for data media or keyboard.

7 HDMI1: Input for digital audio and im-

age data

7 CI: for CA modules for receiving en-

crypted stations.

Control elements

7 V/P: Multi-function switch

+V/P-

Multi-function switch

Switching on the TV

1. 8/I Switches the television on and back

into standby mode.

Turning the TV to standby

1. Press the multi-function switch.

2. Rock until “Switch to standby” is

selected.

3. Press.

Adjusting the volume or

changing the station

1. Press the multi-function switch.

2. Rock to select the required function.

3. Press.

4. Rocking now performs the selected

function.

ENGLISH

Inserting batteries into the

remote control

1. Open the battery compartment.

2. Insert batteries as marked on the

bottom of the battery compartment

(2 × Micro/R03/AAA).

3. Close the battery compartment.

Setting up the TV set

1. Connect the cables.

2. Insert the power plug into the socket.

3. Switch on the power switch.

4. Switch on the TV set with on the

remote control.

5. Follow the setup wizard on the screen.

Adding new TV stations

at a later point

1. Press .

2. Select »Settings«.

3. Select »Source«.

4. Select »Automatic Channel Search«.

5. Select the antenna type.

6. The next procedure depends on the

selected antenna. Follow the instructions

on the screen.

Sorting TV stations in

the channel list

1. Press .

2. Press .

3. Choose the TV station you want to

move, and highlight it with .

4. Press .

5. Use the navigation keys to move the TV

station to the new position and confirm

with .

ENGLISH

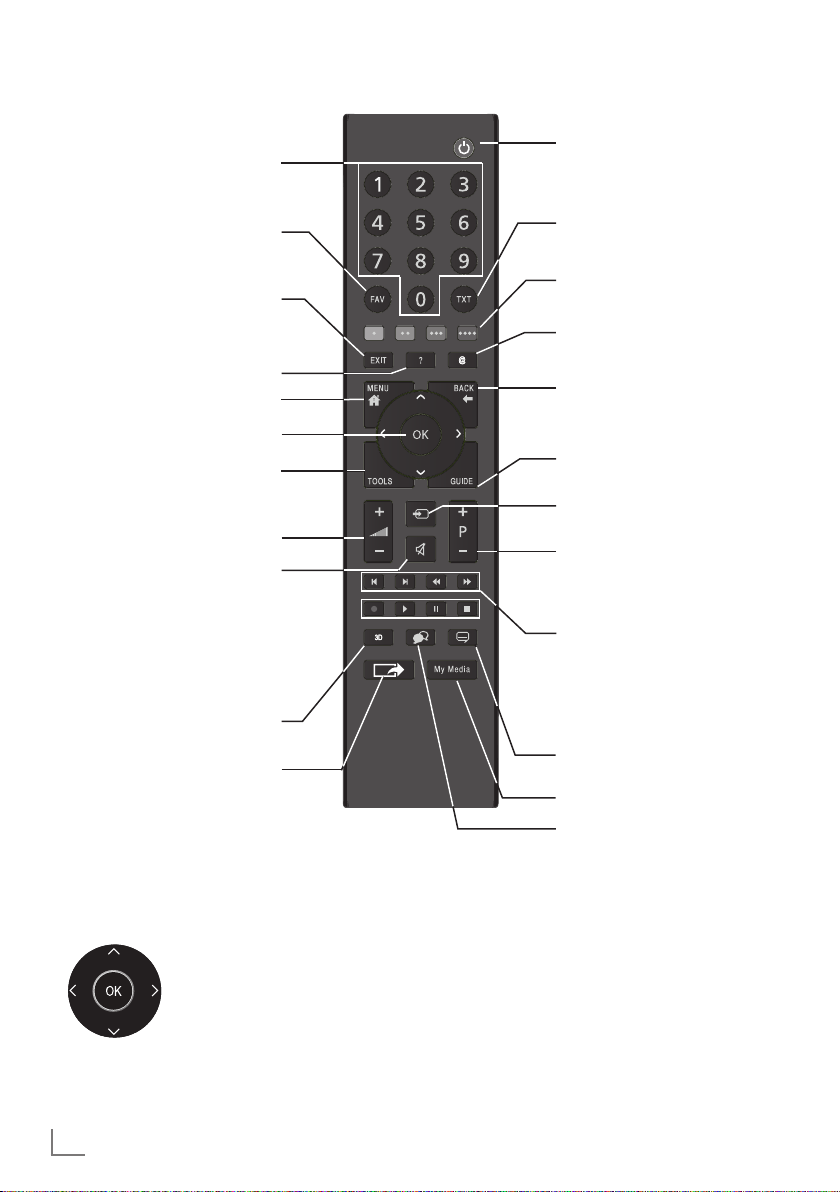

Remote control

Cursor Control

Moves the cursor up and

down in the menus.

Moves the cursor left/right in

menus.

Opens channel list;

activates various functions.

Turns on and off the

television set (stand-by)

Signal source

Turns volume on/off (mute)

Zapping function;

switches the menus back

one menu level

Opens the menu

Opens the Tools menu

Switches between teletext

and TV modes

Opens MyApps menu

Switches on from standby;

selects stations step by step

Adjusts the volume

Displays information

Exits menu and applica-

tions

Opens the channel list

Opens the electronic TV

guide

Switches on from standby

mode;

selects channels directly

Selects the channel list

(»ALL«, »FAV 1« to

»FAV 4«)

Open screen share

No function

Functions according to

the screen help, HbbTV

Opens Media Player menu

Select subtitle

Select audio channel

Next/previous image/

chapter, next/previous

track

ENGLISH

HbbTV

HbbTV is the interactive successor to

teletext, with content in modern design,

high-resolution images and video

sequences.

For full functionality of HbbTV, the TV must

be connected to the Internet.

After you switch to a TV station that offers

HbbTV, a corresponding message appears.

1. Turn on HbbTV with the colour key

that appears after you switch to the

TV station.

Favourites lists

You can organise TV and radio stations in

favourites lists.

Saving a station to the

favourites list

1. Press .

2. Press .

3. Select the favourites list and confirm

with .

Opening the favourites list

1. Press .

2. Select the favourites list and confirm

with .

– Now only stations that are stored in the

selected favourites lists are available.

Zapping function

This function allows you to save a station to

which you want to return during frequent

changes of the station (zapping).

1. Press to save the current station.

2. Select other stations (zapping).

3. Press to switch to the

station on which was most recently

pressed.

4. terminates the function.

Table des matières

Autres manuels Grundig TV

Grundig

Grundig P 37 - 080 Manuel utilisateur

Grundig

Grundig APOLLO 42 PW 110-7510 TOP Manuel utilisateur

Grundig

Grundig 55 GHU 7910 B Manuel utilisateur

Grundig

Grundig 40 VLE 7630 WP Manuel utilisateur

Grundig

Grundig 43 GHU 8500 A Manuel utilisateur

Grundig

Grundig 22 VLE 7120 BM Manuel utilisateur

Grundig

Grundig 55 VLE 6725 BP Manuel utilisateur

Grundig

Grundig Vision 3 19-3830 T Manuel utilisateur

Grundig

Grundig CUC 7303 Manuel utilisateur

Grundig

Grundig LXW 68-9620, LXW 82-9620 Manuel utilisateur

Grundig

Grundig GLCD1904WDVD Manuel utilisateur

Grundig

Grundig 22 VLE 5520 WG Manuel utilisateur

Grundig

Grundig 32 VLE 5504 BG Manuel utilisateur

Grundig

Grundig P 37-071 Manuel utilisateur

Grundig

Grundig Davio 14 P 37-4501 FR/Text Manuel utilisateur

Grundig

Grundig VISION 3 26-3821 Manuel utilisateur

Grundig

Grundig 28 VLE 4500 BM Manuel utilisateur

Grundig

Grundig Meglio series Manuel utilisateur

Grundig

Grundig 43 GFB 6629 Hamburg Manuel utilisateur

Grundig

Grundig 55 GHU 7912B Manuel utilisateur

Grundig

Grundig 40 GFB 6825 Manuel utilisateur

Grundig

Grundig 50 GHU 7910 B Manuel utilisateur

Grundig

Grundig 32 VLE 597 BG Manuel utilisateur

Grundig

Grundig GLCD3201 Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
