GrowSpan 116675 Manuel utilisateur

Revision date: 09.20.19

is prohibited without permission.

Ground Level

Some parts shown throughout this guide are included with the main building.

They are not included with this endwall header kit. Rafter is not included.

STK#

116675 for 30' Wide Gothic

ENDWALL HEADER KIT FOR 20' WIDE GOTHIC PREMIUM

HIGH TUNNEL WITH ROLL-UP ENDS

ATTENTION: HEADER KIT IS NOT FOR

USE WITH ZIPPERED END PANELS.

2116675 Revision date: 09.20.19

Important Information

REQUIRED TOOLS

The following list identifies the main tools needed to assemble the end frame.

Additional tools and supports may be needed depending on the structure,

location, and application.

• Tape measure or measuring device and level.

• Marker to mark locations on tubing.

• Variable speed drill or power driver (cordless with extra batteries works

best).

• Bits for drilling metal: 3/8", 7/16", 9/16", and 1".

• Wrenches and deep socket set that includes 3/8" socket and ratchet.

• Small hammers and a sledge hammer to drive vertical tubes.

• Gloves and eye protection.

• Hand clamps to hold tubes in position.

• Pliers or self-locking pliers to hold and install J-bolts.

• Ladders, work platforms, and other machinery for lifting designed to work

safely at building and end frame height.

ATTENTION: Consult the services of a qualified, professional contractor if

you are not familiar with constructing similar frame structures.

The individuals assembling this end frame are responsible for designing

and furnishing all temporary bracing, shoring and support needed during

the assembly process. For safety reasons, those who are not familiar with

recognized construction methods and techniques must seek the help of a

qualified contractor.

SAFETY PRECAUTIONS

• Wear eye, hand, and head protection.

• Use a portable GFCI (Ground Fault Circuit Interrupter) when working with

power tools and cords.

• Do not climb on framing during or after construction.

• Do not occupy the shelter during high winds, tornadoes, or hurricanes.

• Provide adequate ventilation if the structure is enclosed.

• Do not store hazardous materials in the shelter.

• Provide proper ingress and egress to prevent entrapment.

READ THIS DOCUMENT BEFORE YOU BEGIN

Thank you for purchasing this GrowSpan™ Endwall Header Kit. When properly assembled and maintained, this product will provide years of reliable service.

These instructions include helpful hints and important information needed to safely assemble and properly maintain the end frame. Please read these

instructions before you begin. If you have any questions during the assembly, contact Customer Service for assistance.

UNPACK AND IDENTIFY PARTS

The following steps help ensure you have all parts before you begin.

1. Unpack shipment and place where you can easily inventory parts. Refer

to Bill of Materials/Spec Sheets.

2. Verify all parts listed on Bill of Materials/Spec Sheets are present. If

anything is missing or you have questions, consult all diagrams for

clarification, or contact Customer Service.

NOTE: At this time, you do not need to open the plastic bags containing

smaller parts such as fasteners and clamps.

Revision date: 09.20.19 116675

Important Information

ASSEMBLY PROCEDURE

Following these instructions helps ensure proper assembly of your end

frame. Steps outlining assembly are as follows:

1. Verify all parts are included in shipment. Notify Customer Service for

questions or concerns.

2. Read these instructions and all additional documentation included with

shipment before you begin.

3. Gather the tools, bracing, ladders (and lifts), and assistants needed to

assemble end frame.

4. Assemble end frame. (See steps on the next page.

5. Read and follow care and maintenance instructions.

CARE AND MAINTENANCE

Proper care and maintenance is important. Check these items periodically:

• Inspect all components regularly and frequently.

• Check connections and all fasteners to verify they remain tight and in

good repair.

• Do not climb or stand on shelter or end frame.

• Remove debris and objects that may accumulate on the shelter. Use

tools that will not damage the cover (if equipped) when removing debris.

• Remove snow to prevent excess accumulation. Use tools that will not

damage the cover (if equipped) when removing snow. Never allow

snow to accumulate on the cover or along sides and end panels after

removing snow.

• Replace all worn or damaged parts promptly.

CUSTOMER-SUPPLIED MATERIALS

If desired, the end wall columns can be set in concrete. Customer is respon-

sible for supplying the concrete and equipment to dig the holes.

IMPORTANT: If soil conditions are loose or sandy, setting the end wall col-

umns in concrete is required.

WARNING: The individuals assembling this end frame are responsible

for designing and furnishing all temporary bracing, shoring and support

needed during the assembly process. For safety reasons, those

who are not familiar with recognized construction methods and

techniques must seek the help of a qualified contractor.

QUICK START SECTION

For an overview of this end frame and connection details, consult the Quick

Start Section near the back of this manual.

ASSEMBLY NOTE: Install Tek screws using a clutched drill driver

running approximately 750 RPM while applying approximately 50 lbs

of force. Do not use an impact driver!

ATTENTION: HEADER KIT IS NOT FOR

USE WITH ZIPPERED END PANELS.

4116675 Revision date: 09.20.19

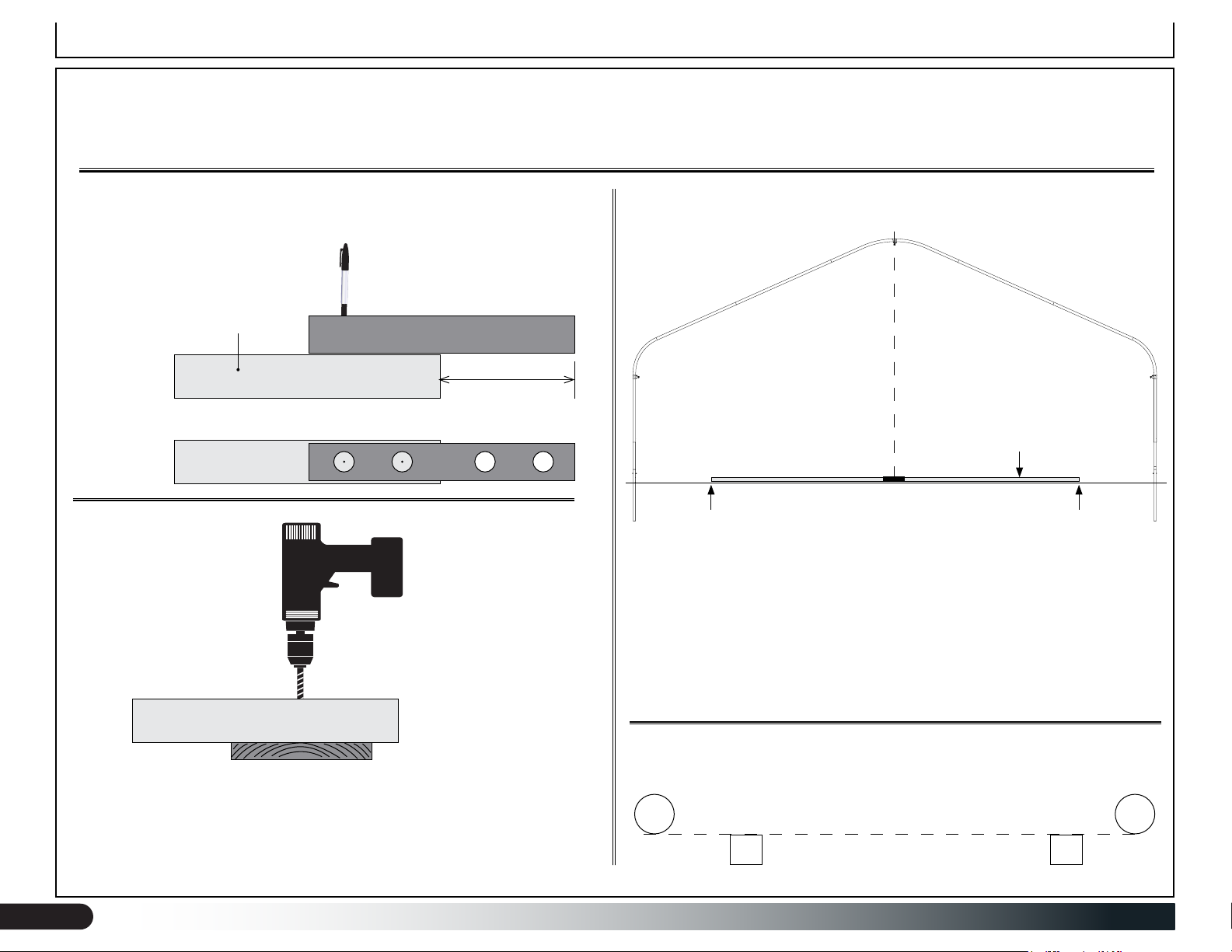

Construct End Frame

For best results, read through this assembly guide to better understand how to construct the end frame and to view important connection details. The steps

below describe one way to construct the end frame for your high tunnel.

ATTENTION: Assemble the entire main frame of the high tunnel before you install the end framing.

1. Locate the parts for the header tube and construct the header. See table

on Front Profile diagram page – Item A in Quick Start section of this

guide. Tube will be used to space vertical tubes at ground level.

3. Mark the center of the end rafter at ground level. Using the assembled

header as a guide, align the center of the header with the center of the

end wall.

4. Next, mark the vertical tube position at each end of the header tube

using a small stake or surveyor's paint. Refer to the Front Profile diagram

to confirm inside-to-inside door dimensions.

NOTE: End frame tubes attach to the rafter. Mark locations accordingly.

See Quick Start section near the end of this guide for diagrams.

NOTE: Use the 106730 eight (8) inch connector as a template to mark

the hole locations on each header tube.

2. After marking hole locations, place a scrap wood block under the tube

and drill holes through the tubes using a drill and a 9/16" drill bit.

8" Connector (106730)

Lower Tube of Vertical

Frame Member

SIDE VIEW

TOP VIEW

End Rafter Ground Posts

TOP VIEW

End Frame Vertical Tubes

Ground Level

Header

Step 4

Center of End Rafter

Step 4

Revision date: 09.20.19 116675

Construct End Frame

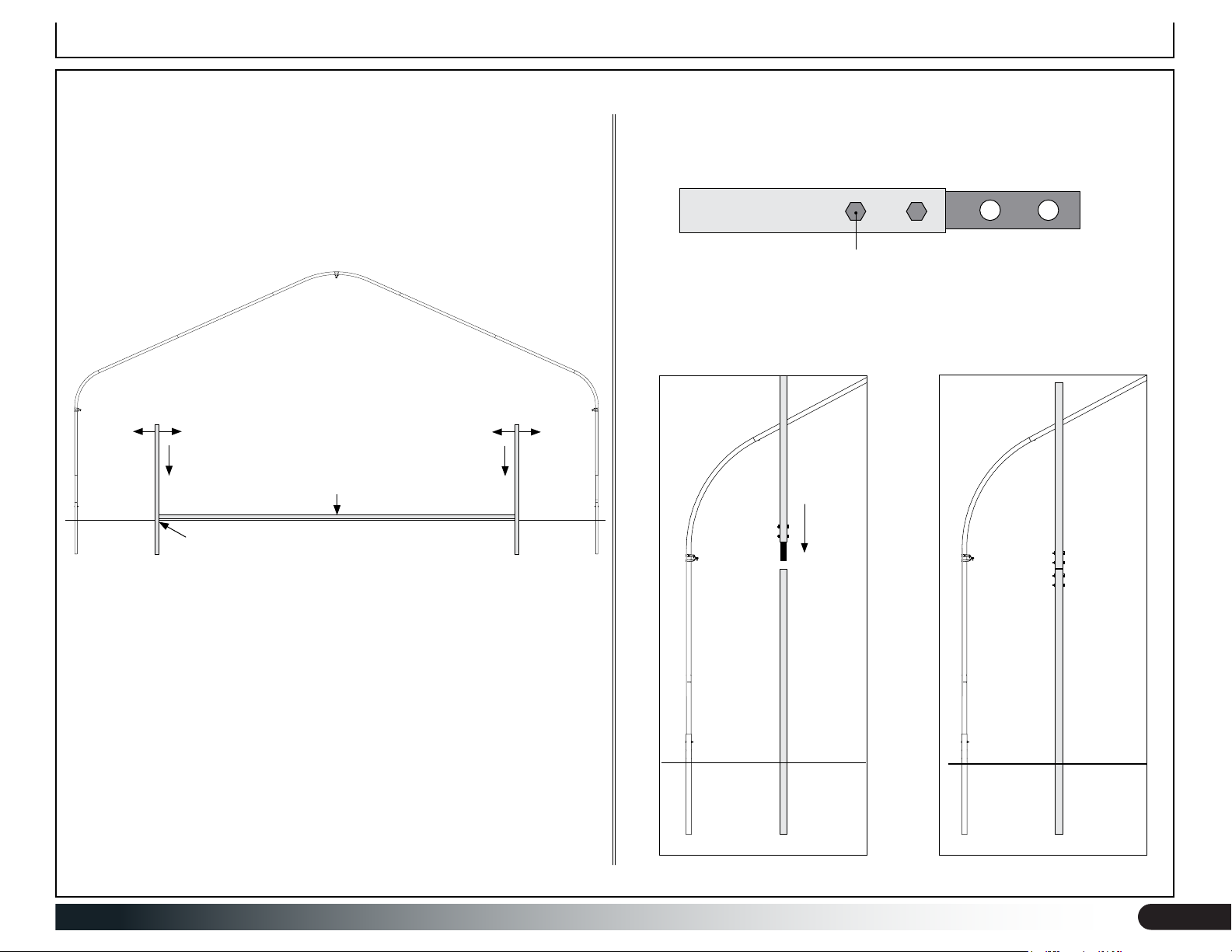

IMPORTANT: If soil conditions are loose or sandy, setting the end wall

columns in concrete is required. Assembly of the end wall may differ if

end frame vertical tubes are set in concrete.

FOR CONCRETE ANCHORING: For best results, assemble the entire

end frame (header and vertical tubes), dig holes for vertical tubes, then

bolt tubes to end rafter at the required spacing determined by inside-to-

inside door opening. Allow lower end of each tube to extend into the hole

and fill hole with concrete. THIS PROCEDURE IS NOT SHOWN.

IF SITE IS ROCKY OR GROUND IS TOO HARD TO DRIVE TUBES

INTO PLACE WITHOUT SMASHING THE END, THEN TAKE

ALTERNATIVE STEPS TO SET THE END FRAME VERTICAL

COLUMNS. CONTACT A LICENSED CONTRACTOR FAMILIAR WITH

SITE LAYOUTS AND SETTING POSTS IN THE AREA.

8. Repeat the steps to set the lower pipe of the remaining vertical tube.

9. Attach a 106730 connector to each upper tube of the frame members

using the 1/2" hardware.

5. Take the lower tubes for each vertical tube and prepare the tubes as

previously described in Step 1 to install the 106730 connector.

6. Take the upper tubes of each frame member and repeat Step 1 to drill

holes in one end of those tubes. Set these upper tubes aside for later.

7. Take one lower pipe for the vertical tube and drive it 24" into the ground

using the QH1073 post driver and a sledge hammer. Pre-mark the 24"

dimension at end of the tube opposite the connector holes. Position the

1/2" bolt holes toward the door opening.

Upper Tube

106370

1/2" Bolt

10. Secure the upper tubes to lower tubes. Position 1/2" bolt heads to the

inside (or door opening) of the frame to prevent interference with roll-up

door panel. Use a drill and bit to ream mounting holes in lower tube if

needed.

Bolt Holes Bolt Holes

Header used to maintain

spacing of vertical posts.

Ground Level

24" Mark

Ground

Level

Upper

Tube

Lower

Tube

1/2"

Bolts

*Actual rafter profile may differ. Frame assembly is the same.

6116675 Revision date: 09.20.19

Construct End Frame

11. Locate the assembled header and slide one (1) 106735

square-tube band clamp onto each end to the tube. Install so

band clamps are oriented the same with the mounting flange

with bolt hole toward the top. See diagram at the right.

REMEMBER: Install 1/2" bolt heads toward the door opening.

12. Attach two (2) 111818 angled brackets to each end as shown

below and on Connection Details diagrams in Quick Start

section. Use two (2) FA4482B Tek screws per bracket.

13. With assistance and the proper ladders or lifts, measure the door opening height, which is 10'-2" from ground level to underside of header, and mark the

location on each of the vertical tubes.

14. Carefully lift the header assembly into position, align the header tube with the marks made in the previous step, and clamp the header brackets to the

vertical tubes. For best results, clamp one side, check that header is level, and clamp the other side. Recheck that header is level. Adjust if needed.

15. Secure top 111818 brackets to the vertical tubes, remove clamps (if needed), and secure lower brackets to frame tube.

Header

FA4482B Tek Screws 111818 Bracket

Step 11: 106735 Square-Tube Band Clamp

Step 14: Clamp

bracket to vertical

tube at the door

opening height.

Step 13: Height of

door opening.

Hand Clamp

Verify header is level.

Band

Clamp

Band

Clamp

*Actual rafter profile

may differ. Frame

assembly is the same.

Step 15: Secure

brackets to frame tube

using FA4482B Tek

screws.

Door

Opening

Height

Mark

Revision date: 09.20.19 116675

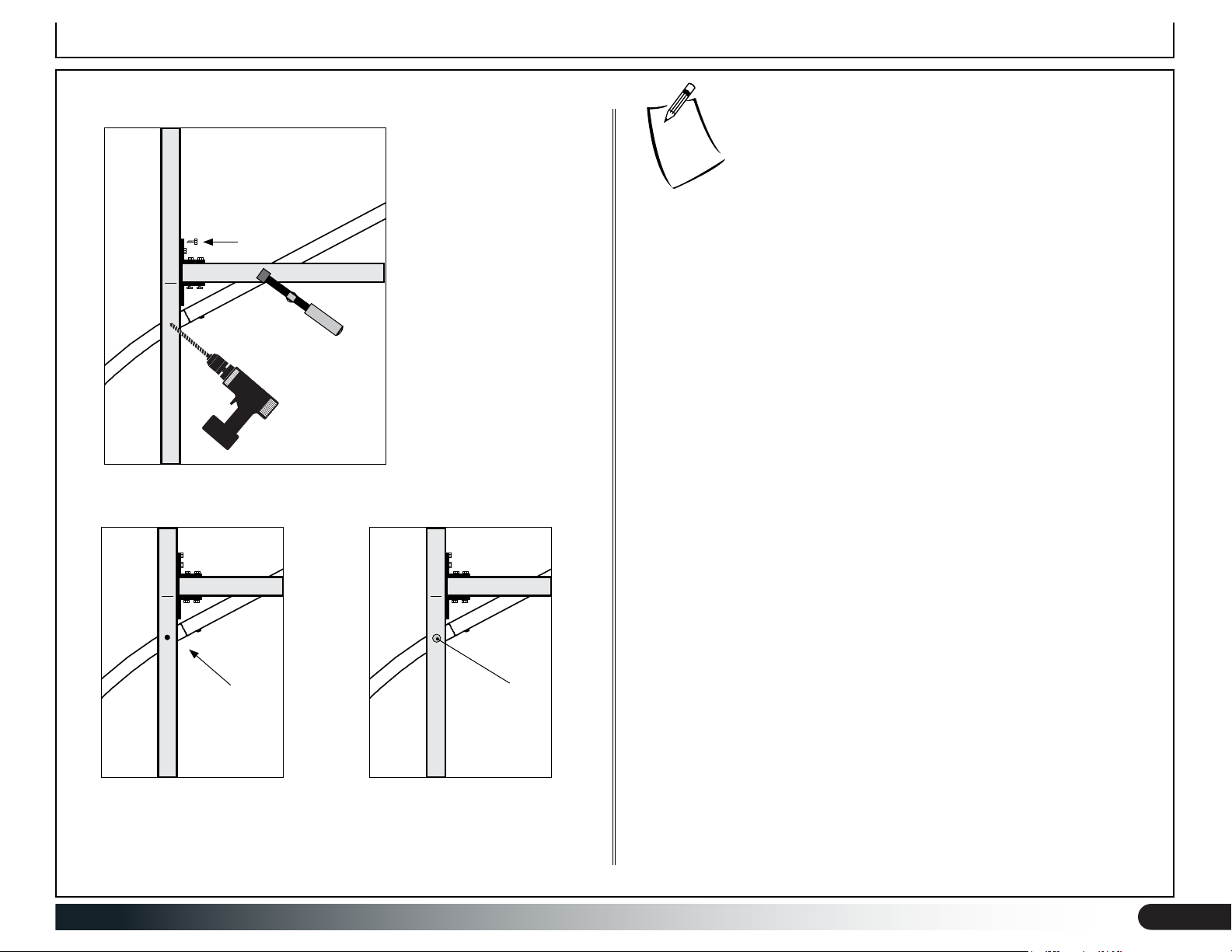

Construct End Frame

16. Reposition clamps as needed to clamp the header to the end

rafter.

17. Using a drill and a 3/8" drill bit, drill a hole through the front of each

vertical tube and end rafter. See diagram above and Fig. A below.

18. Take the 5/16" hardware and secure each vertical tube to the end rafter.

See Fig. B above and also View 1 of the Connection Details diagram.

19. Continue with the angle brace installation shown in the next section.

End Rafter

Clamp

Step 16: Clamp

header to end rafter.

Step 17:

3/8"

Mounting

Hole

Step 18:

FAH325B

5" Carriage

Bolt.

8116675 Revision date: 09.20.19

Install Angle Braces

INSTALL ANGLE BRACES ABOVE HEADER

Step 1

Steps 3-5

Step 2: Adjust position as needed.

Step 6

Tek Screw – Back

Side of Header

Step 6

Tek Screw

– Back

Side of

Rafter

Angle Braces

*Actual rafter profile may differ. Frame assembly is the same.

Complete these steps to install the angle braces:

1. Using the Connection Details diagrams in the Quick Start section, attach an angle brace to each of the square-tube band clamps installed earlier on the

header. Fasteners are noted in the diagrams. Use the 12" x 12" squares of the grid to position the angle braces. Exact placement is not critical; however,

general position should follow what is shown in the grid diagram. DO NOT TIGHTEN THE MOUNTING BOLTS AT THIS TIME.

2. Adjust the angle brace and clamp position on the header so free end of brace touches the underside of the end rafter. Tap lightly with hammer to move.

3. Locate the two (2) band clamps for round pipe and install these over the end rafter at the point where each angle brace touches the end rafter. Install band

clamp as needed to align best with the header tube and angle braces.

ATTENTION: If the poly-latch u-channel is attached to the end rafter, loosen if possible, and install band clamps. In most instances, you should be able to

lightly tap clamps into place to attach angle braces. If film cover is installed, you may need to remove a small section of spring wire to access and loosen

the Tek screws that secure the u-channel. Once the band clamps are installed, reattach the u-channel and film.

4. Adjust band clamps and angle braces as needed and attach brace to band clamp on end rafter.

5. Verify braces are angled the same and in the desired position and tighten mounting bolts.

6. Return to all band clamps (round and square-tube) and install a Tek screw through each one into either the end rafter pipe or header tube.

7. Continue with the next procedure.

ATTENTION: DO NOT INSTALL ANY ROLL-UP DOOR BRACKETS UNTIL YOU INSTALL THE ROLL-UP DOOR PANEL. SEE THE FOLLOWING

PROCEDURES FOR ADDITIONAL INFORMATION.

Revision date: 09.20.19 116675

SIDE PANEL

UPPER PANEL

Before the roll-up door panel and roof cladding are installed, install the end panel material above the door. Material is secured to the end frame tubes and to

the back of the end rafter. Use FA4482B Tek screws included with the end frame kit and the 102921B neo-bonded washers included with the main building

components. Follow these guidelines when installing panel material:

• ATTACH ALL PANELS TO THE BACKSIDE OF THE END RAFTER. DO NOT ATTACH

PANELS TO THE TOP OF THE END RAFTER. DOING SO WILL INTERFERE WITH THE

INSTALLATION OF U-CHANNEL FOR ROOF CLADDING INSTALLATION.

• SECURE UPPER PANEL

TO THE BACKSIDE OF THE

HEADER. FRONT OF HEADER IS

RESERVED FOR ROLL-UP DOOR

PANEL INSTALLATION.

• INSTALL UPPER PANEL FIRST

AND BEFORE YOU INSTALL THE

ROLL-UP DOOR PANEL.

• INSTALL SIDE PANELS AFTER

YOU ATTACH J-BOLTS TO

VERTICAL FRAME

TUBES AS SHOWN IN

THE NEXT SECTION.

• CONSULT THE END

PANEL INSTALLATION

SECTION OF THIS

GUIDE TO CUT AND

INSTALL PANELS.

• CONSULT DIAGRAMS

IN THE QUICK START

SECTION OF THE

MAIN BUILDING

INSTRUCTIONS

BEFORE YOU BEGIN.

View as seen standing outside the

building looking at the end wall.

Back View - Inside

FA4482B Tek

screws and 102921

neo-bonded

washers.

Space screws and

washers at 12" on-

center to secure

panel to back of

end rafter.

MATERIAL IDENTIFICATION NUMBER FOR END PANELS

• DCC4931—This number identifies the bulk material used to cover the open areas of the end wall and door frame. See diagram on the next page for panel

locations and dimensions. See the panel diagrams in the Quick Start section of the main building guide for additional details before you begin.

Install End Panels — Overview

10 116675 Revision date: 09.20.19

CUT DCC4931 MATERIAL FOR END PANELS

ATTENTION: Measure all areas before cutting the end panel material. Adjustments made during construction may cause dimensions to vary. Dimensions noted

are approximate.

22'

11' 11'

Cut an 8' x 22' piece of DCC4931 as shown to create an upper panel. Repeat for remaining

end wall as needed.

Cut an 8' x 11' piece of

DCC4931 as shown to

create a side panel.

Cut an 8' x 11' piece of

DCC4931 as shown to

create a side panel.

Table des matières

Autres manuels GrowSpan Kit de serre

GrowSpan

GrowSpan Twist-of-the-Wrist Manuel utilisateur

GrowSpan

GrowSpan Round Premium Manuel utilisateur

GrowSpan

GrowSpan Gothic Cold Frame Series Manuel utilisateur

GrowSpan

GrowSpan 500 Series Manuel utilisateur

GrowSpan

GrowSpan 103103 Manuel utilisateur

GrowSpan

GrowSpan Gothic Premium 108190H Manuel utilisateur

GrowSpan

GrowSpan 2000 Series Manuel utilisateur

GrowSpan

GrowSpan 105148 Manuel utilisateur

GrowSpan

GrowSpan Canopy-Top Cold Frame Series Manuel utilisateur

GrowSpan

GrowSpan 500 Series Manuel utilisateur

GrowSpan

GrowSpan Gothic Pro Series Manuel utilisateur

GrowSpan

GrowSpan 115020 Manuel utilisateur

GrowSpan

GrowSpan 500 Series Manuel utilisateur

GrowSpan

GrowSpan Canopy-Top Cold Frame Series Manuel utilisateur

GrowSpan

GrowSpan 500 Series Manuel utilisateur

GrowSpan

GrowSpan 500 Series Manuel utilisateur

GrowSpan

GrowSpan 500 Series Manuel utilisateur

GrowSpan

GrowSpan 106265 Manuel utilisateur

GrowSpan

GrowSpan 105175F Manuel utilisateur

GrowSpan

GrowSpan 500 Series Manuel utilisateur

GrowSpan

GrowSpan Gothic Pro Manuel utilisateur

GrowSpan

GrowSpan Gothic Premium 108185H Manuel utilisateur

GrowSpan

GrowSpan 500 Series Manuel utilisateur

GrowSpan

GrowSpan Flip-Top Cold Frame Manuel utilisateur

Manuels Kit de serre populaires d'autres marques

ACD PRESTIGE

ACD PRESTIGE MR3 H Manuel utilisateur

Vitavia

Vitavia VA0040-TRP Manuel utilisateur

VegTrug

VegTrug Nursery Manuel utilisateur

Riverstone Networks

Riverstone Networks Monticello 041315V Manuel utilisateur

STC

STC Easy Grow 6x12 Greenhouse Manuel utilisateur

CLIMA POD

CLIMA POD Spirit V7 Series Manuel utilisateur

Vitavia

Vitavia GAIA JUMBO Manuel utilisateur

Palram

Palram Harmony 6'x4' Manuel utilisateur

ClearSpan

ClearSpan Storage Master 104598 Manuel utilisateur

Sproutwell

Sproutwell GRANGE - 5 Manuel utilisateur

ACD

ACD Piccolo 03 Manuel utilisateur

Growhouse

Growhouse Lean To 6 x 8 Manuel utilisateur

Riverstone Networks

Riverstone Networks Grower's 181010V Manuel utilisateur

Robinsons

Robinsons 5ft Wide LEAN-TO Manuel utilisateur

Botanica

Botanica E Manuel utilisateur

PNI

PNI SP6000 Manuel utilisateur

Hortus

Hortus 211-203 Manuel de programmation

Robinsons

Robinsons 6' Lean-To Manuel utilisateur
