GrowSpan 117149 Manuel utilisateur

Revision date: 12.16.20

is prohibited without permission.

SKU# 117149

AUTOMATED ROLL-UP SIDES

(INCLUDES COMPONENTS TO AUTOMATE TWO EXISTING MANUAL ROLL-UP SIDES)

ATTENTION: Components in this kit replace some roll-up

side panel components included with the original manual

roll-up panels. Other original roll-up parts are required to

install these automated roll-up side panel components.

COMPONENTS IN THIS KIT ARE NOT COMPATIBLE WITH ANY ROLL-UP SIDE THAT INCLUDES THE

115287 CURTAIN STABILIZER BAR. SEE PAGE 3 FOR DETAILS.

2Automated Roll-Up Sides Revision date: 12.16.20

BEFORE YOU BEGIN

Thank you for purchasing this automated roll-up side kit for high tunnels. When properly installed and maintained, the components in this kit will provide years of

reliable service. If you have any questions during the assembly, contact Customer Service at 1.800.245.9881 for assistance.

Important Information

ASSEMBLY PROCEDURE

Steps outlining assembly are as follows:

1. Verify that all parts are included in the shipment. Notify customer service

for questions or concerns.

2. Read these instructions and all additional documentation included

before you begin.

3. Gather tools.

SAFETY PRECAUTIONS

• Wear eye protection.

• Wear gloves when handling metal pipes.

• Wear head protection and steel-toed footwear.

• Use a portable GFCI (Ground Fault Circuit Interrupter) when working with

power tools and cords. Use battery-powered tools when possible.

UNPACK AND IDENTIFY PARTS

The following steps help ensure you have all necessary parts before you

begin.

1. Unpack shipment contents and place where you can easily inventory

parts. Refer to the Bill of Materials/Spec Sheets.

2. Verify all parts listed on Bill of Materials/Spec Sheets are present. If

anything is missing or you have questions, consult Pictorial Parts Guide

and all diagrams for clarification, then contact Customer Service if

needed.

NOTE: At this time, you do not need to open the plastic bags containing

smaller parts such as fasteners or washers (if equipped).

REQUIRED TOOLS

The following list identifies the main tools needed to install the automated roll-

up kit components. Additional tools may be needed.

• Tape measure and marker.

• Clutched drill and driver to drive Tek screws (if equipped) and drill holes.

(Cordless with extra batteries works best.) Do not use an impact driver

to install Tek screws.

• Drill bit index with 7/16" bit to install guide post and guide post stop bolts.

• Metric socket and ratchet set and a metric wrench set that includes: 10,

13, 16, & 17mm sizes.

• Hex (Allen) wrench or bit set that includes a 4mm size.

• Hack saw or power saw equipped with a metal-cutting blade to cut pipe.

• Ladder to connect guide post at the top. ATTENTION: ALL ELECTRICAL CONNECTIONS TO BE COMPLETED

IN ACCORDANCE WITH LOCAL AND REGIONAL CODES BY A

PROFESSIONAL, LICENSED AND QUALIFIED CONTRACTOR.

WARNING — ENTANGLEMENT DANGER! KEEP CLEAR OF ROTATING

SHAFT! DO NOT WEAR LOOSE CLOTHING, JEWELRY, OR LONG

HAIR WHEN NEAR THE DRIVE MOTOR, ROLL-UP CONDUIT, MOTOR

BRACKET, OR ROLL-UP PANEL.

MOTOR OPERATION IS AUTOMATIC AND CAN BEGIN WITHOUT

NOTICE AT ANYTIME! KEEP CHILDREN AWAY AT ALL TIMES!

Revision date: 12.16.20 Automated Roll-Up Sides

Important Information

PICTORIAL PARTS GUIDE

The following photos help identify different parts included with this kit.

ATTENTION: Components in this kit replace some manual roll-up side panel components included with the original manual roll-up panels. Other

original roll-up parts are required to install the automated roll-up kit components. These items include: roll-up side panel, roll-up panel conduit,

threaded rod and related nuts and washers, fabric clips, and Tek screws.

WARNING — ENTANGLEMENT DANGER! KEEP CLEAR OF ROTATING

SHAFT! DO NOT WEAR LOOSE CLOTHING, JEWELRY, OR LONG

HAIR WHEN NEAR THE DRIVE MOTOR, ROLL-UP CONDUIT, AND

MOTOR BRACKET.

MOTOR OPERATION IS AUTOMATIC AND CAN BEGIN ANYTIME!

KEEP CHILDREN AWAY AT ALL TIMES!

116019

Motor Bracket

116018D

Motor w/Adapter

116637

Low Voltage

Motor Controller

Adapter

FAG334B (5/16" X 2")

Hex Bolt

FALF37B

(5/16") Locknut

ATTENTION: COMPONENTS IN THIS AUTOMATED ROLL-UP

SIDE PANEL KIT ARE NOT COMPATIBLE WITH ANY BUILDING

EQUIPPED WITH THE 115287 STABILIZER BAR SHOWN

BELOW.

4Automated Roll-Up Sides Revision date: 12.16.20

Remove Some Manual Roll-Up Panel Components

Complete these steps:

1. With the roll-up panel in the down or closed position, disconnect the roll-

up conduit from the gearbox.

2. Slide the gearbox and roller bearing assembly off the 102570 aluminum

track. Ensure the anti-billow rope is intact and tight to hold the roll-up

panel in place. NEVER ALLOW PANEL TO REMAIN UNSECURED!

3. At the top of the aluminum track, disconnect the track from the threaded

rod attached to the end rafter or end frame.

4. Set the gearbox and 102570 track aside; these are not needed for the

automated roll-up side.

5. Continue with the procedure on the next page.

ATTENTION: If the manual roll-up side components (gearbox, roller bearings, aluminum track, etc.) included with the building are not installed, skip this page

and continue with the next page to install the automated roll-up side components included with this kit.

102569

Bearing

103544

Mounting

Plate

102570

Aluminum

Channel

102717

Gearbox Drive

103496

Gear Box

In addition to smaller items not shown, these items (included with the original

manual roll-up panel) are not used when the automated roll-up side panel

components are installed:

STEP 1

STEP 3

Manual spin handle

is not needed for

automated roll-up side.

Revision date: 12.16.20 Automated Roll-Up Sides

Attach Guide Pipe to Existing readed Rod

ATTACH GUIDE PIPE

ATTENTION: Asthetics, available power supply, and other factors may help

determine where best to position the new motor. If you want to move the motor

position to the opposite end of the building, remove the threaded rod and

reinstall at the desired end. It is best to position both motors at the same end of

the greenhouse or high tunnel.

Complete these steps:

1. At the building end where the motor will be located, take one 12' guide

pipe, place it in position, and align it with the threaded rod. See diagram

below and for clearances and position.

2. With the lower end of the pipe an inch above ground and aligned with the

end rafter, have an assistant mark the mounting hole for the threaded rod

near the top of the pipe. Install swaged (or tapered) end at the top.

Gather parts:

• 12' Guide Pipe (131S147)

3. Use a drill and 7/16" bit to drill the mounting hole at the spot marked in

the previous step.

4. Add the nut and washer and insert the 3/8" threaded rod through the

mounting hole. Attach pipe using the remaining 3/8" nut and washer. Do

not tighten at this time.

ATTENTION: If the nut and washer are in place on the threaded rod,

continue with the next step.

5. Verify that the lower end of the guide pipe is slightly off the ground an

aligned with the end rafter.

ATTENTION: Lower end of pipe will "float" slightly above ground when

installed at correct height. Lower end is not anchored. Do not allow pipe

end to contact ground.

6. Continue with next procedure.

Adjust guide pipe

position to set motor

clearance at bottom.

When adjusted

properly, the guide

pipe will run parallel

with the end rafter.

Threaded rod and hardware

included with the original roll-up

panel components. These are

not included with this kit.

1.315" Guide

Pipe

Attach guide pipe to threaded rod.

Do not cut pipe to length at this

time. Install swaged/tapered end

at the top.

Step 2

Mark mounting

hole location.

6Automated Roll-Up Sides Revision date: 12.16.20

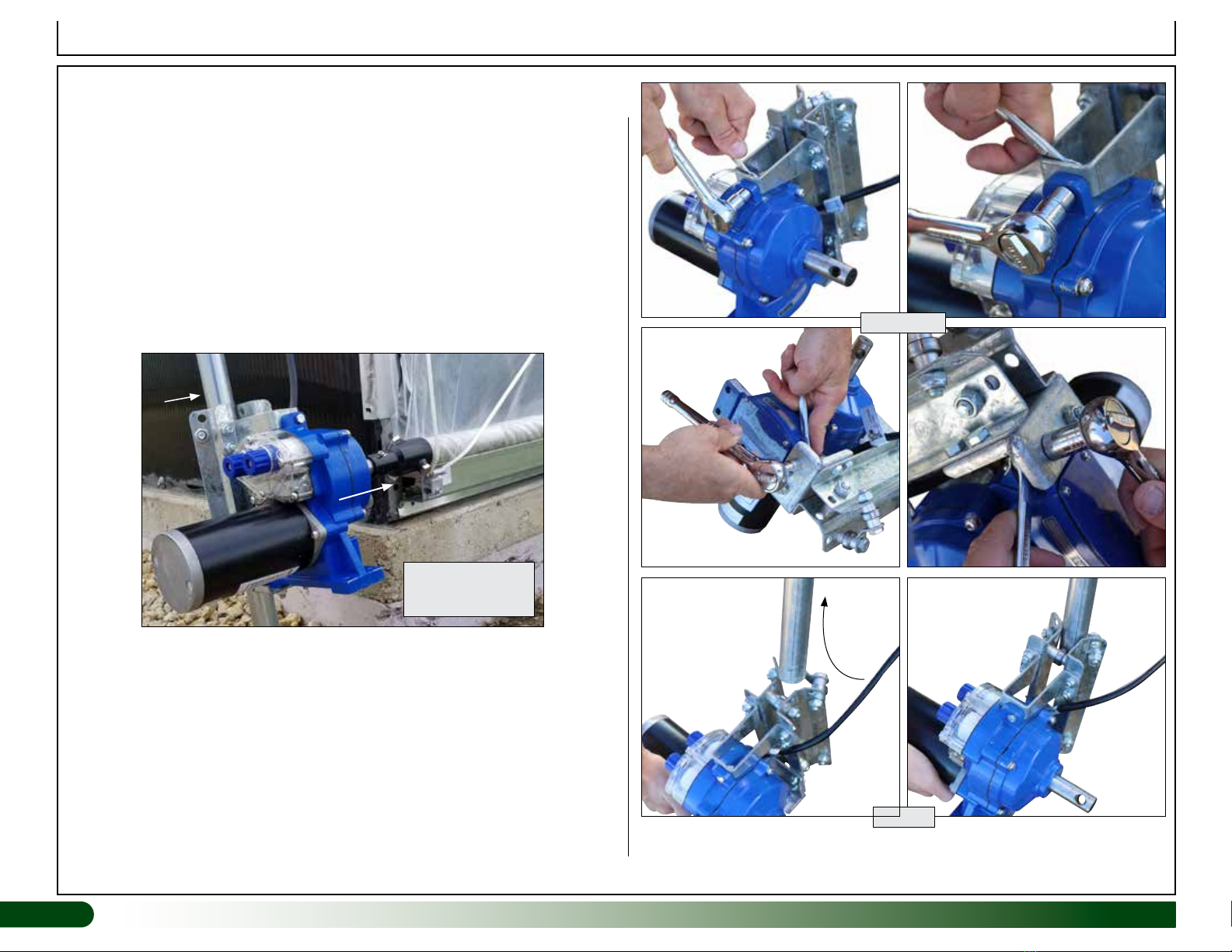

Attach Motor Bracket to Motor

ATTACH MOTOR BRACKET TO MOTOR

Complete these steps:

1. Take the motor (116018D) and motor bracket (116019) and place on a work

bench or flat surface.

2. Using the fasteners included with the bracket, attach the bracket to the

motor as shown. Ensure you attach the bracket so output shaft is oriented

as needed when motor is slid onto the guide pipe. See example below.

3. Tighten the fasteners using 10mm and 13mm wrenches and/or sockets

and a ratchet.

4. With assistance, slide the motor and bracket assembly onto the free end of

the guide pipe. Position output shaft toward the roll-up side conduit.

5. Continue with the procedure on the next page.

Motor shown fully

installed and attached

to the roll-up conduit.

Guide

Pipe

STEP 4

STEPS 1-3

Revision date: 12.16.20 Automated Roll-Up Sides

Attach Motor Adapter to Roll-Up Conduit

Complete these steps:

1. Measure 1-1/8" in from the end of the roll-up conduit and mark the

mounting hole location for the motor adapter.

2. Slide the motor adapter onto the conduit pipe, aligning bolt holes with

drilled hole in conduit.

3. Tigten bolts using a 16mm and/or 17mm socket wrench to secure adapter

to conduit. (Bolt heads may be different sizes.)

4. Continue with the next procedure.

ATTACH MOTOR ADAPTER TO ROLL-UP CONDUIT

ATTENTION: If the roll-up conduit is not attached to the roll-up side panel,

return to the roll-up panel assembly section of the main building instructions

and complete the steps to install the side panel and attach the roll-up conduit to

the side panel. Return to this guide and continue with the steps below.

EXTENSION PIPE: If the roll-up conduit is already installed, a 12" extension

pipe (131S012) is included to add to the roll-up conduit if needed. Adding this

12" pipe prevents the need to completely detach the roll-up panel from the

roll-up conduit if additional conduit length is needed to reach the drive motor

and adapter. Use the motor position to better judge how long the roll-up conduit

needs to be. Add the extension pipe if needed and cut to length. Secure the

pipe to the roll-up conduit using a Tek or similar self-tapping screw.

Use of the extension pipe depends on whether the installed roll-up conduit is

long enough to reach the new positon of the drive motor with installed adapter.

Roll-Up Conduit with

Adapter Mounting Hole

Adapter Attached to

Roll-up Conduit

Gather parts:

• 12" Extension Pipe for Roll-Up Conduit (131S012). Use depends on setup;

pipe may not be needed.

8Automated Roll-Up Sides Revision date: 12.16.20

Attach Motor to Adapter

ATTACH MOTOR TO ADAPTER

Complete these steps:

1. Insert the shear pin bushing into the mounting hole of the motor output

shaft and hold in place.

2. Using a 1-1/2" long hex drive screw (117109) and one 3/16" locknut

(117095), attach the motor adaptor to the motor output shaft. Verify shear

pin bushing remained in place and did not fall out.

3. Tighten the hex bolt using a 10mm socket and ratchet and a 4mm hex

wrench (or hex bit).

4. Reattach the anti-billow ropes or adjust if these were loosened or

removed to install the automated roll-up panel components.

5. Repeat the previous procedures to install the remaining roll-up side

components for the other roll-up panel.

6. After installing the components for both roll-up panels, continue with the

procedure on the next page.

Gather parts:

• Shear Pin Bushing (117058)

• 1-1/2" Hex Drive Screw (117109)

• Nylock Hex Locknut (117095)

STEP 1

STEP 3

STEP 2

Revision date: 12.16.20 Automated Roll-Up Sides

Install Guide Post Stop Bolt

Gather parts:

• (2) FAG334B Bolts (5/16" x 2")

• (2) FALF37B Locknuts (5/16")

INSTALL GUIDE POST STOP BOLT

The guide post stop bolt prevents the motor and trolly bracket assembly from sliding off the bottom of the guide post

when side panel is closed. Install one bolt through each guide post below the bracket attached to the motor.

Complete these steps:

1. Close the side panel and mark

the stop bolt location 1/2" down

from the bottom of the motor

bracket.

NOTE: Ensure stop bolt position will

allow bolt (when installed) to contact

the bracket as shown.

2. Raise or lift the motor assembly

for clearance. Using a drill and

3/8" bit, drill the stop bolt hole

through the guide pipe.

3. Insert the 5/16" bolt through the

hole and add the 5/16" locknut.

4. Tighten using 1/2" wrench and

1/2" socket with a ratchet.

5. Lower the motor to check for bolt

and bracket position.

6. Ensure end of guide pipe remains

above the ground when side

panel is closed. Cut pipe to length

if needed.

7. Repeat the procedure to install

the stop bolt for the remaining

roll-up side guide post.

Guide Post

Motor

Bracket

Motor

Bracket

Guide

Post

Stop

Bolt

10 Automated Roll-Up Sides Revision date: 12.16.20

Install Low Voltage Motor Controller

116637

Low Voltage Motor Controller

The 116637 controller in conjunction with the drive motor limit switches allow

complete control of the roll-up panels. Consult the documentation included

with the controller and motors for important wiring details as well as

setup instructions.

Follow all wiring instructions and diagrams relevant to your specific

needs. Consult the services of a qualified electrician familiar with the

installation and setup of similar vent, fan, and curtain control systems.

ATTENTION: IF PLANS ARE TO ROUTE THE POWER CORD FOR

EACH MOTOR THROUGH THE END WALL CLADDING, ENSURE CORD

POSITION ALLOWS FOR FREE AND FULL MOVEMENT OF THE MOTOR

DURING ROLL-UP PANEL OPERATION.

ATTENTION: ALL ELECTRICAL CONNECTIONS TO BE COMPLETED

IN ACCORDANCE WITH LOCAL AND REGIONAL CODES BY A

PROFESSIONAL, LICENSED AND QUALIFIED CONTRACTOR.

Complete these steps:

1. Once power is connected to the

controller, first adjust the limits on

the motor to set the fully open and

fully closed positions of each roll-

up panel. Use the Manual setting

on the controller to set limits.

Consult controller instructions.

2. For best results, open and close each panel and adjust the panel position

so panel rolls up evenly on the conduit.

NOTE: In some instances, especially for buildings longer than 48', the

panel may not roll up evenly on the conduit. In such cases, it may be

necessary to lower the panel to the closed position and disconnect the

roll-up conduit from the panel by removing the fabric clips. Next, adjust

the conduit position on the panel edge and reinstalling the fabric clips.

Test the operation of the panel and repeat the steps until the panel(s)

open as desired.

3. Once the panels open and close as desired, continue by setting the

controller. Consult the documentation included with the controller.

4. Test the motor operation and adjust all settings to achieve the desired

results.

ATTENTION: CONSULT THE SERVICES OF A QUALIFIED

TECHNICIAN FAMILIAR WITH THE SETUP AND OPERATION OF

SIMILAR AUTOMATED SYSTEMS.

Autres manuels GrowSpan Kit de serre

GrowSpan

GrowSpan 105044 Manuel utilisateur

GrowSpan

GrowSpan 500 Series Manuel utilisateur

GrowSpan

GrowSpan Gothic Pro Manuel utilisateur

GrowSpan

GrowSpan 500 Series Manuel utilisateur

GrowSpan

GrowSpan Gothic Pro Manuel utilisateur

GrowSpan

GrowSpan 500 Series Manuel utilisateur

GrowSpan

GrowSpan PB01670R6 Manuel utilisateur

GrowSpan

GrowSpan 2000 Series Manuel utilisateur

GrowSpan

GrowSpan 500 Series Manuel utilisateur

GrowSpan

GrowSpan 105148 Manuel utilisateur

GrowSpan

GrowSpan Round Premium PB01660R4 Manuel utilisateur

GrowSpan

GrowSpan 104176 Manuel utilisateur

GrowSpan

GrowSpan 113469H Manuel utilisateur

GrowSpan

GrowSpan Canopy-Top Cold Frame Series Manuel utilisateur

GrowSpan

GrowSpan 500 Series Manuel utilisateur

GrowSpan

GrowSpan 113170 Manuel utilisateur

GrowSpan

GrowSpan PGFLSAXXFCW0063 Manuel utilisateur

GrowSpan

GrowSpan PB01700R6 Manuel utilisateur

GrowSpan

GrowSpan PB01720R4 Manuel utilisateur

GrowSpan

GrowSpan 2000 Series Manuel utilisateur

GrowSpan

GrowSpan Flip-Top Cold Frame Manuel utilisateur

GrowSpan

GrowSpan 500 Series Manuel utilisateur

GrowSpan

GrowSpan 108197H Manuel utilisateur

GrowSpan

GrowSpan 500 Series Manuel utilisateur

Manuels Kit de serre populaires d'autres marques

ACD PRESTIGE

ACD PRESTIGE MR3 H Manuel utilisateur

Vitavia

Vitavia VA0040-TRP Manuel utilisateur

VegTrug

VegTrug Nursery Manuel utilisateur

Riverstone Networks

Riverstone Networks Monticello 041315V Manuel utilisateur

STC

STC Easy Grow 6x12 Greenhouse Manuel utilisateur

CLIMA POD

CLIMA POD Spirit V7 Series Manuel utilisateur

Vitavia

Vitavia GAIA JUMBO Manuel utilisateur

Palram

Palram Harmony 6'x4' Manuel utilisateur

ClearSpan

ClearSpan Storage Master 104598 Manuel utilisateur

Sproutwell

Sproutwell GRANGE - 5 Manuel utilisateur

ACD

ACD Piccolo 03 Manuel utilisateur

Growhouse

Growhouse Lean To 6 x 8 Manuel utilisateur

Riverstone Networks

Riverstone Networks Grower's 181010V Manuel utilisateur

Robinsons

Robinsons 5ft Wide LEAN-TO Manuel utilisateur

Botanica

Botanica E Manuel utilisateur

PNI

PNI SP6000 Manuel utilisateur

Hortus

Hortus 211-203 Manuel de programmation

Robinsons

Robinsons 6' Lean-To Manuel utilisateur
