Growatt ARK 2.5L-A1 Instructions d'utilisation et d'entretien

ARK 2.5L-A1

Quick Installation Manual

Installation environment

Installation tools

Max.+50℃Min.-10℃RH.+5%~+95%

1.Check

ARK-2.5L-A1

ARK-2.5L-A1 Parallel Cable ARK-2.5L-A1 Base

A B C D

Installation Method Compound Mode

Standard Wall-Mounted Installation

Wall-Mounted Battery system stacked in two line

Floor installation battery system stacked in two line

A+B

A+B+D

A+B+C

A+B+C+D*2

System size

2.Floor installation with base

Installation Location Requirements

2-1

Note:

Installation Procedure

Note: The number of wall-mount installations should not exceed four.Please make sure that the weight capacity

of wall should exceed 150kg.

Installation Location Requirements

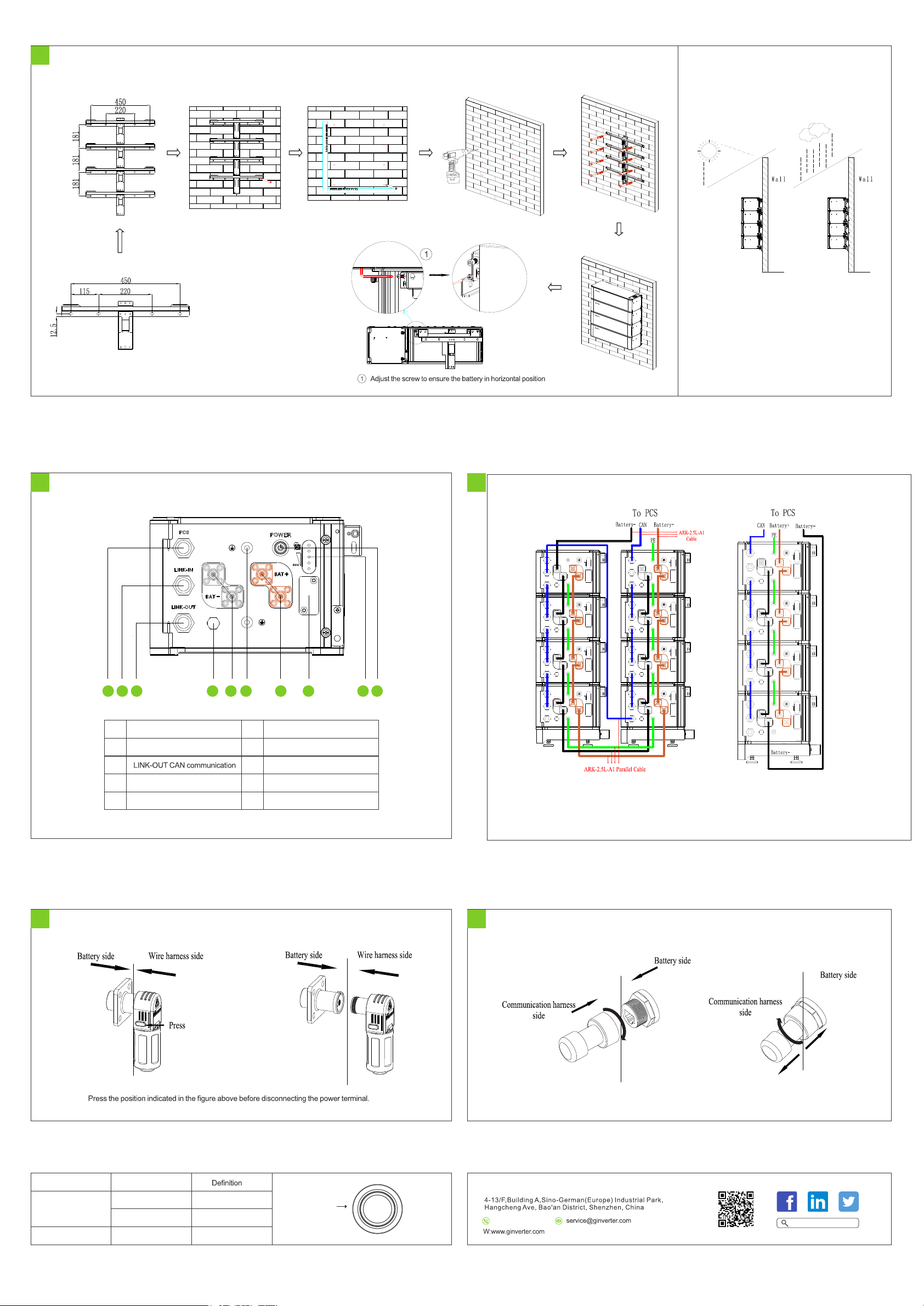

3. Wall-Mounted Installation Process

Check Packing List

1-1

Check accessories

1- 2

2-2 3-1

The safety part needs to be installed at the top battery, however, once the number of the battery pack is

higher than 7, one more safety part should be installed in the middle battery which is shown the last step.

Avoid drilling holes in the water pipes and cables buried in the wall.

Note: Build sun& rain shade to avoid direct

exposure to sunlight and rain.

1 2 3 4 5 6 7 8 9 10

Note: The switch connect PCS to ARK-2.5L-A1, we recommend the use of molded case circuit breaker

with rated working voltage greater than 80V and rated working current greater than 125A.

6.Terminal Connection

Power terminal Communication terminal

7.Key operation

Power Button

Situation

System of f

System on

Touch

Press(＜2S)

Press(≥2S)

Press once

No reaction

Power on

Shut down

Press

8.Service and contact

Shenzhen Growatt New Energy Co.,ltd.

86 0755 2747 1942 Growatt New Energy

Installation Procedure

GND terminal

Positive terminal

USB interface

LED

Power button

PCS CAN communication

LINK-IN CAN communication

Safety vent

Negative terminal

3-2

Install Environment

Wire Connection

Connection end face introduction

5-1 Diagram of wiring connection

5-2

6-1 6-2

Note: Avoid drilling holes in the water pipes and cables buried in the wall.

Note: When multiple battery modules are used in parallel connection, you only need to press one key of any module to start the system,

and also press one key to shut down the battery system. ALM/RUN light turns green when powered on
