Ground Control CP4 Manuel utilisateur
pg. 3

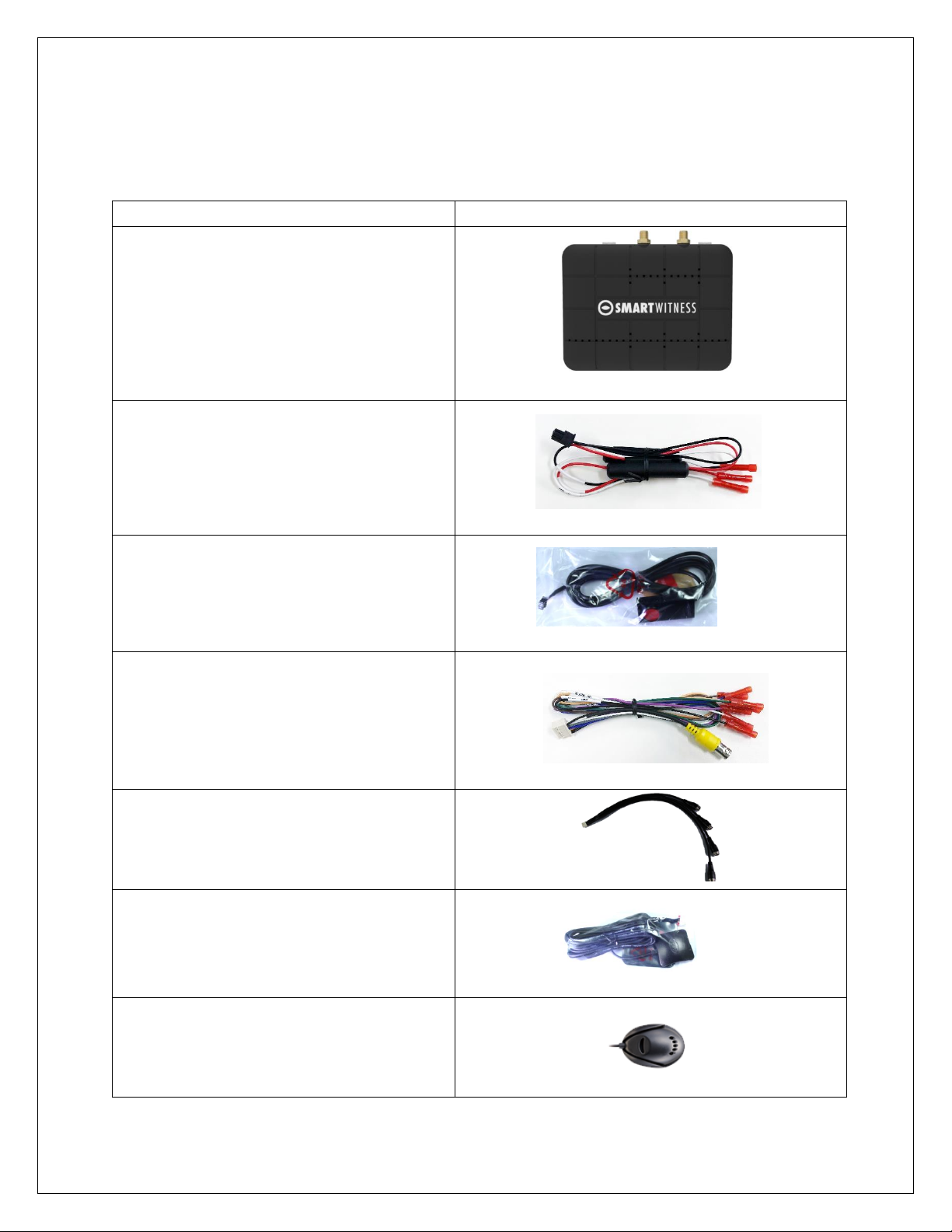

Package Contents
Product Name
CP4-NA-LTE Vehicle Recorder
SD and SIM cards pre-inserted
(if applicable)
Power Cable
BAT(+), IGN+, BAT(-)
Remote Controller (Panic Button)
with 3M adhesive
Video Output Cable and I/O triggers
Camera Input Cable
(4x Aviator input for Ch. 1-4)
GPS Antenna Module
Audio Microphone
pg. 4

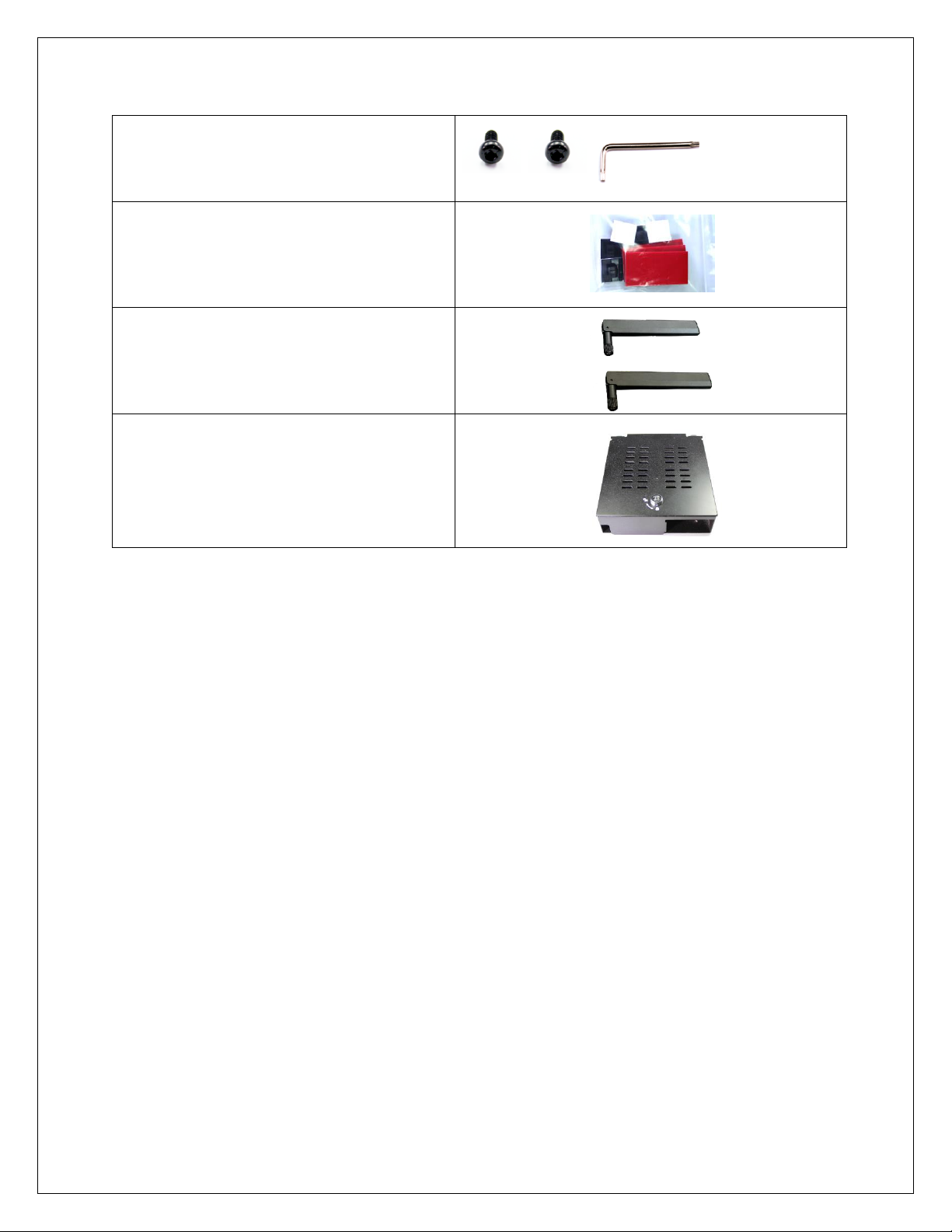

Torx Screw (x2) and Torx screwdriver
Velcro tape (x4) and Wire Splice clip
(x5)
3G/LTE Antenna
Locking Enclosure/Mounting Bracket
(Optional Accessory)
pg. 5
2. CP4 Hardware Overview
Dimensions
Front View
Rear View
Built-in
microphone
4.75”
3.55”
SD Card Slot
Torx Screw
Serial Port
Microphone
Input
Debug Port
(No Use)
USB Input 2
Camera Input
Harness (Ch 1-4)
LTE Antenna Connectors
GPS Input
Remote Controller Input
USB Input
Video Output &
Alarm I/O Harness
Power Input
pg. 6
3. Installation:
Park the vehicle on a flat service. Turn of the engine before installing the CP4.
The SD card and SIM is usually pre-inserted, but if it’s not, you should be
notified by the service provider and have been provided SIMs/SDs separately.
Find installation location for recorder and locking case (if applicable).
oThe default axis adjustments by device position is set as shown below.
Install remote control onto dash next to the steering wheel and within reach of
the driver.
pg. 7
Run camera cable(s) and secure in headliner and or other area so no cables are exposed. Use
provided wire clips if necessary.
Connect all cables to CP4 Recorder. Secure the windshield mounted camera cables into the
headliner and down the A-Pillar.

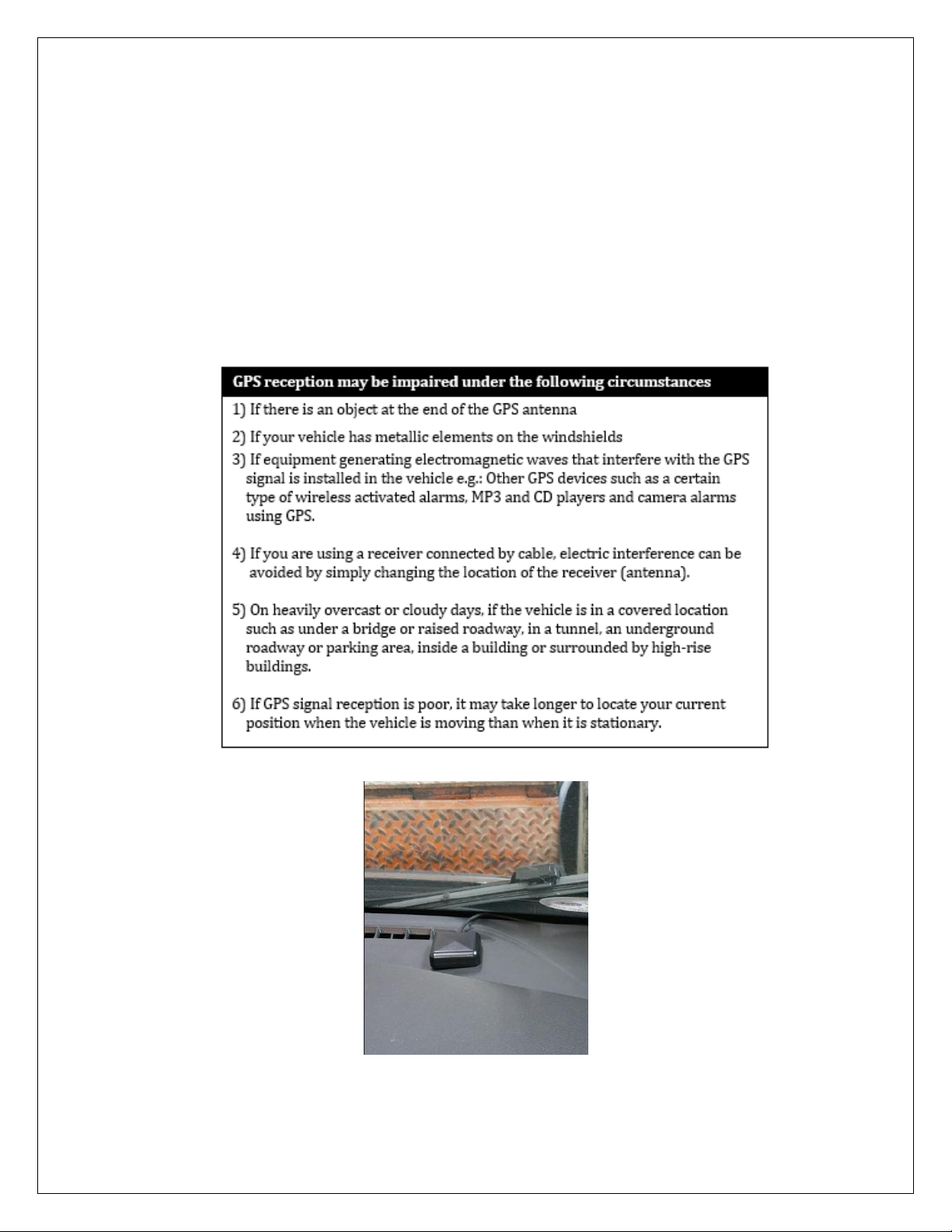

Route the GPS cable up the side panel and on the dashboard, in view of the windshield (so it
can have a view of the sky to acquire GPS signal).
oActivate the product in an area without large buildings to improve GPS reception.
oThe temperature ranges for optimum operation of the GPS receiver in your car is -10 ~ 50°C.
CP4 GPS antenna properly installed on the Vehicle Dash
pg. 8
For questions or support, please visit support.smartwitness.com or call (312) 981-8774 x8686
IMPORTANT NOTE
Your CP4 includes one pair of the below pictured LTE stubby style antennas. Please
connect them to the SMA connectors as pictured below.
For questions or support, please contact GroundCloud Support 218-864-7900 or
pg. 9
Camera Connection
oThe SVA055-CA is a dual road and driver camera.
NOTE: If not pre-cut, cut wire to convert driver camera to AHD (720p) and
connect to CH2 input of CP4.
Operation procedures:
1. Attach Windshield bracket to the H bracket using the two bracket screws
2. Clean the windshield area where the SVA055-CA will be mounted (the camera lenses
should be within the top 2” of the windshield wiper zone, and centered).
3. Remove the 3M adhesive backing and press firmly on the glass for 30 seconds.
4. Loosen and adjust the side screws on the H bracket to adjust the camera angles to
be parallel with the road.
5. Tighten the screws and connect the 4m extension cable.
6. Run the extension cable through the headliner, down the A pillar and connect the 4
pin connectors to the video inputs on the DVR.
7. Power up the DVR and confirm the SVA055 field of views are properly angled to
capture the road and driver. You can use the LCD monitor or the install wizard to
verify.
pg. 10
Camera Channel inputs
oCamera input channels on CP4 always follow CH1 (shortest) to CH4 (longest)
cable.
Road Camera
Driver Camera
Ch2
Ch1
Ch3
Ch4
pg. 11
4. CP4 Power Cable and Wiring
Lay out the power cable roughly where it will run once hidden behind the vehicle's interior panels. This
gives you an idea of where to route the cable and how much slack to leave on the way down to the
vehicle’s power source.
Secure the power cable extension into the headliner and down the A-Pillar. Route the power cable
around the side and behind the rest of the interior panels down towards the fuse box / power source.
Make sure the vehicle is off, then connect the required wires to the vehicle, as shown below in the
wiring diagram.
Power Connection
Video Output Cable & I/O Harness (optional)
Power Specifications
Input: DC 10˞32V, 2000 mA
Output: DC5V, 2500 mA
Use WHITE wire ALARM #1 to
connect to Reverse Lights
Voltage+ wire of the vehicle.
When reverse lights turn on,
they will trigger the alarm wire
of CP4.
