TOOL BOXES AND ROLLER CABINETS

Please read these instructions carefully

Tool Boxes

Boxes that have no front locking panel are equipped with a locking

mechanism actuated by the lid. When the lid is closed, tabs in the lock

bar engage the pockets on the drawers. When the lid is open, the tabs

are raised clear of the pockets.

Important: The drawer must be fully closed before the lid is shut. DO NOT

slam the drawers when the lid is shut; they will not lock and damage to

lock bar tabs or lock pockets may occur. Should this happen, remove

the drawer and straighten out the deformed tab with a screwdriver. For

the lock pockets, a pair of pliers should be used. See (1A) lock bar tab

and (1B) lock pocket.

Removal/Re-installation of Drawers:

• To remove, pull drawer fully open. Push in the plastic tabs (2) on both

sides to release drawer from slides. Pull the drawer out.

• To re-install, line up the drawer slides, engage, and close the drawer

completely.

Roller Cabinets

The roller cabinets feature a rotating cam lock mechanism controlled

by a key. When locked, hooks engage in each drawer to prevent them

from being opened. When unlocked, the hooks disengage, allowing the

drawers to be opened. If the cabinet is locked while the drawers are still

open, simply close the drawers to lock them.

Casters and Side Tray: Use the included screws to attach the two

heavy-duty fixed casters (3A) and two heavy-duty swivel casters with

brakes (3B) as shown in the diagram. The side handle/tool tray (3C)

must be attached to the same side as the swivel casters.

Removal/Re-installation of Drawers:

• To remove, pull drawer fully open. Push in the plastic tabs (4) on both

sides to release drawer from the slides. Pull the drawer out.

• To re-install, line up the drawer slides, engage, and close the drawer

completely.

Lubrication

To ensure smooth operation of the slides, lubricate them periodically

with a light grease or petroleum jelly. Do this at least twice a year or

more, depending on the frequency of use.

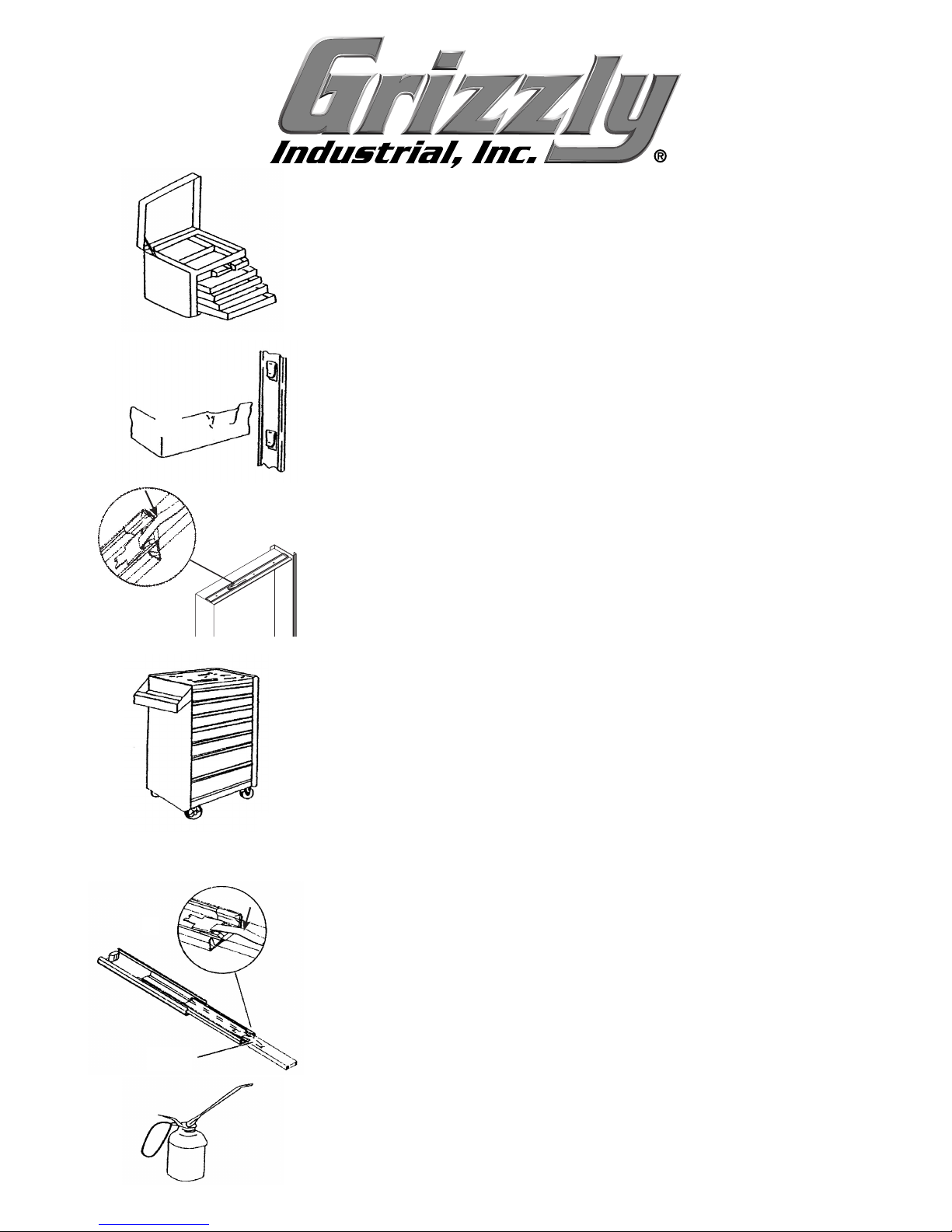

1A

1B

4

2

3B

3A

3C

Push
