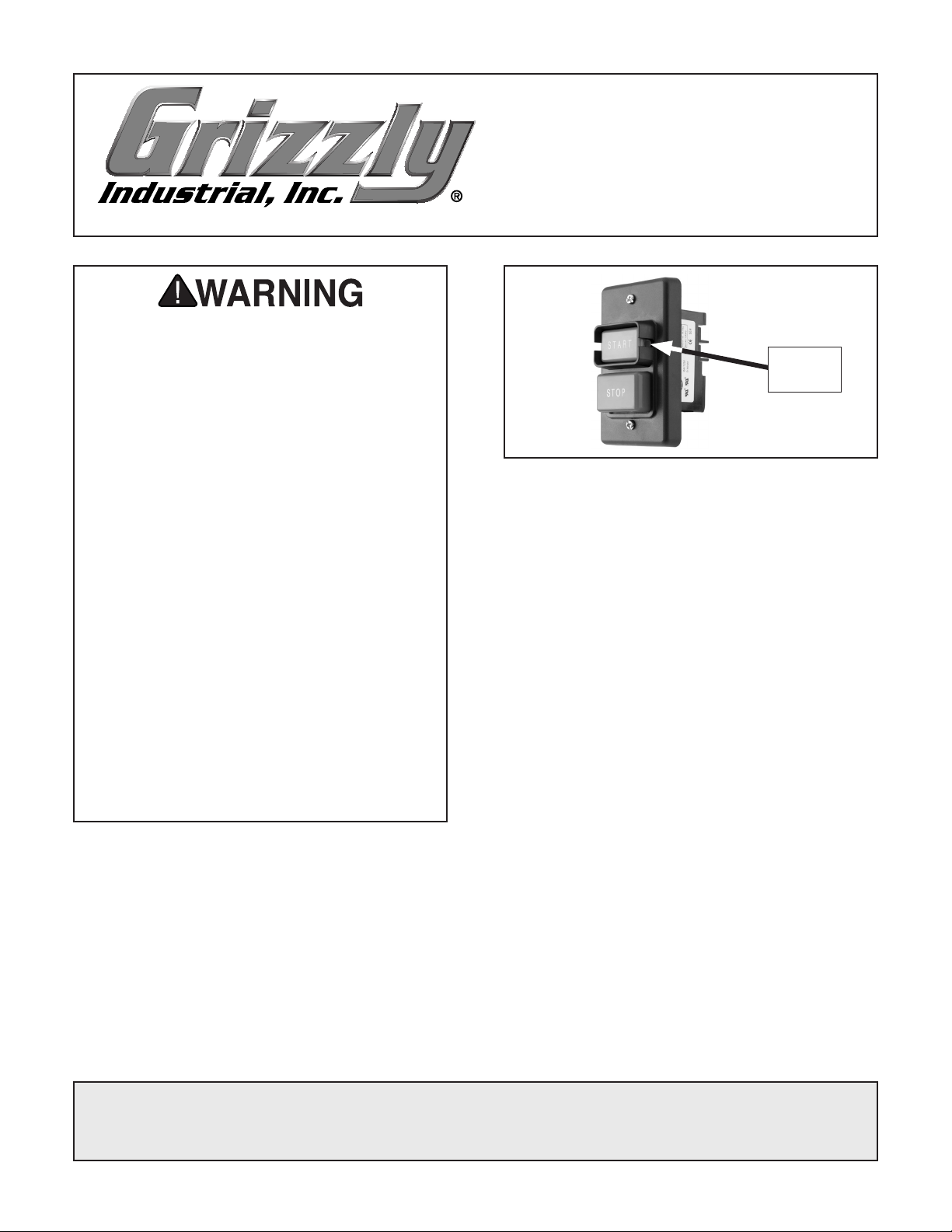

Grizzly H8238 Manuel utilisateur
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
MODEL H8238
110/220V ON/OFF SWITCH
INSTRUCTIONS
WARNING: NO PORTION OF THIS INSTRUCTION SHEET MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
Introduction
Specifications
Figure 1.
To reduce risk of serious burns, electrocu-
tion or death when installing this switch:
• Only use this switch to replace an existing
machine switch that has the same physi-
cal configuration and equivalent electrical
specifications/ratings.
• Installationmustonlybeperformedbyan
electrician or qualified service personnel,
and all applicable electrical codes must
be adhered to.
• Turn off and completely disconnect all
power sources to the machine before
installing the switch.
• Do not use this switch in wet or damp
locations, or near explosive fumes or
flammable liquids. It is not sealed or rated
for these environments.
• Make sure there is a verified machine
ground on the circuit this switch is
installed.
Figure 4.
NOTICE
The padlock shaft diameter is important to
the disabling function of the switch. With
any padlock used to lock the switch, test
the switch after installation to ensure that it
is properly disabled.
Children or untrained people can be killed
or seriously injured by this machine. This
risk increases with unsupervised operation.
To help prevent unsupervised operation,
disable and lock the switch before leaving
machine unattended! Place key in a well-
hidden or secure location.
Disabling & Locking Switch
Figure 3.
The ON/OFF switch can be disabled and locked
by inserting a padlock through the ON button,
as shown. Locking the switch in this manner can
prevent unauthorized operation of the machine,
which is especially important if the machine is not
stored inside an access-restricted building.
IMPORTANT: Locking the switch with a padlock
only restricts its function. It is not a substitute
for disconnecting power from the machine when
adjusting or servicing.
Shaft
Padlock
Installation
Figure 2
This switch is intended to be connected to
stranded wire with insulated crimp-type ring
wire terminals.
All crimps must be "pull-checked" to ensure
that wires are securely crimped and will
not fall out with moderate tension or when
exposed to normal machine vibration.
Load
Line
KEDU
HY56
Rear View
of Switch
Hot
Out
Hot
In
Machine
Out
120V Neutral
or 240V Hot
In
120V Neutral
or 240V Hot
Verified
Ground*
Power Source
Figure 2.
