G5912Z/G7214Z Heavy-Duty Shaper -33-
Cabinet Parts Breakdown
-34- G5912Z/G7214Z Heavy-Duty Shaper
Cabinet Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PSS23 SET SCREW 5/16-24 X 5/8 18 P5912Z018 TERMINAL BOX ASSY
2 P5912Z002 TABLE 18A P5912Z018A TERMINAL BOX W/O BUSBAR
3 P5912Z003 INSERT (SMALL) 19 P5912Z019 STRAIN RELIEF
4 P5912Z004 INSERT (MID) 21 P5912Z021 STRAIN RELIEF
5 P5912Z005 INSERT (BIG) 22A P5912Z022A ELECTRICAL BOX ASSY (G5912Z)
6 P5912Z006 STAND ASSY 22A P7214Z022A ELECTRICAL BOX ASSY (G7214Z)
6-1 P5912Z006-1 DEGREE SCALE 22A-1 P5912Z022A-1 CONTACTOR (G5912Z)
7 PN08 HEX NUT 3/8-16 22A-1 P7214Z022A-1 CONTRACTOR (G7214Z)
8 PLW04 LOCK WASHER 3/8 22A-2 P5912Z022A-2 OVERLOAD RELAY (G5912Z)
9 PW02 FLAT WASHER 3/8 22A-2 P7214Z022A-2 OVERLOAD RELAY (G7214Z)
10 P5912Z010 TABLE BRACE (R) 23 P5912Z023 TABLE BRACE (L)
11 PN07 HEX NUT 10-24 24 P5912Z024 MITER GAUGE
12 PS12 PHLP HD SCR 1/4-20 x 5/8 128 P5912Z128 RESET SWITCH
13 P5912Z013 REMOVABLE DUST DOOR 129 P5912Z129 REVERSE LIGHT
14 PB24 HEX BOLT 3/8-16 X 1-1/4 156A P7214Z156A 440V CONVERSION KIT
15 PB21 HEX BOLT 3/8-16 X 3/4 156A-1 P7214Z156A-1 440V MAG CONTACTOR
16 P5912Z016 MOTOR COVER 156A-2 P7214Z156A-2 440V THERMAL PROTECTOR
17 PS08 PHLP HD SCR 10-24 X 3/4 156A-3 P7214Z156A-3 440V LIGHT BULB
G5912Z/G7214Z Heavy-Duty Shaper -35-

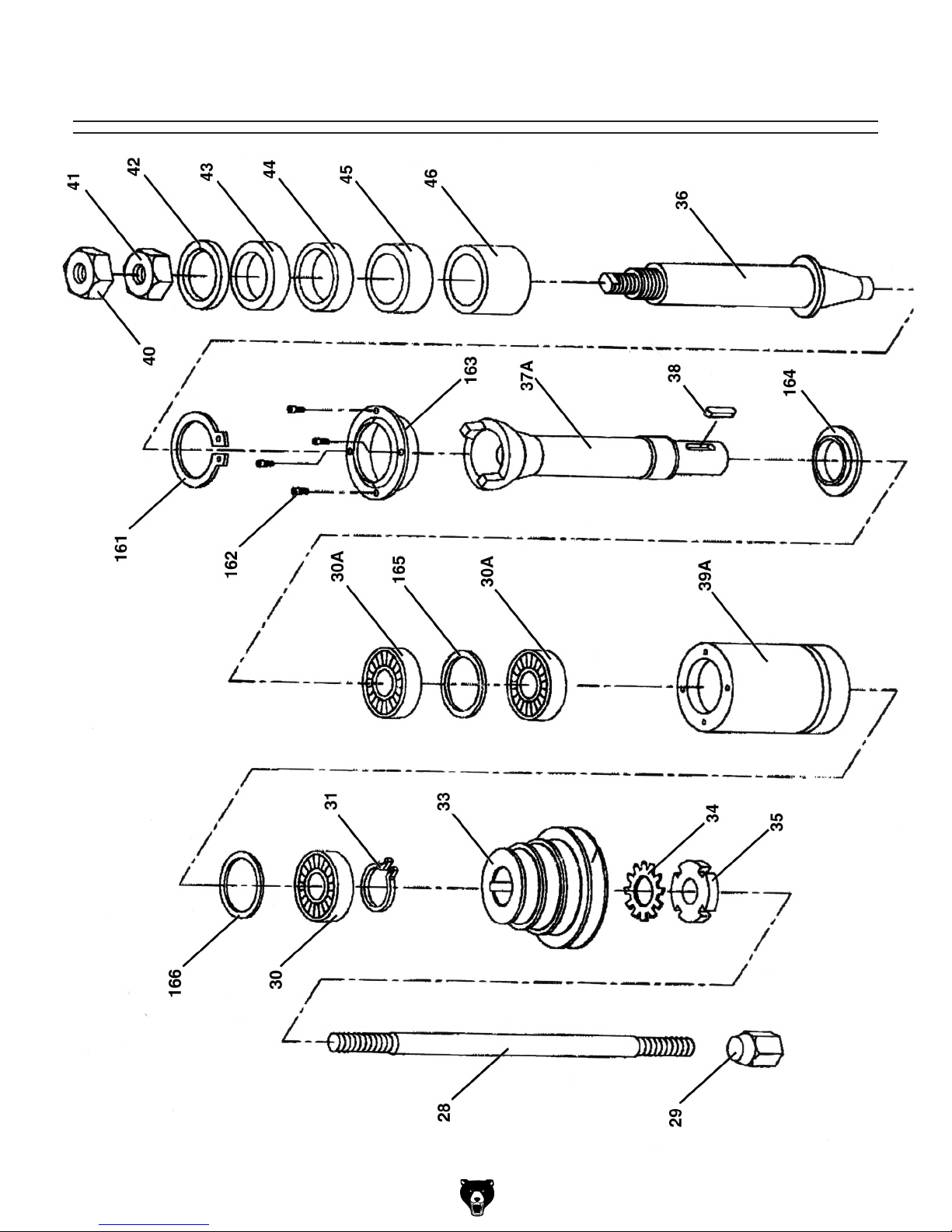

Spindle Parts Breakdown
-36- G5912Z/G7214Z Heavy-Duty Shaper
Spindle Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
28 P5912Z028 LOCK BOLT 3/8-11 43A P5912Z043A COLLAR 1" X 3/8"
29 P5912Z029 TAPER LOCK NUT 44 P5912Z044 COLLAR 1-1/4" X 1/2" 2PC
30 P6008ZZ BALL BEARING 6008ZZ-K 44A P5912Z044A COLLAR 1" X 1/2"
31 PR68M EXT RETAINING RING 40MM 44B P5912Z044B COLLAR 3/4" X 1/2"
33 P5912Z033 PULLEY SPINDLE 45 P5912Z045 COLLAR 1-1/4" X 3/4" 2PC
34 P5912Z034 STAR WASHER 30MM 45A P5912Z045A COLLAR 1" X 3/4" (2PC)
35 P5912Z035 SPANNER NUT 45B P5912Z045B COLLAR 3/4" X 3/4" (2PC)
36 P5912Z036 SPINDLE 1-1/4 46 P5912Z046 COLLAR 1-1/4" X 1" 2PC
37A P5912Z037-1 SPINDLE CARTRIDGE ASSY V2.0 46A P5912Z046A COLLAR 1" X 1" (2PC)
38 PK55M KEY 7 X 7 X 40 46B P5912Z046B COLLAR 3/4" X 1" (2PC)
39A P5912Z039A QUILL V2.0 161 PR43M EXT RETAINING RING 50MM
40 PN03-1 HEX NUT 3/4-16 (LH) 162 PSB17M CAP SCREW M4-.7 X 10
41 PN32 HEX NUT 1-14 163 P5912Z163 OUTER DUST COVER
42 P5912Z042 COLLAR 1-1/4" X 1/4" 1PC 164 P5912Z164 INNER DUST COVER
42A P5912Z042A COLLAR 1" X 1/4" 165 P5912Z165 ALTERNATING RING
42B P5912Z042B COLLAR 3/4" X 1/4" 166 P5912Z166 WAVY RING
43 P5912Z043 COLLAR 1-1/4" X 3/8" 1PC
G5912Z/G7214Z Heavy-Duty Shaper -37-
Motor Parts Breakdown
-38- G5912Z/G7214Z Heavy-Duty Shaper
Motor Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
7 PN08 HEX NUT 3/8-16 74 PB16 HEX BOLT 3/8-16 X 1-1/2
8 PLW04 LOCK WASHER 3/8 75 PW07 FLAT WASHER 5/16
9 PW02 FLAT WASHER 3/8 76 PLW01 LOCK WASHER 5/16
14 PB24 HEX BOLT 3/8-16 X 1-1/4 77 PSB03 CAP SCREW 5/16-18 X 1
50 PB02 HEX BOLT 1/4-20 X 5/8 78 P5912Z078 SPRING 3.4 X 20.3
51 PLW02 LOCK WASHER 1/4 79 P5912Z079 KEY 3/8 X 3/4 X 1
52 PW06 FLAT WASHER 1/4 80 P5912Z080 MOTOR 5HP, 220V, 1-PH
53 P5912Z053 HANDWHEEL 80 P7214Z080 MOTOR 7.5HP, 220V, 3-PH
54 P5912Z054 BAR LOCK 81 P5912Z081 SHAFT
55 PN02 HEX NUT 5/16-18 82 PW01 FLAT WASHER 1/2
56 PB03 HEX BOLT 5/16-18 X 1 83 P5912Z083 MOTOR BASE
57 P5912Z057 SCREW LOCK 84 P5912Z084 KNOB
58 P5912Z058 WASHER GEAR 85 PLW07 LOCK WASHER 1/2
59 P5912Z059 GEAR 86 PB54 HEX BOLT 1/2-20 X 1
60 P5912Z060 COLLAR 87 P5912Z087 POINTER
61 PK37M KEY 4 X 4 X 16 88 PS06 PHLP HD SCR 10-24 X 3/8
62 P5912Z062 BASE GEAR SHAFT 89 PB07 HEX BOLT 5/16-18 X 3/4
63 P5912Z063 SHAFT GEAR 90 P5912Z090 SHAFT GUIDE
64 P5912Z064 BASE SPINDLE 91 P5912Z091 PLATE
65 PW01 FLAT WASHER 1/2 92 P5912Z092 MOTOR PLATE
66 PN06 HEX NUT 1/2-12 93 P5912Z093 SHAFT GEAR
67 PSB19 CAP SCREW 3/8-16 X 1-1/4 94 P5912Z094 BASE GEAR SHAFT
68 P5912Z068 SCREW 3/8-16 X 1-1/4 95 P5912Z095 HANDWHEEL
69 P5912Z069 COLLAR 96 P5912Z096 HANDLE
70 PVA30 V-BELT A-30 4L300 97 PB31 HEX BOLT 1/4-20 X 1
71 PVA28 V-BELT A-28 4L280 98 PN05 HEX NUT 1/4-20
72 P5912Z072 KEY 7 X 7 X 50 102 PSS24 SET SCREW 10-32 X 3/16
73 P5912Z073 MOTOR PULLEY
G5912Z/G7214Z Heavy-Duty Shaper -39-
Fence Guard Breakdown
-40- G5912Z/G7214Z Heavy-Duty Shaper
Fence Guard Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
51 PLW02 LOCK WASHER 1/4 112 PW07 FLAT WASHER 5/16
52 PW06 FLAT WASHER 1/4 113 P5912Z113 PLATE GUARD
55 PN02 HEX NUT 5/16-18 114 PSS11 SET SCREW 1/4-20 X 1/4
76 PLW01 LOCK WASHER 5/16 115 P5912Z115 BRACKET ASSY FENCE RH
82 PW01 FLAT WASHER 1/2 116 P5912Z116 WOOD FENCE
89 PB07 HEX BOLT 5/16-18 X 3/4 117 PFH23 FLAT HD SCR 5/16-18 X 1-1/2
97 PB31 HEX BOLT 1/4-20 X 1 118 P5912Z118 HOLD DOWN PLATE
98 PN05 HEX NUT 1/4-20 119 P5912Z119 GUARD/DUST HOOD
105A P5912Z105A RATCHET LOCK HANDLE 120 P5912Z120 BAR
106 P5912Z106 BRACKET SCREW GUIDE 121 P5912Z121 RETAINER (L) 5/8"
107 P5912Z107 SCREW GUIDE ASSY 122A P5912Z122A KNOB BOLT N/S 10/02 3/8-16 X 1
107-1 P5912Z107-1 SCREW GUIDE ROD 123 P5912Z123 NUT 3/8
107A P5912Z107A HANDWHEEL 124 P5912Z124 RETAINER (S) 1/2"
108 P5912Z108 PLASTIC NUT 3/8-16 125 P5912Z125 KNOB
109 P5912Z109 SHAFT GUIDE 126 P5912Z126 BRACKET ASSY FENCE LH
110 P5912Z110 BAR 127 PB26 HEX BOLT 1/4-20 X 1-1/2
111 P5912Z111 KNOB 167 P5912Z167 KNOB BOLT 3/8-16 X 1
G5912Z/G7214Z Heavy-Duty Shaper -41-
Safety Label Parts Breakdown
Safety labels warn about machine hazards and ways to prevent injury. The owner of this machine
MUST maintain the original location and readability of the labels on the machine. If any label is
removed or becomes unreadable, REPLACE that label before using the machine again. Contact
Grizzly at (800) 523-4777 or www.grizzly.com to order new labels.
REF PART # DESCRIPTION REF PART # DESCRIPTION
400 P5912Z400 G5912Z MACHINE ID LABEL 410 P5912Z410 ROTATION DIRECTION LABEL
400 P7214Z400 G7214Z MACHINE ID LABEL 411 PLABEL-11 SAFETY GLASSES LABEL
401 G8589 GRIZZLY NAME PLATE 412 P5912Z412 HAND NEAR CUTTER LABEL
402 P86211002 PULLEY LABEL 413 PLABEL-36 UNPLUG LABEL
403 P5912Z403 SPEED CHANGE LABEL 414 PLABEL-14 ELECTRICITY LABEL
408 PLABEL-12A READ MANUAL LABEL 415 P5912Z415 LARGE ELECTRICITY LABEL
409 P5912Z409 SCALE LABEL 416 PPAINT-1 "GRIZZLY GREEN" TOUCH-UP PAINT
