Grizzly G1182HW Manuel utilisateur

6" X 47" HEAVY-DUTY JOINTER

MODEL G1182HW / G1182ZHW / G1182Z / G1182ZX

PARTS LIST

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

JANUARY, 2002 PRINTED IN TAIWAN.

PARTS LIST DISCLAIMER

THIS PARTS LIST AND DRAWINGS REPRESENT THE CONFIGURATION OF THE MACHINE AS IT IS CURRENTLY BEING SHIPPED. THE

MACHINE CONFIGURATION CAN CHANGE AS PRODUCT IMPROVEMENTS ARE INCORPORATED. IF YOU OWN AN EARLIER VERSION

OF THE MACHINE, THIS PARTS LIST MAY NOT DEPICT YOUR MACHINE EXACTLY. CONTACT CUSTOMER SERVICE IF YOU HAVE

ANY QUESTIONS ABOUT PART DIFFERENCES. PREVIOUS PARTS LIST VERSIONS ARE NOT AVAILABLE ONLINE.

G1182Z

G1182ZHW

G1182HW G1182ZX

G1182 6"

G1182 6" Series Jointers -B-

09 11

05 28

20 21

18A

07 06

05A

01 PG1182001 BASE

01 PG1182HW001 BASE (TYPE HW)

02 PG1182002 INFEED TABLE

02 PG1182HW002 INFEED TABLE (TYPE HW)

03 PG1182003 OUTFEED TABLE

03 PG1182HW003 OUTFEED TABLE (TYPE HW)

04 PG1182004 GIB

05 PG1182005 TABLE LOCK HANDLE

05A P102603A LOCK HANDLE 5⁄16"

06 PSS12 SETSCREW 1⁄4"-20 x 1"

07 PN05 HEX NUT 1⁄4"-20

08 PG1182008 TABLE ADJUST ROD

08 PG1182HW008 TABLE ADJUST ROD (TYPE HW)

09 PEC04M E-CLIP 13mm

10 PG1182010 BASE ROD

11 PG1182011 TABLE ADJUST BLOCK

12 PG1182012 TABLE ADJUST LEVER

13 PG1182013 KNOB

14 PG1182014 BELT GUARD

15 PW07 FLAT WASHER 5⁄16"

16 PB23 HEX BOLT 5⁄16"-18 x 2 1⁄2"

17 PG1182017 WARNING LABEL

REF PART # DESCRIPTION

18 PG1182018 CUTTERHEAD GUARD

18A PG1182018A STUD

20 PG1182020 SPRING PLATE

21 PG1182021 SPRING

22 PG1182022 SPRING HOUSING

23 PG1182023 HOUSING MOUNT

24 PS29 PHLP SCREW 6-32 x 5⁄8"

25 PN02 HEX NUT 5⁄16"-18

26 PG1182026 SCALE

27 PG1182027 POINTER

28 PG1182028 RIVET

29 PG1182029 FENCE SUPPORT

30 PB24 HEX BOLT 3⁄8"-16 x 11⁄4"

31 PG1182031 SPECIAL WASHER

32 PG1182032 KEY

33 PRP18M ROLL PIN 4 x 12mm

34 PW02 FLAT WASHER 3⁄8"

REF PART # DESCRIPTION

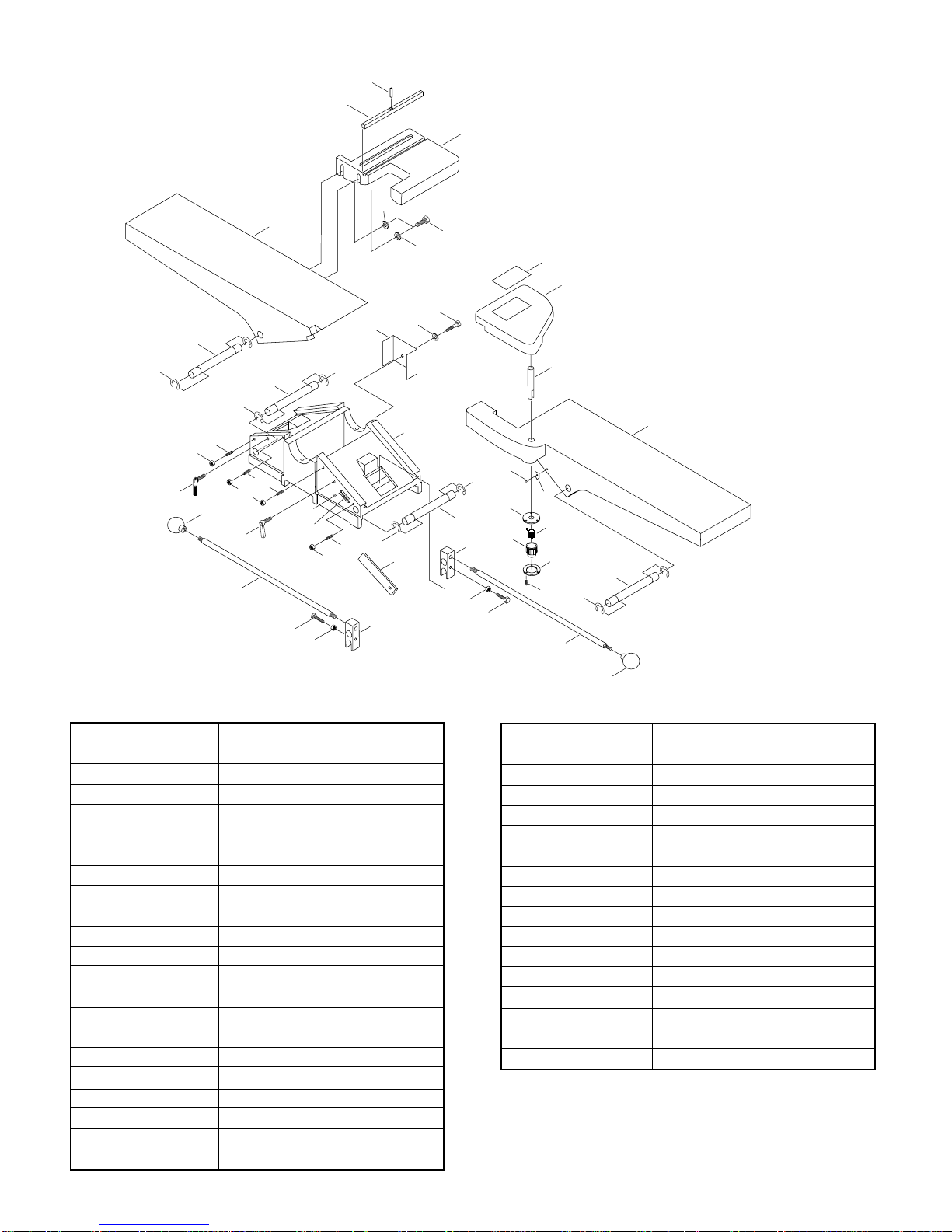

MAIN TABLES

G1182 6" Series Jointers -C-

51 52

STAND FOR JOINTER MODEL G1182Z & G1182ZHW

REF PART # DESCRIPTION

35 PN03 HEX NUT 3⁄8''-16

36 PG1182333 KNOB

37 PG1182332 CABINET DOOR

38 PG1182331 CABINET STAND

39 PG1182317 MOTOR PULLEY

40 PSS03 SET SCREW 1⁄4"-20 x 3⁄8"

41 PK23M KEY 5 x 5 x 25mm

42 PG1182320 MOTOR

43 PW07 FLAT WASHER 5⁄16"

44 PB07 HEX BOLT 5⁄16"-18 x 3⁄4"

45 PN02 HEX NUT 5⁄16"-18

46 PW07 FLAT WASHER 5⁄16"

47 PS30 PHLP HD SCREW 8-32 x 1''

REF PART # DESCRIPTION

48 G9899 SWITCH

49 PG1182Z049 WARNING LABEL

50 G8588 SMALL CAST LOGO

51 PG1182330 MOTOR CORD

52 PG1182325 POWER CORD

53 PB21 HEX BOLT 3⁄8"-16 x 3⁄4"

54 PLW04 LOCK WASHER 3⁄8"

55 PG1182Z055 DUST COVER

56 PVA36 V-BELT

57 PG1182334 LATCH

-D- G1182 6" Series Jointers

108

101

102 110

111

109

103 124

102

106

107

104

105

104

115

112

113

116

120

119

114

121

123

122

130

129

128

125

117

118

123

126

126 127

101 PG1182101 FENCE

102 PG1182102 PIVOT STUD

103 PG1182103 FENCE HINGE

104 PG1182104 SPECIAL SCREW

105 PN08 HEX NUT 3⁄8"-16

106 PG1182106 TILT LEVER

107 PG1182107 KNOB

108 PG1182108 SPECIAL SCREW

109 PG1182109 FENCE BRACKET

110 PG1182110 FENCE STOP BRACKET

111 PG1182111 SPECIAL CAP SCREW

112 PN10 HEX NUT 7⁄16"-20

113 PG1182113 FENCE ADJUSTMENT ROD

114 PG1182114 FENCE TILT CLAMP

115 PG1182115 90° STOP TAB

REF PART # DESCRIPTION

116 PRP18M ROLL PIN 4 x 12mm

117 PG1182117 SPECIAL BOLT

118 PG1182118 STOP TAB

119 P1023040 JAM NUT 5⁄8"-11

120 PG1182120 FENCE TILT SLEEVE

121 PG1182121 FENCE BASE

122 PW01 FLAT WASHER 1⁄2"

123 PG1182123 LOCKING SCREW

124 PG1182124 SPECIAL NUT

125 PB03 HEX BOLT 5⁄16"-18 x 1"

126 PN02 HEX NUT 5⁄16"-18

127 PB22 HEX BOLT 5⁄16"-18 x 1 3⁄4"

128 PG1182128 FENCE LOCK BRACKET

129 PS07 SCREW 1⁄4"-20 x 3⁄8"

130 PW06 FLAT WASHER 1⁄4"

REF PART # DESCRIPTION

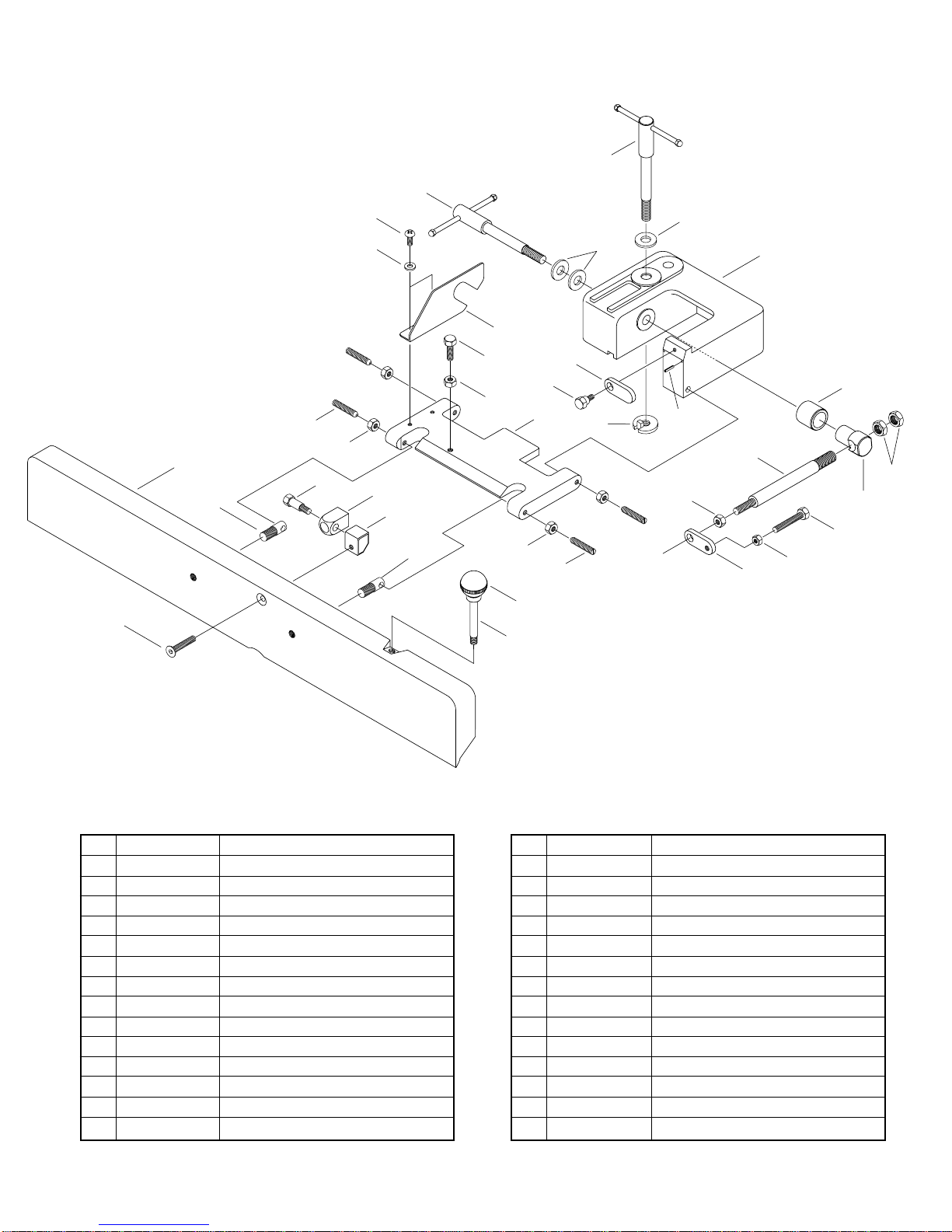

FENCE

G1182 6" Series Jointers -E-

202

203 208

207

206

213

212

211

201

205

204

210

209

215

214

216

207

206

217

REF PART # DESCRIPTION

201 PG1182201 CUTTERHEAD

202 G1188 KNIVES, SET OF THREE

203 P1021103 SPRING

204 PG1182204 KNIFE GIB

205 P1017117 GIB BOLT

206 PN11 HEX NUT 3⁄8"-24

207 PLW04 LOCK WASHER 3⁄8"

208 PG1182208 STUD

209 PG1182209 BEARING BLOCK

210 P6202 BEARING

211 PK23M KEY 5 x 5 x 25mm

212 P6203 BEARING

213 PG1182213 BEARING BLOCK

214 PG1182214 PULLEY

215 PSS03 SETSCREW 1⁄4"-20 x 3⁄8"

216 PG1182216 KNIFE SETTING GAUGE

217 PG1182HW217 JACK SCREWS

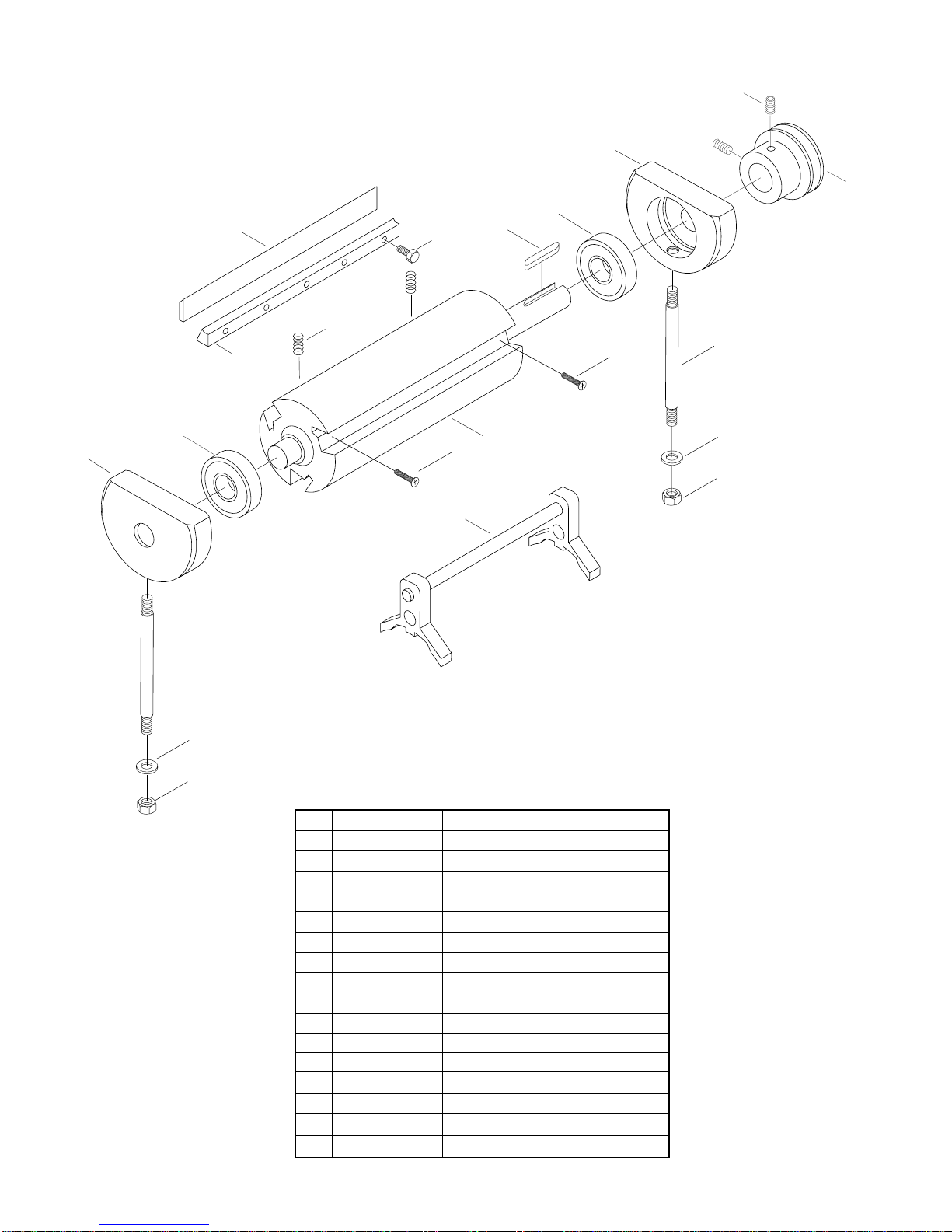

CUTTERHEAD

-F- G1182 6" Series Jointers

311310

303 316

301

315 314313

312

319

305

310 311

318

317

307

309A

310311

321

311310

304

307

306

320

302 325

326

316

315

310

311

311310

322B

330

308

322-1

323A

REF PART # DESCRIPTION

301 PG1182301 BASE PANEL

302 PG1182302 RIGHT STAND SUPPORT

303 PG1182303 LEFT STAND SUPPORT

304 PG1182304 LEFT DUST CHUTE

305 PG1182305 RIGHT DUST CHUTE

306 PG1182306 MOTOR SUPPORT

307 PG1182307 FRONT PANEL

308 PG1182308 SWITCH COVER

309A PG1182309A SWITCH MOUNT FOR PSW06

310 PW03 FLAT WASHER 3⁄16"

311 PS06 SCREW #10 - 24 x 3⁄8"

312 PN02 HEX NUT 5⁄16" - 18

REF PART # DESCRIPTION

313 PW07 FLAT WASHER 5⁄16"

314 PB07 HEX BOLT 5⁄16" - 18 x 3⁄4"

315 PB21 HEX BOLT 3⁄8" - 16 x 3⁄4"

316 PLW04 LOCK WASHER 3⁄8"

317 PG1182317 MOTOR PULLEY

318 PSS03 SETSCREW 1⁄4" - 20 x 3⁄8"

319 PVA36 V-BELT

320 PG1182320 MOTOR, 1HP

321 PK23M KEY 5 x 5 x 25mm

322-1 G8588 SMALL CAST LOGO

322B G9989 SWITCH

323A PG11823HW23A WARNING LABEL

325 PG1182325 POWER CORD

326 PG1182326 STRAIN RELIEF

330 PG1182330 MOTOR CORD

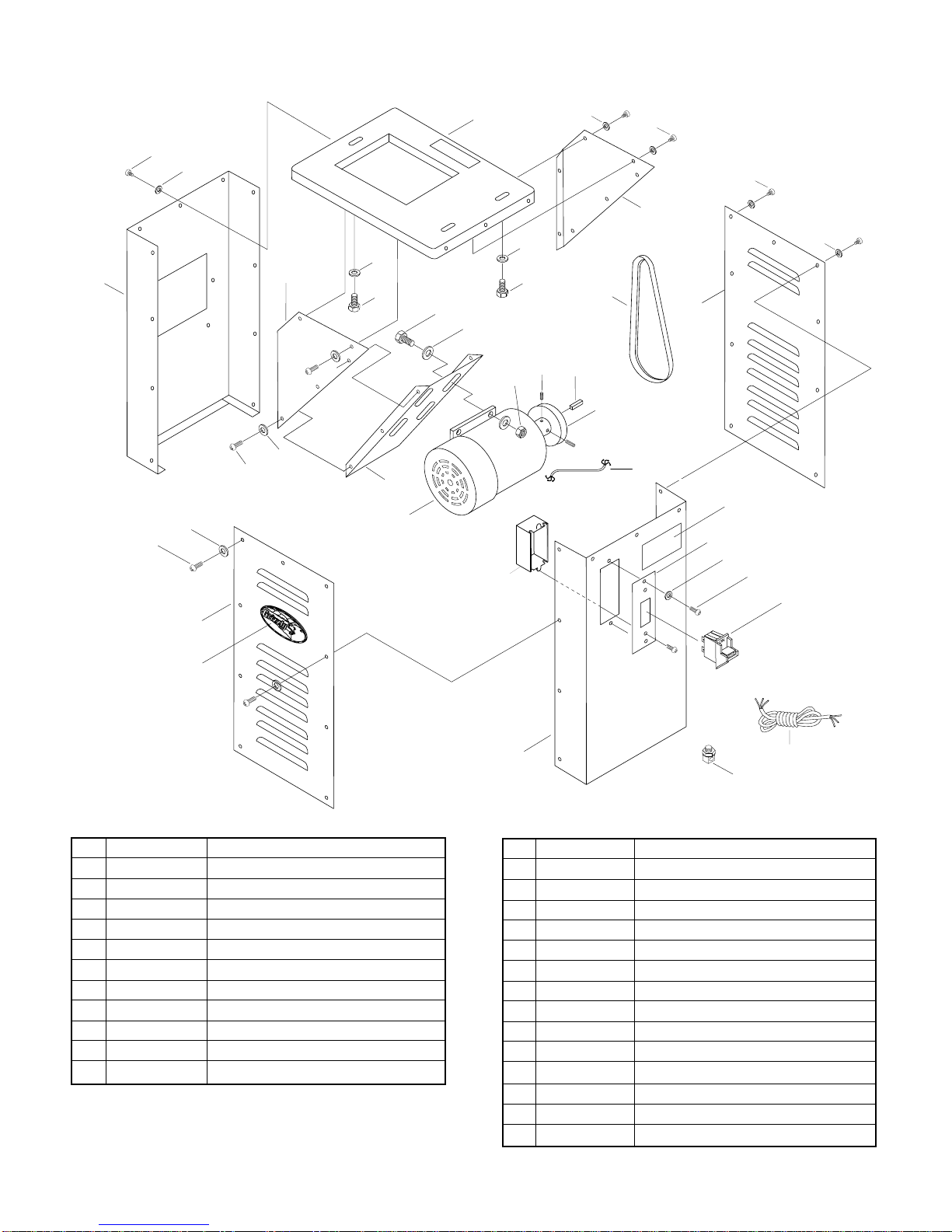

STAND FOR JOINTER MODEL G1182HW

G1182 6" Series Jointers -G-

401

403

406

403

407

408

409

410

411

412

404

405

402

413

REF PART # DESCRIPTION

401 PB19 HEX BOLT 1⁄4"-20 X 1⁄2"

402 PW06 FLAT WASHER 1⁄4"

403 PG1182HW403 BRONZE FLAT WASHER 1⁄2"

404 PB03 HEX BOLT 5⁄16"-18 X 1"

405 PW07 FLAT WASHER 5⁄16"

406 PG1182HW406 LEAD SCREW BRACKET

407 PG1182HW407 LEAD SCREW

408 PG1182HW408 LOCK COLLAR

409 PG1182HW409 HANDWHEEL

411 PW03 FLAT WASHER 10

412 PS01 PHLP HD SCR 10-24 X 1⁄2"

413 PSS11 SET SCREW 1⁄4"-20 X 1⁄4"

The handwheel adjustment mechanism

is substituted for the lever adjustment

mechanism on the G1182HW &

G1182ZHW only.

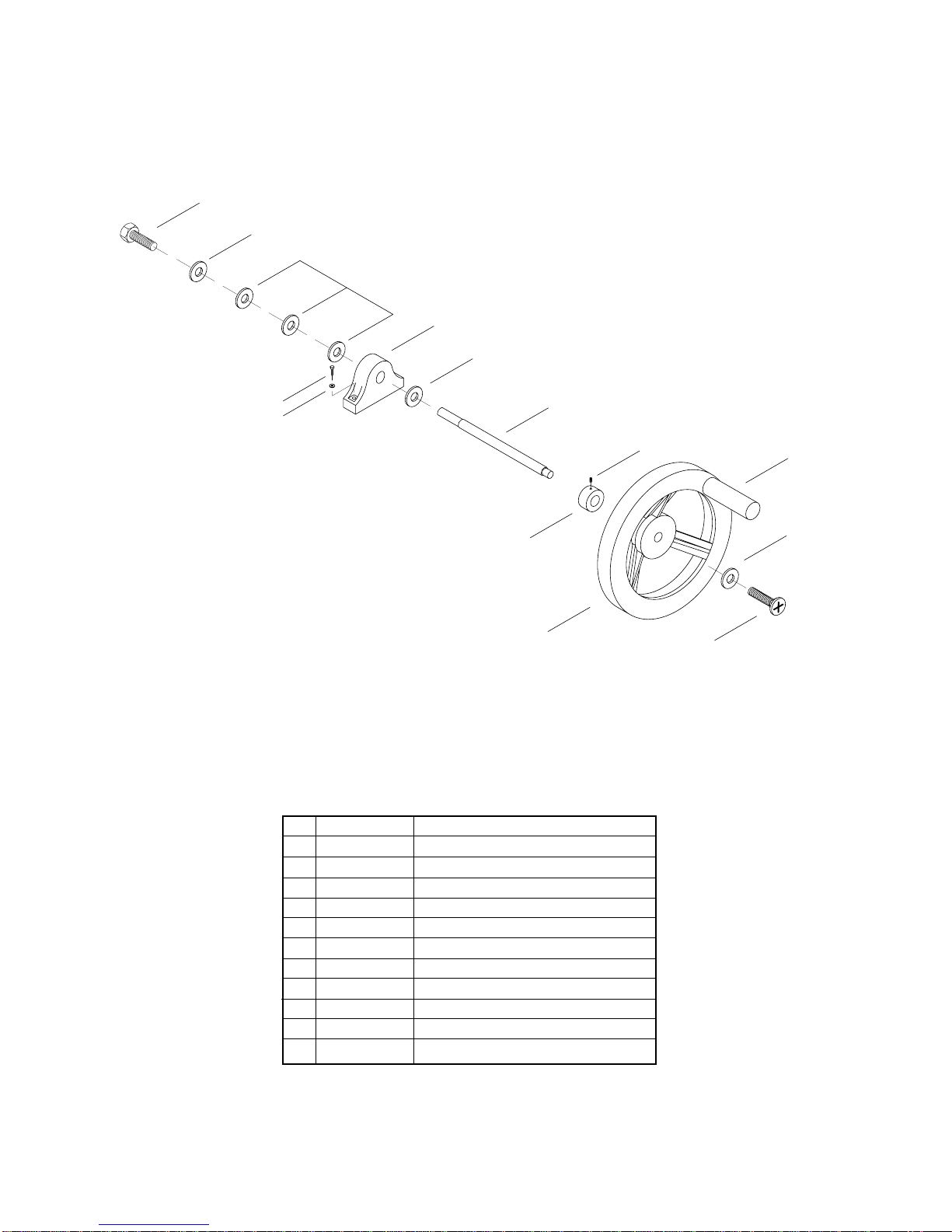

HANDWHEEL ASSEMBLY FOR

MODEL G1182HW & G1182ZHW

-H- G1182 6" Series Jointers

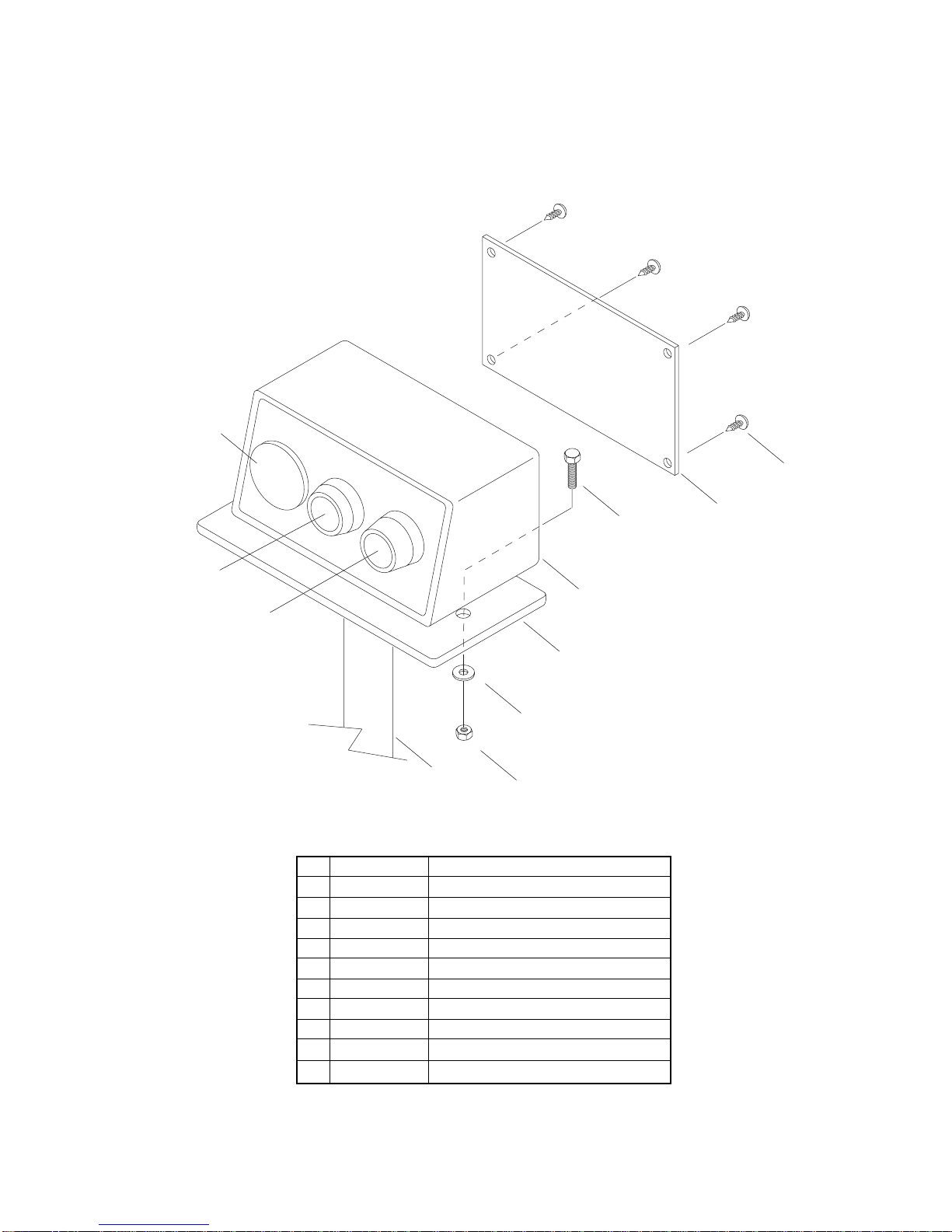

PEDESTAL MOUNTED SWITCH FOR

JOINTER MODEL G1182ZX

REF PART # DESCRIPTION

414 PG1182ZX414 SELF TAPPING SCREW

415 PB02 HEX BOLT 1⁄4-20 X 5⁄8"

416 PW06 FLAT WASHER 1⁄4"

417 PN05 1⁄4"-20 NUT

418 PG1182ZX418 SWITCH HOUSING

419 PG1182ZX419 PEDESTAL

420 PG1182ZX420 BACK SWITCH PLATE

421 PG1182ZX421 PEDESTAL MOUNT

422 PG1182ZX422 “ON” SWITCH ASSEMBLY

423 PG1182ZX423 “OFF” SWITCH ASSEMBLY

424 PG1182ZX424 LIGHT INDICATOR ASSEMBLY

417

416

419

418

415 420

414

421

422

423

G1182 6" Series Jointers -I-

426

427

428

429

421

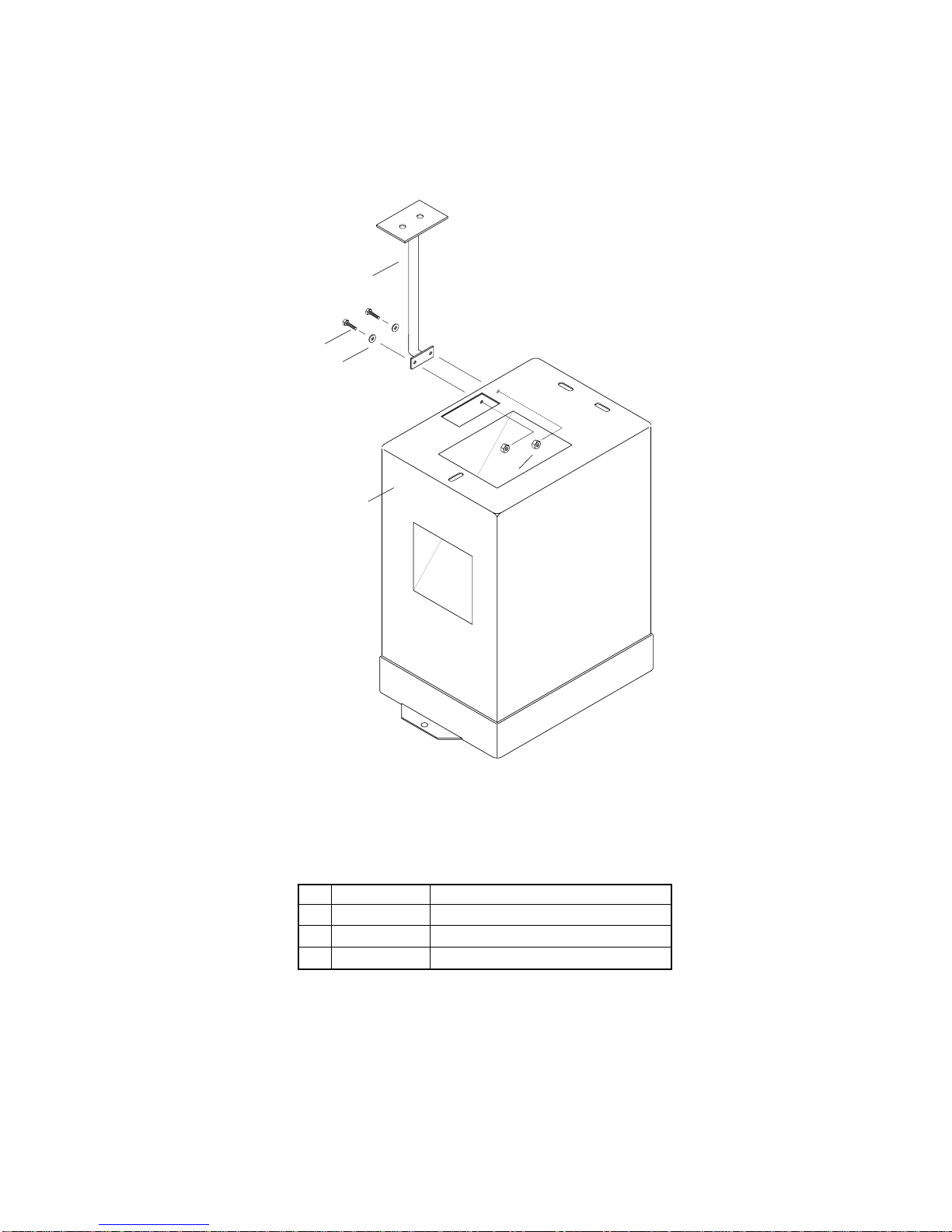

STAND FOR JOINTER MODEL G1182ZX

REF PART # DESCRIPTION

426 PB22 HEX BOLT 3⁄8"-16 x 1"

427 PN03 HEX NUT 3⁄8''-16

428 PG1182ZX428 HEAVY-DUTYCABINET STAND

429 PW02 FLAT WASHER 3⁄8"

These parts are exclusive to the

Model G1182ZX stand. The rest

of the parts for this stand are

located on the Model G1182Z &

ZHW stand diagram.
