12'' PORTABLE PLANER

MODEL G1017

PARTS LIST

WARNING: NO PORTION OFTHIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

REVISED APRIL, 1999 PRINTED IN U.S.A.

PARTS LIST DISCLAIMER

This parts list and drawings represent the configuration of the machine as it is currently being shipped.The machine configuration can change as product

improvements are incorporated. If you own an earlier version of the machine, this parts list may not depict your machine exactly. Contact Customer Service

if you have any questions about part differences. Previous parts list versions are not available on-line.

-2- G1017 12'' Portable Planer

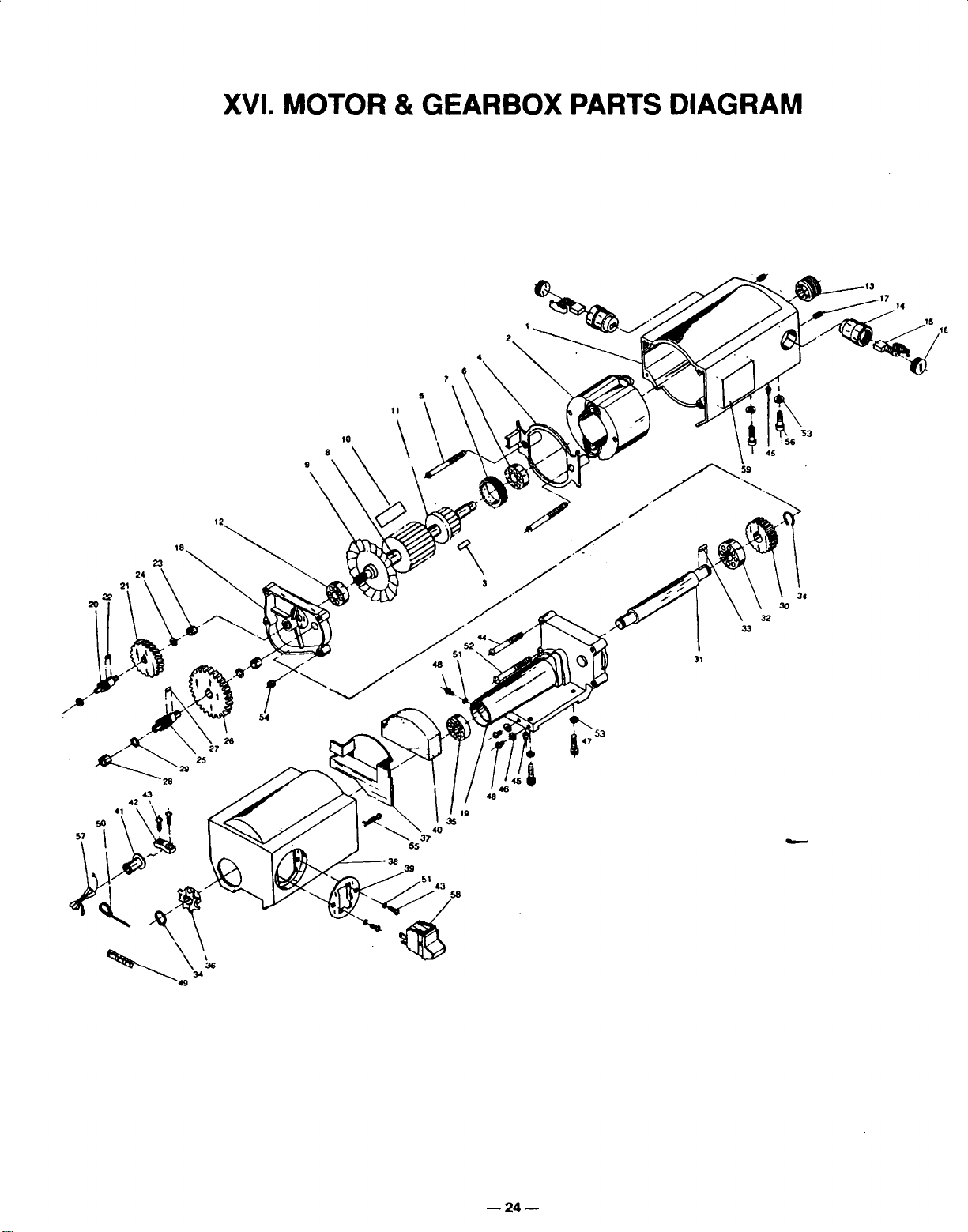

34 36 39

51 43

57 13

G1017 12'' Portable Planer -3-

13 P1017013 MOTOR PULLEY

15 P1017015 CARBON BRUSH

16 P1017016 BRUSH CAP

34 PR02M EXT RETAINING RING 14mm

36 P1017034 SPROCKET

39 P1017039 SWITCH BOARD

43 PHTEK1 SELF TAP PHLP HD SCREW

45 P1017045 PIN

47 PSB02M CAP SCREW M6-1 x 20mm

49 P1017049 CHAIN

51 P1017051 TOOTH WASHER

53 PLW02 LOCK WASHER 1⁄4"

56 P1017056 SPECIAL SCREW

57 P1017057 POWER SUPPLY CORD

58 PSW07 SWITCH 110V

60 P1017060 MOTOR/GEAR BOX ASS’Y *

61 P1017061 THERMAL PROTECTOR

62 P1017062 MOTOR LABEL

REF PART # DESCRIPTION

MOTOR ASSEMBLY PARTS LIST

ITEMS NOTED WITH * ARE NOT SHOWN ON

THE EXPLODED PARTS DRAWING

34 34

35 29

922

-4- G1017 12'' Portable Planer

G1017 12'' Portable Planer -5-

REF PART # DESCRIPTION REF PART # DESCRIPTION

101 PSB35M CAP SCREW M8-1.25 x 60

102 PSS06M SET SCREW M8-1.25 x 16

103 P1017103 BRACKET

104 1017104 BUSH

105 P1017105 PROTECTING HOOD COVER

106 PS09M PHILLIPS®SCR M5-0.8 x 10

107 PR21M INT RET RING 35MM

108 P6202 BEARING 6202-2RS

109 P1017109 ROLLER CASE

110 P1017110 CHIP DEFLECTOR

111 PSB03M CAP SCREW M5-0.8 x 8

112 P1017112 SAFETY LABEL

113 P1017113 SPONGE

114 PS07M PHILLIPS®SCREW M4-0.7 x 8

115 P1017115 COVER

116 PS05M PHILLIPS®SCREW M5-0.8 x 8

117 P1017117 HEX HD GIB BOLT

118 P1017118 KNIFE LOCK BAR

119 P1017119 POLY V-BELT

120 P1017120 SPECIAL NUT

121 P1017121 PULLEY

122 PR23M INT RET RING 40MM

123 P6203 BEARING 6203-2RS

124 PK06M KEY 5 x 5 x 10

125 P1017125 CUTTERHEAD

126 G1195 BLADE SET 121⁄2"

127 P1017127 JACK SCREW

128 P1017128 KNIFE GAUGE

129 P1017129 BRACKET

130 P1017130 SPRING

131 P1017131 BUSHING BLOCK

132 P1017132 FEED ROLLER

133 P1017133 COLLAR

134 P1017134 SPROCKET

135 PR02M EXT RET RING 14MM

136 P1017136 PROTECTIVE CASING

CUTTER HEAD DIAGRAM AND PARTS LIST

34 40

48 23

25 24 14

13 10

21 22

743

44 47 45

58 59 60

-6-

G1017 12'' Portable Planer -7-

REF PART # DESCRIPTION REF PART # DESCRIPTION

231 P1017234 HANDLE ASSEMBLY *

232 P1017234 HANDLE ASSEMBLY *

233 P1017233 EXPANSION BAND

234 P1017234 HANDLE ASSEMBLY

235 PS09M PHLP HD SCR M5-.8 x 10

236 P1017236 PIPE BAND

237 P1017237 TOP COVER

238 P1017238 PILLAR, GUIDE (OAL 141⁄4")

239 P1017239 BASE

240 P1017240 GUIDE PLATE

241 P1017241 ROLL PIN 5 x 24

242 P1017242 WINDOW

243 P1017243 STOOL PLATE

244 PB10M HEX BOLT M6-1 x 25mm

245 P1017245 LOCATING BLOCK

246 P1017246 BUSH

247 PN01M HEX NUT M6-1.0

248 P1017248 CHAIN

249 P1017249 SCREW FOR MOUNTING

250 P1017250 FLAT WASHER

251 PWR1214 12 x 14 WRENCH

252 P1017252 SCREW DRIVER

253 PSB04M CAP SCREW M6-1 x 10mm

254 PLW03M LOCK WASHER

255 P1017255 ROLLER ECCENTRIC

256 P1017256 ROLLER

257 PWR810 8 x 10 WRENCH

258 PAW03M 3mm ALLEN®WRENCH

259 PAW04M 4mm ALLEN®WRENCH

260 PAW05M 5mm ALLEN®WRENCH

261 PAW06M 6mm ALLEN®WRENCH

201 PSS02M SET SCREW M6-1 x 6mm

202 P1017202 SPROCKET

203 PB03M HEX BOLT M8-1.25 x 16mm

204 PLW01 LOCK WASHER 5⁄16"

205 PW07 WASHER 5⁄16"

206 P1017206 TOP HEAD

207 P1017207 DRIVE SCREW

208 P1017208 LEAD SCREW

209 P1017209 ROLLER TABLE EXTENSION

210 PLW02 LOCK WASHER 1⁄4"

211 P1017211 WAVE WASHER

212 P1017212 SPECIAL BOLT

213 PSB04M CAP SCREW M6-1 x 10mm

214 P1017214 SPRING

215 P1017215 ANCHOR PLATE

216 P1017216 BUSH

217 P1017217 SPROCKET

218 P1017220 BRACKET *

219 PB09M HEX BOLT M8-1.25 x 20mm

220 P1017220 BRACKET W/P1017218

221 PW06 WASHER 1⁄4"

222 P1017222 SPRING

223 P1017223 SCALE

224 PRP05M ROLL PIN 5 x 30

225 P1017225 ROLLER

226 P1017226 LEAD SCREW

227 P1017227 GUIDE PLATE

228 P1017234 HANDLE ASSEMBLY *

229 P1017234 HANDLE ASSEMBLY *

230 P1017234 HANDLE ASSEMBLY *

TABLE DIAGRAM AND PARTS LIST

ITEMS NOTED WITH * ARE NOT SHOWN ON

THE EXPLODED PARTS DRAWING
