Grizzly H5571 Manuel utilisateur

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

PRINTED IN TAIWAN

ONLINE PARTS LIST DISCLAIMER

THESE PARTS REPRESENT THE CONFIGURATION OF THE MACHINE AS IT IS CURRENTLY

BEING SHIPPED. THE MACHINE CONFIGURATION CAN CHANGE AS PRODUCT IMPROVE-

MENTS ARE INCORPORATED. IF YOU OWN AN EARLIER VERSION OF THE MACHINE, THIS

PARTS LIST MAY NOT EXACTLY DEPICT YOUR MACHINE. CONTACT CUSTOMER SERVICE IF

YOU HAVE ANY QUESTIONS ABOUT PART DIFFERENCES.

PREVIOUS PARTS LIST VERSIONS ARE NOT AVAILABLE ONLINE.

34˚ FRAMING NAILER KIT

MODEL H5571

PARTS LIST

G6050 Round Head Framing Nailer Kit

H5571 34˚ Framing Nailer Kit

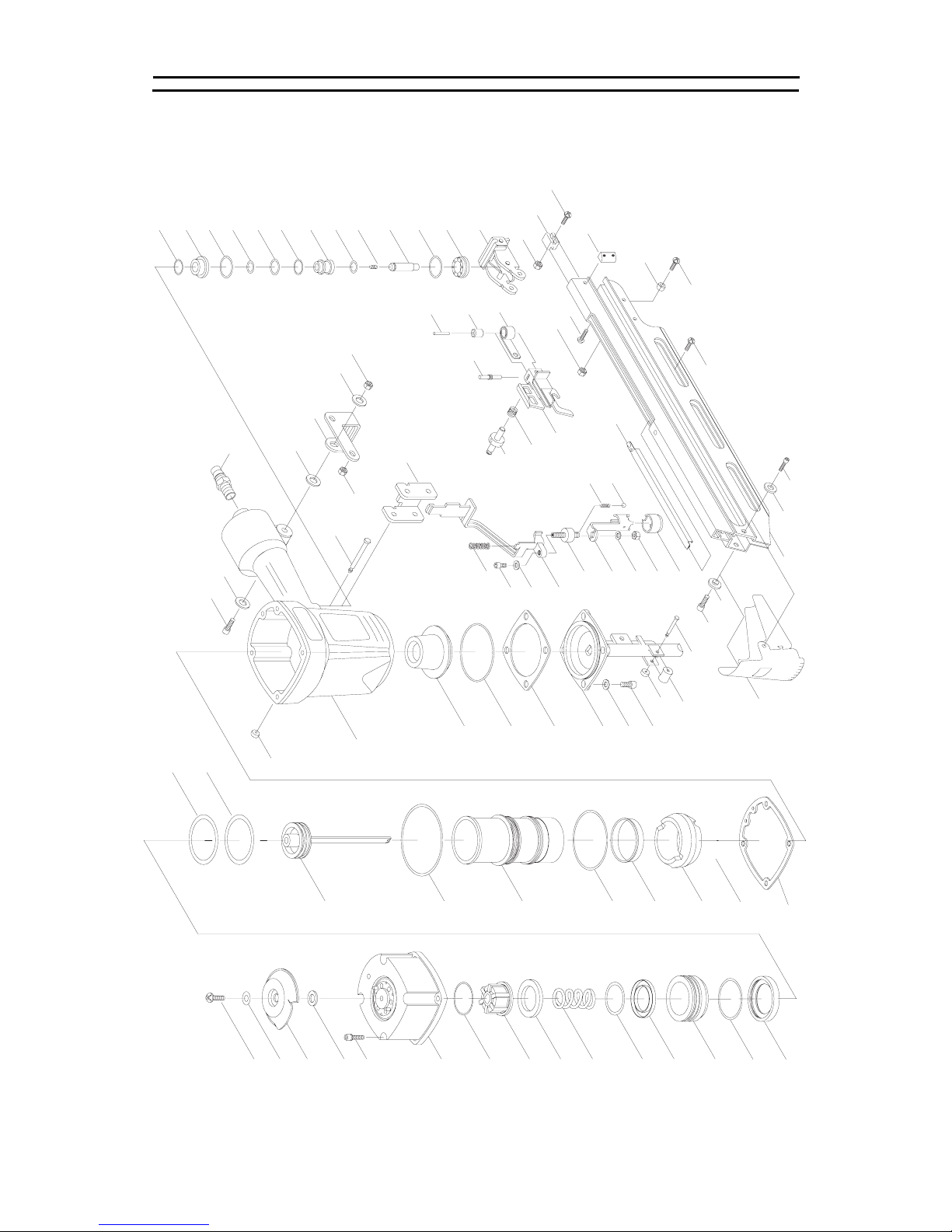

H5571 PART BREAKDOWN

28 82

97 96

82 74

34A

16A

21-1

100

53A

12-1

15-1

15-2

G6050 Round Head Framing Nailer Kit H5571 34˚ Framing Nailer Kit

1PSB115M BTN HD CAP SCR M6-1 X 16

2PH5571002 EXHAUST COVER

4PH5571004 RUBBER WASHER 10MM

5PSB06M CAP SCREW M6-1 X 25

6PH5571006 CAP

7PW09M FLAT WASHER 7MM

8PH5571008 SPACER

9PH5571009 PISTON STOPPER

10 PH5571010 SPRING

11 PH5571011 O RING

12 PH5571012 PISTON HEAD VALVE

12-1 PH5571012-1 SPACER

13 PH5571013 O RING

14 PH5571014 SEAL

15-1 PH5571015-1 O RING

15-2 PH5571015-2 O RING

16A PH5571016A PISTON ASSEMBLY

19 PH5571019 CYLINDER RING

20 PH5571020 O RING

21 PH5571021 CYLINDER

21-1 PH5571021-1 O RING

22 PH5571022 BUMPER UPPER

23 PH5571023 GASKET

24 PH5571024 BODY

25 PH5571025 BUMPER BOTTOM

26 PH5571026 O RING

27 PH5571027 NOSE

28 PSB31M CAP SCREW M8-1.25 X 25

29 PH5571029 PIN

30 PH5571030 RUBBER RING

31 PSB116M BTN HD CAP SCR M5-.8 X 14

32 PH5571032 GUIDE SAFETY LEVER

34A PH5571034A SAFETY LEVER ASM.

35 PLN02M LOCK NUT M5-.8

36 PH5571036 SPRING

37 PH5571037 SAFETY LEVER

38 PLN03M LOCK NUT M6-1

39 PH5571039 DEPTH ADJUSTING KNOB

40 PH5571040 RUBBER PAD

41 PH5571041 O RING

42 PH5571042 O RING

43 PH5571043 VALVE

44 PH5571044 O RING

45 PH5571045 O RING

46 PH5571046 O RING

47 PH5571047 VALVE PLUNGER

48 PH5571048 O RING

49 PH5571049 SPRING

50 PH5571050 PLUNGER

51 PH5571051 O RING

52 PH5571052 PLUNGER CAP

53A PH5571053A TRIGGER ASSEMBLY

56 PH5571056 PUSHER

57 PH5571057 STOPPER

58 PH5571058 SPRING

59 PH5571059 GASKET

60 PH5571060 SET PIN

61 PSB26M CAP SCREW M6-1 X 12

62 PH5571062 SPIRAL SPRING

63 PH5571063 ROLLER

64 PH5571064 BALL PIN

65 PH5571065 MAGAZINE

66 PH5571066 NAIL GUIDE LINER

67 PSB26M CAP SCREW M6-1 X 12

68 PH5571068 DEBRIS SHIELD

70 PH5571070 STOPPER BLOCK

72 PSB117M BTN HD CAP SCR M5-.8 X 8

73 PH5571073 BRACKET

74 PLN04M LOCK NUT M8-1.25

78 PSB116M BTN HD CAP SCR M5-.8 X 14

80 PH5571080 3/8" NPT CONNECTOR

82 PW01M FLAT WASHER 8MM

83 PH5571083 GASKET WASHER

84 PH5571084 PIN

85 PH5571085 SPACER

87 PH5571087 PISTON GUIDE WASHER

88 PLW04M LOCK WASHER 8MM

89 PW05M FLAT WASHER 4MM

90 PSB18M CAP SCREW M4-.7 X 8

91 PH5571091 SPRING

92 PH5571092 SET BALL

95 PH5571095 IDLE ROLLER

96 PSB118M BTN HD CAP SCR M5-.8 X 20

97 PH5571097 MAGAZINE BLOCK

100 PH5571100 ROLLER
