21° ROUND HEAD FRAMING NAILER

MODEL H7665

INSTRUCTION MANUAL

Safety Instructions For Pneumatic Tools

1. KEEP ALL SAFETY DEVICES IN

PLACE and in working order.

2. REMOVE ADJUSTING KEYS AND

WRENCHES. Form habit of check-

ing to see that keys and adjusting

wrenches are removed from tool

before operation.

3. KEEP WORK AREA CLEAN.

Cluttered areas and benches invite

accidents.

4. DO NOT USE IN DANGEROUS

ENVIRONMENT. Do not use pneu-

matic tools in damp or wet loca-

tions, or where any flammable or

noxious fumes may exist. Keep

work area well lighted.

5. KEEP CHILDREN AND VISITORS

AWAY. All children and visitors

should be kept at a safe distance

from work area.

6. MAKE WORKSHOP CHILD

PROOF by locking your shop and

shutting off air valves.

7. DO NOT FORCE TOOL. It will do

the job better and safer at the rate

for which it was designed.

8. USE THE RIGHT TOOL. Do not

force tool or attachment to do a job

for which it was not designed.

9. DO NOT USE UNDER THE

INFLUENCE OF DRUGS OR

ALCOHOL.

For Your Own Safety Read Instruction Manual

Before Operating This Equipment

The purpose of safety symbols is to attract your attention to possible hazard-

ous conditions. This manual uses a series of symbols and signal words which

are intended to convey the level of importance of the safety messages. The

progression of symbols is described below. Remember that safety messages by

themselves do not eliminate danger and are not a substitute for proper accident

prevention measures.

Indicates a potentially hazardous situation which, if

not avoided, MAY result in minor or moderate injury.

It may also be used to alert against unsafe practices.

Indicates a potentially hazardous situation which, if

not avoided, COULD result in death or serious injury.

Indicates an imminently hazardous situation which, if

not avoided, WILL result in death or serious injury.

This symbol is used to alert the user to useful infor-

mation about proper operation of the equipment.

SAFETY

NOTICE

H7665 21° Round Head Framing Nailer -1-

10. USE PROPER AIR HOSE for the

tool. Make sure your air hose is in

good condition and is long enough to

reach your work without stretching.

11. WEAR PROPER APPAREL. Do not

wear loose clothing, gloves, neck-

ties, rings, bracelets, or other jew-

elry which may get caught in moving

parts. Non-slip footwear is recom-

mended. Wear a protective hair cov-

ering to contain long hair.

12. ALWAYS USE ANSI APPROVED

SAFETY GLASSES. Also use a

face or dust mask if cutting operation

is dusty. Everyday eyeglasses only

have impact resistant lenses, they

are NOT safety glasses.

13. ALWAYS WEAR ANSI APPROVED

HEARING PROTECTION.

14. SECURE WORK. Use clamps or a

vise to hold work when practical. It is

safer than using your hand and frees

both hands to operate tool.

15. MAINTAIN TOOLS WITH CARE.

Keep tools lubricated and clean

for best and safest performance.

Follow instructions for lubricating

and changing accessories.

16. REDUCE THE RISK OF

UNINTENTIONAL STARTING. Do

not carry tool with hand on trig-

ger and always disconnect from air

when not in use.

17. DISCONNECT TOOLS before ser-

vicing, changing accessories, or

moving to another location.

18. DO NOT OVERREACH. Keep

proper footing and balance at all

times.

19. USE THE RECOMMENDED

ACCESSORIES. Consult owner’s

manual for recommended acces-

sories. The use of improper acces-

sories may cause risk of injury.

20. CHECK FOR DAMAGED PARTS

BEFORE USING. Check for bind-

ing and alignment of parts, broken

parts, part mounting, loose bolts,

and any other conditions that may

affect machine operation. Repair or

replace damaged parts.

21. NEVER LEAVE UNATTENDED

TOOL CONNECTED TO AIR.

Disconnect the air hose and do not

leave tool until it is relieved of any

built up pressure.

22. NEVER ALLOW UNTRAINED

USERS TO USE THIS TOOL

WHILE UNSUPERVISED.

23. IF YOU ARE UNSURE OF THE

INTENDED OPERATION, STOP

USING THE TOOL. Seek formal

training or research books or maga-

zines that specialize in pneumatic

tools.

Safety Instructions For Pneumatic Tools

H7665 21° Round Head Framing Nailer

-2-

1. HAND INJURIES: Do not place your

hands near the nail point of entry. A

nail can deflect and tear through the

surface of the workpiece, puncturing

your hand or fingers.

2. COMBUSTIBLE GASES: Never

connect the nailer to pressurized

oxygen or other combustible gases

as a power source. Only use fil-

tered, lubricated, and regulated

compressed air.

3. SAFE HANDLING: Never point the

nailer at others! Do not keep the

trigger pulled when loading fasten-

ers, carrying, or holding tool. Carry

the nailer only by the handle, never

by any other part. Do not carry the

nailer by the air hose. Disconnect

the nailer from the air hose when

going up and down ladders.

4. CLEANING: Never use gasoline or

other flammable liquids to clean the

nailer; vapors in the nailer will ignite

by a spark and cause it to explode.

Additional Safety Instructions for Nailers

5. HOSE: Make sure your air hose

is designed for the tool in use,

is in good condition, and is long

enough to reach your work with-

out stretching. However, an overly

long air hose in the work area may

be a tripping hazard.

6. OPERATING QUESTIONS: If you

are not sure about the intended

operation, stop using the nailer.

Seek formal training or research

sources that specialize in pneu-

matic tools.

7. MAINTENANCE: Always discon-

nect air from the nailer when ser-

vicing or installing nails. During

maintenance, a nailer connected

to air may fire accidentally, caus-

ing serious personal injury.

8. COMPRESSED AIR RATING: Do

not connect the nailer to com-

pressed air that exceeds 120 PSI.

9. CHECK VALVE: Do not use a

check valve or any other fitting that

allows air to remain in the tool.

H7665 21° Round Head Framing Nailer -3-

Operating this nailer can propel

objects into the air, causing imme-

diate eye damage. To protect your-

self, always wear American National

Standards Institute (ANSI) approved

safety glasses or goggles when oper-

ating this equipment. In addition, this

nailer discharges at up to 90 deci-

bels. To protect your hearing, always

wear ANSI approved ear protection

when operating this nailer.

Never point this nailer at yourself or

another person! Always pay attention

to the direction this nailer is pointed.

Use this tool with respect and caution

to lessen the possibility of operator or

bystander injury. Ignoring this warning

may result in serious personal injury.

Nailer/stapler accidents routinely hap-

pen while moving the gun to another

location, such as up ladders, to anoth-

er room, or even another job site.

Always disconnect the gun immedi-

ately after use and never transport the

gun while connected to the air—even

if the air compressor is disconnected

from its power source!

No list of safety guidelines can be

complete. Every shop environment is

different. Always consider safety first,

as it applies to your individual working

conditions. Use this and other tools

with caution and respect. Failure to

do so could result in serious personal

injury, damage to equipment or poor

work results.

H7665 21° Round Head Framing Nailer

-4-

INTRODUCTION

If you have any comments regarding this

manual, please write to us at the following

address:

Grizzly Industrial, Inc.

C/O Technical Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Most importantly, we stand behind our

tools. If you have any service questions or

parts requests, please call or write us at

the location listed below.

Grizzly Industrial, Inc.

1203 Lycoming Mall Circle

Muncy, PA 17756

Phone: (570) 546-9663

Fax: (800) 438-5901

E-Mail: [email protected]

Web Site: http://www.grizzly.com

We are proud to offer the Grizzly Model

H7665 21° Round Head Framing Nailer.

This model is part of a growing Grizzly

family of fine pneumatic tools. When used

according to the guidelines set forth in this

manual, you can expect years of trouble-

free, enjoyable operation and proof of

Grizzly’s commitment to customer satis-

faction.

The Model H7665 features a 360° exhaust

port, comfort grip rubber handle, and eco-

nomical air consumption.

The specifications, details, and photo-

graphs in this manual represent the Model

H7665 as supplied when the manual was

prepared. However, owing to Grizzly’s pol-

icy of continuous improvement, changes

may be made at any time with no obliga-

tion on the part of Grizzly.

Foreword Contact Info

Specifications

Nail Type ..................................Roundhead

Nail Angle ..............................................21°

Nail Diameter .................................... 0.113"

Nail Length ......................................2"–31⁄2"

Magazine Capacity ........................ 75 Nails

Air Inlet ...........................................¼" NPT

Weight .............................................8.4 lbs.

Operating Pressure ................. 60–100 PSI

Read the manual before operation.

Become familiar with this nailer, its

safety instructions, and its operation

before beginning any work. Serious

personal injury may result if safety or

operational information is not under-

stood or followed.

H7665 21° Round Head Framing Nailer -5-

SET UP

Figure 1. Model H7665 inventory.

Unpacking

Your Model H7665 left our warehouse in

a carefully packed box. If you discover

the nailer is damaged after you have

signed for delivery, please immediately

call Customer Service at (570) 546-9663

for advice.

Save the containers and all packing mate-

rials for possible inspection by the car-

rier or its agent. Otherwise, filing a freight

claim can be difficult.

When you are completely satisfied with

the condition of the shipment, you should

inventory the equipment.

Inventory

After you open the nailer box, you should

find the following.

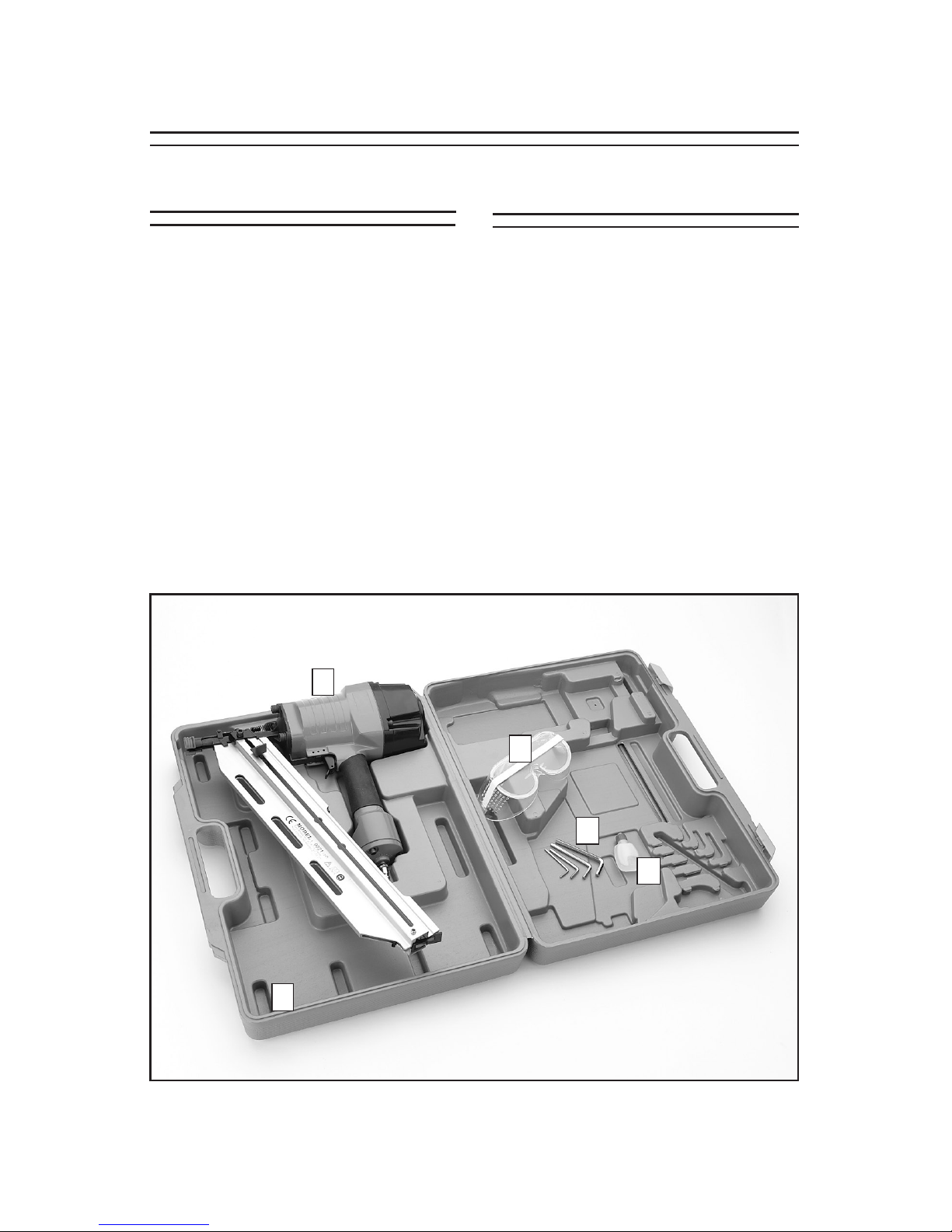

Model H7665 Inventory (Figure 1)

A. Nailer .................................................. 1

B. Safety Goggles ................................. 1

C. Pneumatic Tool Oil ............................ 1

D. Hex Wrenches 3, 4, 5, 6mm ..... 1 Each

E. Carrying Case .................................... 1

H7665 21° Round Head Framing Nailer

-6-

Compressed Air

System

The Model H7665 is designed to be oper-

ated at 60–100 PSI using clean, dry, regu-

lated, compressed air. DO NOT exceed

the 120 PSI maximum operating pres-

sure for your model.

Before using your new nailer, regulate the

air pressure on your air compressor to the

minimum PSI for your model.

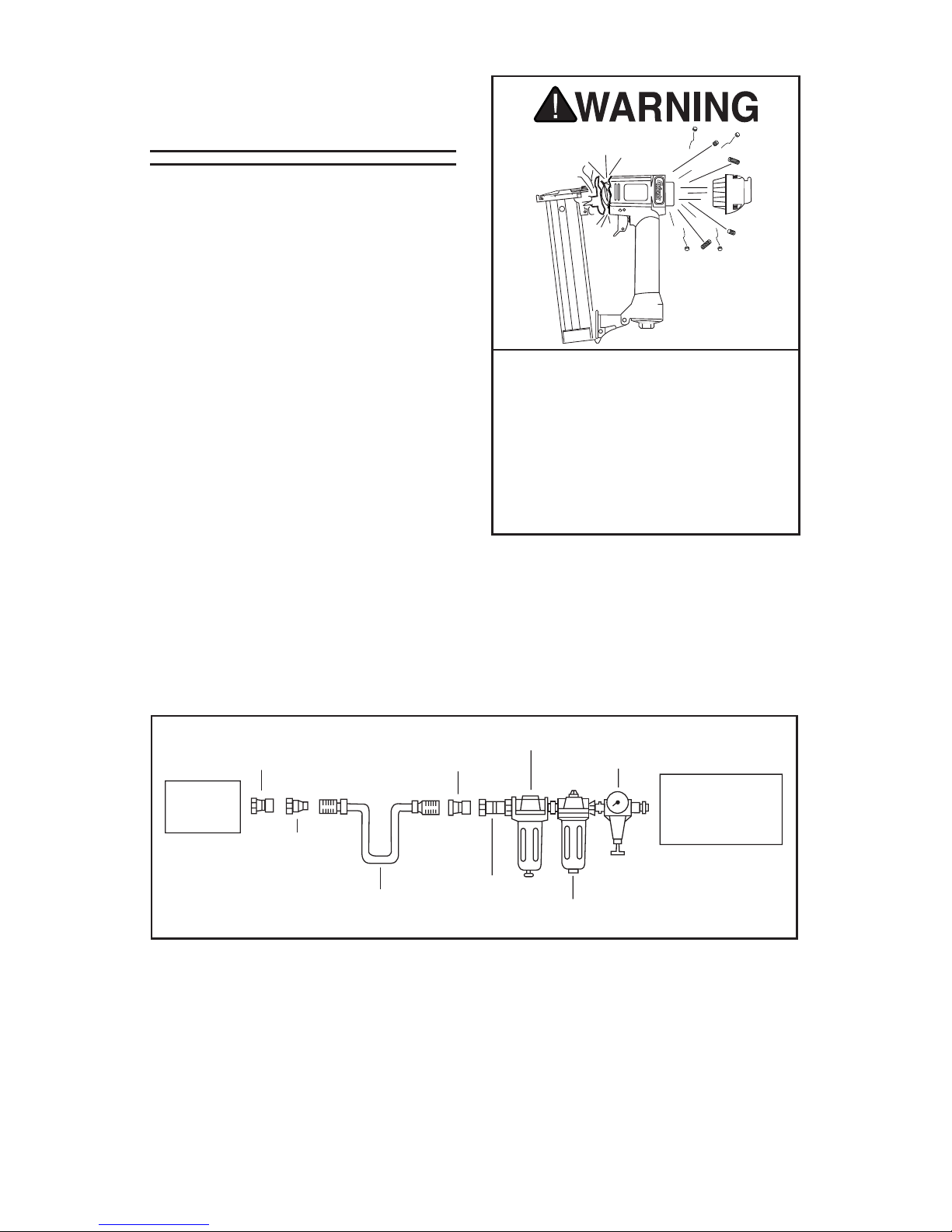

An in-line filter/lubricator/regulator unit,

depicted in Figure 2, can be installed and

should be located as close to the nailer

as possible.

This filter/lubricator/regulator unit will

protect your tool from damaging water

build-up, allow you to adjust and maintain

constant air pressure to your tool, and

save you the inconvenience of having to

manually lubricate your tool every time

you use it.

Quick

Connector

Quick

Coupler

Air Hose Quick

Coupler

Quick

Connector

Lubricator

Filter

Regulator

Air

Compressor

Your

Tool

Figure 2. Typical filter/lubricator/regulator installation order.

Check the current Grizzly catalog for avail-

ability of this unit. If you plan on install-

ing a filter/lubricator/regulator unit in your

compressed air system, always follow the

connection instructions that come with

the unit.

Exceeding the maximum permissible

operating pressure may cause the

nailer to explode, blowing metal frag-

ments in all directions. To protect

yourself from serious personal injury,

DO NOT allow your air compressor to

exceed the recommended pressure

when connected to this nailer!

H7665 21° Round Head Framing Nailer -7-

Testing the Safety

Nose Mechanism

A safety mechanism on the nose of the

nailer protects against accidental firing.

When the trigger is pressed, the nailer will

not fire until the safety nose mechanism

is depressed.

Before you use your nailer for the first

time, check the safety nose mechanism

to ensure proper function.

To verify that the safety nose is work-

ing correctly:

1. DISCONNECT NAILER FROM THE

AIR SUPPLY!

2. Make sure the magazine is empty and

contains no nails.

3. Make sure the trigger and the safety

nose mechanism move up and down

without sticking.

4. Connect the nailer to the air supply.

5. Without pressing the trigger, depress

the safety nose mechanism against a

scrap piece of wood that is clean and

free of any knots, nails, or other foreign

objects.

— If the nailer does not fire, then the

safety nose mechanism is working

correctly.

— If the nailer does fire when you

do this, immediately disconnect the

nailer from the air supply and call

Grizzly Technical Support at (570)

546-9663 for help.

6. Without depressing the safety nose

against a scrap piece of wood, point

the nailer in a safe direction, and pull

the trigger.

— If the nailer does not fire, then the

safety nose mechanism is working

correctly.

— If the nailer does fire when the trig-

ger is pulled, without the safety nose

mechanism being depressed, then

the nailer is not working properly,

call Grizzly Technical Support at

(570) 546-9663 for help.

The safety mechanism is a mechanical

device that can fail. Never rely on this

mechanism as an excuse to point the

nailer at yourself or any bystanders.

Serious injury may occur.

H7665 21° Round Head Framing Nailer

-8-

OPERATIONS

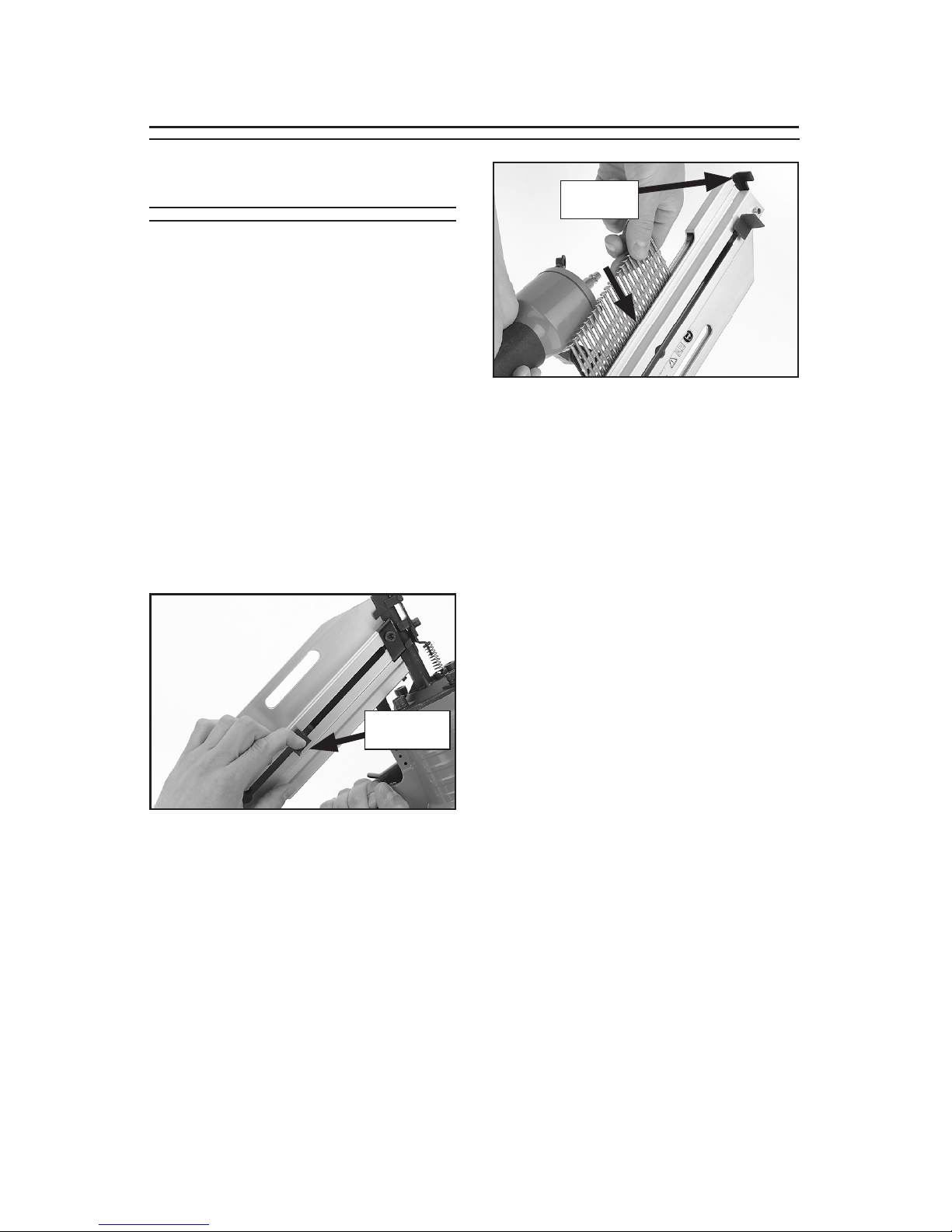

Figure 3. Sliding magazine back and

engaging the catch.

When replacing nails in your Model

H7665, follow these guidelines:

Type: Round Head

Angle: 21°

Diameter: 0.113"

Length: 2"–31⁄2"

Capacity: 75

To load your nailer:

1. DISCONNECT NAILER FROM THE

AIR SUPPLY!

2. Slide the magazine back, as shown in

Figure 3, until it locks in place.

Figure 4. Loading nails into magazine.

3. Insert a strip of nails, pointed-end

down, into the magazine as shown in

Figure 4.

4. Slide the nails all the way down to the

nose of the nailer.

5. With one hand on the magazine handle

for control, release the magazine catch

and slowly allow the magazine to press

against the nails. Note: Releasing

the magazine catch and allowing it to

"snap" in position is hard on the nailer.

Magazine

Handle

Magazine

Catch

Autres manuels pour H7665

Table des matières

Autres manuels Grizzly Cloueuse

Grizzly

Grizzly G6049 Manuel utilisateur

Grizzly

Grizzly H5570 Manuel utilisateur

Grizzly

Grizzly G6045 Manuel utilisateur

Grizzly

Grizzly H6141 Manuel utilisateur

Grizzly

Grizzly H5570 Manuel utilisateur

Grizzly

Grizzly H8235 Manuel utilisateur

Grizzly

Grizzly G6048 Manuel utilisateur

Grizzly

Grizzly H6146 Manuel utilisateur

Grizzly

Grizzly G6045 Manuel utilisateur

Grizzly

Grizzly H8232 Manuel utilisateur

Grizzly

Grizzly H7664 Guide de démarrage rapide

Grizzly

Grizzly H6144 Manuel utilisateur

Grizzly

Grizzly H5571 Manuel utilisateur

Grizzly

Grizzly H2911 Manuel utilisateur

Grizzly

Grizzly H2912 Manuel utilisateur

Grizzly

Grizzly H5571 Manuel utilisateur

Grizzly

Grizzly H6332 Manuel utilisateur

Grizzly

Grizzly H7826 Manuel utilisateur

Grizzly

Grizzly H7679 Manuel utilisateur

Grizzly

Grizzly G6049 Manuel utilisateur

Grizzly

Grizzly H6144 Guide de démarrage rapide

Grizzly

Grizzly H2911 Manuel utilisateur

Grizzly

Grizzly 1 1/4" Brad Nailer T20568 Manuel utilisateur

Grizzly

Grizzly G1847 Manuel utilisateur

Manuels Cloueuse populaires d'autres marques

Performance Tool

Performance Tool M643 Manuel utilisateur

Hitachi

Hitachi VH650 - Fencing Nailer, Full Head Manuel utilisateur

Parkside

Parkside PET 25 B1 Manuel utilisateur

Senco

Senco Fusion Technology F-35XP Manuel utilisateur

Ryobi

Ryobi R18N18G Manuel utilisateur

Black & Decker

Black & Decker 492848-00 Manuel utilisateur

HOLZMANN MASCHINEN

HOLZMANN MASCHINEN TN90 Manuel utilisateur

Metabo HPT

Metabo HPT NR 3690DC Mode d’emploi

Surtek

Surtek CN650 Dimensions et guide d'installation

Makita

Makita GF600 Manuel utilisateur

Parkside

Parkside PET 25 B1 Manuel utilisateur

Senco

Senco AirFree 25 Manuel utilisateur

Freeman

Freeman P50LSLW Manuel utilisateur

Aicon PRO

Aicon PRO DAC4507 Manuel utilisateur

DAJ

DAJ XR150A Manuel utilisateur

Makita

Makita AN923 Manuel utilisateur

Black & Decker

Black & Decker 90514937 Manuel utilisateur

Alfamacchine

Alfamacchine Minigraf 4 Manuel
