These spiral cutterheads are designed to replace
the straight knife cutterheads from most Grizzly 6"
and 8" jointers.
The total procedure of changing the cutterheads
and setting up the jointer takes approximately
one hour. The job consists of removing the old
cutterhead, installing and shimming the new spi-
ral cutterhead, and readjusting the outfeed table
even with the knife edges at TDC (top dead cen-
ter). Call Technical Support at (570) 546-9663 if
you need help.
Recommended Tools:
Wrench 8 x 14mm ............................................. 1
Precision Straightedge (Figure 1) ..................... 1
Feeler Gauge Set
Pair of Heavy Leather Gloves ........................... 1
G9644—12" Precision Straightedge
H2675—16" Precision Straightedge
Is your straightedge really straight? These grade
00 heavy-duty stainless steel straightedges are
manufactured to DIN874 standards for profes-
sional results in set-up and inspection work.
6" & 8" SPIRAL
CUTTERHEADS
MODEL H7590/H7591
INSTRUCTION SHEET

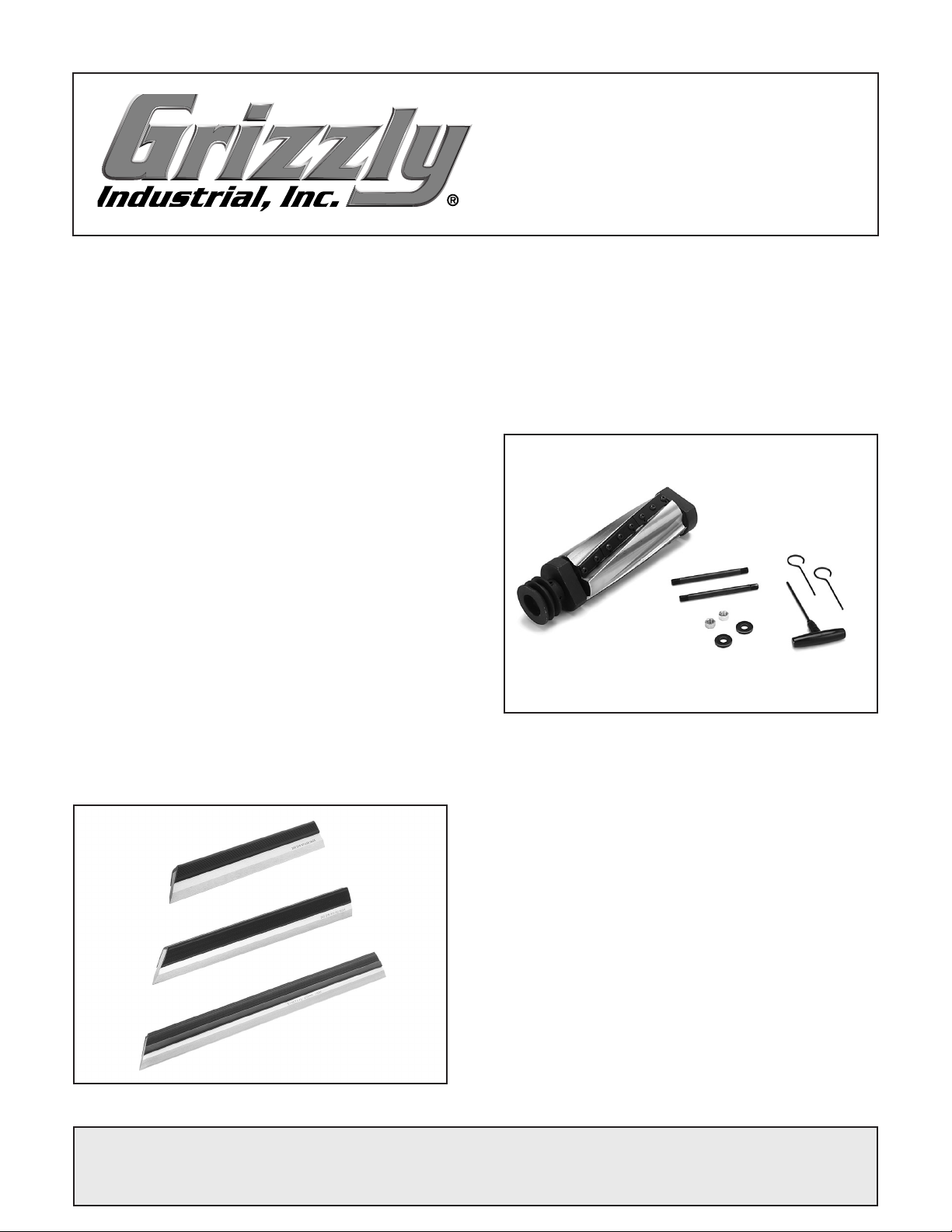

Figure 2. Spiral cutterhead inventory.
COPYRIGHT © JUNE, 2005 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#TR7277 PRINTED IN TAIWAN
Inventory:
Cutterhead ......................................................... 1
Bearing Block Studs .......................................... 2
Alignment Tools ................................................. 2
T-Handle Hex Wrench 4mm .............................. 1
Flat Washers 3⁄8" ................................................ 2
Hex Nuts 3⁄8"-24 ................................................. 2
Installation:
1. Disconnect/unplug jointer from power!
2. Remove the jointer fence and cutterhead
guard.
3. Remove the V-belts from the pulleys.
4. Lower both beds to make enough room for
the cutterhead to come out, as shown in
Figure 3.
Note: When lowering, make sure that the
fence support does not come in contact with
the cutterhead pulley.
Figure 1. Precision straightedges.
Figure 3. Jointer disassembly Steps 1– 4.
Figure 4. Removing nut on bearing block stud.
Figure 5. Cutterhead removed.
5. Remove the nut on the bearing block stud, as
shown in Figure 4, and repeat on the other
side.
6. Wearing heavy leather gloves, carefully
remove the cutterhead from the casting (see
Figure 5).
Note: Your cutterhead may have paper shims
stuck to the bearing block or the part of the
casting where the bearing block rests. These
were included at the factory when they cali-
brated your cutterhead even with the outfeed
table. If you see these, carefully pull them
off and set them aside for later use, or keep
them with your cutterhead in the event that
you reinstall it later. Also, mark the side of
the cutterhead where they were used, so
the future install will go smoothly. Your new
cutterhead may or may not need these.
7. Install the included bearing block studs into
the spiral cutterhead bearing blocks, and
install the cutterhead (Figure 6).
8. Tighten the cutterhead in place.
Figure 6. Spiral cutterhead installed.
9. Using the straightedge and feeler gauge set,
inspect the cutterhead parallelism with the
outfeed table as shown in Figure 7. With the
straightedge in position, raise or lower the
outfeed table until the cutterhead body (not
the knife) just touches the straightedge. Move
the straightedge to the other side to deter-
mine if one end of the cutterhead is higher/
lower than the other. (Place the feeler gauge
between the knife edge and the straightedge
to determine the height difference.)
—If the cutterhead is even or within 0.010"
with the outfeed table from one side to the
other, skip to Step 12.
—If the cutterhead is over 0.010" from one
side to the other, go to Step 10.
Bearing
Block Stud
Bearing Block
14. Install the cutterhead guard back over the
cutterhead, making sure that the spring ten-
sion in the guard is properly set so the guard
springs back over the cutterhead when it is
pulled back and released.
15. Re-adjust the infeed table.
Knife Change & Setup:
1. Always disconnect power to the jointer for
knife changes or setup!
2. Use the included T-handle wrench to remove
knives for replacement.
3. When installing new knives, use the align-
ment tools to align the holes in the cutterhead,
knife insert, and gibs while tightening the gibs
in place (Figure 10). This will set the knife
protrusion even among all the knives.
4. Snug the gibs in place with the T-wrench, and
repeat with the remaining knives.
5. Fully tighten all the knife gibs in place.

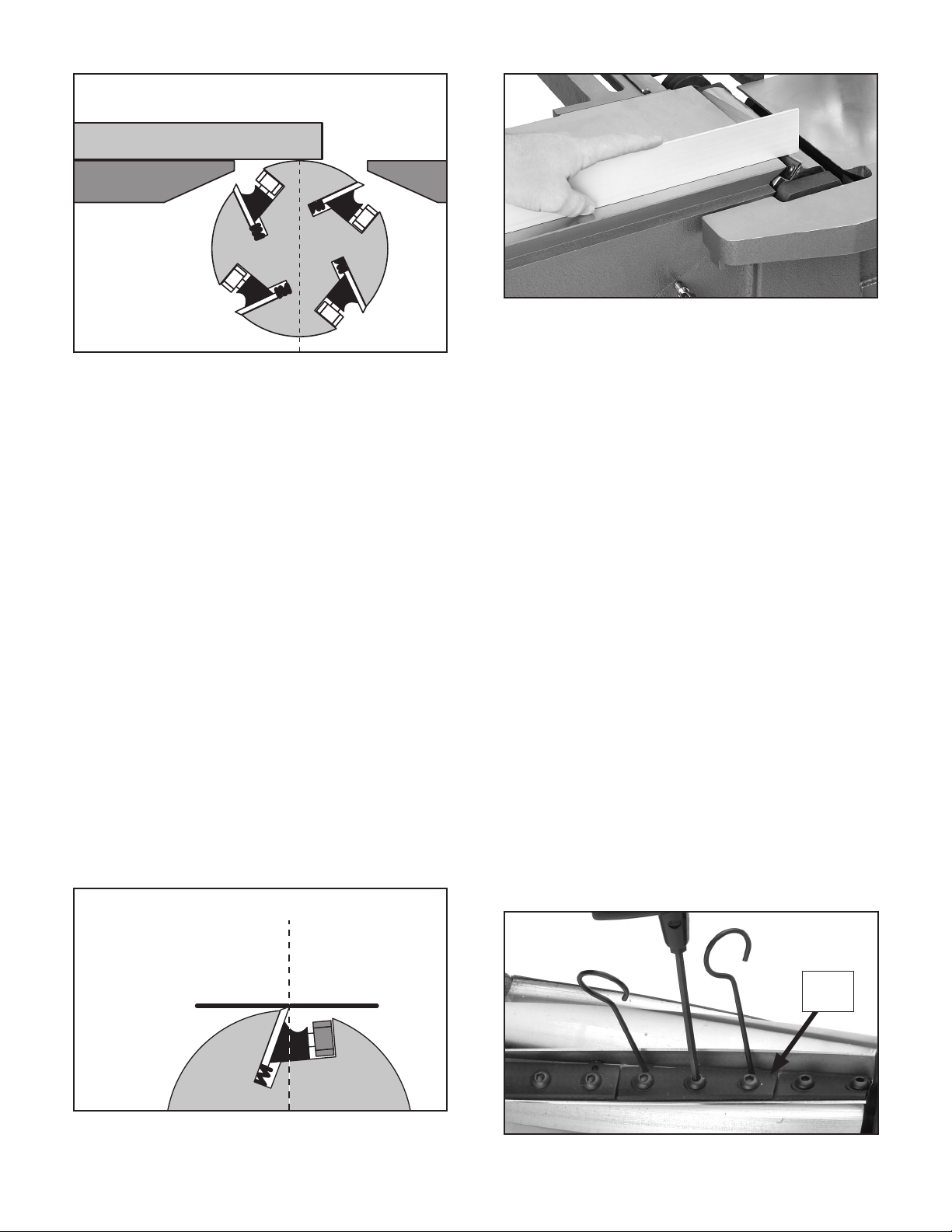

Figure 7. Checking cutterhead parallelism with a
straightedge (repeat at both ends of cutterhead).
10. Remove the spiral cutterhead and place a
shim where the bearing block rests.
Note: Use the shims from your old cutterhead
if available. If not available, newspaper is
approximately 0.003" thick and will work for
shimming (we don't recommend shimming
more than 0.004" on either side, as this may
affect how the bearing block seats in the cast-
ing).
11. Repeat Steps 7 & 10 and adjust if neces-
sary.
12. Use the straightedge to adjust the outfeed
table even with the edge of the cutterhead
knives at TDC (Figures 8 & 9). This is a
routine procedure that should be covered in
more detail in the owner's manual that came
with your jointer.
13. Reinstall the fence.
Figure 8. Cutterhead at TDC
(Top Dead Center).
Figure 9. Setting outfeed table height with a
straightedge.
Figure 10. Installing gibs.
Knife
Gib
H7590 Parts Breakdown and List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PH7590001 6" SPIRAL CUTTERHEAD 8 PSBS12M BUTTON HD CAP SCR M6-1 X 14
2 PK19M KEY 5 X 5 X 14 9 PSS11 SET SCREW 1/4"-20 X 1/4"
3 P6202 BALL BEARING 6202 10 PH7590010 SINGLE SHEAVE PULLEY
3-1 P6203 BALL BEARING 6203 11 PH7590011 STUD 3/8-24 X 4
4 PH7590004 FRONT BEARING BLOCK 12 PW02 FLAT WASHER 3/8
4-1 PH7590004-1 REAR BEARING BLOCK 13 PN11 HEX NUT 3/8-24
5 PH7590005 FLEXIBLE KNIFE INSERT 6" 14 PH7590014 ALIGNMENT TOOL
6 PH7590006 FRONT KNIFE GIB 15 PH7590015 T-HANDLE HEX WRENCH 4MM
7 PH7590007 REAR KNIFE GIB
H7591 Parts Breakdown and List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PH7591001 8" SPIRAL CUTTERHEAD 9 PSBS12M BUTTON HD CAP SCR M6-1 X 14
2 PK23M KEY 5 X 5 X 25 10 PSS02 SET SCREW 5/16-18 X 3/8
3 P6204 BALL BEARING 6204 11 PH7591011 TWO SHEAVE PULLEY
3-1 P6205 BALL BEARING 6205 12 PH7591012 STUD 3/8-24 X 4-3/4
4 PH7591004 FRONT BEARING BLOCK 13 PW02 FLAT WASHER 3/8
4-1 PH7591004-1 REAR BEARING BLOCK 14 PN11 HEX NUT 3/8-24
5 PH7591005 FLEXIBLE KNIFE INSERT 8" 15 PH7590014 ALIGNMENT TOOL
6 PH7591006 FRONT KNIFE GIB 16 PH7590015 T-HANDLE HEX WRENCH 4MM
7 PH7591007 CENTER KNIFE GIB
8 PH7591008 REAR KNIFE GIB
