-34- Model G0643 21-Bit Line Boring Machine
SECTION 8: PARTS
Column Breakdown
Model G0643 21-Bit Line Boring Machine -35-
Column Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P0643001 KNURLED KNOB 17 PSS16M SET SCREW M8-1.25 X 10
2 PSS01M SET SCREW M6-1 X 10 18 P0643018 HEADSTOCK LEAD SCREW
3 P0643003 DEPTH CONTROL 19 PS08M PHLP HD SCR M5-.8 X 12
4 PSB02M CAP SCREW M6-1 X 20 20 P0643020 DEPTH STOP
5 P0643005 WING SCREW M6-1 X 35 21 P0643021 BUMPER
6 PSB11M CAP SCREW M8-1 X 16 22 PW01M FLAT WASHER 8MM
7 PW01M FLAT WASHER 8MM 23 PSB05M CAP SCREW M8-1.25 X 50
8 PSB14M CAP SCREW M8-1.25 X 20 24 P0643024 HEADSTOCK
9 P0643009 DEPTH CONTROL MOUNT 25 P0643025 HEADSTOCK WAY
10 P0643010 LIFTING EYE BOLT 26 P0643026 BUSHING
11 P0643011 COLUMN 27 P0643027 SEAL
12 PSB33M CAP SCREW M5-.8 X 12 28 PR23M INT RETAINING RING 40MM
13 P0643013 COVER 29 P0643029 CABLE CLAMP
14 PSB72M CAP SCREW M10-1.5 X 30 30 PAW02.5M HEX WRENCH 2.5MM
15 PLW06M LOCK WASHER 10MM 31 PAW06M HEX WRENCH 6MM
16 PW04M FLAT WASHER 10MM
-36- Model G0643 21-Bit Line Boring Machine

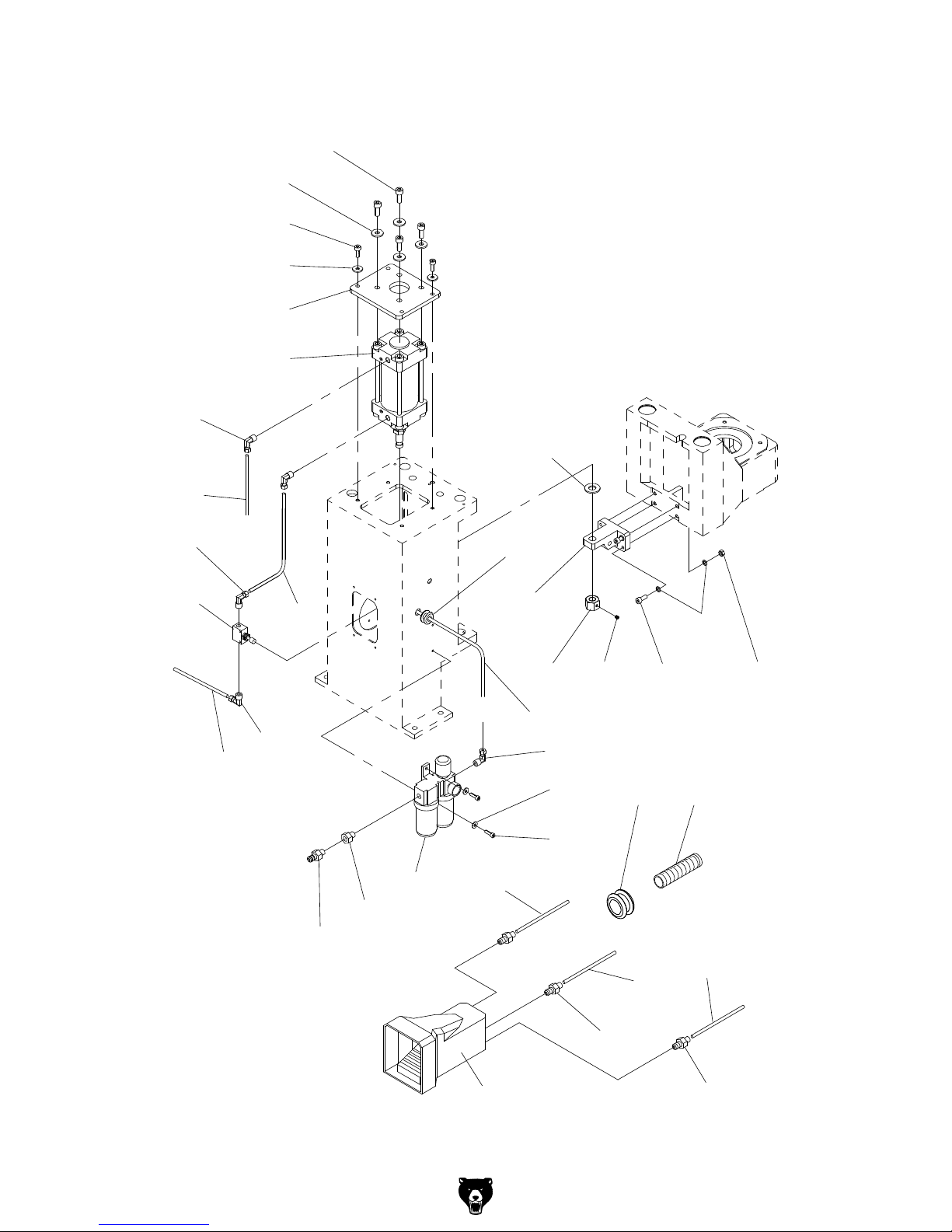

Air System Breakdown
Model G0643 21-Bit Line Boring Machine -37-
Air System Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
101 PSB84M CAP SCREW M10-1.5 X 35 117 PN03M HEX NUT M8-1.25
102 PW04M FLAT WASHER 10MM 118 P0643118 PU TUBE 1/2" X 2500MM
103 PSB14M CAP SCREW M8-1.25 X 20 119 P0643119 RUBBER SLEEVE
104 PW01M FLAT WASHER 8MM 120 PW03M FLAT WASHER 6MM
105 P0643105 AIR CYLINDER COVER 121 PSB01M CAP SCREW M6-1 X 16
106 P0643106 AIR CYLINDER ASSY 122 P0643122 AIR REGULATOR/LUBRICATOR ASSY
107 P0643107 PIPE ELBOW MALE 3/8" X 8MM 123 P0643123 PIPE REDUCER 3/8" X 1/4"
108 P0643108 PIPE ELBOW MALE 3/8" X 6MM 124 P0643124 AIR INLET CONNECTOR 1/4 NPT
109 P0643109 AIR PRESSURE VALVE 125 P0643125 FOOT SWITCH ASSY
110 PW08M FLAT WASHER 16MM 126 P0643126 PIPE UNION MALE 1/4" X 6MM
111 P0643111 RUBBER GROMMET 127 P0643127 PIPE UNION MALE 1/4" X 8MM
112 P0643112 HEADSTOCK MOUNT 128 P0643128 PU TUBE 5 X 8 X 3150MM
113 P0643113 THREADED LOCK COLLAR 129 P0643129 PU TUBE 5 X 8 X 3090MM
114 PSS01M SET SCREW M6-1 X 10 130 P0643130 PU TUBE 4 X 6 X 800MM
115 PSB12M CAP SCREW M8-1.25 X 40 131 P0643131 PU TUBE 4 X 6 X 2950MM
116 PLW04M LOCK WASHER 8MM
-38- Model G0643 21-Bit Line Boring Machine
Electrical System Breakdown
Model G0643 21-Bit Line Boring Machine -39-
Electrical System Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
201 P0643201 OFF BUTTON 214 P0643214 LIMIT SWITCH BRACKET
202 P0643202 ON BUTTON W/ LAMP 220V 215 PSB50M CAP SCREW M5-.8 X 10
203 P0643203 SWITCH PANEL LABEL 216 PW03M FLAT WASHER 6MM
204 P0643204 SWITCH PANEL 217 PSB01M CAP SCREW M6-1 X 16
205 P0643205 RUBBER GASKET 218 P0643218 LIMIT SWITCH
206 P0643206 SWITCH BOX 219 PW02M FLAT WASHER 5MM
207 P0643207 STRAIN RELIEF 220 P0643220 ELECTRICAL BOX 220V
208 P0643208 MOTOR 2HP 110/220V 1-PH 220-1 P0643220-1 CONTACTOR TEC CN18 220V
208-1 P0643208-1 MOTOR FAN COVER 220-2 P0643220-2 OL RELAY TEC RHN-10K 8.5-12.5
208-2 P0643208-2 MOTOR FAN 220-3 P0643220-3 RELAY 5A 220VAC
208-3 P0643208-3 S CAPACITOR 300M 125V 1.38 X 2.75 220-4 P0643220-4 FUSE HOLDER
208-4 P0643208-4 R CAPACITOR 50M 250V 1.5 X 2.38 220-5 P0643220-5 FUSE 5A
208-5 P0643208-5 TEMINAL BLOCK 3 POLE 220-6 P0643220-6 TEMINAL BLOCK 6 POLE
209 PSB13M CAP SCREW M8-1.25 X 30 221 P0643221 POWER CABLE
210 PW01M FLAT WASHER 8MM 222 P0643222 110V CONVERSION KIT
211 PS08M PHLP HD SCR M5-.8 X 12 223 P0643223 LIMIT SWITCH CABLE
212 P0643212 CABLE CLAMP 224 P0643224 MOTOR POWER CABLE
213 P0643213 PLASTIC PLUG 225 P0643225 SWITCH BOX CABLE
-40- Model G0643 21-Bit Line Boring Machine
Table Breakdown
Model G0643 21-Bit Line Boring Machine -41-
Table Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
301 P0643301 TABLE 317 P0643317 SCALE LEFT REAR
302 PFH36M FLAT HD SCR M8-1.25 X 35 318 P0643318 RAIL PLUG LEFT
303 P0643303 SCALE RIGHT REAR 319 PLW04M LOCK WASHER 8MM
304 P0643304 RAIL PLUG RIGHT 320 PSB14M CAP SCREW M8-1.25 X 20
305 PW02M FLAT WASHER 5MM 321 PW01M FLAT WASHER 8MM
306 PS08M PHLP HD SCR M5-.8 X 12 322 P0643322 SCALE LEFT SIDE
307 PN03M HEX NUT M8-1.25 323 PSB31M CAP SCREW M8-1.25 X 25
308 P0643308 BRACKET 324 P608 BALL BEARING 608ZZ
309 P0643309 LONGITUDINAL STOP PLATE 325 P0643325 BUSHING
310 PSS99M SET SCREW M6-1 X 5 326 P0643326 TABLE MOUNT
311 P0643311 LOCK HANDLE 327 P0643327 RAIL MOUNT
312 PSB11M CAP SCREW M8-1.25 X 16 328 P0643328 SCALE RIGHT SIDE
313 PLN05M LOCK NUT M10-1.5 329 PSB58M CAP SCREW M8-1.25 X 12
314 P0643314 CROSS STOP PLATE 330 P0643330 RAIL SIDE
315 P0643315 SPECIAL BOLT 331 PB07M HEX BOLT M8-1.25 X 25
316 P0643316 RAIL REAR
-42- Model G0643 21-Bit Line Boring Machine
Cabinet & Tools Breakdown
Model G0643 21-Bit Line Boring Machine -43-
Cabinet & Tools Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
401 P0643401 CABINET TOP 414 PAW10M HEX WRENCH 10MM
402 PB03M HEX BOLT M8-1.25 X 16 415 PAW08M HEX WRENCH 8MM
403 PW01M FLAT WASHER 8MM 416 PAW06M HEX WRENCH 6MM
404 PN03M HEX NUT M8-1.25 417 PAW05M HEX WRENCH 5MM
405 P0643405 CABINET BASE 418 PAW04M HEX WRENCH 4MM
406 P0643406 FRONT COVER 419 PAW03M HEX WRENCH 3MM
407 P0643407 GRIZZLY LOGO 420 PAW02.5M HEX WRENCH 2.5MM
408 PS02M PHLP HD SCR M4-.7 X 12 421 PAW02M HEX WRENCH 2MM
409 P0643409 CABINET DOOR 422 PAW01.5M HEX WRENCH 1.5MM
410 P0643410 DOOR LATCH 423 PWR1719 COMBO WRENCH 17/19MM
411 PS08M PHLP HD SCR M5-.8 X 12 424 PWR1214 COMBO WRENCH 12/14MM
412 PN04M HEX NUT M4-.7 425 PWR810 COMBO WRENCH 8/10MM
413 PN06M HEX NUT M5-.8
