Grindmaster PIC-4 Series Manuel utilisateur

Item # ____________________________

Project ____________________________

Date _____________________________

• 4 generous hoppers, including one extra large

11.5 lb (5.2 kg) “Focus Flavor” hopper, and three large

5.5 lb (2.5 kg) hoppers

• Draw more attention and sales with large, front-lit

graphics. Easy change graphics and easy access lighting.

• Patented safety rib on dispense nozzle and generous cup

clearance assures cups don’t catch.

• Large capacity drain tray

• Prepare a variety of food and drinks with optional hot

water dispense.

• Continuous flow dispensing for a variety of cup sizes.

• Substantial 7” cup clearance accommodates popular

cup sizes.

• Serve fresh, hot coffee - FAST - using your soluble coffee

with our soluble coffee option.

• Water anytime, anywhere with our water pump

• Thermostat adjustable to dispense ambient

temperature beverages.

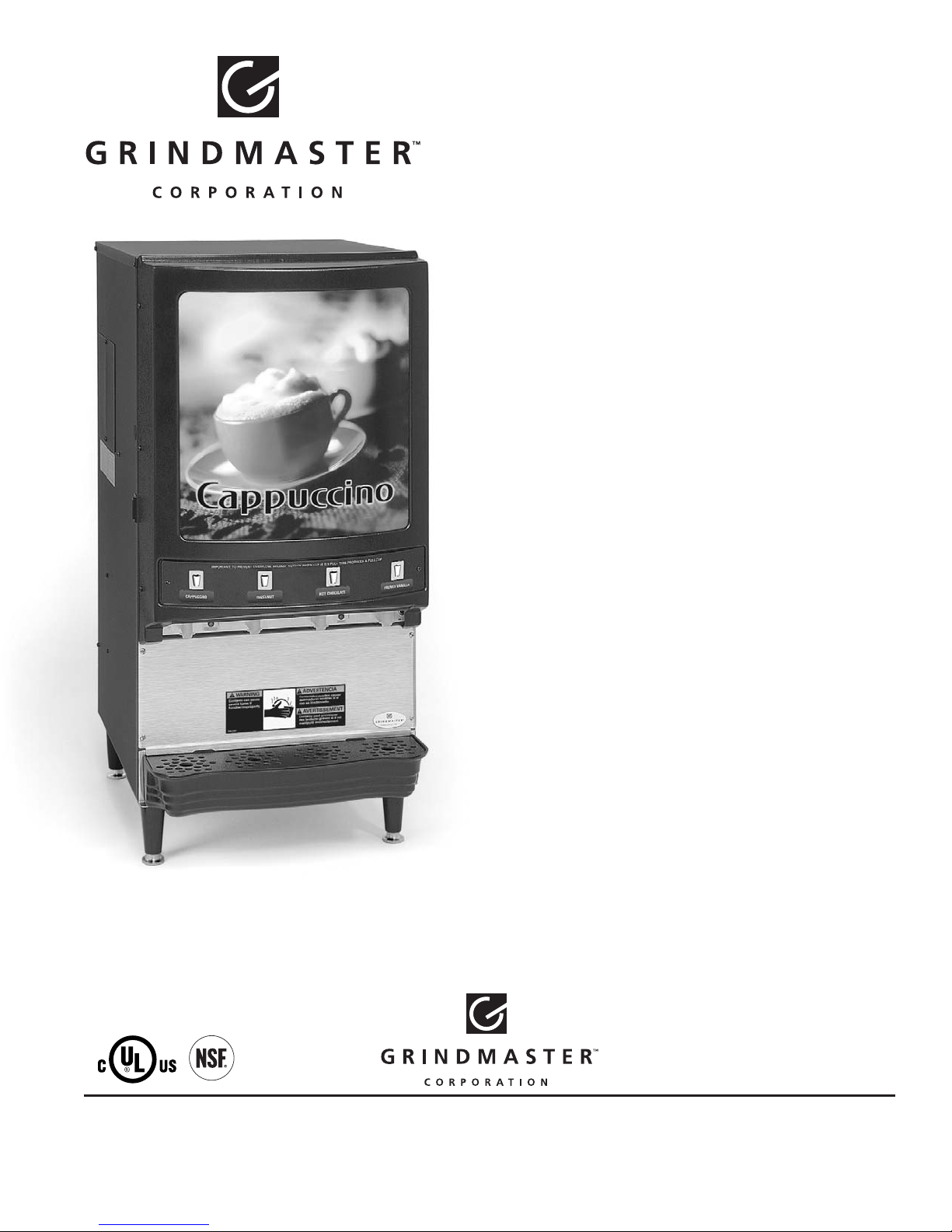

PIC-4 Series - Four Flavor

Powdered Specialty Beverage Dispensers

with Focus Flavor Hopper

Grindmaster® Coffee Grinders and Brewers • PrecisionBrew™ Brewing Systems • Espressimo® Espresso Machines

Crathco® Hot Beverage Dispensers • Crathco® Cold and Frozen Beverage Dispensers • AMW Coffee and Tea Systems

Tel (502) 425-4776 • Fax (502) 425-4664 • 1-800-695-4500 (USA & Canada only)

P.O. Box 35020 • Louisville, KY 40232 • USA

www.grindmaster.com • email: info@grindmaster.com

Ideal for dispensing a variety of products including cappuccino, hot chocolate, soup,

chai tea, steamed milk, hot apple cider, flavored cappuccinos, and gourmet cocoas.

PIC-4 Series - Four Flavor

Powdered Specialty Beverage Dispenser with Focus Flavor Hopper

Specifications Model PIC-4

Electrical & Listings PIC-4: 120V/60Hz / 1650W / 14A (UL/ NSF)

PIC4-CUL: 120V/60Hz / 1400W / 12A (CUL, UL, NSF)

# of Hoppers 4

Hopper Size (3) 5.5 lb (2.5 kg)

(1) 11.5 lb (5.2 kg)

Water Line Connection 1/4” (6.35 mm) flare

Tank Size 3.5 Gallons (13.2 liters)

Cup Clearance 7” (18 cm) standard

Dimensions (H x W x D) 32-1/2”* x 16-1/2” x 22” (83 cm x 42 cm x 57 cm)

*Add 4” to 5” (10.2 cm - 12.7 cm) to height when using 4” adjustable legs

Ship Dimensions (H x W x D) 38” x 21” x 27” (97 cm x 53 cm x 69 cm)

Weight 80 lbs (37 kg)

Ship Weight 100 lbs (46 kg)

Model PIC-4W

Grindmaster® Coffee Grinders and Brewers • PrecisionBrew™ Brewing Systems • Espressimo® Espresso Machines

Crathco® Hot Beverage Dispensers • Crathco® Cold and Frozen Beverage Dispensers • AMW Coffee and Tea Systems

Tel (502) 425-4776 • Fax (502) 425-4664 • 1-800-695-4500 (USA & Canada only)

P.O. Box 35020 • Louisville, KY 40232 • USA

www.grindmaster.com • email: info@grindmaster.com 0608 Form # CC-262-05© Grindmaster Corporation, 2002

PRINTED IN USA

• Manual Flow*

• Single Portion per head*

* Available with or without hot water option

• Three portion sizes per head plus “top-off”

Choice of Controls:

5.5 lb hoppers

11.5 lb Focus

Flavor hopper

optional hot water dispense

Specifications are subject to improvement or change without notice.

Standard Options*(standard unit has manual flow dispensing)

Water Pump (Part # 60568) (115V /60Hz) External water pump allows standard machine to operate off of remote or bottled water supply.

Soluble Coffee Option Serve fresh, hot coffee fast using your soluble coffee with our soluble coffee option. Available on

1 to 4 dispense heads (specify number of heads).

* Additional cost applies

Custom Options*(available with minimum purchase quantity)

Hot Water Dispense - add “W” to end of model # Fifth dispense head at center of unit for hot water

Portion Control - 3 cup sizes & top off

(add “3A” to model #)

Dispenses preset portion of product at the push of a button - 3 cup sizes (small, medium, large)

per head plus top off button are easily programmed

Key Lock Lock on door offers added security (additional cost applies)

High Capacity Output (add “Q” to model number) 2500W heater offers extra quick recovery for added capacity (120/240V / 2500W / 60Hz).
