Read all safety rules and instructions carefully before operating this tool.

Owner’s Manual

TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757)

www.GreenWorksTools.com

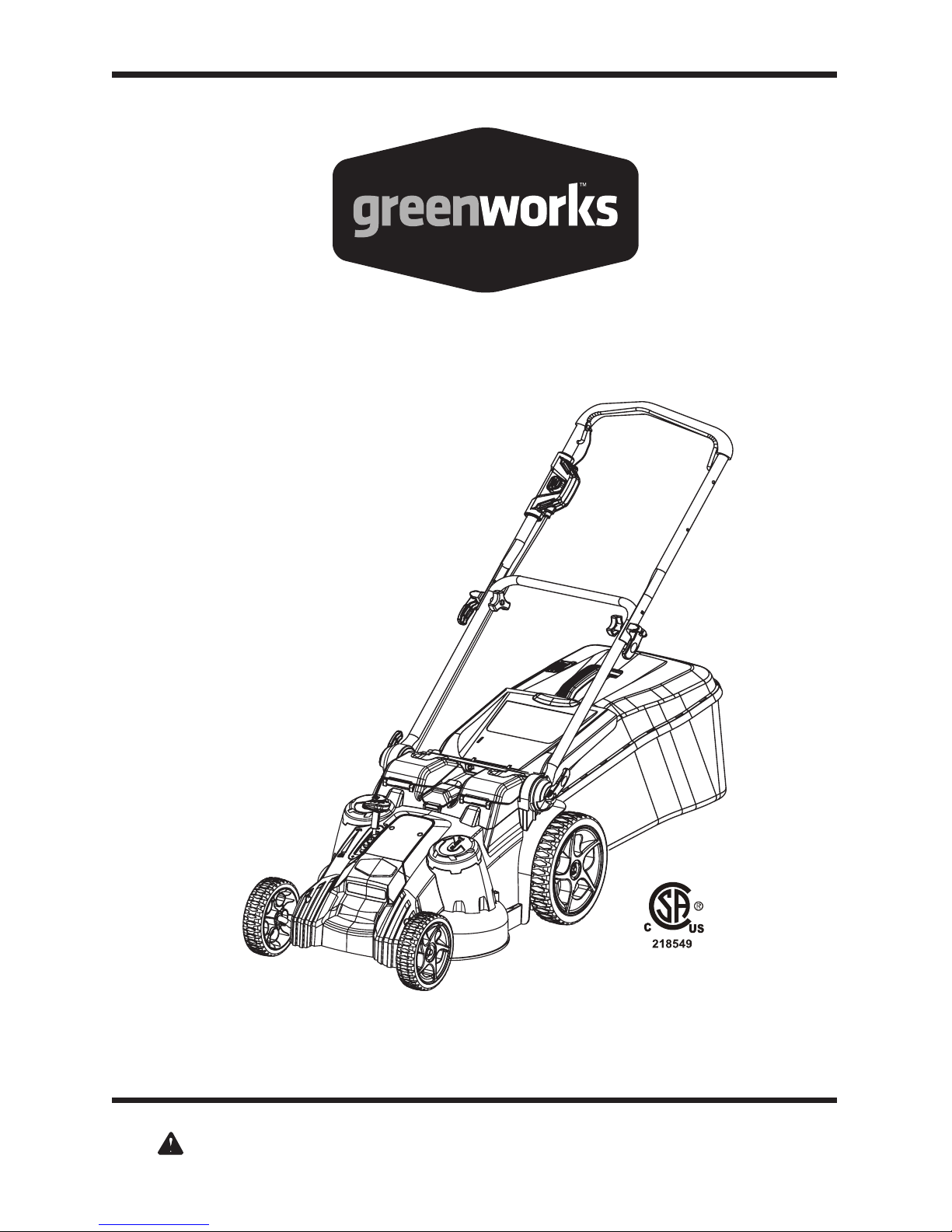

40 V Lithium-Ion Dual Blade Mower

25302

Contents .............................................................................................................................. 2

Product specications .......................................................................................................... 2

Safety information ............................................................................................................. 3-7

Symbols ............................................................................................................................8-9

Know your lawn mower ...................................................................................................... 10

Assembly .......................................................................................................................11-17

Operation ...................................................................................................................... 18-22

Battery charger ............................................................................................................. 23-24

Maintenance .................................................................................................................25-28

Service .............................................................................................................................. 29

Environmentally safe battery disposal ............................................................................... 30

Troubleshooting ................................................................................................................. 31

Warranty ............................................................................................................................ 32

Exploded View ................................................................................................................... 33

Parts List.......................................................................................................................34-36

PRODUCT SPECIFICATIONS

40 V LITHIUM-ION DUAL BLADE MOWER

Battery type ............................................................................................ 40V Lithium-ion

Charger time ........................................................................1 hour, for 40V 73Wh battery

2 hours, for 40V 146Wh battery

No-load speed ................................................................................................ 5000 RPM

Height adjustments .................................................................1 3/8- 3 3/8” (3.5 - 8.5 cm)

Functions .................................................................................. 2-in-1: Mulch or rear bag

Unit weight (without battery) ................................................................ 42.5 lbs (19.3 kg)

CONTENTS

SAFETY INFORMATION

GENERAL SAFETY RULES

READ ALL INSTRUCTIONS CAREFULLY

WARNING

This symbol indicates important safety instructions. If these instructions are not followed, it could

endanger the personal safety and/or property of the operator and others. Read and understand

all instructions in this manual before attempting to operate the mower. Failure to comply with

these instructions may result in personal injury.

DANGER

This mower was built to be operated according to the rules for safe operation that are contained

in this manual. As with any type of power equipment, carelessness or error on the part of the

operator can result in serious injury. This mower is capable of amputating body parts and

throwing objects. Failure to observe the following safety rules could result in serious injury or

death.

WARNING

Basic safety precautions should always be followed when using electric lawn mowers, in order to

reduce the risk of re, electric shock, and personal injury.

WARNING

Use of this mower should be restricted to individuals who have read and understoood and will

follow the warnings and instructions that are printed in this manual and on the mower.

SAFETY INFORMATION

• Carefully read all instructions on the mower and in the manual before attempting to assemble and

operate the mower. Keep this manual in a safe place for future reference, and consult it regularly.

• Become familiar with all controls and their proper operation. Know how to stop the mower and

how to disengage the power in an emergency.

• In order to avoid contact with the blade or injury caused by a thrown object, stay in the

operating zone behind the handles, and keep children and bystanders at least 50’ (15 m) away

from the mower while it is in operation. Stop the motor immediately if someone enters the

mowing area.

• Thoroughly inspect the area where the mower is to be used. Remove all stones, sticks, wire,

bones, toys, and other objects that could be tripped over or thrown by the blade. Thrown

objects can cause serious personal injury.

• Plan your mowing pattern in such a way as to avoid discharging material toward roads,

sidewalks, bystanders, etc. Do not discharge material against a wall or obstruction. Doing so

may cause the discharged material to ricochet back toward the operator.

• Always wear proper eye protection that complies with ANSI Z87.1 in order to protect your

eyes while operating or performing any adjustment or repair. Thrown objects that ricochet can

cause serious eye injury.

• Always wear a face mask or a dust mask when operating the mower in a dusty environment.

• Dress properly. Do not wear loose clothing or jewelry that can get caught in moving parts. The

wearing of protective gloves and safety footwear is recommended.

• Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuit(s) or

outlet(s) that will be used to charge the lawn mower battery. Outlets with built-in GFCI

protection are available, and may be used as an added safety measure.

• Many injuries occur as a result of the mower being pulled over the operator’s foot during a

fall caused by slipping or tripping. Do not operate this mower in bare feet, or while wearing

sandals or lightweight (e.g., canvas) shoes. Do not hold on to the mower if you are falling.

Release the handle immediately.

• Never pull the mower back toward you while you are walking. If you must back the mower

away from a wall or an obstruction, rst look down and behind in order to avoid tripping, and

then follow these steps:

• Step back from the mower in order to fully extend your arms.

• Be sure that you are well balanced.

• Pull the mower back slowly.

• Do not use the mower for any job except that for which it is intended. Do not force the mower.

• Do not operate the mower while under the inuence of alcohol or drugs.

• Stay Alert: Do not operate the mower when you are tired. Pay attention to what you are doing.

Use common sense.

• Do not put hands or feet near rotating parts or under the cutting deck. Contact with the blade

can amputate hands and feet.

• Do not attempt to adjust the wheels or the cutting height while the motor is running.

• Avoid dangerous environments. Do not operate the mower in the rain or in wet or damp grass.

• Mow only in daylight or in good articial light. Do not rush a mowing job.

SAFETY INFORMATION

• Stop the blade when crossing gravel driveways, walkways, or roads.

• If the mower starts to vibrate excessively, stop the motor and check for the cause immediately.

Vibration is generally a warning of trouble.

• Stop the motor and wait until the blade comes to a complete stop before removing the grass

catcher or unclogging the chute. The cutting blade will continue to rotate for a few seconds

after the motor is shut off. Do not place any part of your body in the blade area until you are

sure that the blade has stopped rotating.

• Never operate mower without a proper trail shield, discharge cover, grass catcher, switch

control, or other safety device in place and in working order. Do not operate the mower with

damaged safety devices. Doing so can result in injury.

• Don’t force lawn mower. It will do the job better and safer at the rate for which it was designed.

• Store idle lawn mower indoors. When not in use, lawn mower should be stored in an indoor

dry and look-up place, out of reach of children.

• Maintain lawn mower. Keep cutting edgers sharp and clean for best and safety performance.

• If lawn mower strikes a foreign objects follow these steps:

• Stop lawn mower, release the switch.

• Remove the key and battery.

• Inspect for damage.

• Repair any damage before restarting and operating the lawn mower.

• Do not charge lawn mower in rain or in wet location.

• Remove or disconnect battery before servicing, cleaning or removing material from lawn mower.

CHILD SAFETY

Tragic accidents can occur if the operator is not aware of the presence of children.

• Keep children out of the mowing area and under the watchful care of a responsible adult.

• Do not allow children under the age of 14 to operate this mower. Children who are 14 years

of age and older must read and understand the operating instructions and safety rules in this

manual, and must be trained and supervised by a parent.

• Stay alert, and turn the mower off if a child or any other person enters the mowing area.

• Look behind and down for small children before and while moving backwards.

• Use extreme care when approaching blind corners, doorways, shrubs, trees, or other objects

that may obscure your view of a child who may run into the path of the mower.

BATTERY & CHARGER

CAUTION

USE ONLY GREENWORKS APPROVED REPLACEMENT BATTERIES, OTHER BATTERIES

MAY CAUSE INJURY OR DAMAGE TO THE MOWER. Use with GREENWORKS 40V battery.

BATTERY SAFETY RULES

• Battery tools do not have to be plugged into an electrical outlet; therefore, they are always in

SAFETY INFORMATION

PROPER CARE FOR BATTERY

Off-season storage

To obtain the longest possible battery life, we suggest the following:

operating condition. Be aware of possible hazards when not using your battery tool or when

changing accessories. Following this rule will reduce the risk of electric shock, re, or serious

personal injury.

• Do not place battery tools or their batteries near fire or heat. This will reduce the risk of

explosion and possibly injury.

• Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has

been dropped or received a sharp blow. A damaged battery is subject to explosion. Properly

dispose of a dropped or damaged battery immediately.

• Batteries can explode in the presence of a source of ignition, such as a pilot light. To reduce

the risk of serious personal injury, never use any cordless product in the presence of open

flame. An exploded battery can propel debris and chemicals. If exposed, flush with water

immediately.Do not charge battery tool in a damp or wet location. Following this rule will

reduce the risk of electric shock.

• For best results, your battery tool should be charged in a location where the temperature is

more than 45°F but less than 104°F. To reduce the risk of serious personal injury, do not store

outside or in vehicles.

• Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes

in contact with your skin, wash immediately with soap and water. If liquid gets into your eyes,

ush them with clean water for at least 10 minutes, then seek immediate medical attention.

Following this rule will reduce the risk of serious personal injury.

• When battery pack is not in use, keep it away from other metal objects like: paper clips, coins,

keys, nails, screws, or other small metal objects that can make a connection from one terminal

to another. Shorting the battery terminals together may cause sparks, burns, or a re.

• Always remove battery pack from your tool when you are assembling parts, making

adjustments, cleaning, or when not in use. Removing battery pack will prevent accidental

starting that could cause serious personal injury.

• Always remove battery pack before storing the device. When battery becomes fully charged,

unplug the charger from the power supply and remove the battery pack from the charger.

• Always wear eye protection with side shields marked to comply with ANSI Z87.1, along with

hearing protection. Failure to do so could result in objects being thrown into your eyes and

other possible serious injuries.

• Keep battery pack dry, clean, and free from oil and grease. Always use a clean cloth when

cleaning. Never use brake fluids, gasoline, petroleum-based products, or any solvents to

clean battery pack.

• When replacing batteries, all batteries should be replaced at the same time. Mixing fresh

and discharged batteries could increase internal cell pressure and rupture the discharge

battery(ies). (Applies to products employing more than one separately replaceable primary

battery.)

• When inserting batteries into this product, the proper polarity or direction must be observed.

Reverse insertion of batteries can result in leakage or explosion. (Applies to product

employing more than one separately replaceable primary battery.)

SAVE THESE INSTRUCTIONS

SAFETY INFORMATION

• Remove the battery pack from the charger once it is fully charged and ready for use.

For battery pack storage longer than 30 days:

• Store the battery pack where the temperature is below 80°F and away from moisture.

• Store battery packs in a 30%-50% charged condition.

• Every two months of storage, charge the pack as normal.

CHARGER SAFETY RULES

• Charge the mower battery in a dry area that is protected from the weather. Do not expose the

mower or the charger to rain. Do not charge the battery in a wet location. Operate the battery

charger in temperatures between 45° and 104°F. In order to reduce the risk of electric shock,

use only the charger that is provided by the manufacturer to charge the battery.

• DO NOT ABUSE THE CHARGE CORD. Never carry the charger by the cord. Do not

disconnect the charger from the outlet or from the mower by pulling the charger cord.

• Do not use a damaged charger. Replace the charger cords or the charger immediately.

• Keep the mower and the charger away from water, heat sources (radiators, heaters, stoves,

etc.), ames, and chemicals.

• Make sure the battery pack is secured in the charger before beginning operation.

• The battery pack will become slightly warm to the touch while charging. This is normal and

does not indicate a problem.

• Do not place the charger and battery pack in an area of extreme heat or cold. They will work

best at normal room temperature.

• When batteries become fully charged, unplug the charger from the power supply and remove

the battery pack.

WARNING

When transporting or servicing unit, always remove the key and battery.

WARNING(PROPOSITION 65)

Some dust created by power sanding, sawing, grinding, drilling and other construction activities

contains chemicals known to the state of California to cause cancer, birth defects or other

reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints,

• Crystalline silica from bricks and cement and other masonry products, and

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To

reduce your exposure to these chemical: work in a well ventilated area, and work with approved

safety equipment, such as those dust masks that are specially designed to lter out microscopic

particles.

SYMBOLS

Some of the following symbols may be used on this product. Please study them and learn their

meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.

SYMBOL DESIGNATION/EXPLANATION

V Volts

A Amperes

Hz Hertz

W Watts

Hrs Hours

Precautions that involve your safety.

To reduce the risk of injury, user must read and understand user’s manual before

using this product.

Wear eye and head protection when operating this equipment.

Do not expose machine to rain or wet conditions.

Pay attention that bystanders are not injured through foreign objects thrown from

the mower.

Keep all bystanders (especially children and pets) at least 15 m away from the

work area.

Keep hands and feet away from blade and cutting area.

Switch off and remove isolator key before adjusting, cleaning and before leaving the

product unattended for any period.

Do not operate on inclines greater than 15°. Mow across the face of slopes, never

up and down.

Beware of electric shock hazard.

Wait for all components of machine to have completely stopped before touching

them.

The charger is intended for indoor use only.

The following signal words and meanings are intended to explain the levels of risk associated

with this product.

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please

recycle where facilities exist. Check with your local authority or retailer for recycling

advice.

The battery contains material which is hazardous to you and the environment. It must

be removed and disposed of separately at a facility that accepts lithium-ion batteries.

SERVICE

Servicing requires extreme care and knowledge and should be performed only by a qualified

service technician. For service we suggest you return the product to your nearest AUTHORIZED

SERVICE CENTER for repair. When servicing, use only identical replacement parts.

WARNING

To avoid serious personal injury, do not attempt to use this product until you have read this

Owner's Manual thoroughly and understand it completely. If you do not understand the warnings

and instructions in this Owner's Manual, do not use this product. Call the Toll-free Helpline (1-

888-909-6757) for assistance.

WARNING

The operation of any power tool can result in foreign objects being thrown into your

eyes, which can result in severe eye damage. Before beginning power tool operation,

always wear safety goggles or safety glasses with side shields and, when needed, a

full face shield. We recommend Wide Vision Safety Mask for use over eyeglasses or

standard safety glasses with side shields. Always use eye protection which is marked

to comply with ANSI Z87.1.

SYMBOL SIGNAL MEANING

DANGER Indicates an imminently hazardous situation, which, if not

avoided, will result in death or serious injury.

WARNING Indicates a potentially hazardous situation, which, if not avoided,

could result in death or serious injury.

CAUTION Indicates a potentially hazardous situation, which, if not avoided,

may result in minor or moderate injury.

CAUTION (Without Safety Alert Symbol) Indicates a situation that may

result in property damage.

SYMBOLS

SAVE THESE INSTRUCTIONS

KNOW YOUR LAWN MOWER

Fig. 1

Motor/blade

control assembly

Start button

Height

adjustment

lever

Bail

Upper

handle

Lower

handle

40V Charger

(Model#:29482)

Mulching

plug

Read this operator's manual and safety rules before operating your lawn mower. Compare the

illustration in Figure 1 to your lawn mower in order to familiarize yourself with the location of

various controls and adjustments. Save this manual for future reference.

Battery door

Key door Key

Grass

catcher

bag

40V 73Wh Battery

(Model#:29462)

40V 146Wh Battery

(Model#:29472)

Table des matières

Autres manuels GreenWorks Tondeuse à gazon

GreenWorks

GreenWorks GD48LM51SP Manuel utilisateur

GreenWorks

GreenWorks LME364 Manuel utilisateur

GreenWorks

GreenWorks PRO Optimow 25 Manuel utilisateur

GreenWorks

GreenWorks RMQ702 Manuel utilisateur

GreenWorks

GreenWorks GD40LM46SP Manuel utilisateur

GreenWorks

GreenWorks LME455 Manuel utilisateur

GreenWorks

GreenWorks LMF318 Manuel utilisateur

GreenWorks

GreenWorks MO09B01 Manuel utilisateur

GreenWorks

GreenWorks LMF320 Manuel utilisateur

GreenWorks

GreenWorks LMG401 Manuel utilisateur

GreenWorks

GreenWorks G40LM35K2X Manuel utilisateur

GreenWorks

GreenWorks MO48L520 Manuel utilisateur

GreenWorks

GreenWorks G40LM41 Manuel utilisateur

GreenWorks

GreenWorks 2500402 Manuel utilisateur

GreenWorks

GreenWorks MO48B01 Manuel utilisateur

GreenWorks

GreenWorks LMC403 Manuel utilisateur

GreenWorks

GreenWorks LMG301 Manuel utilisateur

GreenWorks

GreenWorks LME456 Manuel utilisateur

GreenWorks

GreenWorks G40LM40 Manuel utilisateur

GreenWorks

GreenWorks Optimow 10 Manuel utilisateur

GreenWorks

GreenWorks 25157 Manuel utilisateur

GreenWorks

GreenWorks LME366 Manuel utilisateur

GreenWorks

GreenWorks LMF319 Manuel utilisateur

GreenWorks

GreenWorks 25223 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur
