GREAT PLAINS SS1300 Mode d’emploi

FIELDADJUSTMENTGUIDE

Document #TLUS550C-0001A

1 of 3

Document # TLUS550C-0001A

Tillage

InLine Sub-Soiler

Proper servicing and adjustment is key to the long life of all farm equipment. With careful and systematic

inspection of equipment, costly maintenance, time and repair can be avoided. The following information

will assist with recommended servicing and adjustments:

48715

Models Affected:SS1300, SS1700, SS1800, SS2000

Date: March 9, 2015

General Information

Document #TLUS550C-0001A 2 of 3

Auto Reset Shank Adjustment:

The dual spring package should be preloaded so that

both top and bottom springs are loaded evenly and

measure 23.8 inches in length. Note: The spring pack is

factory set and should not be disassembled in the field.

Serious injury can result from instant release of stored

energy.

48716

Gauge Wheel Adjustment:

1) Using the shank depth decal (1) located on the front

of the sub soiler, determine the desired shank depth and

pin placement.

2) Remove the cross pin (2) from the gauge wheel

assembly and adjust the gauge wheel either up or down

using the jack (3).

3) Once the desired holes line up, re-insert the cross pin

to hold the gauge wheel in place. Note: It is important to

re-install the cross pin to avoid overloading the jack

during field operation.

48717

Coulter Height Adjustment:

1) When adjusting the height of the coulter, start by sub-

tracting 8 inches from the desired shank depth.

2) Take that distance and measure from the top of the

frame to the top of the coulter shank. This adjustment

will allow the coulter to run approximately hub deep

during field operation.

48718

Coulter Alignment:

1) Loosen the top and bottom jam nuts (4), set screws

(5) and swivel limiter set screw (6). Lower the sub soiler

into the ground and drive forward a few feet.

2) With the sub soiler in the ground, tighten the top and

bottom set screws (5) and jam nuts (4). Position the

swivel limiter in the center of the slot and tighten the set

screw (6).

3) Check the alignment of the coulter and shank. Move

either the coulter or shank so that the shank is in the

center of the grove made by the coulter.

Note: If the coulters need to swivel, loosen the top and

bottom set screws (4) and jam nuts (5). Re-tighten the

jam nut to prevent the set screw from falling out.

48719

Document #TLUS550C-0001A

3 of 3

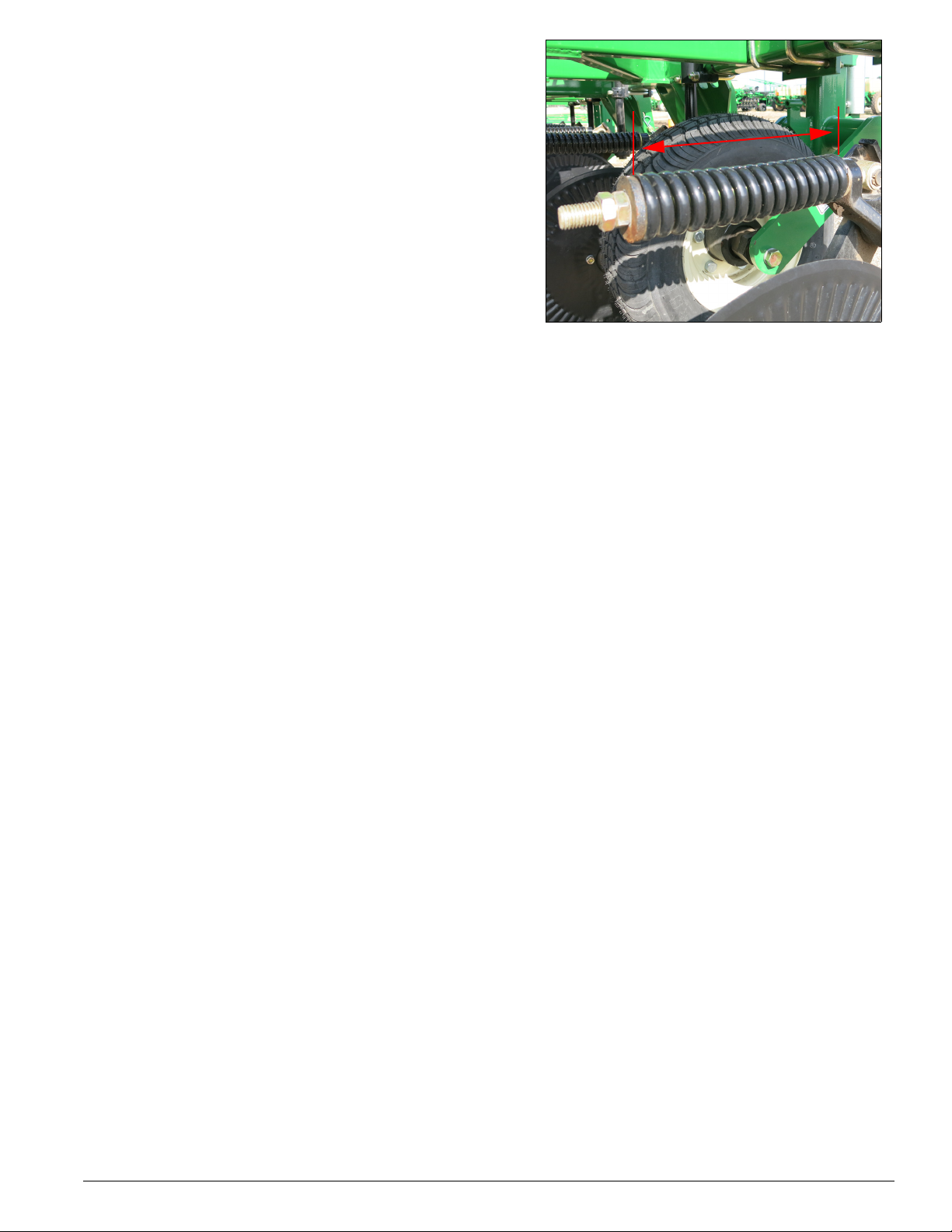

Coulter Spring Adjustment:

Coulter springs are preset at the factory giving coulters an

initial operation force of 400+lbs. This setting is adequate

for most field conditions. Resetting the coulter spring

shorter than 9 7/8 inches can cause premature failure of

parts.

48720
